AP41 Hardware Installation Guide
Overview
The Mist AP41 delivers 4x4 MIMO with four spatial streams when operating in
multi-user (MU) or single-user (SU) mode that supports the IEEE 802.11ac
Wave 2 specification.
AP41 Hardware Installation Guide
Mist Systems (C) Copyright 2016. All Rights Reserved
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mist AP41-US
Summary of Contents for Mist AP41-US

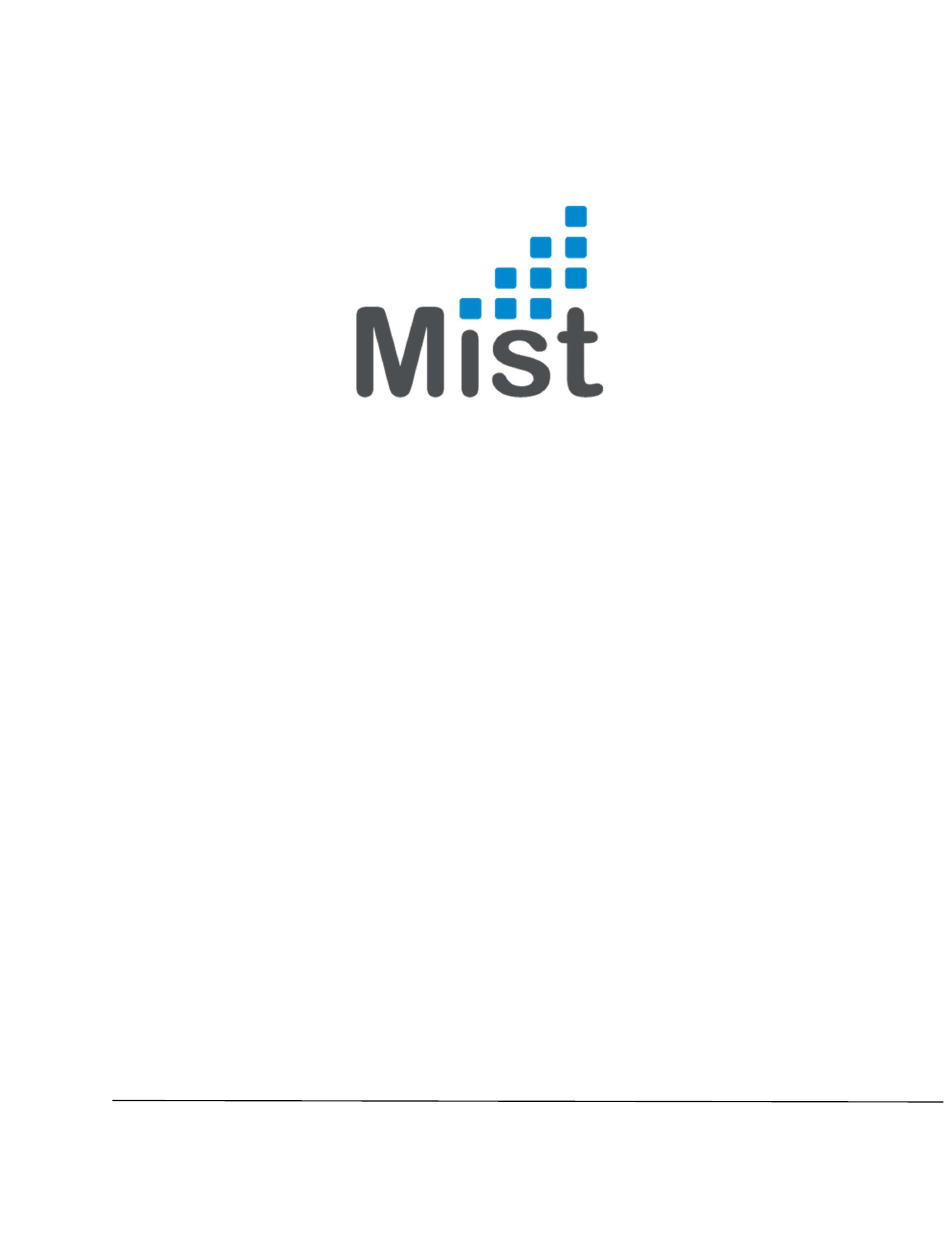

- Page 1 AP41 Hardware Installation Guide Overview The Mist AP41 delivers 4x4 MIMO with four spatial streams when operating in multi-user (MU) or single-user (SU) mode that supports the IEEE 802.11ac Wave 2 specification. AP41 Hardware Installation Guide Mist Systems (C) Copyright 2016. All Rights Reserved...
- Page 2 I/O ports and Kensington lock AP41 Hardware Installation Guide Mist Systems (C) Copyright 2016. All Rights Reserved...
-
Page 3: Mounting Kit Installation
Reset Reset to the factory default settings USB2.0 support interface 12VDC Support for the 12VDC power supply recommended by Mist 8-pin interface for digital input, digital output, analog input, and ground Module 10/100/1000 BaseT RJ45 interface Eth1 10/100/1000 BaseT RJ45 interface 10/100/1000 BaseT RJ45 interface that supports 802.3at... - Page 4 AP41 Hardware Installation Guide Mist Systems (C) Copyright 2016. All Rights Reserved...
- Page 5 In a wall mount installation, please use screws that have a 1/4in. (6.3mm) diameter head with a length at least 2 in. (50.8mm). The AP41BR3 attaches to a rod that is 5/8”-11. AP41 Hardware Installation Guide Mist Systems (C) Copyright 2016. All Rights Reserved...
- Page 6 In a wall mount installation, please use screws that have a 1/4in. (6.3mm) diameter head with a length at least 2 in. (50.8mm). The AP41BR4 attaches to a rod that is M16-2. AP41 Hardware Installation Guide Mist Systems (C) Copyright 2016. All Rights Reserved...
-
Page 7: Technical Specifications
FCC Part 15.247, 15.407, 15.107, and 15.109 RSS-247 ICES-003 (Canada) Compliance standards EN 301 489-1 V1.9.2 EN 301 489-17 V2.2.1 EN 300 328 V1.9.1 EN 301 893 V1.8.1 EN 50385 IEC/EN 60950-1 AP41 Hardware Installation Guide Mist Systems (C) Copyright 2016. All Rights Reserved... - Page 8 Suitable for use in environmental air space in accordance with Section 300- 22(C) of the National Electrical Code, and Sections 2-128, 12-010(3), and 12- 100 of the Canadian Electrical Code, Part 1, CSA C22.1. AP41 Hardware Installation Guide Mist Systems (C) Copyright 2016. All Rights Reserved...
-
Page 9: Warranty Information
LAN connections as defined by the 802.3at Standard. If you need further assistance with purchasing the power source, please contact Mist Systems, Inc. AP41 Hardware Installation Guide Mist Systems (C) Copyright 2016. All Rights Reserved... - Page 10 ● This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ● For operation within 5.15 ~ 5.25GHz / 5.47 ~5.725GHz frequency range, it is restricted to indoor environment. AP41 Hardware Installation Guide Mist Systems (C) Copyright 2016. All Rights Reserved...
-
Page 11: Industry Canada
(iv) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Avertissement AP41 Hardware Installation Guide Mist Systems (C) Copyright 2016. All Rights Reserved... - Page 12 This device complies with the following 1999/5/EC R&TTE Directive and Standards Versions: 1. EN 301 489-1 V1.9.2 2. EN 301 489-17 V2.2.1 3. EN 300 328 V1.9.1 4. EN 301 893 V1.8.1 AP41 Hardware Installation Guide Mist Systems (C) Copyright 2016. All Rights Reserved...
