AP43 Hardware Installation Guide
Overview

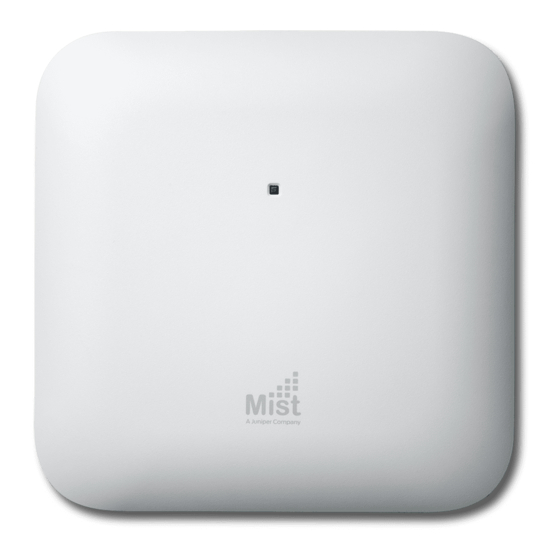

The Mist AP43 contains three IEEE 802.11ax radios that deliver 4x4 MIMO
with four spatial streams when operating in multi-user (MU) or single-user
(SU) mode.
AP43 Hardware Installation Guide
Mist Systems (C) Copyright 2020. All Rights Reserved
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP43 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mist AP43

Summary of Contents for Mist AP43

  • Page 1 AP43 Hardware Installation Guide Overview The Mist AP43 contains three IEEE 802.11ax radios that deliver 4x4 MIMO with four spatial streams when operating in multi-user (MU) or single-user (SU) mode. AP43 Hardware Installation Guide Mist Systems (C) Copyright 2020. All Rights Reserved...
  • Page 2 I/O ports AP43 Hardware Installation Guide Mist Systems (C) Copyright 2020. All Rights Reserved...
  • Page 3 Reset Reset to the factory default settings 12VDC Support for the 12VDC power supply recommended by Mist 100/1000/2500BASE-T RJ45 interface that supports Eth0+PoE-in 802.3at/802.3bt PoE PD 10/100/1000BASE-T RJ45 interface + 802.3af PSE (if PoE- Eth1+PSE-out in is 802.3bt) USB2.0 support interface...
  • Page 4 AP43 Mounting In a wall mount installation, please use screws that have a 1/4in. (6.3mm) diameter head with a length at least 2 in. (50.8mm). AP43 Hardware Installation Guide Mist Systems (C) Copyright 2020. All Rights Reserved...
  • Page 5 AP43 Hardware Installation Guide Mist Systems (C) Copyright 2020. All Rights Reserved...
  • Page 6 AP43 Hardware Installation Guide Mist Systems (C) Copyright 2020. All Rights Reserved...
  • Page 7 AP43 Hardware Installation Guide Mist Systems (C) Copyright 2020. All Rights Reserved...
  • Page 8 AP43 Hardware Installation Guide Mist Systems (C) Copyright 2020. All Rights Reserved...
  • Page 9 The bracket attaches to a rod that is 5/8”-11. The bracket attaches to a rod that is M16-2. AP43 Hardware Installation Guide Mist Systems (C) Copyright 2020. All Rights Reserved...
  • Page 10 AP43 Hardware Installation Guide Mist Systems (C) Copyright 2020. All Rights Reserved...

  • Page 11: Technical Specifications

    Suitable for use in environmental air space in accordance with Section 300-22(C) of the National Electrical Code, and Sections 2-128, 12-010(3), and 12-100 of the Canadian Electrical Code, Part 1, CSA C22.1. AP43 Hardware Installation Guide Mist Systems (C) Copyright 2020. All Rights Reserved...

  • Page 12: Warranty Information

    Warranty Information The AP43 family of Access Points comes with a limited lifetime warranty. Ordering Information: Access Points AP43-US Premium 802.11ax WiFi and BLE AP – Internal Antenna for the US Regulatory domain AP43E-US Premium 802.11ax WiFi and BLE AP – External Antenna...

  • Page 13: Regulatory Compliance Information

    LAN connections as defined by the 802.3at Standard. Operations in the 5.15GHz – 5.35GHz band are restricted to indoor usage only. If you need further assistance with purchasing the power source, please contact Mist Systems, Inc. AP43 Hardware Installation Guide...
  • Page 14 ● This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ● For operation within 5.15 ~ 5.25GHz / 5.47 ~5.725GHz frequency range, it is restricted to indoor environment. AP43 Hardware Installation Guide Mist Systems (C) Copyright 2020. All Rights Reserved...

  • Page 15: Industry Canada

    (i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; AP43 Hardware Installation Guide Mist Systems (C) Copyright 2020. All Rights Reserved...
  • Page 16 This device complies with the Radio Equipment Directive, 2014/53/EU, issued by the Commission of the European Community. Hereby, Mist Systems, Inc. declares that the radio equipment type (AP43) is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following: https://www.mist.com/support/...

  • Page 17: South Korea

    Morocco South Korea 해당 무선설비는 운용 중 전파혼신 가능성이 있음 Oman Pakistan TAC Number: 9.200/2020 AP43 Hardware Installation Guide Mist Systems (C) Copyright 2020. All Rights Reserved...
  • Page 18 до (18.06.2026) года, зарегистрирована в Федеральном агенстве связи (26.06.2020) года 4. Декларация соответствия № Д-ИВPД – 6881 от (18.06.2020) года, действительна до (18.06.2026) года, зарегистрирована в Федеральном агенстве связи (26.06.2020) года AP43 Hardware Installation Guide Mist Systems (C) Copyright 2020. All Rights Reserved...
