AP63 Hardware Installation Guide
Overview

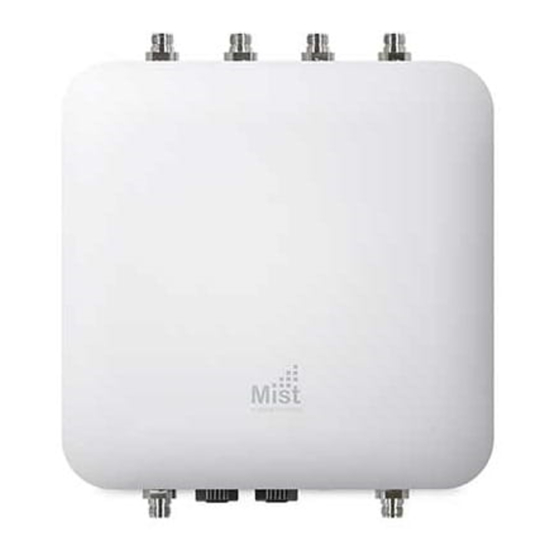

The Mist AP63 is an IP67 rated outdoor access point which contains three
IEEE 802.11ax radios that deliver 4x4 MIMO with four spatial streams when
operating in multi-user (MU) or single-user (SU) mode.
AP63 Hardware Installation Guide
Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mist AP63
Summary of Contents for Mist AP63
- Page 1 AP63 Hardware Installation Guide Overview The Mist AP63 is an IP67 rated outdoor access point which contains three IEEE 802.11ax radios that deliver 4x4 MIMO with four spatial streams when operating in multi-user (MU) or single-user (SU) mode. AP63 Hardware Installation Guide...
- Page 2 I/O ports 100/1000/2500BASE-T RJ45 interface that supports 802.3at/802.3bt ETH0/PoE IN PoE PD ETH1/PSE OUT 10/100/1000BASE-T RJ45 interface + 802.3af PSE (if PoE IN is 802.3bt) AP63 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
- Page 3 AP63 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
- Page 4 AP63 Mounting Kit Flush Mount Bracket Articulating Mount Bracket AP63 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
- Page 5 AP63 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
- Page 6 AP63 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
- Page 7 AP63 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
-
Page 8: Technical Specifications
285mm x 285mm x 85mm (11.2in x 11.2in x 3.3in) AP63: 3.4 kg (7.48 lbs) Weight AP63E: 3.9 kg (8.58 lbs) AP63 / AP63E : -40° to 65° C without solar loading Operating temperature AP63 / AP63E: -40° to 55° C with solar loading... -
Page 9: Warranty Information
Warranty Information The AP63 family of Access Points come with a 1 year limited warranty. Ordering Information: Access Points AP63-US 802.11ax 4+4 Outdoor and BLE AP – Internal Antenna for the US Regulatory domain AP63E-US 802.11ax 4+4 Outdoor and BLE AP – External Antenna... -
Page 10: Regulatory Compliance Information
Regulatory Compliance Information: If you need further assistance with purchasing the power source, please contact Juniper Networks, Inc. AP63 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved... - Page 11 ● This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ● It must be Professionally installed. AP63 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
-
Page 12: Industry Canada
Avertissement Le présent émetteur radio (IC: 22068-AP63 / Model: AP63, AP63E) a été approuvé par Innovation, Sciences et Développement économique Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal d'antenne. Les types d'antennes non inclus dans cette liste qui ont un gain supérieur au gain maximal... - Page 13 Antenna Gain (dBi) Radio Type WLAN WLAN Bluetooth 2.4GHz 5GHz Acceltex ATS-OO-245- Omni 2.4GHz/5GHz 46-6NP-36 Acceltex ATS-OP-245- Patch 2.4GHz/5GHz 810-6NP-36 Juniper PIFA 81XKAF15,G35 Juniper 81XKAF15,G35 PIFA Juniper 81XKAF15,G35 PIFA AP63 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
- Page 14 This device complies with the Radio Equipment Directive, 2014/53/EU, issued by the Commission of the European Community. Hereby, Juniper Networks, Inc. declares that the radio equipment type (AP63) is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following: https://www.mist.com/support/...
