AP33 and AP32 Hardware Installation Guide
Overview

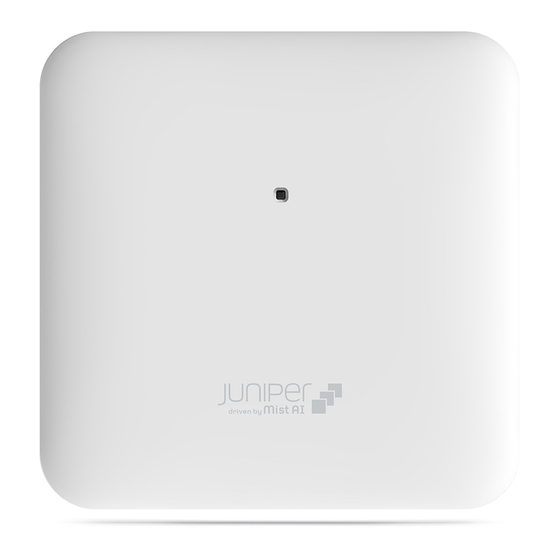

The Mist AP33 and AP32 contains three IEEE 802.11ax radios that deliver up
to 4x4 MIMO with four spatial streams when operating in multi-user (MU) or
single-user (SU) mode.
AP33 or AP32 Hardware Installation Guide
Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved
1
Advertisement
Table of Contents
Related Manuals for Mist AP33
Summary of Contents for Mist AP33
- Page 1 AP33 and AP32 Hardware Installation Guide Overview The Mist AP33 and AP32 contains three IEEE 802.11ax radios that deliver up to 4x4 MIMO with four spatial streams when operating in multi-user (MU) or single-user (SU) mode. AP33 or AP32 Hardware Installation Guide...
- Page 2 I/O ports Reset Reset to the factory default settings USB2.0 support interface Eth1 10/100/1000BASE-T RJ45 interface 100/1000/2500BASE-T RJ45 interface that supports Eth0+PoE 802.3at PoE PD AP33 or AP32 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
- Page 3 AP33/32 Mounting In a wall mount installation, please use screws that have a 1/4in. (6.3mm) diameter head with a length at least 2 in. (50.8mm). AP33 or AP32 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
- Page 4 AP33 or AP32 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
- Page 5 AP33 or AP32 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
- Page 6 AP33 or AP32 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
- Page 7 AP33 or AP32 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
- Page 8 The bracket attaches to a rod that is 5/8”-11. The bracket attaches to a rod that is M16-2. AP33 or AP32 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
- Page 9 AP33 or AP32 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
-
Page 10: Technical Specifications
5GHz - 4x4:4SS 802.11ax MU-MIMO & SU-MIMO 2.4GHz – 2x2:2SS 802.11ax MU-MIMO & SU-MIMO 2.4GHz / 5GHz scanning radio AP33 - 2.4GHz BLE with Dynamic Antenna Array AP32/AP32E - 2.4GHz BLE with Omni Antenna Total maximum PHY rate – 2974 Mbps Maximum PHY rate 5GHz –... -
Page 11: Warranty Information
Warranty Information The AP33 or AP32 family of Access Points comes with a limited lifetime warranty. Ordering Information: Access Points AP33-US 802.11ax WiFi and BLE Array AP - Internal Antenna for the US Regulatory domain AP33-WW 802.11ax WiFi and BLE Array AP – Internal Antenna for... -
Page 12: Regulatory Compliance Information
La violation de la règle pourrait entraîner une sanction fédérale. If you need further assistance with purchasing the power source, please contact Juniper Networks, Inc. AP33 or AP32 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved... - Page 13 ● This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. AP33 or AP32 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
-
Page 14: Industry Canada
Le présent émetteur radio (IC: 22068-AP33 / Model: AP32E, AP32, AP33) a été approuvé par ISED pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal. - Page 15 (c.-à-d., qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL. AP33 or AP32 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
- Page 16 This device complies with the Radio Equipment Directive, 2014/53/EU, issued by the Commission of the European Community. Hereby, Juniper Networks, Inc. declares that the radio equipment type (AP33, AP32, and AP32E) are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following: https://www.mist.com/support/...
-
Page 17: South Korea
Morocco South Korea 해당 무선설비는 운용 중 전파혼신 가능성이 있음 Belarus Oman AP33 or AP32 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved... - Page 18 [8dBi por 2.4GHz y 10dBi por 5GHz] quedan prohibidas. La impedancia requerida de la antena es de [50] ohms AP33 or AP32 Hardware Installation Guide Juniper Networks, Inc. (C) Copyright 2020. All Rights Reserved...
