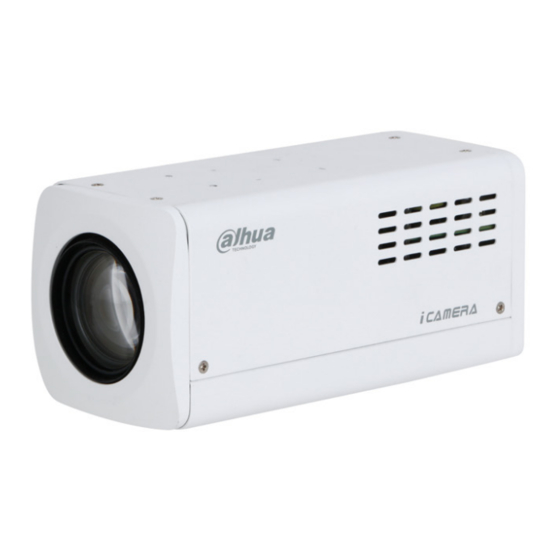

- Page 1 Network Speed Dome & PTZ Camera Installation Manual V1.0.0...
-
Page 2: Foreword
Foreword General This manual introduces the precautions, installation preparations and cables of the Speed Dome & PTZ Camera (hereinafter referred to as "the Device"). Some specifications and metrics might not apply to all models, and the actual product shall prevail. Safety Instructions The following categorized signal words with defined meaning might appear in the manual. - Page 3 of their respective owners. ● Please visit our website, contact the supplier or customer service if there is any problem occurred when using the Camera. ● If there is any uncertainty or controversy, please refer to our final explanation.
-
Page 4: Important Safeguards And Warnings
Important Safeguards and Warnings The manual will help you to use the Device properly. Read the manual carefully before using the Device, and keep it well for future reference. Operating Requirements ● Do not press hard, violently vibrate, and soak the Device when transporting and storing it. Complete package is necessary during the transportation. - Page 5 Power Requirements ● All installation and operations shall conform to local electrical safety regulations. ● Turn off the power and disconnect the power cord immediately if there is water or liquid falling into the Device. And contact your local retailer or customer service center. ●...
-
Page 6: Table Of Contents
Table of Contents Foreword ........................................I Important Safeguards and Warnings ............................III 1 Installation Preparation ..................................1 1.1 Basic Requirements .................................. 1 1.2 Installation Check ..................................1 1.3 Cable Preparation ..................................1 1.3.1 Video Cable Requirements ............................1 1.3.2 RS-485 Cable Requirements ............................2 1.3.3 Selecting Power Cable .............................. -
Page 7: Installation Preparation
1 Installation Preparation 1.1 Basic Requirements ● All installation and operations shall conform to your local electrical safety regulations, fire protection regulations, and other relevant regulations. ● Make sure that the application scenario conforms to installation requirements. Contact your local retailer or customer service center if there is any problem. -
Page 8: Rs-485 Cable Requirements
Table 1-1 Cables and maximum transmission distance (network) Model Maximum Transmission Distance (ft/m) RG59/U 750 ft/229 m RG6/U 1,000 ft/305 m RG11/U 1,500 ft/457 m Table 1-2 Cables and maximum transmission distance (HDCVI) Model Maximum Transmission Distance (ft/m) 720P (25 fps/30 fps): 1,640 ft/500 m SYV-75-3 720P (50 fps/60 fps): 984 ft/300 m 1080P (25 fps/30 fps): 984 ft/300 m... -
Page 9: Poe Power Cable
1.3.3.2 PoE Power Cable Table 1-4 PoE power cable POE Specification Network Cable Specification CAT5E and network cables with higher standard. HiPoE or BT... -
Page 10: Cables
2 Cables 2.1 Cable Description The Device is equipped with a multi-functional combination cable by default, including power cord, video cable, audio cable, RS-485 control cable, alarm cable, network cable, and optical fiber cable. For details, see Figure 2-1. - Page 11 The cables of different models vary, and the actual product shall prevail. The manual will introduce the cables as complete as possible. Figure 2-1 Cables Table 2-1 Cable description Description FC connector DC power input port 24V AC power input ●...
-
Page 12: Cable Connection
Description Video output port Ethernet port ● White: Audio input ● Red: Audio output ● Black: Audio grounding cable ● Blue: Alarm output 1 ● Black: Alarm output 2 ● Green: Contact switch 1 ● Pink: Contact switch 2 ● Yellow-green: Grounding cable ●... - Page 13 according to actual conditions. ● The signal transmission cable must stay at least 50 m away from high voltage devices and high voltage wires. ● When laying cables outdoors, try to lay them under the eaves. ● At open places, lay cables underground by means of hermetic steel tube, and then do equipotential grounding to both ends of steel tubes.
-
Page 14: Indoor
Figure 2-3 Installing lightning protection devices outdoors (2) ● R: The radius of the circle, and R=60 m. ● L1: The length of the pole that holds the lightning conductor. ● L2: The length of the rail that holds the Device. ●... - Page 15 Figure 2-4 Installing lightning protection devices indoors Table 2-3 Installing lightning protection devices indoors Name Yellow-green grounding cable Indoor equipotential grounding terminal...
-
Page 16: Rs-485 Cable
3 RS-485 Cable 3.1 Basic Features RS-485 industrial buses are half-duplex communication buses whose characteristic impedance is 120Ω. Its maximum load is 32 payloads (including controller devices and controlled devices). 3.2 Common Issues in Use Users tend to connect devices as the way displayed in Figure 3-1. In this case, the terminal resistance must be connected to the two devices whose cable length is the longest among all the devices (in Figure 3-1, cable length between 1# and 15# is the longest). -
Page 17: Faq On Rs-485 Cable
Figure 3-2 Connecting method with RS-485 distributors 3.3 FAQ on RS-485 Cable Malfunction Possible Reason Solution Modify the baud rate/address Baud rate/address of the host of the host or Device to be and Device are not matched. matched. The Device can perform Positive electrode and Connect cables to the positive self-check, but is out of... -
Page 18: Wi-Fi Performance
4 Wi-Fi Performance Table 4-1 Wi-Fi performance description Performance Description Frequency band supported 2.4G; 5G CH1–CH13 (the actual working 2.4G channel shall prevail). Working channel (consistent with AP) The actual working channel shall prevail. ● At open places without interference, if the Device is installed at least 1.5 m above the ground, the effective communication distance is 100 m. -
Page 19: Cable Diameter (24V Ac) And Transmission Distance
5 Cable Diameter (24V AC) and Transmission Distance The recommended transmission distances are for reference only, and the actual conditions shall prevail. The following table shows the maximum transmission distance of cables with certain diameter when the 24V AC power source voltage loss rate is below 10%. For devices powered by alternating current, the maximum voltage loss rate allowed is 10%. -
Page 20: Cable Diameter (12V Dc) And Transmission Distance
6 Cable Diameter (12V DC) and Transmission Distance The recommended transmission distances are for reference only, and the actual conditions shall prevail. The following table shows the maximum transmission distance of cables with certain diameter when the 12V DC power source voltage loss rate is below 10%. For devices powered by direct current, the maximum voltage loss rate allowed is 10%. -
Page 21: Cable Diameter (24V Dc) And Transmission Distance
7 Cable Diameter (24V DC) and Transmission Distance The recommended transmission distances are for reference only, and the actual conditions shall prevail. The following table shows the maximum transmission distance of cables with certain diameter when the 24V DC power source voltage loss rate is below 10%. For devices powered by direct current, the maximum voltage loss rate allowed is 10%. -
Page 22: Cable Diameter (30V Dc) And Transmission Distance
8 Cable Diameter (30V DC) and Transmission Distance The recommended transmission distances are for reference only, and the actual conditions shall prevail. The following table shows the maximum transmission distance of cables with certain diameter when the 30V DC power source voltage loss rate is below 20%. For devices powered by direct current, the maximum voltage loss rate allowed is 20%. - Page 23 Transmission Transmission Transmission Transmission Transmission Distance Distance Distance Distance Power (W) (Diameter: (Diameter: (Diameter: (Diameter: 0.80) 1.00) 1.25) 2.00) 57 (17) 88 (27) 138 (42) 353 (108) 52 (16) 82 (25) 127 (39) 326 (99) 48 (15) 76 (23) 118 (36) 303 (92) 45 (14) 71 (22)
-
Page 24: Cable Diameter (36V Dc) And Transmission Distance
9 Cable Diameter (36V DC) and Transmission Distance The recommended transmission distances are for reference only, and the actual conditions shall prevail. The following table shows the maximum transmission distance of cables with certain diameter when the 36V DC power source voltage loss rate is below 25%. For devices powered by direct current, the maximum voltage loss rate allowed is 25%. - Page 25 Transmission Transmission Transmission Transmission Transmission Distance Distance Distance Distance Power (W) (Diameter: (Diameter: (Diameter: (Diameter: 0.80) 1.00) 1.25) 2.00) 88 (27) 138 (42) 215 (66) 550 (168) 82 (25) 128 (39) 200 (61) 511 (156) 76 (23) 119 (36) 186 (57) 477 (145) 72 (22) 112 (34)
-
Page 26: Wire Gauge Reference Sheet
10 Wire Gauge Reference Sheet Metric Bare Wire Bare Wire Cross Section Diameter (mm) Area (mm 0.050 0.00196 0.060 0.00283 0.070 0.00385 0.080 0.00503 0.090 0.00636 0.100 0.00785 0.110 0.00950 0.130 0.01327 0.140 0.01539 0.160 0.02011 0.180 0.02545 0.200 0.03142 0.230 0.04115 0.250... -
Page 27: Appendix 1 Cybersecurity Recommendations
Appendix 1 Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks. - Page 28 6. Enable HTTPS We suggest you to enable HTTPS, so that you visit Web service through a secure communication channel. 7. Enable Whitelist We suggest you to enable whitelist function to prevent everyone, except those with specified IP addresses, from accessing the system. Therefore, please be sure to add your computer’s IP address and the accompanying equipment’s IP address to the whitelist.
- Page 29 ● Establish the 802.1x access authentication system to reduce the risk of unauthorized access to private networks.
