02 TV Installation
Assembling the swivel (43"-65")
WARNING: If you configure the TV to swivel, you must attach it securely to the floor, a desk, a dresser top,
etc. as described in the installation instructions.
The LED TVs have swivel stands. You can configure these stands so that the TVs swivel 20 degrees left and right, 60
degrees left and right, or 90 degrees left and right using the BRACKET HOLDER SWIVEL.
• This function is not available on the HG75NJ690U model.
* The product ships with its stand's swivel angle set to 20°.
* 20° swivel

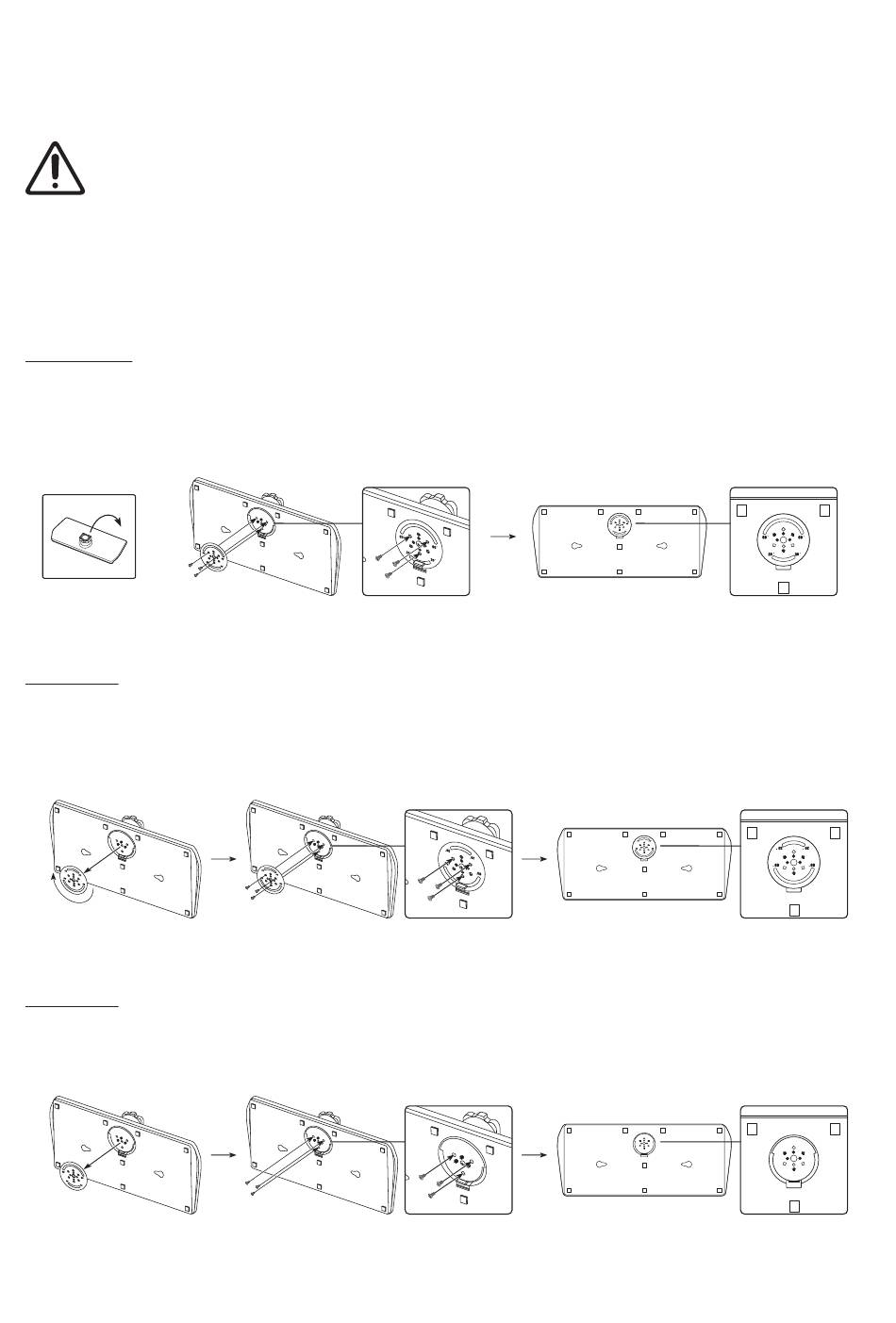

To configure the TV so that it swivels 20° left and right, insert the prong on the bottom of the stand through the curved
hole in the Bracket Holder Swivel marked 20°. Then, fix the Bracket Holder Swivel to the stand using the three supplied
screws as shown below.
60° swivel
To configure the TV so that it swivels 60° left and right, insert the prong on the bottom of the stand through the curved
hole in the Bracket Holder Swivel marked 60°. Then, fix the Bracket Holder Swivel to the stand using the three supplied
screws as shown below.
90° swivel
To configure the TV so that it swivels 90° left and right, remove the Bracket Holder Swivel, and then screw the three
supplied screws into the stand as shown below.
