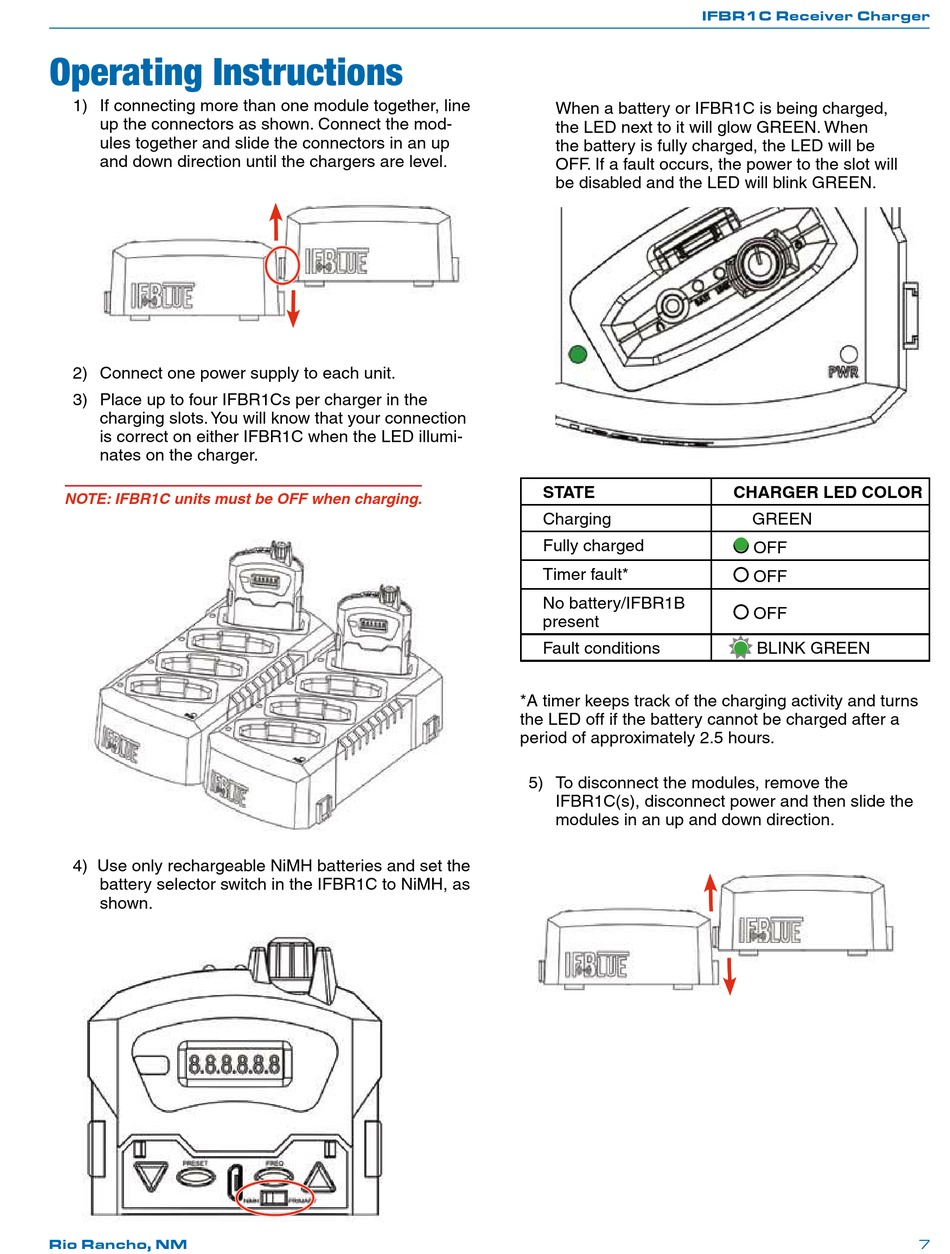

Operating Instructions

1) If connecting more than one module together, line
up the connectors as shown. Connect the mod-
ules together and slide the connectors in an up
and down direction until the chargers are level.
2) Connect one power supply to each unit.
3) Place up to four IFBR1Cs per charger in the
charging slots. You will know that your connection
is correct on either IFBR1C when the LED illumi-
nates on the charger.
NOTE: IFBR1C units must be OFF when charging.
4) Use only rechargeable NiMH batteries and set the
battery selector switch in the IFBR1C to NiMH, as
shown.
Rio Rancho, NM
When a battery or IFBR1C is being charged,
the LED next to it will glow GREEN. When
the battery is fully charged, the LED will be
OFF. If a fault occurs, the power to the slot will
be disabled and the LED will blink GREEN.
STATE
Charging
Fully charged
Timer fault*
No battery/IFBR1B
present
Fault conditions
*A timer keeps track of the charging activity and turns
the LED off if the battery cannot be charged after a
period of approximately 2.5 hours.
5) To disconnect the modules, remove the
IFBR1C(s), disconnect power and then slide the
modules in an up and down direction.
IFBR1C Receiver Charger
CHARGER LED COLOR
GREEN
OFF
OFF
OFF
R
BLINK GREEN
