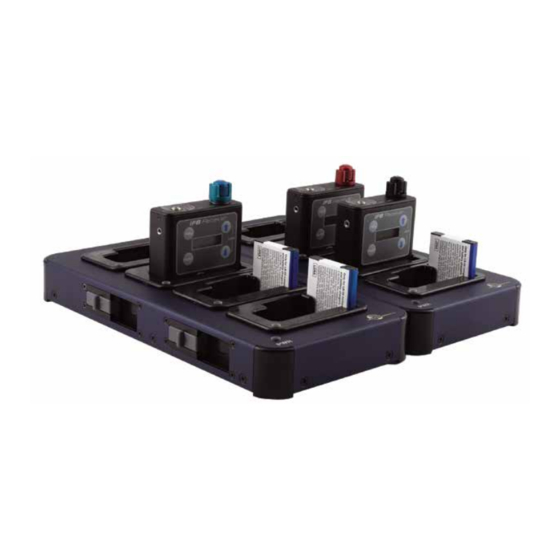

- Page 1 INSTRUCTION MANUAL CHSIFBR1B IFBR1B Receiver Battery Charging Station For use with Lectrosonics LB-50 battery or IFBR1B only Fill in for your records: Serial Number: Purchase Date: Rio Rancho, NM, USA www.lectrosonics.com...
-
Page 2: Important Safety Instructions
CHSIFBR1B Important Safety Instructions This symbol, wherever it appears, alerts 12) Use only with the cart, stand, tripod, bracket, or you to the presence of uninsulated table specified by the manufacturer, or sold with dangerous voltage inside the enclosure the apparatus. When a cart is used, use caution... - Page 3 Warnings and Cautions - Please Observe This battery charger is intended to be used only with Disassembly the Lectrosonics LB-50 rechargeable battery. Installing Prohibited a battery a rechargeable battery other than the Lectro- sonics LB-50 model could cause a serious fault.
-
Page 4: Specifications
CAUTION The Lectrosonics LB-50 is the only battery that Keep this charger out of the reach of chil- should be used with the CHSIFBR1B charger or in dren. the IFBR1B Receiver. Do not leave this charger in a damp or dusty environment. - Page 5 IFBR1B Receiver Charger Power Supply Side Panel Power Supply Input Charger Connectors Charger Connectors Charger Connectors Power Supply, P/N DCR5/9AU (not included) Battery Charging LED Power LED Rio Rancho, NM...
-
Page 6: Led Color
CHSIFBR1B Operating Instructions OR up to four IFBR1Bs (or a combination of each). You will know that your connection is cor- rect on either a battery or IFBR1B when the LED 1) If connecting more than one module together, illuminates. -
Page 7: Service And Repair
There are no adjustments inside that will make a malfunctioning unit start working. LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a mod- est flat rate plus parts and shipping. -
Page 8: Limited One-Year Warranty
This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
