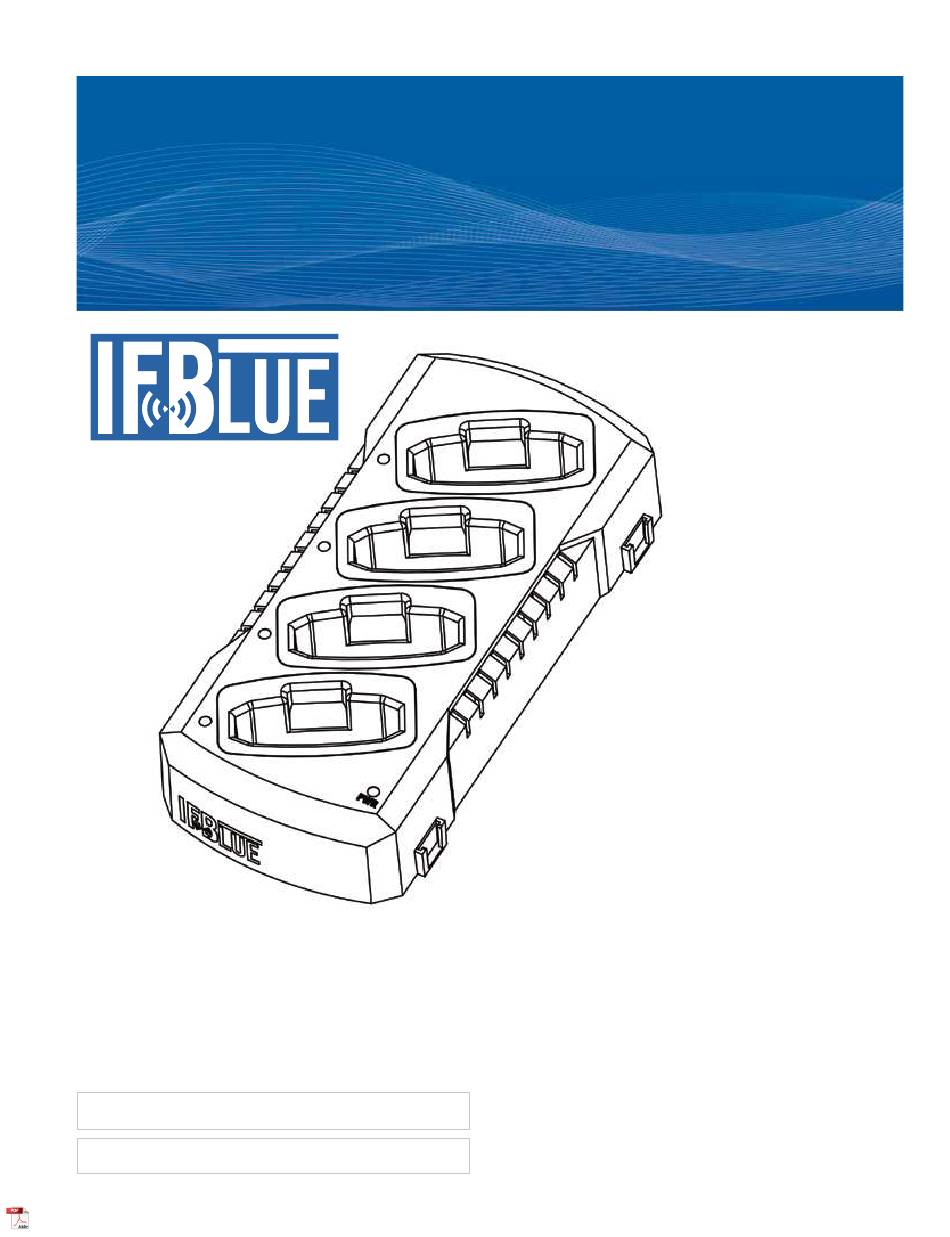

CHSIFBR1C

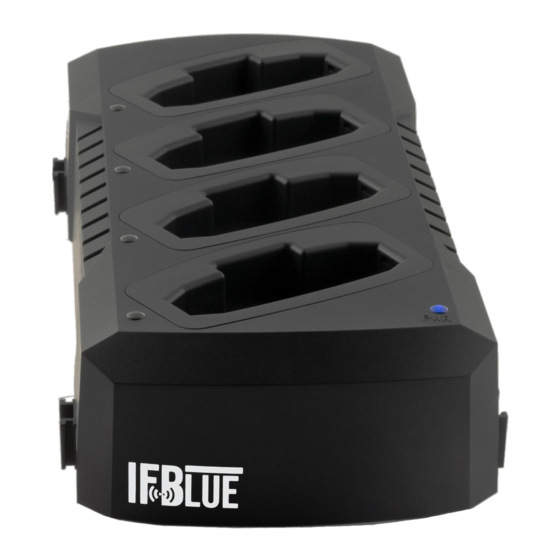

IFBR1C Receiver Battery Charging Station
Fill in for your records:
Serial Number:
Purchase Date:
INSTRUCTION MANUAL
• Each module charges up
to 4 IFBR1C receivers (with
rechargeable NiMH batteries)
• Connect multiple CHSIFBR1Cs
mechanically for convenience
• Individual charging circuits and
status indicators
Designed and Distributed by Lectrosonics, Inc.
Advertisement
Related Manuals for Lectrosonics CHSIFBR1C
Summary of Contents for Lectrosonics CHSIFBR1C
- Page 1 • Each module charges up to 4 IFBR1C receivers (with rechargeable NiMH batteries) • Connect multiple CHSIFBR1Cs mechanically for convenience • Individual charging circuits and status indicators Fill in for your records: Serial Number: Designed and Distributed by Lectrosonics, Inc. Purchase Date:...
-
Page 2: Table Of Contents
CHSIFBR1C Table of Contents Safety Instructions ............. 3 Warnings and Cautions............4 Specifications ..............5 Power Supply Side Panel and Charger Connections ..6 Operating Instructions ............7 Service and Repair ............. 8 Returning Units for Repair ..........8 Warranty ................12... -
Page 3: Safety Instructions
IFBR1C Receiver Charger Important Safety Instructions This symbol, wherever it appears, alerts 12) Use only with the cart, stand, tripod, bracket, or you to the presence of uninsulated danger- table specified by the manufacturer, or sold with ous voltage inside the enclosure -- voltage the apparatus. -
Page 4: Warnings And Cautions
This battery charger is only for use with before you read the main text of this manual. Lectrosonics NiMH rechargeable batteries. Do not attempt to use this charger to charge other rechargeable battery packs as this... -
Page 5: Specifications
Using a supply outside of Accessories the specified range may cause fire or electri- cal shock. The Lectrosonics DCR5/9AU (included) power supply Do not store the rechargeable battery in a is required for use with the charger. case, drawer, cabinet, etc. where small metal objects such as coins, paper clips or tools could contact the poles on the battery. -
Page 6: Power Supply Side Panel And Charger Connections
CHSIFBR1C Power Supply Side Panel Power Supply Input Mechanical Connectors Charger Connectors Power Supply Input Battery Charging LED Power LED IFBlue... -
Page 7: Operating Instructions
IFBR1C Receiver Charger Operating Instructions 1) If connecting more than one module together, line When a battery or IFBR1C is being charged, up the connectors as shown. Connect the mod- the LED next to it will glow GREEN. When ules together and slide the connectors in an up the battery is fully charged, the LED will be and down direction until the chargers are level. -
Page 8: Service And Repair
There are no adjustments inside that will make a malfunctioning unit start working. LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a mod- est flat rate plus parts and shipping. - Page 9 IFBR1C Receiver Charger Rio Rancho, NM...
- Page 10 CHSIFBR1C IFBlue...
- Page 11 IFBR1C Receiver Charger Rio Rancho, NM...
-
Page 12: Warranty
This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
