- Page 1 PROSENSE S-DP8 Gas Control Panel User Manual Prosense Teknoloji San. Ltd. Şti. Cumhuriyet Mah. Mermer sok. No:16 Kartal İstanbul Tel: (90) 216 306 77 88 Faks: (90)216 473 81 29 www.prosense.com.tr PRS-UM-DP8-EN-Rev.4.1-16.08.2021...
- Page 2 Otherwise, it could fail to perform as designed and persons who rely on this product for their safety could suffer severe personal injury or death. The warranties made by Prosense with respect to this product are voided if the product is not installed, used and serviced in accordance with the instructions in this user guide.
-
Page 3: Table Of Contents
Relay Assignment: ..........................19 Panel Address Assignment: ......................20 Language Settings: ........................... 21 Prosense Panel Monitor Software Option .................... 21 What to Do In Case of Alarm ........................ 21 Checking Alarm and Fault Functions ....................21 Controlling The Alarm Fault Functions ..................... 22 Declaration ............................ -
Page 4: Introduction
S-DP8 has 128x64 LCD screen on the front panel to show status of each detector. This LCD screen and menu keys allow user to set correct properties for each detector like gas concentrations by gas type, measurement unit, and range and alarm levels. -
Page 5: Technical Specifications
Technical Specifications Power Source 220 VAC ±10% 50/60 Hz Power Consumption 27 VDC/250 mA - 6.75 W max. (without connected detectors) Inputs (Internal) 8 Analogue 4-20mA Relay outputs FAULT, ALARM1, ALARM2, AUX Contact ratings 3 A 24 VDC Display Graphic LCD (128x64) FAULT, ALARM1, ALARM2, AUX, BATT, POWER for overall status LED indicators Power/On, Fault, Alarm LEDs for each detector channel... -
Page 6: Panel Dimensions
Diagram 2: Dimensions (mm) Installation The S-DP8 control panel box should never be placed in an explosive atmosphere and should be readily accessible. It is necessary to drill holes for cable glands either on the top or bottom of the control unit, depending on which side the electric cables are running in. - Page 7 The key works clockwise and vice versa. Diagram 5: Panel door handle S-DP8 panel has 6 plastic screws keeping panel door in place in front of panel. Use a flat screwdriver to lose them and remove the panel door assembly. Please take care and remove the connectors on the electronic card while removing the cover.
- Page 8 Plastic screws Plastic screws Diagram 6: Panel cover plastic screw Backup battery connectors and fuse Wall mounting hole Wall mounting hole Power supply Power supply output adjustment switch N L G V- V+ Space for backup batteries Wall mounting hole Wall mounting hole Main power entry and fuse Power supply LED...
-
Page 9: Functions

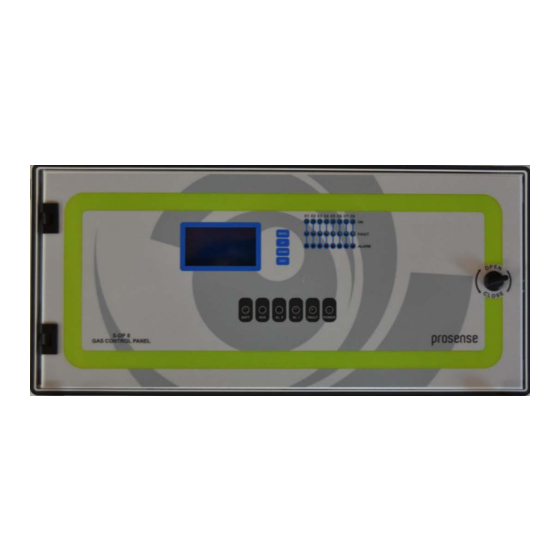

Diagram 8: Front panel signs LCD and LEDs S-DP8 Panel has LEDs formed in 8 columns and three rows. LEDs are grouped per channels and each channel has ON, FAULT and ALARM LEDs to show actual status of the detector. C1, C2, C3, …, C8 numbers used to identify channels and each column indicate the detector... -
Page 10: Lcd Screen
LCD Screen: LCD screen shows time details and status of each detector connected to channels as shown in Diagram 9. As The LCD screen can show 6 lines at same time there are two pages that you can move via UP and DOWN buttons: Diagram 9: LCD screen first and second page Note: Date and time information will be unavailable when RS485 module installed. -
Page 11: Overrange Status
• In case any panel self-test result reports a fault • In case panel main power lost and while panel is working with battery power • In case panel main power supply fails This status has been detected by panel when an input signal is below 3.5 mA and reported on LCD screen on related channel with “FLT”... -
Page 12: Main Board And Connections
Main Board and Connections S-DP8 Control panel has one integrated main board. All components and connections are located on main board. Main Board Details: S-DP8 Control panel has all connections on main board. Relay module mounting holes LCD brightness adjustment potentiometer... -
Page 13: Backup Battery Connection
S-DP8 Panel has a buzzer on the main board to generate sound alarms. A digital input port provided on main board that should be 24VDC. To activate this input the AUX relay must be defined as Alarm-3 to work with digital input. -
Page 14: Detectors Connections
Relay Outputs S-DP8 panel has four relay outputs which are ALARM1, ALARM2, FAULT and AUX. Relay connection ports are located right under the relays. Alarm relays are operating in latched mode. Hence the panel will wait user intervention to clear alarm status even conditions returned to normal. -
Page 15: Aux Relay Output
9th line on LCD as digital alarm. First Run Panel manufacturer (Prosense) and model (S-DP8) will be seen on LCD screen following the power-up. All LEDs on the panel and sounder device will be activated for 3 seconds. The user can recognize any malfunctioning LED on panel at this period. -
Page 16: Programming
8. Detectr. Diagram 13: Menu structure S-DP8 control panel keeps data and time information to record alarm events in the internal log space. The alarm logs menu is not available when panel uses RS485 module to communicate to Prosense Panel Monitor software. - Page 17 Detector Select 1. Detectr 5.Detectr 2. Detectr 6.Detectr 3. Detectr 7.Detectr 4. Detectr 8.Detectr 3- Move desired Channel from the list via using UP and DOWN buttons and press MENU button to select channel. A new menu will display with below options: 1.
- Page 18 5- To adjust alarm levels first you have to complete measurement range settings. Then move "Alarm levels" option on channel setting screen and select via pressing MENU button. Screen will display default alarm level settings: 10,14,12 9/2/19 FRD 1. Dedektor LEL >...
-
Page 19: Closing Unused Channels
Closing Unused Channels: Unused channels should be deactivated if not all channels used on control panel. Otherwise unused channels and control panel will stay in fault status. To deactivate unused channel go to the Channel Settings menu via pressing the MENU button. Then move related channel via using UP and DOWN buttons and select channel with MENU button. -
Page 20: Panel Address Assignment
Press MENU button to change AUX relay assignment. A cursor will be activated on the screen and you can change assignment via using UP and DOWN buttons. Press EXIT button to save assignment and return the screen. Relay Assign Aux > Alarm2 ... -
Page 21: Language Settings
Once completed press EXIT button to return to settings screen. Prosense Panel Monitor Software Option Prosense S-DP8 Control Panel has an optional RS485 module and connections on main board. Prosense S-DP8 Control panel with firmware version V3.02 can communicate to Prosense Panel Monitor Software control program via RS485 module. -
Page 22: Controlling The Alarm Fault Functions
3. Turn off the gas supply at the tap and/or on the gas bottle (in the case of LPG). 4. Do not switch electrical appliances, lamps or the gas detection control unit on or off. 5. Open all windows and doors to air the room. 6. -
Page 23: Declaration
Declaration PRS-UM-DP8-EN-Rev.4.1-16.08.2021... -
Page 24: Warranty Statement
Prosense Technology's liability for any claims arising out of or related to this product will in no case exceed the order value. To the extent permitted by applicable law, these...
