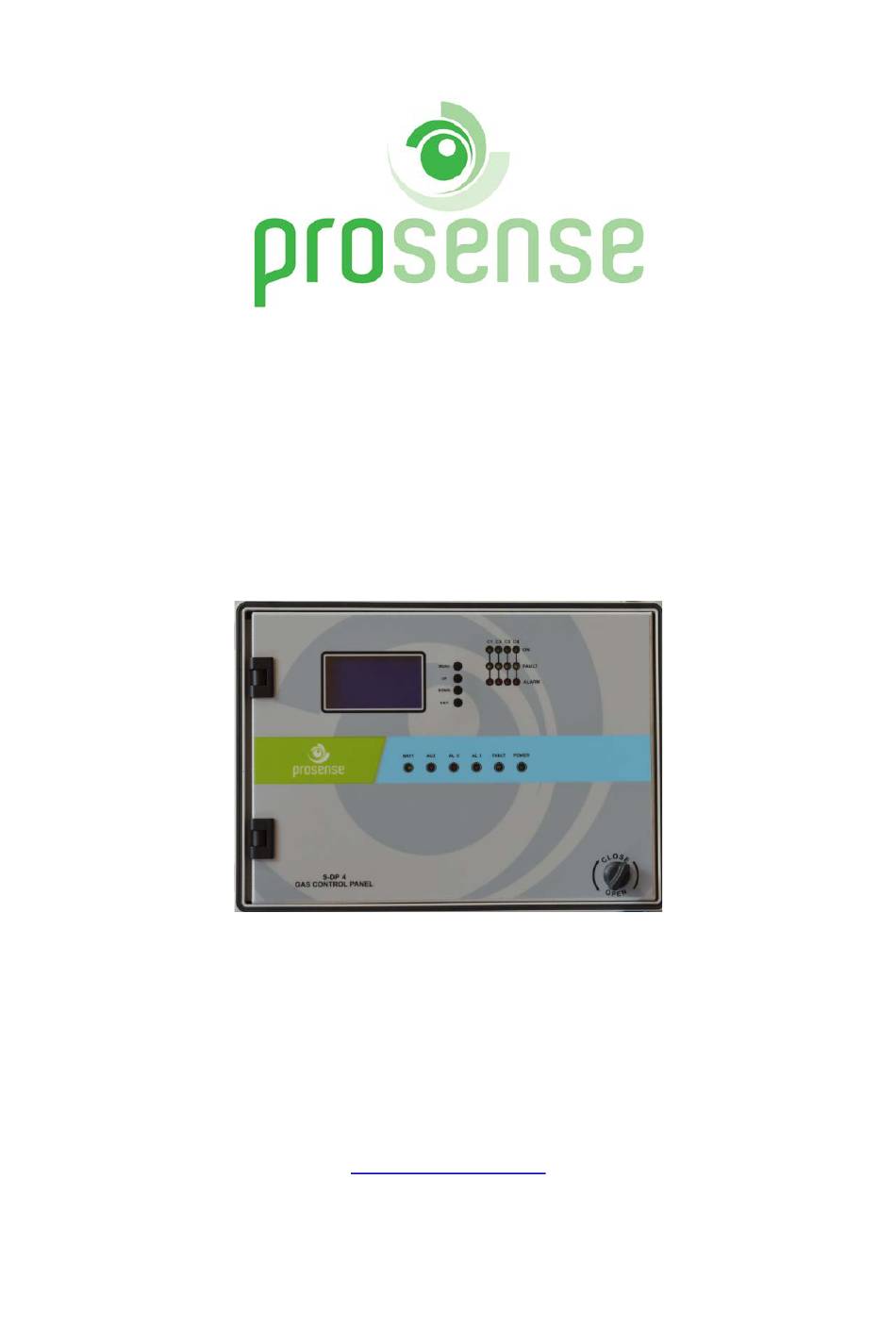

- Page 1 PROSENSE S-DP4 Gas Control Panel User Manual Prosense Teknoloji San. Ltd. Şti. Cumhuriyet Mah. Mermer sok. No:16 34876 Kartal/İstanbul Tel: (90) 216 306 77 88 Faks: (90)216 473 81 29 www.prosense.com.tr PRS-UM-DP4-EN-Rev.03-05.06.2020...
- Page 2 Otherwise, it could fail to perform as designed and persons who rely on this product for their safety could suffer severe personal injury or death. The warranties made by Prosense with respect to this product are voided if the product is not installed, used and serviced in accordance with the instructions in this user guide.
-
Page 3: Table Of Contents
Time and Language Settings: ......................20 What to Do In Case of Alarm ......................... 21 Checking Alarm and Fault Functions ....................21 Controlling The Alarm Fault Functions ....................22 Prosense Panel Monitor Software Option .................... 22 Declaration ............................23 Warranty Statement ..........................24 PRS-UM-DP4-EN-Rev.03-05.06.2020... -
Page 4: Introduction
S-DP4 has 128x64 LCD screen on the front panel to show status of each detector. This LCD screen and menu keys allow user to set correct properties for each detector like gas concentrations by gas type, measurement unit, and range and alarm levels. -
Page 5: Technical Specifications
Technical Specifications Power Source 220VAC ±10% 50/60 Hz Power Consumption 27VDC/250mA - 6.75W max. (without connected detectors) Inputs (Internal) 4 Analogue 4-20mA Relay outputs FAULT, ALARM1, ALARM2, AUX Contact ratings 3A, 24VDC or 3A 120VAC Display Graphic LCD (128x64) LED indicators FAULT, ALARM1, ALARM2, AUX, BATT, POWER for overall status Power/On, Fault, Alarm LEDs for each detector channel Backup battery... -
Page 6: Panel Dimensions
Installation Diagram 2: Dimensions (mm) The S-DP4 control panel box should never be placed in an explosive atmosphere and should be readily accessible. It is necessary to drill holes for cable glands either on the top or bottom of the control unit, depending on which side the electric cables are running in. - Page 7 The key works clockwise and vice versa. Diagram 5: Locker. S-DP4 panel has 4 plastic screws keeping panel door in place in front of panel. Use a flat screwdriver to lose them and remove the panel door assembly. Please take care and remove the connectors on the electronic card while removing the cover.
- Page 8 IP66 rate cable gland to assure the box ingress protection is not compromised. The panel box is modular and can be used with different assemblies. Prosense recommends having cable entries from the lower side. Electronic board is located in the front cover of the panel.
-
Page 9: Functions
Diagram 8: Front panel signs LCD and LEDs S-DP4 Panel has LEDs formed in 8 columns and three rows. LEDs are grouped per channels and each channel has ON, FAULT and ALARM LEDs to show actual status of the detector. C1,... -
Page 10: Lcd Screen
LCD Screen: LCD screen shows time details and status of each detector connected to channels as shown in Diagram 8: Diagram 9: LCD screen Note: Date and time information will be unavailable when RS485 module installed. The meaning of the signs used in LCD screen is given in table 4: Column Sign sample Meaning 1>... -
Page 11: Overrange Status Screen
• In case panel main power lost and while panel is working with battery power • In case panel main power supply fails This status has been detected by panel when an input signal is below 3mA and reported on LCD screen on related channel with “FLT”... -
Page 12: Main Board And Connections
Main Board and Connections S-DP4 Control panel has one integrated main board. All componenets and connections are Main Board Details: located on main board. S-DP4 Control panel has all connections on main board. Relay module mounting holes LCD brightness adjustment potentiometer... -
Page 13: Backup Battery Connection
S-DP4 Panel has a buzzer on the main board to generate sound alarms. A digital input port provided on main board that should be 24VDC. To activate this input the AUX relay must be defined as Alarm-3 to work with digital input. -
Page 14: Detectors Connections
Relay Outputs channels via using configuration menu steps. S-DP4 panel has four relay outputs which are ALARM1, ALARM2, FAULT and AUX. Relay connection ports are located right under the relays. Alarm relays are operating in latched mode. Hence the panel will wait user intervention to clear alarm status even conditions returned to normal. -
Page 15: Aux Relay Output
First Run in 5th line on LCD as digital alarm. Panel manufacturer (Prosense) and model (S-DP4) will be seen on LCD screen following the power-up. All LEDs on the panel and sounder device will be activated for 3 seconds. The user can recognize any malfunctioning LED on panel at this period. -
Page 16: Programming
4. Detectr. Diagram 13: Menu structure S-DP4 control panel keeps data and time information to record alarm events in the internal log space. The alarm logs menu is not available when panel uses RS485 module to communicate to Prosense Panel Monitor software. -
Page 17: Setup Channel Parameters
You can switch between channels via using UP or DOWN buttons. Also you can directly reach alarm logs screen via pressing MENU button in single channel mode. Logs keep alarm and fault details with their date and time for last 24 hours. You might use UP and DOWN buttons to see all records. - Page 18 You can change measurement type via pressing up and down buttons to select LEL, VOL, and PPM. Once selected press MENU button. Then screen will display Range options: You can select below values for range for LEL: 0-50 or 0-100 for VOL: 0-5 or 0-25 or 0-30 for PPM: 0-10 or 0-20 or 0-30 or 0-100 or 0-200 or 0-250 or 0-300 or 0-400 or 0-500 or 0- 1000 or 0-5000...
-
Page 19: Closing Unused Channels
Closing Unused Channels: Unused channels should be deactivated if not all channels used on control panel. Otherwise unused channels and control panel will stay in fault status. To deactivate unused channel go to the Channel Settings menu via pressing the MENU button. Then move related channel via using UP and DOWN buttons and select channel with MENU button. -
Page 20: Time And Language Settings
Press MENU button to change AUX relay assignment. A cursor will be activated on the screen and you can change assignment via using UP and DOWN buttons. Press EXIT button to save assignment and return the screen. When AUX relay assigned to ALARM3, Digital Input port will be activated on the panel. -
Page 21: What To Do In Case Of Alarm
What to Do In Case of Alarm There are 3 independent LEDs for each detector as fault, alarm and power LEDs. In addition to them there are two alarms, one fault, one power and one battery LED used to monitor overall panel status. -
Page 22: Controlling The Alarm Fault Functions
Prosense Panel Monitor Software Option Table 9: Problems and possible causes Prosense S-DP4 Control Panel has an optional RS485 module and connections on main board. Prosense S-DP4 Control panel with firmware version V3.02 can communicate to Prosense Panel Monitor Software control program via RS485 module. S-DP4 panel with earlier than V3.01 firmware version needs hardware upgrade to enable RS485 module. -
Page 23: Declaration
Declaration PRS-UM-DP4-EN-Rev.03-05.06.2020... -
Page 24: Warranty Statement
Prosense Technology's liability for any claims arising out of or related to this product will in no case exceed the order value. To the extent permitted by applicable law, these...
