FLIR Extech Instruments HDV-WTX2 Quick Start Manual

Product sheet
Model HDV-WTX2

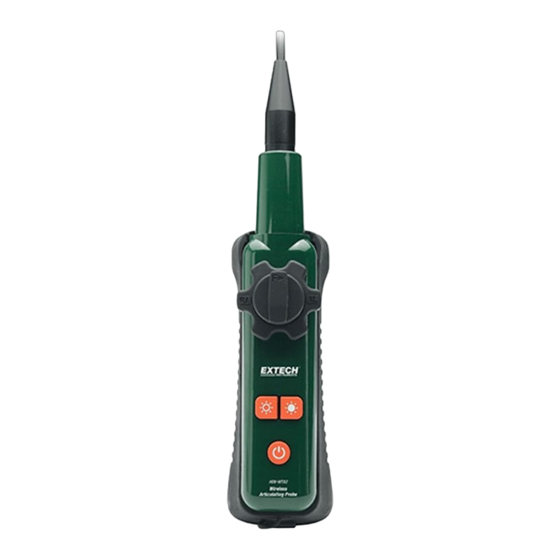

Wireless Articulating Semi-Rigid Probe
For use with the HDV600 Borescope only
Thank you for purchasing this professional camera probe. This sheet covers the warning and
specifications for the probe only. Instructions regarding the usage of the HDV600 Borescope are
provided in the Borescope User Guide.
Note: The camera LEDs become warm when set to maximum intensity
CAUTION: For the Articulating Probe, do not operate the articulation knob with the
probe in a coiled configuration. This will damage the articulation controls!
CAUTION: Always return the articulation and tension knobs to the neutral position
before removing the probe from the inspection area.
The label on the probe provides the Serial Number and Part Number in the format
shown below. Please do not remove this label; otherwise the warranty will be invalid.
Warnings
•
Do not bend to a smaller diameter than 10cm (4")
•
Warranty is invalid if stickers, tags, or labels are removed
Articulating Probe Description
1. Articulation knob
2. Articulation tension knob
3. Articulating camera
4. Light intensity buttons
5. Power button
6. AC Adaptor and extension cable sockets
7. Carrying strap
Part No.TX1 F/M/R (flex/macro/rigid) Serial No: HDV110001
1 2 3 4 5
6
7
