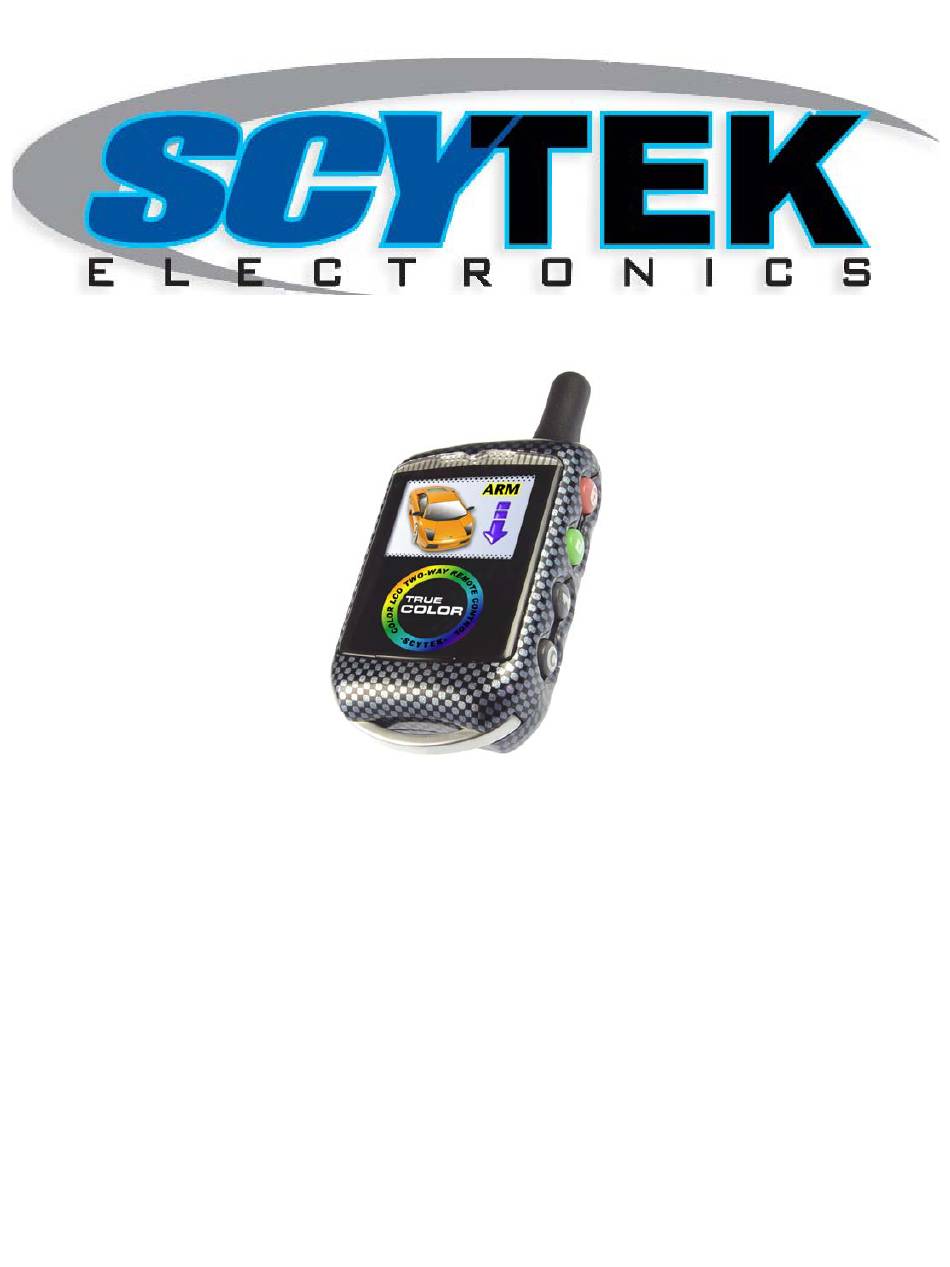

  • Page 1 2100RS SERIES REMOTE START SYSTEM PRODUCT MANUAL...
  • Page 2 Limited Lifetime Warranty This vehicle remote start system is warranted to the original purchaser, to be free from defects in material and workmanship. The manufacturer will repair or replace at its option, and free of charge for the first twelve (12) months, any part that proves defective in material or workmanship under normal installation, use, and service, provided the product is returned to the manufacturer freight prepaid.
  • Page 3: Table Of Contents

    Table of Contents About Your System ........... .Page 1 Remote Transmitters .
  • Page 5: About Your System

    About Your System The ScyTek Galaxy Starter is a start-of-the-art remote starting system featuring a built-in "ScyNet Network Port" that allows direct connection of optional accessory modules and a PC interface offering expanded system operation. With proper installation this system will provide superior protection and performance for many years to come.
  • Page 6: Remote Transmitters

    Remote Transmitters Standard Remote Transmitter Description Button 2 Button 1 Button 4 Button 3 Button 5 The Galaxy 5100RS Plus is compatible with the optional 5-button Remote Transmitters used to control system operations. Note: Using the optional PC or Pocket PC interface with the network software, it is possible to reconfigure the functionality of the transmitter buttons.
  • Page 7: Adding/Replacing Transmitters

    Adding/Replacing Transmitters To replace lost or stolen transmitters or to add additional transmitters into the system, have all desired transmitters ready and follow the steps below. Note: Up to 4 transmitters can be programmed to operate the system. To erase any previously stored transmitter codes, be sure to program all 4 transmitter memory locations.
  • Page 8: Optional 2-Way Lcd Remote Transmitter Description

    True Color 2-way LCD Remote Transmitter Description Button 1 Button 2 Button 3 Button 4 The Galaxy 5100RS-TC is compatible with the True Color 2-way LCD remote transmitter, offering increased range and confirmation of any activated features. Button 1 Arms the system. Button 1 also locks the doors when the system is in Valet Mode. Button 2 Disarms the system.
  • Page 9: Lcd Transmitter Battery Replacement

    4. Turn off the ignition key. 5. Repeat steps 1-4 to add an additional 2-way transmitter. LCD Transmitter Battery Replacement Your Galaxy Remote Transmitter uses a 1.5 volt AAA alkaline battery, which will require replacement in time. Depending on the amount of use, the battery may last up to six months before it needs replacement.
  • Page 10 LCD Backlight Transmitter Button 4 is used for confirmation, transmitter programming, as well as activation of the LCD backlighting for use in the dark. Press button 4 momentarily to activate the LCD backlight. System Confirmation The 2-way transmitter's confirmation feature allows the current vehicle status to be displayed at any time.
  • Page 11 Galaxy 2100RS Plus - Page 7...
  • Page 12: System Operation

    System Operation Remote Locking To Lock the doors: 1. Turn off the ignition. 2. Press Button 1. · The audible status output will beep (if connected) · The doors will lock. · The parking lights will flash once. · The LED will turn on red, to indicate the doors are locked. 3.
  • Page 13: Remote Start Features

    Remote Start Features Remote Starting To Remote Start the System: 1. Be sure the system is not in Valet Mode. 2. Press and hold Button 4 for three seconds. · The parking lights will turn on. · The LED will flash rapidly. ·...
  • Page 14: Automatic Start Mode

    Automatic Start Mode The Automatic Start Mode allows the vehicle to automatically start the vehicle every one or two hours and run for the preset Run Time. To turn on Auto Cold Starting: 1. Turn Ignition switch Off and wait for 3 seconds. 2.
  • Page 15: Extended Features

    Extended Features Ignition Door Locking For added safety, the Ignition Door Locking feature allows vehicles equipped with power door lock systems to automatically lock the doors when the ignition is turned on. If a door is open when the ignition is turned on, the Ignition Door Locking feature is disabled to protect against locking the keys inside the vehicle.
  • Page 16: System Installation

    System Installation 1. Thoroughly read and become familiar with the installation instructions before beginning the installation. 2. Review system contents: Main Unit Two 5-Button Remote Transmitters Harnesses 6-Pin starter harness • 20-Pin main harness • 4-Pin auxiliary start harness • 3-Pin door lock harness •...
  • Page 17: System Wiring

    System Wiring 6-Pin Starter Harness Pin 1 RED WIRE A: Main Power Input A (+). Connect to the battery or constant power wire at the ignition switch with a minimum 25 Amp supply. Remove fuse until installation is complete and wiring is checked. Pin 2 RED WIRE B: Main Power Input B (+).
  • Page 18: Plug-In Connectors

    Pin 13 WHITE/BLACK WIRE: Hood Pin Input (-). Connect the to the hood pin switch. The switch must provide a ground output when switch is opened. Pin 14 ORANGE WIRE: Anti-Grind Output (-) 500 mA. The Orange wire provides a ground output to activate a relay for anti-grind protection.
  • Page 19: Jumper Settings

    Jumper Settings Jumper Selection Carefully separate the top and bottom halves of the main unit case. Once the cover is removed, the parking light polarity jumper will be visible next to the parking light relay. Set the jumper for the correct polarity output as described below, then reassembly the main unit case.
  • Page 20: System Programming

    System Programming Entering System Programming Although this system is compatible with the optional FM transmitter, all programming is performed using the standard AM transmitter unless otherwise noted. To enter System Programming: 1. Turn on ignition. 2. Within 5 seconds, press the valet switch 5 times. ·...
  • Page 21: Branch Table

    Branch Feature Button 1 (default) Button 2 Button 3 1. Ignition Door Locking 2. Ignition Door Unlocking Unlock All Unlock Driver Only 3. Door Unlock Pulse Single Double 4. Door Lock Pulse Length 1 second 3 seconds 5. Aux 2 Activate on Lock 6.
  • Page 22 13. Automatic Start Mode. Selects between every two hours or every hour for the automatic engine starting feature. 14. Engine Sense Mode. Selects between Tachless and Tach Monitor operation. Tachless. Determines the engine status using an advanced software routine, without requiring connection to the vehicle’s tachometer.
  • Page 23: Wiring Diagrams

    Wiring Diagrams Positive Dome Negative Dome Positive Horn Negative Horn Negative Glow Plug Starter Anti-Grind Galaxy 2100RS - Page 19...
  • Page 24: Door Lock Diagrams

    Door Lock Diagrams Follow the diagrams below for connecting basic door lock systems. For Two Stage door lock systems (separately unlocks driver and passenger doors) see following pages. Negative Trigger Positive Trigger Green Wire Blue Wire Reverse Polarity Vacuum Adding Actuator Page 20 - Galaxy 2100RS...
  • Page 25: Two Stage Door Lock Diagrams

    Two Stage Door Lock Diagrams The Galaxy Starter is equipped with a dedicated Passenger Unlock output allowing Two Stage Door Lock operation. When connected as shown below, unlocking the system will unlock only the driver’s door. Pressing the unlock button again will unlock all doors. Two Stage Negative Trigger Two Stage Positive Trigger Green Wire...
  • Page 26 Two Stage Door Lock Diagrams cont’d Two Stage Reverse Polarity Two Stage Adding Actuator Page 22 - Galaxy 2100RS...
  • Page 27: Technical Information

    Technical Information FCC ID: OARRXAM2000 This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation Galaxy 2100RS - Page 23...
  • Page 28: Wiring Diagram

    Wiring Diagram GALAXY 2100RS Not Available External Activation ScyTek Electronics 11627 Cantara Street Unit B North Hollywood, CA 91605 © ScyTek Electronics 2005 Galaxy Starter r2 2/24/05...
