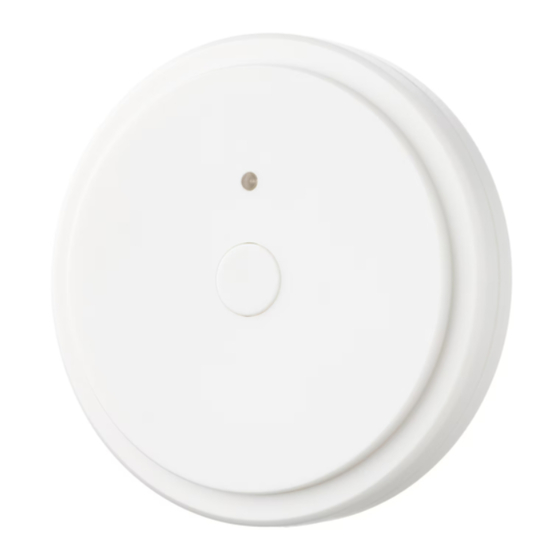

1、 Model No.: ICTD-KL-1
2、Technical Parameter
a) WORKING VOLTAGE: 1.8~3.6 V(Normal：2X1.5VDC);
b) Transmit speed: 250KHz;
c) Frequency band: 2436.20 +/- 0.03 MHz
3、Application
This Remote Control can match with 10W, 20W and 30W dimmable LED drivers. The match method is following:
a) Punched the code button on Receiver, the indicator lighted, you can undertake to code.
b) In the case of the receiver indicator light, extended press the button on remote control until the indicator second lighted.
Complete send code command.
c) Once receiver received the code command, the indicator flash three times showing the code is successful, after lights
out.
There are three kinds of remote control dimmer.
Press the remote control button, dimming state change by the cycle: OFF->35%->100%->35%->OFF.

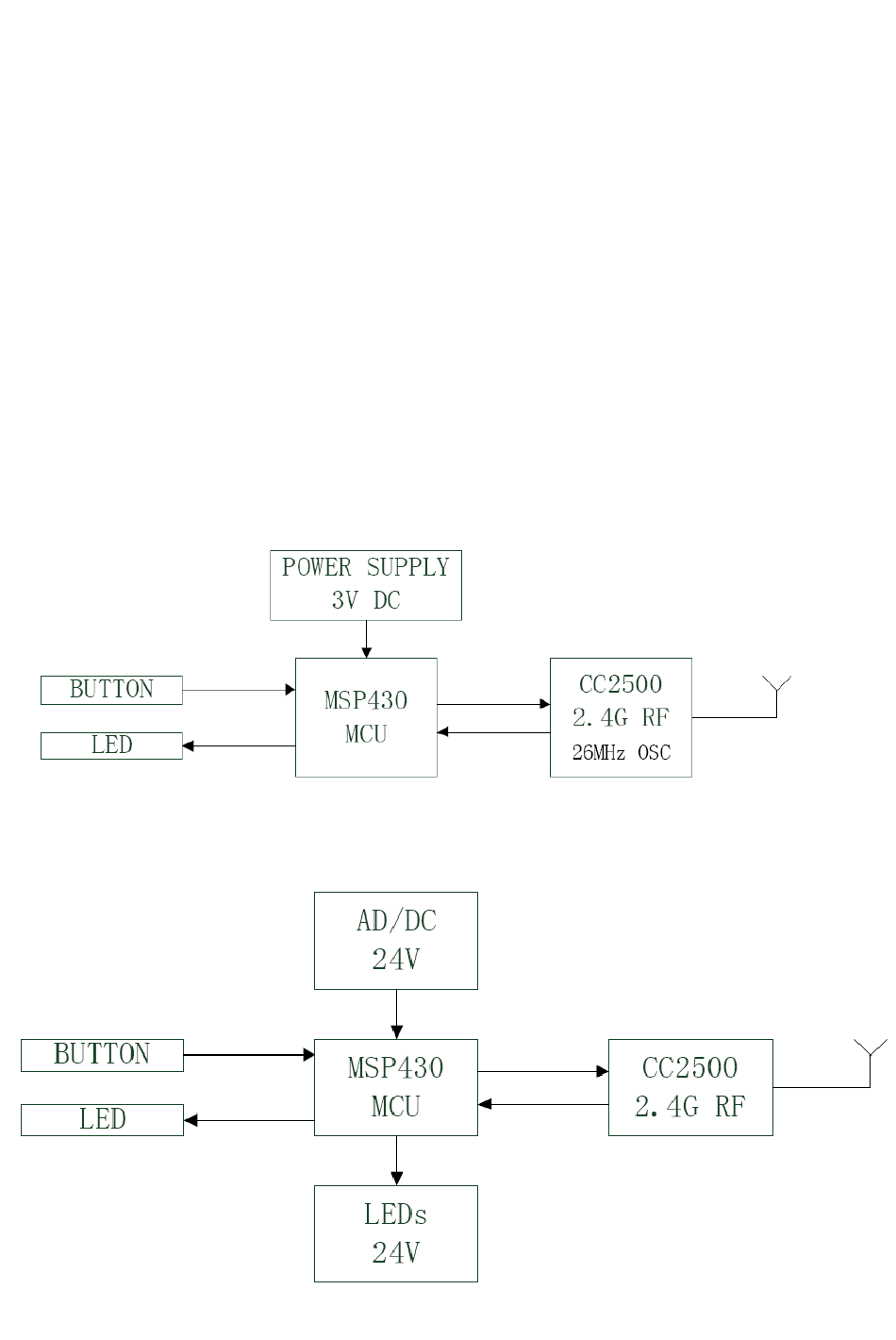

4、Remote Control Block Diagram:
5、Driver Block Diagram:
