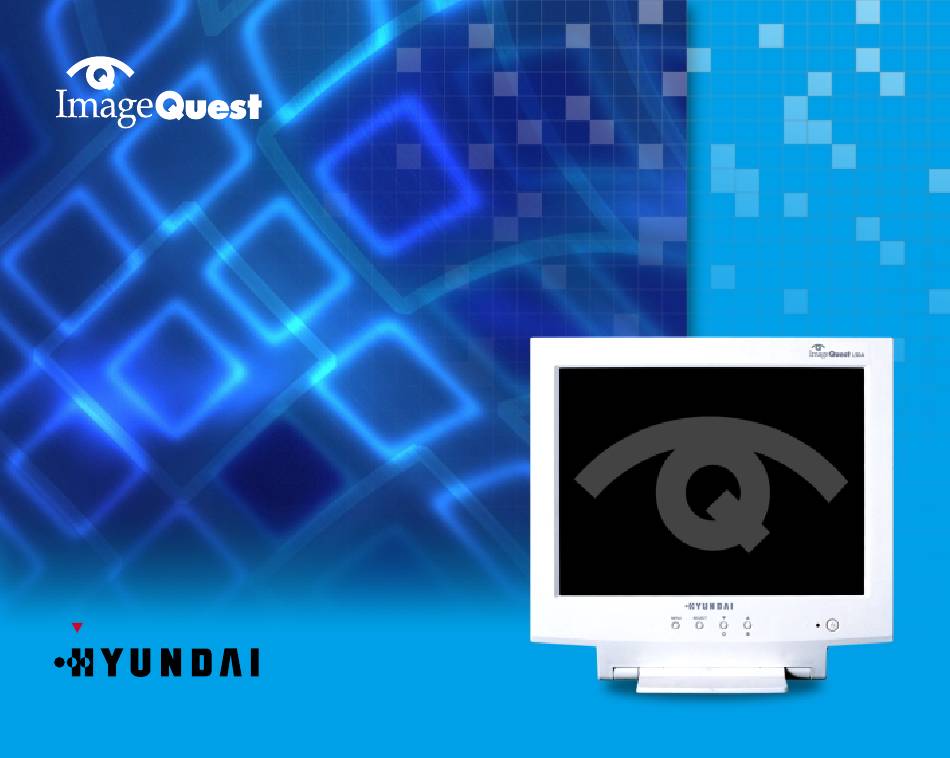

Type No. L15A0C060
ImageQuest L50C
TFT LCD Color Monitior
User's Guide
Click
www.imageQuest.co.kr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ImageQuest L50C and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai ImageQuest L50C

Summary of Contents for Hyundai ImageQuest L50C

  • Page 1 NEXT Type No. L15A0C060 ImageQuest L50C TFT LCD Color Monitior User’s Guide Click www.imageQuest.co.kr...
  • Page 2 BACK U.S.A. U.S.FEDERAL COMMUNICATIONS COMMISSION NEXT RADIO FREQUENCY INTERFERENCE STATEMENT INFORMATION TO THE USER NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 BACK DECLARATION OF CONFORMITY NEXT ImageQuest CO., LTD. Ami-ri Bubal-Eub Ichon-Si Kyungki-Do 467-860 KOREA declare under our sole responsibility that the product: Kind of equipment COLOR MONITOR Type-Designation L15A0C060 to which this declaration relates is in conformity with the following standard(s) or other normative document(s) Safety : EN 60950 : 1992 + A1, A2, A3, A4, A11 : EN 55022 : 1998, EN 55024 : 1998 EN 61000-3-2 : 1995+A1 : 1998+A2 : 1998...

  • Page 4: Table Of Contents

    BACK L50C 15" TFT LCD Color Monitor NEXT Contents 1. Introduction .......1/17 2. Safety Information ....1/17 3. Installing the monitor ....4/17 3-1. Packing List ........4/17 3-2. Selecting a suitable location ..5/17 3-3. Connecting the monitor ....5/17 3-4. Setting the refresh rate ....7/17 Preset Timing Table .......8/17 4.

  • Page 5: Introduction

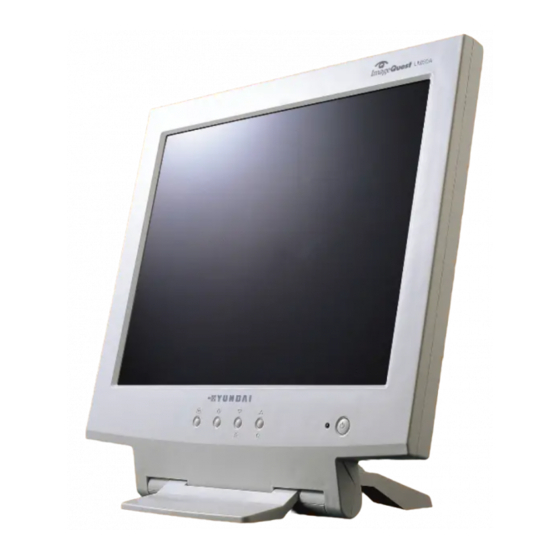

    BACK L50C 15" TFT LCD Color Monitor NEXT 1. Introduction This manual contains instructions for installing and operating ImageQuest L50C. ImageQuest L50C is a highly ergonomic color display unit. • 15" viewable XGA LCD • Supporting full scan flicker-free picture quality •...
  • Page 6 BACK L50C 15" TFT LCD Color Monitor NEXT Avoid operating the monitor in extreme heat, humidity or areas affected by dust. Temperature : 5~35°C Humidity : 30~80RH Be sure to turn the monitor off before plugging the power cord into the socket. Make sure that the power cord and the other cords are securely and rightly connected.
  • Page 7 BACK L50C 15" TFT LCD Color Monitor NEXT Cleaning and Maintenance • To avoid risk of electric shock, do not disassemble the display unit cabinet. The unit is not user-serviceable. Remember to unplug the display unit from the power outlet before cleaning. •...

  • Page 8: Installing The Monitor

    BACK L50C 15" TFT LCD Color Monitor NEXT 3. Installing the The following items should be found in the packaging. monitor 3-1. Packing List Japan Power cord American/Canada Europe Signal cable South Africa Australia Compact Disc Korea AC/DC Power adapter Above power cord can be changed upon different voltage areas.

  • Page 9: Selecting A Suitable Location

    BACK L50C 15" TFT LCD Color Monitor NEXT 3-2. Selecting a suitable location • Place the monitor at least 30cm from other electrical or heat-emitting equipment and allow at least 10cm on each side for ventilation. • Place the monitor in a position where no light shines directly onto or is reflected on the screen.
  • Page 10 BACK L50C 15" TFT LCD Color Monitor NEXT Turn on the power to the computer. The picture will appear within about 10 seconds. Adjust the picture to obtain optimum picture quality. See section Adjusting the picture in this guide for more information. 6/17...

  • Page 11: Setting The Refresh Rate

    BACK L50C 15" TFT LCD Color Monitor NEXT LED Indicator Soft Power Switch 3-4. Setting the refresh Follow the instructions below to set your refresh rate in Windows 98. rate Go to the configuration window(Start-Settings-Configuration window). Double click on the ‘Display’ icon. Click on the ‘Settings’...

  • Page 12: Preset Timing Table

    BACK L50C 15" TFT LCD Color Monitor NEXT Preset Timing Table If the signal from the system doesn't equal to the preset timing mode, adjust the mode with reference to the user guide of videocard because the screen may not be displayed. The recommended setting is a resolution of 1024x768 and a refresh rate of 60Hz.

  • Page 13: Adjusting The Picture

    BACK L50C 15" TFT LCD Color Monitor NEXT 4. Adjusting the picture You can adjust the screen display by using the buttons located below the screen. 1024X768 V:60.0/H:48.4 BRIGHTNESS 9/17...

  • Page 14: Using The On Screen Display

    BACK L50C 15" TFT LCD Color Monitor NEXT 4-1. Using the On Screen Push the MENU button to call the OSD to the screen. The resolution and Display frequency are displayed at the top of the menu box for your information. The resolution is displayed only when the monitor works in the preset mode.

  • Page 15: Osd Adjustments

    BACK L50C 15" TFT LCD Color Monitor NEXT 4-3. OSD Adjustments The OSD adjustments available to you are listed below. You can play the movie file to BRIGHTNESS see how to adjust the picture Adjust the brightness of the screen. image by clicking each icon or title hereunder.
  • Page 16 BACK L50C 15" TFT LCD Color Monitor NEXT AUTO ADJUST You can adjust the shape of screen automatically at the full screen pattern. LANGUAGE You can select the language in which adjustment menus are displayed. The following languages are available : English, French, German, Italian, Spanish, Swedish, Finnish, Danish, Portuguese and Dutch.

  • Page 17: Display Power Management

    BACK L50C 15" TFT LCD Color Monitor NEXT 5. Display power If the power management function of your computer is enabled, your monitor management turns on and off automatically. You can control power management features from your computer. Reducing power consumption Your computer may have power management features which enable the computer or monitor to enter a power saving mode when the system is idle.

  • Page 18: Troubleshooting

    BACK L50C 15" TFT LCD Color Monitor NEXT 6. Troubleshooting If your monitor is not functioning properly, you may be able to solve the problem by following the suggestions below : Problem Possible solution Blank screen If the power LED is not lit, push the Soft power switch or check the AC cord to turn the monitor on.
  • Page 19 BACK L50C 15" TFT LCD Color Monitor NEXT Problem Possible solution Color defects Check that the signal cable connector is properly connected and that the connection pins are not bent or damaged. Try another color temperature. Size, position, Adjust the picture characteristics as described in the section OSD shape or quality Adjustment(4-3).
  • Page 20 BACK L50C 15" TFT LCD Color Monitor NEXT Problem Possible solution The power LED is a LED Indicator can be orange color on changing of video mode or orange color Input Signal. Check the Resolution and the frequency on the video part of your computer.

  • Page 21: Specifications

    BACK L50C 15" TFT LCD Color Monitor 7. Specifications 15"viewable, Diagonal Pixel pitch 0.297 mm, A-Si TFT Brightness 250cd/m (Typ.) Response Time 20msec Display area 304 X 228 mm Number of color 16.2 million colors (with dithering) Input signals R.G.B Analog, 15 pin D-sub Frequency rate Horizontal : 31.0 to 60.0KHz Vertical : 56 to 75Hz...
