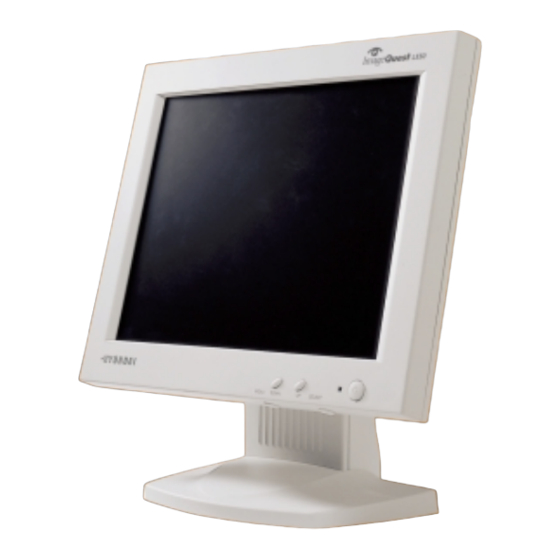

ImageQuest L550
TFT LCD Color Monitor
User's Guide
Click
www.hyundaiQ.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ImageQuest L550 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai ImageQuest L550

Summary of Contents for Hyundai ImageQuest L550

  • Page 1 NEXT ImageQuest L550 TFT LCD Color Monitor User's Guide Click www.hyundaiQ.com...
  • Page 2 BACK U.S.A. U.S.FEDERAL COMMUNICATIONS COMMISSION NEXT RADIO FREQUENCY INTERFERENCE STATEMENT INFORMATION TO THE USER NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 BACK DECLARATION OF CONFORMITY NEXT ImageQuest CO., LTD. Ami-ri Bubal-Eub Ichon-Si Kyungki-Do 467-860 KOREA declare under our sole responsibility that the product: Kind of equipment COLOR MONITOR Type-Designation L15A0C061 to which this declaration relates is in conformity with the following standard(s) or other normative document(s) Safety : EN 60950 : 1992 + A1, A2, A3, A4 : EN 55022 : 1998, EN 55024 : 1998 EN 61000-3-2 : 1995+A1 : 1998+A2 : 1998...

  • Page 4: Table Of Contents

    BACK L550 15" TFT LCD Color Monitor NEXT Contents 1. Introduction .......1/17 2. Safety Information ....1/17 3. Installing the monitor ....4/17 3-1. Packing List ........4/17 3-2. Selecting a suitable location ..5/17 3-3. Connecting the monitor ....5/17 3-4. Setting the refresh rate ....7/17 Preset Timing Table .......8/17 4.

  • Page 5: Introduction

    15" TFT LCD Color Monitor NEXT 1. Introduction This manual contains instructions for installing and operating ImageQuest L550 . ImageQuest L550 is a highly ergonomic color display unit. • 15" viewable XGA LCD • Supporting full scan flicker-free picture quality •...
  • Page 6 BACK L550 15" TFT LCD Color Monitor NEXT Be sure to turn the monitor off before plugging the power cord into the socket. Make sure that the power cord and the other cords are securely and rightly connected. Overloaded AC outlets and extension cords are dangerous, as are frayed power cords and broken plugs, which may cause electric shock or fire.
  • Page 7 BACK L550 15" TFT LCD Color Monitor NEXT Cleaning and Maintenance • To avoid risk of electric shock, do not disassemble the display unit cabinet. The unit is not user-serviceable. Remember to unplug the display unit from the power outlet before cleaning. •...

  • Page 8: Installing The Monitor

    BACK L550 15" TFT LCD Color Monitor NEXT 3. Installing the The following items should be found in the packaging. monitor 3-1. Packing List Japan Power cord America/Canada Europe Signal cable South Africa Australia Compact Disc Korea Above power cord can be changed upon different voltage areas. Please contact your dealer if anything is missing or damaged.

  • Page 9: Selecting A Suitable Location

    BACK L550 15" TFT LCD Color Monitor NEXT 3-2. Selecting a suitable location • Place the monitor at least 30cm from other electrical or heat-emitting equipment and allow at least 10cm on each side for ventilation. • Place the monitor in a position where no light shines directly onto or is reflected on the screen.
  • Page 10 BACK L550 15" TFT LCD Color Monitor NEXT Turn on the power to the computer. The picture will appear within about 10 seconds. Adjust the picture to obtain optimum picture quality. See section Adjusting the picture in this guide for more information. 6/17...

  • Page 11: Setting The Refresh Rate

    BACK L550 15" TFT LCD Color Monitor NEXT LED Indicator Soft Power Switch 3-4. Setting the refresh Follow the instructions below to set your refresh rate in Windows 98. rate Go to the configuration window(Start-Settings-Configuration window). Double click on the ‘Display’ icon. Click on the ‘Settings’...

  • Page 12: Preset Timing Table

    BACK L550 15" TFT LCD Color Monitor NEXT Preset Timing Table If the signal from the system doesn't equal to the preset timing mode, adjust the mode with reference to the user guide of videocard because the screen may not be displayed. The recommended setting is a resolution of 1024x768 and a refresh rate of 60Hz.

  • Page 13: Adjusting The Picture

    BACK L550 15" TFT LCD Color Monitor NEXT 4. Adjusting the picture You can adjust the screen display by using the buttons located below the screen. 9/17...

  • Page 14: Using The On Screen Display

    BACK L550 15" TFT LCD Color Monitor NEXT 4-1. Using the On Screen Push the MENU button to call the OSD to the screen. The resolution and Display frequency are displayed at the top of the menu box for your information. The resolution is displayed only when the monitor works in the preset mode.

  • Page 15: Osd Adjustments

    BACK L550 15" TFT LCD Color Monitor NEXT 4-3. OSD Adjustments The OSD adjustments available to you are listed below. BRIGHTNESS You can play the movie Adjusts the brightness of the screen. file to see how to adjust the picture image by CONTRAST clicking each icon or title Adjusts the contrast of the screen.
  • Page 16 BACK L550 15" TFT LCD Color Monitor NEXT There are three color settings available: Mode 1(a cool white), Mode 2(a warm white) or USER. With the USER setting you can set individual values for red, green and blue. INFORMATION Information shows the horizontal and vertical frequency of your display unit.

  • Page 17: Display Power Management

    BACK L550 15" TFT LCD Color Monitor NEXT 5. Display power If the power management function of your computer is enabled, your monitor management turns on and off automatically. You can control power management features from your computer. Reducing power Your computer may have power management features which enable the computer consumption or monitor to enter a power saving mode when the system is idle.

  • Page 18: Troubleshooting

    BACK L550 15" TFT LCD Color Monitor NEXT 6. Troubleshooting If your monitor is not functioning properly, you may be able to solve the problem by reading followings. Problem Possible solution Blank screen If the power LED is not lit, push the Soft power switch or check the AC cord to turn the monitor on.
  • Page 19 BACK L550 15" TFT LCD Color Monitor NEXT Problem Possible solution Color defects Check that the signal cable connector is properly connected and that the connection pins are not bent or damaged. Try another color temperature. Size, position, Adjust the picture characteristics as described in the section shape or quality Adjusting the picture.
  • Page 20 BACK L550 15" TFT LCD Color Monitor NEXT Contacting service If the above troubleshooting hints do not help you find a solution to the problem, contact an authorized service agent. If the monitor is sent for service, use the original package if possible. Unplug the display unit from the power outlet and contact a service agent when: •...

  • Page 21: Specifications

    BACK L550 15" TFT LCD Color Monitor 7. Specifications 15"viewable, Diagonal Dot pitch 0.297 mm, AM-TFT Brightness 180cd/m (Min.), 200cd/m (Typ.) Response Time 40msec Display area 304 X 228 mm Number of color 16,7 million colors (with dithering) Input signals R.G.B Analog, 15 pin D-sub Frequency rate Horizontal : 31.0 to 60.0KHz...
