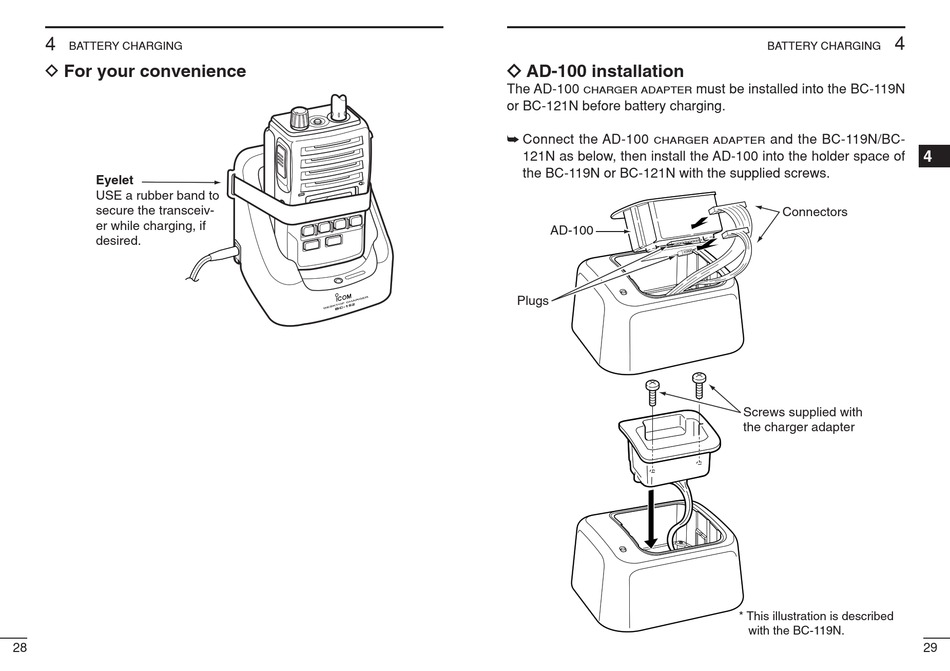

BATTERY CHARGING
D For your convenience
Eyelet
USE a rubber band to
secure the transceiv-
er while charging, if
desired.
28
ï AD-100 installation
The AD-100
CHARGER ADAPTER
or BC-121N before battery charging.
➥ Connect the AD-100
CHARGER ADAPTER
121N as below, then install the AD-100 into the holder space of
the BC-119N or BC-121N with the supplied screws.
AD-100
Plugs
BATTERY CHARGING
must be installed into the BC-119N
and the BC-119N/BC-
Connectors
Screws supplied with
the charger adapter
* This illustration is described
with the BC-119N.
