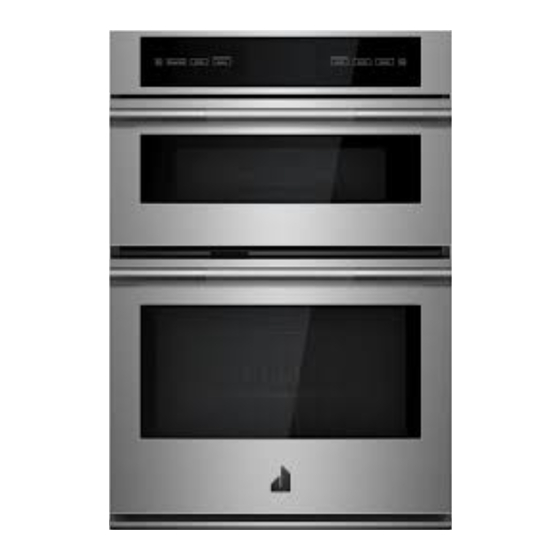

Jenn-Air JMW3430IL02 Use & Care Manual

27" and 30" (68.6 cm and 76.2 cm) built-in microwave/oven combination
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
27" AND 30" (68.6 CM AND 76.2 CM)
BUILT-IN MICROWAVE/OVEN COMBINATION
DES FOURS ENCASTRÉS (MICRO-ONDES/FOUR)
27 PO ET 30 PO (68,6 CM ET 76,2 CM)
Use & Care Guide
For questions about features, operation/performance, parts, accessories, or service in the U.S.A., call:
1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.
In Canada, call: 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.ca.
Guide d'utilisation et d'entretien
Pour des questions à propos des caractéristiques, du fonctionnement/rendement, des pièces, accessoires ou dépannage, composer le :
1 800 JENNAIR (1 800 536-6247) ou visiter notre site Web au www.jennair.com.
Au Canada, composer le : 1 800 JENNAIR (1 800 536-6247) ou visiter notre site Web au www.jennair.ca.
W11235344A

Advertisement

Table of Contents
loading

Related Manuals for Jenn-Air JMW3430IL02

Summary of Contents for Jenn-Air JMW3430IL02

  • Page 1 27" AND 30" (68.6 CM AND 76.2 CM) BUILT-IN MICROWAVE/OVEN COMBINATION DES FOURS ENCASTRÉS (MICRO-ONDES/FOUR) 27 PO ET 30 PO (68,6 CM ET 76,2 CM) Use & Care Guide For questions about features, operation/performance, parts, accessories, or service in the U.S.A., call: 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE DES MATIÈRES BUILT-IN MICROWAVE OVEN SAFETY ........3 SÉCURITÉ DU FOUR À MICRO-ONDES ENCASTRÉ ....24 Electrical Requirements ...............4 Spécifications électriques ............26 PARTS AND FEATURES ..............5 PIÉCES ET CARACTÉRISTIQUES ..........26 Turntable ..................5 Plateau rotatif ................27 Convection Grid ................6 Grille de convection ..............27 Coated Crisper Pan and Handle ..........6 Plat à...

  • Page 3: Built-In Microwave Oven Safety

    BUILT-IN MICROWAVE OVEN SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.

  • Page 4: Electrical Requirements

    IMPORTANT SAFETY INSTRUCTIONS Liquids, such as water, coffee, or tea are able to be Do not store the microwave oven outdoors. Do not use this product near water - for example, near a kitchen sink, in a overheated beyond the boiling point without appearing to be boiling.

  • Page 5: Parts And Features

    PARTS AND FEATURES C, D A. Electronic oven control G. Lower oven (on combination models. See Parts and Features not shown separate Use and Care Guide.) B. Convection element and fan (hidden Convection grid behind back panel) H. Bottom vent Grilling grid C.

  • Page 6: Convection Grid

    1. From the Microwave Cooking Mode menu, touch TURNTABLE Always use the turntable. ■ to turn the rotation On or Off. To avoid damage to the microwave oven, do not store the grid ■ in the oven. Two-level cooking is not recommended. ■...

  • Page 7: Touch Panel

    Dedicated Microwave Oven Models A. Power D. Add 30 Sec. B. Kitchen Timer E. Microwave Cancel C. Tools Display Screen Touch Panel 1. The touch display screen is used to make menu selections, adjust settings and input commands. The touch panel houses the control menu and function controls. The touch pads are very sensitive and require only a light touch to activate.

  • Page 8: Tools Menu

    Drop-down Message Demonstration MODE AVAILABLE SELECTIONS Clock Theme Textures MODE ■ Celebration ■ The next steps will convert your standard recipe for use with Culinary convection cooking. ■ Convert Bake Convert Bake Roast Roast Clock Only ■ Rapid Preheat id P h Meats, Veggies Animation (Default) ■...
  • Page 9 Kitchen Timer Wi-Fi Connectivity (on some models) This is an independent timer not associated with the cook timers. Your oven may have built-in Wi-Fi connectivity, but for it to work, you will have to connect it to your home wireless network. For NOTE: The Kitchen Timer appears as a drop-down display.

  • Page 10: Built-In Microwave Oven Use

    BUILT-IN MICROWAVE OVEN USE A magnetron in the oven produces microwaves that reflect off Cooking Guidelines the metal floor, walls, and ceiling and pass through the turntable and appropriate cookware to the food. Microwaves are attracted to and absorbed by fat, sugar, and water molecules in the food, Covering causing them to move, producing friction and heat which cooks Covering food helps retain moisture, shorten cook time, and...

  • Page 11: Cookware And Dinnerware

    Do Not Use Cookware and Dinnerware Metal cookware and bakeware, gold, silver, pewter, non-approved Cookware and dinnerware must fit on the turntable. Always meat thermometers, skewers, twist ties, foil liners such as use oven mitts or pot holders when handling because any dish sandwich wrappers, staples, and objects with gold or silver trim may become hot from heat transferred from the food.

  • Page 12: Cook Sensor

    To Delete Cook Sensor 1. Use the tumbler to select Delete / Edit from the menu During the Sensor Cook function, a sensor automatically adjusts selection, and then touch NEXT. for the cook time and power level. 2. Using the tumbler, select the creation you wish to delete. The microwave oven display will show the time countdown once 3.
  • Page 13 MODE RANGE MODE RANGE Convect Roast Reheat 170–450°F (77–232°C) Manual (Default @ 100% Power) Default 325°F (163°C) @ 0% Power Casserole Power: 0–30% (Default 0%) Dinner Plate Convect Bake 170–450°F (77–232°C) Pizza Slice Default 325°F (163°C) Sauce Convert Recipe Roast Soup For Convection Bake (Default)

  • Page 14: Auto Convection Conversion

    5. Touch START. The display will count down the cook time. Use the following chart as a guide. When the stop time is reached, the oven will shut off automatically. Convection Chart If enabled, end-of-cycle tones will sound. SETTING FOODS 6.

  • Page 15: Convect Roast

    Convect Roast SpeedCook Foods The Roast function uses the convection element with or without The SpeedCook function uses the broil element, convection microwave power. The Roast function requires that a time and element and fan, and microwaves. All cycle on and off in intervals. temperature (and microwaves if desired) be entered.

  • Page 16: Cook

    SETTING QUANTITY SETTING QUANTITY Poultry Convenience Food Frozen Chicken Tenders 5-20 pieces Bagel bites 9 pieces Chicken breast 0.2-2.0 lb (0.1-0.9 kg) Cheese sticks 4-16 pieces Chicken nuggets 6-24 pieces Frozen egg rolls 1-8 pieces Chicken pieces - with skin 0.5-2.0 lb (0.2-0.9 kg) Frozen french toast 1-4 pieces...

  • Page 17: Beverage

    To Use Manual Broil & Grill: Beverage 1. From the Mode menu, select Broil & Grill. Use a microwave safe container. 2. Select Manual and then touch NEXT. Do not cover. NOTE: The default power level is 0%. 3. Enter a Cook Time (--:--). The maximum length is 89:59. To Use Beverage Mode: 4.

  • Page 18: Melt

    To Use Programmed Reheat: Melt For Combination Ovens, begin by touching the MICROWAVE The Melt function may be used to melt your food. Times and button. cooking powers have been preprogrammed for a number of food 1. Scroll to REHEAT in the cooking mode menu. types.

  • Page 19: Boil & Simmer

    Manual Simmer Chart Boil & Simmer FOOD INSTRUCTIONS Boil & Simmer is a sensor function, and uses only microwaves to simmer your food. Pasta* Add 1 tbs (15 mL) oil to water. Place the dish containing water in oven. Follow recommended water and food amounts that appear on ■...

  • Page 20: Browning Pan

    To Use Programmed Browning Pan: Browning Pan 1. Touch POWER or MICROWAVE (on combination The Browning Pan feature uses the crisper pan, the broil element oven models). and microwaves to crisp and brown foods. While microwaves 2. From the Cooking mode menu, touch BROWNING PAN. heat food from above, they also heat the pan from below to 3.

  • Page 21: Built-In Microwave Oven Care

    BUILT-IN MICROWAVE OVEN CARE General Cleaning CONTROL PANEL/DISPLAY IMPORTANT: Before cleaning, make sure all controls are off and Activate the Button Lock to avoid touch screen activation during the microwave oven is cool. Always follow label instructions on cleaning. See “Button Lock” in the “Tools Menu” section. cleaning products.

  • Page 22: Troubleshooting

    TROUBLESHOOTING First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call, refer to the warranty, or visit https://jennair.custhelp.com. In Canada, visit http://www.jennair.ca. Contact us by mail with any questions or concerns at the address below: In the U.S.A.: In Canada: JennAir Brand Home Appliances...

  • Page 23: Assistance Or Service

    ASSISTANCE OR SERVICE If you need service In Canada Please refer to the warranty. Call the JennAir Canada LP Customer eXperience Centre If you need replacement parts toll-free: 1-800-JENNAIR (1-800-536-6247). If you need to order replacement parts, we recommend that you Our consultants provide assistance with: use only factory specified parts.

  • Page 24: Au Canada

    10/18 /™ ©2018 All rights reserved. Used under license in Canada. ® Printed in U.S.A. W11235344A Tous droits réservés. Utilisé sous licence au Canada. Imprimé aux États-Unis...
