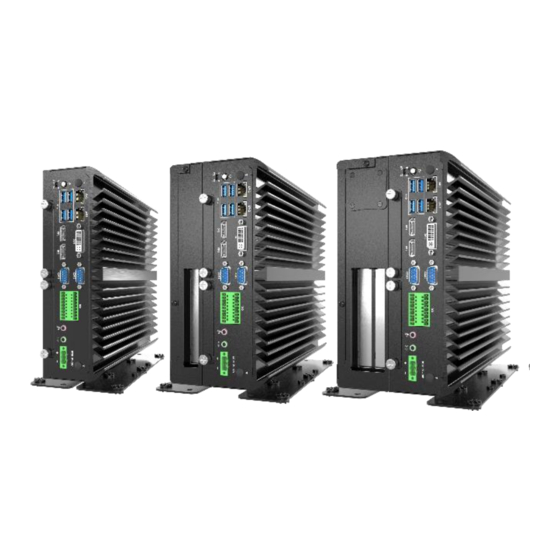

C&T VCO-6000-KBL Series User Manual

C&T VCO-6000-KBL Series User Manual

Superior machine vision system
Table of Contents

Advertisement

Quick Links

USER'S
MANUAL
VCO-6000-KBL Series
Superior Machine Vision System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCO-6000-KBL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for C&T VCO-6000-KBL Series

  • Page 1 USER’S MANUAL VCO-6000-KBL Series Superior Machine Vision System...
  • Page 2 VCO-6000-KBL | User’s Manual Please note, the VCO-6000 is now referred to as "VCO-6000-KBL" due to a model name change. All product features and functionality remain the same. If any questions, please contact us for more information. Name Change Guide: LEGACY Model Name NEW Model Name VCO-6000...
  • Page 3: Table Of Contents

    VCO-6000-KBL | User’s Manual Table of Contents Prefaces ……………………………………………………………………………………………….. 04 Revision ………………………………………………………..……………………………..……………….……….. 04 Disclaimer ……………………………………………………….…….……………….………………….………….. Copyright Notice …………………………………….…….….………………………………….………………… Trademarks Acknowledgment …………..………….………………………………………....Environmental Protection Announcement ……………………………………..……..……………….. Safety Precautions ……………………………………………………………………………………….….…….. Technical Support and Assistance ………………………………...……………………..…….…….……. 06 Conventions Used in this Manual …………………………………..……………………..….……….. 06 Package Contents ……………………………………………………………………..…..…………………….…...
  • Page 4 VCO-6000-KBL | User’s Manual Installing HDD on removable SATA HDD bay …...…….……………..….………..59 3.10 Installing CFast card …………………………………………….……..…….……..………..60 3.11 Changing CMOS battery ………………..…….…………………………………..………..61 3.12 Installing PCIe/PCI expansion card ………………..…………………..……..………..62 3.13 Connecting expansion module with computing module ……………….……..64 3.14 Installing wall mount kit …………………….……..………………..……..……….……..
  • Page 5: Prefaces

    VCO-6000-KBL | User’s Manual Prefaces Revision Revision Description Date Manual Released 2018/01/15 Added WDT and GPIO Sample Code 2018/02/09 New-added CPU support, OS revision, and Wall Mount kit revision 2018/08/22 WDT & GPIO Sample Code Revised 2018/11/28 New-added TPM 1.2 support 2019/08/12 New-added RST (UEFI RAID) configuration and TPM 2.0 support 2020/03/27...
  • Page 6: Safety Precautions

    Preface VCO-6000-KBL | User’s Manual Safety Precautions Before installing and using the equipment, please read the following precautions: ⚫ Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage. ⚫ The power outlet shall be installed near the equipment and shall be easily accessible. ⚫...
  • Page 7: Technical Support And Assistance

    Preface VCO-6000-KBL | User’s Manual Technical Support and Assistance Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance. Please have following information ready before you call: ⚫ Model name and serial number ⚫...
  • Page 8: Package Contents

    Preface VCO-6000-KBL | User’s Manual Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty VCO-6000 Series Embedded System Utility DVD Driver Wall Mount Kit Accessory Kit Ordering Information Model No.
  • Page 9: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...
  • Page 10: Overview

    Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual 1.1 Overview The VCO-6000 series adopts 7 Gen. Intel® Core™ i7-7700T (3.8GHz, Quad Core) / i5-7500T (3.3GHz, Quad Core) / i3-7101TE (3.4GHz, Dual Core) or 6 Gen. Intel® Core™ i7-6700TE (3.4GHz, Quad Core) / i5-6500TE (3.3GHz, Quad Core) / i3-6100TE (2.7GHz, Dual Core) or Pentium®...
  • Page 11: Key Feature

    Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual 1.1.1 Key Features ⚫ LGA 1151 socket for 6 Gen. Intel® Core™ i7/i5/i3 or Pentium® / Celeron® Desktop Processor ⚫ Intel® Q170 chipset ⚫ 2x DDR4 SODIMM. max up to 32GB ⚫ Triple independent display supported by 1x DVI-I and 2x DisplayPort ⚫...
  • Page 12: Hardware Specification

    Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual 1.2 Hardware Specification • 4x USB 3.0 Port Processor System • 8 Isolated DI and 8 Isolated DO Port • Support 6 & 7 Gen Intel® Core™ i7 / i5 / i3 / Pentium® •...
  • Page 13: System I/O

    Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual 1.3 System I/O 1.3.1 VCO-6000 Front Panel USB 3.0 port DC IN Used to connect USB 3.0/2.0/1.1 device Used to plug a DC power input with terminal LAN port block Used to connect the system to a local area Speak-out network Used to connect a speaker...
  • Page 14 Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual Rear Panel & Top View Universal I/O Bracket Clear CMOS 1x Universal I/O Bracket Used to clear CMOS (By mini PCIe interface) Removable Battery Used to insert CMOS battery CFast Socket Used to insert CFast card Universal I/O Bracket...
  • Page 15: Vco-6011E(P)

    Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual 1.3.2 VCO-6011E(P) Front Panel USB 3.0 port DC IN Used to connect USB 3.0/2.0/1.1 device Used to plug a DC power input with terminal LAN port block Used to connect the system to a local area Speak-out network Used to connect a speaker...
  • Page 16 Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual Rear Panel & Top View Universal I/O Bracket Clear CMOS 1x Universal I/O Bracket Used to clear CMOS (By mini PCIe interface) Removable Battery Used to insert CMOS battery CFast Socket Used to insert CFast card Universal I/O Bracket...
  • Page 17: Vco-6022E(P/C)

    Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual 1.3.3 VCO-6022E(P/C) Front Panel USB 3.0 port DC IN Used to connect USB 3.0/2.0/1.1 device Used to plug a DC power input with terminal LAN port block Used to connect the system to a local area Speak-out network Used to connect a speaker...
  • Page 18 Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual Rear Panel & Top View Universal I/O Bracket Clear CMOS 1x Universal I/O Bracket Used to clear CMOS (By mini PCIe interface) Removable Battery Used to insert CMOS battery CFast Socket Used to insert CFast card Universal I/O Bracket...
  • Page 19: Vco-6033E(P/C)

    Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual 1.3.4 VCO-6033E(P/C) Front Panel USB 3.0 port DC IN Used to connect USB 3.0/2.0/1.1 device Used to plug a DC power input with terminal LAN port block Used to connect the system to a local area Speak-out network Used to connect a speaker...
  • Page 20 Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual Rear Panel & Top View Universal I/O Bracket Clear CMOS 1x Universal I/O Bracket Used to clear CMOS (By mini PCIe interface) Removable Battery Used to insert CMOS battery CFast Socket Used to insert CFast card Universal I/O Bracket...
  • Page 21: Vco-6044P(C)

    Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual 1.3.5 VCO-6044P(C) Front Panel USB 3.0 port DC IN Used to connect USB 3.0/2.0/1.1 device Used to plug a DC power input with terminal LAN port block Used to connect the system to a local area Speak-out network Used to connect a speaker...
  • Page 22 Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual Rear Panel & Top View Universal I/O Bracket Clear CMOS 1x Universal I/O Bracket Used to clear CMOS (By mini PCIe interface) Removable Battery Used to insert CMOS battery CFast Socket Used to insert CFast card Universal I/O Bracket...
  • Page 23: Vco-6055C

    Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual 1.3.6 VCO-6055C Front Panel USB 3.0 port DC IN Used to connect USB 3.0/2.0/1.1 device Used to plug a DC power input with terminal LAN port block Used to connect the system to a local area Speak-out network Used to connect a speaker...
  • Page 24 Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual Rear Panel & Top View Universal I/O Bracket Clear CMOS 1x Universal I/O Bracket Used to clear CMOS (By mini PCIe interface) Removable Battery Used to insert CMOS battery CFast Socket Used to insert CFast card Universal I/O Bracket...
  • Page 25: Mechanical Dimension

    Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual 1.4 Mechanical Dimensions 1.4.1 VCO-6000 Unit: mm 1.4.2 VCO-6011E / VCO-6011P Unit: mm...
  • Page 26: Vco-6022E(P/C)

    Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual 1.4.3 VCO-6022E / VCO-6022P / VCO-6022C Unit: mm 1.4.4 VCO-6033E / VCO-6033P / VCO-6033C Unit: mm...
  • Page 27: Vco-6044P(C)

    Chapter 1: Product Introductions VCO-6000-KBL | User’s Manual 1.4.5 VCO-6044P / VCO-6044C Unit: mm 1.4.6 VCO-6055C Unit: mm...
  • Page 28: Chapter 2 Switches And Connectors

    Chapter 2 Switches and Connectors...
  • Page 29: Switch And Connector Locations

    Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual 2.1 Switch and Connector Locations 2.1.1 Top View...
  • Page 30: Bottom View

    Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual 2.1.2 Bottom View...
  • Page 31: Connector / Switch Definition

    Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual 2.2 Connector / Switch Definition List of Connector / Switch Connector Location Definition AT_ATX2 AT / ATX Power Mode Switch CLR_CMOS1 Clear BIOS Switch PWR_SW3 Power Switch COM1_2_1 RS232 / RS422 / RS485 Connector COM3_1, COM4_1 RS232 / RS422 / RS485 Connector DC_IN1...
  • Page 32: Switch Definitions

    Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual 2.3 Switches Definitions AT_ATX1: AT / ATX Power Mode Switch Switch Definition 1-2 (Right) AT Power Mode 2-3 (Left) ATX Power Mode(Default) CLR_CMOS1: Clear BIOS Switch Switch Definition 1-2 (Left) Normal Status (Default) 2-3 (Right) Clear BIOS 2.4 Connectors Definitions...
  • Page 33 Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual COM1_2_1: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub COM1 RS422 / 485 Full RS485 Half Duplex RS232 Definition Duplex Definition Definition DCD1 TX1- DATA1- RxD1 TX1+ DATA1+ TxD1 RX1+ DTR1 RX1-...
  • Page 34 Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual COM3_1: RS232 / RS422 / RS485 Connector Connector Type: 2X5 10-pin box header, 2.54mm pitch COM3_1 RS422 / 485 Full RS485 Half Duplex RS232 Definition Duplex Definition Definition DCD3 TX3- DATA3- RxD3 TX3+ DATA3+...
  • Page 35 Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual DC_IN1: DC Power Input Connector (+9~50V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~50VIN DVI_I1: DVI-I Connector Definition Definition DVI_TX2- DVI Hot Plug Detect DVI_TX2+ DVI_TX0- DVI_TX0+ VGA_DDC_CLOCK DVI_DDC_CLOCK VGA_DDC_DATA DVI_DDC_DATA VGA VSYNC...
  • Page 36 Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual DP2: DisplayPort Connector Definition Definition DP2_LANE0_P DP2_LANE3_N DP2_LANE0_N DP2_LANE1_P DP2_AUX_P DP2_LANE1_N DP2_LANE2_P DP2_AUX_N DP2_HPD DP2_LANE2_N DP2_LANE3_P DP2_PWR SPK_OUT1 : Speaker-out Jack (Green) Connector Type: 5-pin Phone Jack Definition OUT_R OUT_L MIC_IN1: Microphone Jack (Pink) Connector Type: 5-pin Phone Jack Definition MIC_R...
  • Page 37 Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual DIO1: Digital Input / Output Connector Connector Type: Terminal Block 2X9 18-pin, 3.5mm pitch Definition Definition DC INPUT...
  • Page 38 Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual Digital Input Wurung Digital Output Wurung...
  • Page 39 Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual CN1: LAN1 and USB3.0 Ports Connector Type: RJ45 port with LEDs and dual USB3.0 ports Definition Definition Definition LAN1_MDI0P USB2_D1- USB2_D2- LAN1_MDI0N USB2_D1+ USB2_D2+ LAN1_MDI1P LAN1_MDI2P USB3_RX1- USB3_RX2- LAN1_MDI2N USB3_RX1+ USB3_RX2+ LAN1_MDI1N LAN1_MDI3P USB3_TX1-...
  • Page 40 VCO-6000-KBL | User’s Manual MINIPCIE1: Mini PCI-Express Socket Definition Definition Definition WAKE# +3.3V +3.3V USB2_D11+ +3.3V MINIPCIE RST# MINIPCIE_RXN11 +3.3V +1.5V +3.3V CLKREQ0# MINIPCIE_RXP11 +1.5V MINIPCIE_CLKN0 SMB_CLK +1.5V MINIPCIE_CLKP0 MINIPCIE_TXN11 SMB_DATA MINIPCIE_TXP11 +3.3V USB2_D11- 40 40...
  • Page 41 Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual CN3: Mini PCI-Express / mSATA Socket Definition Definition Definition WAKE# +3.3V +3.3V USB_D13+ +3.3V MINIPCIE RST# MINIPCIE_RXN4 +3.3V (SATA_RXN4) +1.5V +3.3V MINIPCIE_RXP4 CLKREQ1# (SATA_RXP4) +1.5V MINIPCIE_CLKN4 SMB_CLK +1.5V MINIPCIE_TXN4 MINIPCIE_CLKP4 (SATA_TXN4) SMB_DATA MINIPCIE_TXP4 (SATA_TXP4)
  • Page 42 Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual SATA3, SATA4: SATA with Power Connector SATA1 SATA1 SATA2 SATA2 Definition Definition Definition Definition SATA_TXP2 SATA_TXP3 SATA_TXN2 SATA_TXN3 SATA_RXN2 SATA_RXN3 SATA_RXP2 SATA_RXP3 +3.3V +3.3V +3.3V +12V +3.3V +12V +3.3V +12V +3.3V +12V +12V +12V...
  • Page 43 Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual CFAST1: CFAST Socket Definition Definition Definition PC10 SATA_TXP1 PC11 SATA_TXN1 PC12 PC13 +3.3V SATA_RXN1 PC14 +3.3V SATA_RXP1 PC15 PC16 PC17 POWER1, POWER3, POWER4: Power Connector Definition +12V...
  • Page 44 Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual PCIE1: PCI-Express X1 Socket Connector Type: PCI-Express X1 Slot Definition Definition +12V +12V +12V +12V +12V SMB_CLK SMB_DATA +3.3V +3.3V +3.3V +3.3VSB PCIE_RESET# PCIE_WAKE# +12V PCIE_CLKP1 PCIE_CLKN1 PCIE_TXP11 PCIE_TXN11 PCIE_RXP11 PCIE_RXN11...
  • Page 45 Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual PCIE1: PCI-Express X16 Socket Connector Type: PCI-Express X16 Slot Definition Definition Definition Definition PCIE_PRSNT1 +12V PEG_TXN6 +12V PEG_RXP6 +12V +12V PEG_RXN6 +12V PEG_TXP7 SMB_CLK PEG_TXN7 PEG_RXP7 SMB_DATA PEG_RXN7 PRSNT2_3 +3.3V +3.3V PEG_TXP8 +3.3V +3.3VSB...
  • Page 46 Chapter 2: Switches and Connectors VCO-6000-KBL | User’s Manual PWR_LED2: Power LED Status Definition POWER LED+ POWER LED- HDD_LED2: HDD Access LED Status Definition HDD LED+ HDD LED-...
  • Page 47: Chapter 3 System Setup

    Chapter 3 System Setup...
  • Page 48: Set Torque Force To 3.5 Kgf-Cm To Execute All The Screwing And Unscrewing

    Chapter 3: System Setup VCO-6000-KBL | User’s Manual 3.1 Set torque force to 3.5 kgf-cm to execute all the screwing and unscrewing. In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source. 3.2 Disconnecting expansion module from computing module 1.
  • Page 49: Removing Heat Sink Cover

    Chapter 3: System Setup VCO-6000-KBL | User’s Manual 3.3 Removing heat sink cover 1. Unscrew the 3 screws on the top side of computing module. 2. Unscrew the 3 screws on the bottom side. 3. Now you can remove the heat sink cover.
  • Page 50: Installing Sodimm

    Chapter 3: System Setup VCO-6000-KBL | User’s Manual 3.4 Installing SODIMM 1. Place the system body with SODIMM socket facing upward. Two SODIMM sockets are available for VCO-6000 Series on the top side. 2. Insert memory module from 45 degree direction. 3.
  • Page 51: Installing Cpu

    Chapter 3: System Setup VCO-6000-KBL | User’s Manual 3.5 Installing CPU 1. You can easily locate the CPU socket after heat sink cover is removed. 2. Press down the CPU socket lever in order to open the socket cover.
  • Page 52 Chapter 3: System Setup VCO-6000-KBL | User’s Manual 3. Remove the CPU protective cover. 4. Insert CPU gently.
  • Page 53 Chapter 3: System Setup VCO-6000-KBL | User’s Manual 5. Press down the lever again to hold the socket cover. 6. Paste thermal pad on the CPU.
  • Page 54 Chapter 3: System Setup VCO-6000-KBL | User’s Manual 7. Place the designated heat block onto the CPU with thermal pad. 8. Lock the heat block with three screws. Screw driver will able to penetrate through the holes on the top in order to fasten the screws with copper stud.
  • Page 55 Chapter 3: System Setup VCO-6000-KBL | User’s Manual 9. Paste the thermal pad onto the installed heat block. 10. Installation complete.
  • Page 56: Installing Mini Pcie Card / Msata

    Chapter 3: System Setup VCO-6000-KBL | User’s Manual 3.6 Installing mini PCIe card / mSATA 1. Three mini PCIe slots are available for VCO-6000 series. CN3 and CN4 on the top side can also support mSATA. MINIPCIE1 2. Insert mini PCIe card from 45 degree direction. 3.
  • Page 57: Installing Antenna

    Chapter 3: System Setup VCO-6000-KBL | User’s Manual 3.7 Installing antenna 1. Two antenna holes are available for VCO-6000 series on the front panel. 2. Remove antenna hole cover on the front panel. 3. Have antenna jack penetrate through the hole.
  • Page 58 Chapter 3: System Setup VCO-6000-KBL | User’s Manual 4. Put on washer and fasten the nut with antenna jack. 5. Assemble the antenna and antenna jack together. 6. Attach the RF connector at the cable-end onto the communication module.
  • Page 59: Assembly Heat Sink Cover

    Chapter 3: System Setup VCO-6000-KBL | User’s Manual 3.8 Assembly heat sink cover 1. Ensure thermal pad is already pasted on both the CPU thermal block and PCH thermal block. 2. Now you can close the heat sink cover. 3. Fasten the six screws on the system top side and bottom side.
  • Page 60: Installing Hdd On Removable Sata Hdd Bay

    Chapter 3: System Setup VCO-6000-KBL | User’s Manual 3.9 Installing HDD on removable SATA HDD bay 1. Two removable SATA HDD bays are available for VCO-6000 Series. 2. Unscrew the two sun screws circled below to take out the removable SATA HDD bay. 3.
  • Page 61: Installing Cfast Card

    Chapter 3: System Setup VCO-6000-KBL | User’s Manual 3.10 Installing CFast card 1. CFast socket is located on the system top side. Unscrew two screws to remove the bracket. 2. Insert CFast card into the socket until you hear the “click” sound. 3.
  • Page 62: Changing Cmos Battery

    Chapter 3: System Setup VCO-6000-KBL | User’s Manual 3.11 Changing CMOS battery 1. CMOS battery is accessible from the system rear panel. Unscrew two screws to pull out the CMOS battery.
  • Page 63: Installing Pcie/Pci Expansion Card

    Chapter 3: System Setup VCO-6000-KBL | User’s Manual 3.12 Installing PCIe/PCI expansion card 1. Unscrew two screws on the front side of expansion module. 2. Push the chassis cover following the below direction to open the expansion module. 3. Now you will be able see the expansion slots. Unscrew the screw securing the card bracket to remove the bracket.
  • Page 64 Chapter 3: System Setup VCO-6000-KBL | User’s Manual 4. Insert your PCIe/PCI card into the expansion slot. 5. Install the screw back to secure the PCIe/PCI card 6. Close the chassis cover.
  • Page 65: Connecting Expansion Module With Computing Module

    Chapter 3: System Setup VCO-6000-KBL | User’s Manual 3.13 Connecting expansion module with computing module 1. Connect expansion module with computing module by inserting the gold fingers on the expansion module into the slot on the computing module. 2. Fasten all the screws with the connecting brackets on the top side and bottom of the system.
  • Page 66: Installing Wall Mount Kit

    Chapter 3: System Setup VCO-6000-KBL | User’s Manual 3.14 Installing wall mount kit 1. Wall mount kit is available for VCO-6000 series included in the standard package. 2. Lock the wall mount kit with 6 screws on the system bottom side. 3.
  • Page 67: Installing Book Mount

    Chapter 3: System Setup VCO-6000-KBL | User’s Manual 3.15 Installing book mount 1. For book mounting, use the same wall mount kit in the standard package. 2. Lock the wall mount kit with 6 screws on the system rear side. 3.
  • Page 68: Installing Din Rail Kit

    Chapter 3: System Setup VCO-6000-KBL | User’s Manual 3.16 Installing din rail mount 1. Din rail mount kit is available for VCO-6000 series as an optional accessory. 2. Lock the din rail mount with two screws on the system rear panel.
  • Page 69: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup...
  • Page 70: Bios Introduction

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.1 BIOS Introduction The system BIOS software is stored on EEPROM. The BIOS provides an interface to modify the configuration. When the battery is removed, all the parameters will be reset. BIOS Setup Power on the embedded system and by pressing <Del>...
  • Page 71: Main Setup

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. ◼...
  • Page 72: Advanced Setup

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.3 Advanced Setup This section allows you to configure and improve your system and allows you to set up some system features according to your preference.
  • Page 73: Cpu Configuration

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.3.1 CPU Configuration ■ SW Guard Extensions (SGX) This item allows you to set the SW Guard Extensions. ■ Select Owner EPOCH input type This item allows you to select the owner EPOCH input type. ■...
  • Page 74: Pch-Fw Configuration

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.3.2 PCH-FW Configuration ■ AMT Configuration Intel Active Management Technology (AMT) is hardware-based technology for remotely managing and securing PCs out-of-band. ■ Un-Configure ME Use this function to enable or disable Un-Configure ME without password function.
  • Page 75: Sata And Rst Configuration

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.3.3 SATA And RST Configuration ■ SATA Controller(s) Enable or disable Serial ATA controller. ■ SATA Mode Selection This item allows users to select mode of SATA controller. ■ Serial ATA Port 0 / 1 / 2 / 3 / 4 / 5 This item allows users to enable or disable Serial ATA Port 0 / 1 / 2 / 3 / 4 / 5.
  • Page 76: Rst (Uefi Raid) Configuration

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.3.4 RST (UEFI RAID) Configuration How to set the UEFI RAID: 1. When set to RAID, please save change reset system. 2. After reboot the system, please into BIOS utility and then will see “Intel (R) Rapid Storage Technology”...
  • Page 77 Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 3. Into Intel(R) Rapid Storage Technology, and start create RAID volume. 4. Start Create the RAID ■ Select Disk that you want to do the RAID ■ Select [x]; No-Select [ ]...
  • Page 78: Trusted Computing

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.3.5 Trusted Computing...
  • Page 79: Acpi Settings

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.3.6 ACPI Settings ■ Enable ACPI Auto Configuration Enable or disable BIOS ACPI auto configuration.
  • Page 80: Nct6106D Super Io Configuration

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.3.7 NCT6106D Super IO Configuration ■ Serial Port 1 Configuration ❑ Serial Port This item will allow users to enable or disable serial port. ❑ Change Settings This setting is used to change the address & IRQ settings of the specified serial port. ❑...
  • Page 81 Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual ■ Serial Port 2 Configuration ❑ Serial Port This item will allow users to enable or disable serial port. ❑ Change Settings This setting is used to change the address & IRQ settings of the specified serial port. ❑...
  • Page 82 Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual ■ Serial Port 4 Configuration ❑ Serial Port This item will allow users to enable or disable serial port. ❑ Change Settings This setting is used to change the address & IRQ settings of the specified serial port. ❑...
  • Page 83: Nct6106D Hw Monitor

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.3.8 NCT6106D HW Monitor These items display the current status of all monitored hardware devices/components such as voltages, temperatures and all fans’ speeds.
  • Page 84: Serial Port Console Redirection

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.3.9 Serial Port Console Redirection ■ Console Redirection This item allows users to enable or disable console redirection. 4.3.10 Network Stack Configuration ■ Network Stack Use this item to enable or disable UEFI Network Stack.
  • Page 85: Csm Configuration

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.3.11 CSM Configuration ■ CSM Support This item allows you to enable or disable CSM support. ■ GateA20 Active This item allows you to select <Upon Request> or <Always>. Upon Request: GA20 can be disabled using BIOS services. Always: Do not allow GA20 disabling.
  • Page 86: Usb Configuration

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.3.12 USB Configuration ■ Legacy USB Support This item allows you to select <Enabled>, <Disabled> or <Auto>. Enabled: To enable legacy USB support. Disabled: To keep USB devices available only for EFI specification, Auto: To disable legacy support if no USB devices are connected.
  • Page 87: Chipset

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.4 Chipset This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.4.1 System Agent (SA) Configuration ■ VT-d This item allows users to enable or disable VT-d.
  • Page 88 Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual ■ Graphic Configuration ❑ Primary Display Change the Primary Display. Select <Auto> or <PEG+IGFX> PEG+IGFX (Multiple-Displays): IGFX will be primary and only display under BIOS an DOS mode ❑ GTT Size This item allows you to change the GTT size. ❑...
  • Page 89 Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual ■ PEG Port Configuration ❑ PEG 0:1:0 ✓ Enable Root Port This item allows you to enable or disable the Root Port. ✓ Max Link Speed This item allows you to configure PEG 0:1:0 Max Sped. ❑...
  • Page 90: Pch-Io Configuration

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.4.2 PCH-IO Configuration This section allows you to configure the chipset. ■ PCI Express Configuration...
  • Page 91 Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual ❑ PCI Express Root Port 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 ✓ PCI Express Port 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 This item allows you to enable or disable PCI Express Port 1 / 3 / 4 / 5 / 6 / 7 /8 / 9 in the chipset.
  • Page 92 Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual ■ HD Audio Configuration ❑ HD Audio Control detection of the HD-Audio device. This item allows you to select <Enabled>, <Disabled> or <Auto>. Disabled: Azalia will be unconditionally be disabled. Enabled: Azalia will be unconditionally be enabled. Auto: Azalia will be enabled if present, disabled otherwise.
  • Page 93: Security

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.5 Security Security menu allow users to change administrator password and user password settings. ◼ Administrator Password This item allows you to set Administrator Password. ◼ User Password This item allows you to set User Password.
  • Page 94: Boot

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.6 Boot This menu allows you to setup the system boot options. ◼ Setup Prompt Timeout This item sets number of seconds to wait for setup activation key. ◼ Bootup NumLock State This item selects the keyboard NumLock state.
  • Page 95: Save & Exit

    Chapter 4: BIOS Setup VCO-6000-KBL | User’s Manual 4.7 Save & Exit This setting allows users to configure the boot settings. ◼ Save Changes and Reset This item allows user to reset the system after saving the changes. This item allows user to reset the system after saving the changes.
  • Page 96: Appendix Wdt & Gpio

    Appendix WDT & GPIO This appendix provides the sample codes of WDT (Watch Dog Timer) and GPIO (General Purpose Input/ Output).
  • Page 97: Wdt Sample Code

    Appendix – WDT & GPIO VCO-6000-KBL | User’s Manual WDT Sample Code WDT Setting Psuedo Code #define AddrPort 0x2e #define DataPort 0x2f #define SIO_UnLock_Value 0x87 #define SIO_Lock_Value 0xaa #define WATCHDOG_LDN 0x07 #define GPIO_Port 0xF1 //Enter_Config WriteByte (AddrPort, SIO_UnLock_Value); WriteByte (AddrPort, SIO_UnLock_Value); //Enter WATCHDOG LDN WriteByte (AddrPort, 0x07);...
  • Page 98: Gpio Sample Code

    Appendix – WDT & GPIO VCO-6000-KBL | User’s Manual GPIO Sample Code GPIO Setting PIN# GPIO# Default Configuration XCOM- XCOM+ OUT8 DIO Output8 DIO Input8 OUT7 DIO Output7 DIO Input7 OUT6 DIO Output6 DIO Input6 OUT5 DIO Output5 DIO Input5 OUT4 DIO Output4 DIO Input4...
  • Page 99 All Rights Reserved VCO-6000-KBL | User’s Manual...
