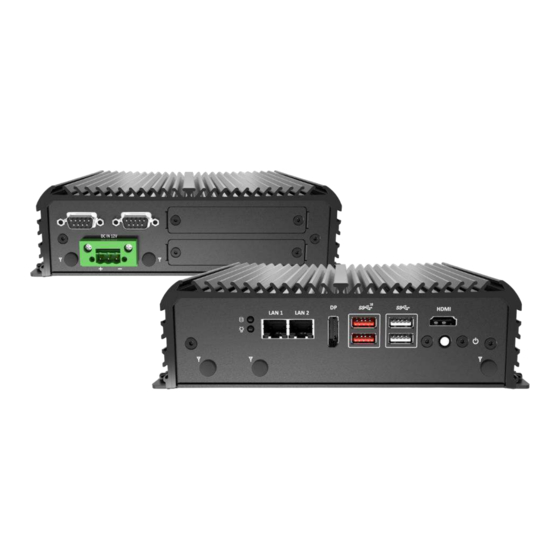

BCO-2000-V1605B
Fanless Mini Computer with AMD Ryzen™ Embedded
R1000/V1000 Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BCO-2000-V1605B and is the answer not in the manual?

Questions and answers

Related Manuals for C&T BCO-2000-V1605B

Summary of Contents for C&T BCO-2000-V1605B

  • Page 1 BCO-2000-V1605B Fanless Mini Computer with AMD Ryzen™ Embedded R1000/V1000 Series...

  • Page 2: Table Of Contents

    BCO-2000-V1605B l User’s Manual Table of Contents Prefaces …………………………………………………….……………………………………………. 04 Revision …………………………………………………………………………………………..……………….……….. 04 Disclaimer ………………………………………………………..…….…….………………………….……………….. 04 Copyright Notice …………………………………….…………………….…………………………………………… 04 Trademarks Acknowledgment …………..………………………………………………………....04 Environmental Protection Announcement …………………………….………………….……………….. 04 Safety Precautions ………………………………………….……………………………….…………….………….. 05 Technical Support and Assistance …………………………………….…………….…………….…………….06 Conventions Used in this Manual ………………………………………………………………….….………..06 Package Contents …………………………………………………………………………………………….…………...
  • Page 3 BCO-2000-V1605B l User’s Manual 4.3.4 Super IO Configuration ……….………………………….....…………..…... 64 4.3.5 Hardware Monitor ……………………………..………………….………….….……….. 67 4.3.6 Serial Port Console Redirection ……………………….…………..…………………. 69 4.3.7 CPU Configuration ..………………………………..…….….…………..………………… 71 4.3.8 USB Configuration …………………………………………….…..…………..…………... 72 4.3.9 Network Stack Configuration …………………………....……………….. 73 4.3.10 CSM Configuration ……………………….….......………………..……. 74 4.3.11 AMD CBS …………………….….......……………………………………..…...

  • Page 4: Prefaces

    BCO-2000-V1605B l User’s Manual Prefaces Revision Revision Description Date Manual Released 2023/02/15 Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading.

  • Page 5: Safety Precautions

    Preface BCO-2000-V1605B l User’s Manual Safety Precautions Before installing and using the equipment, please read the following precautions: ⚫ Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage. ⚫ The power outlet shall be installed near the equipment and shall be easily accessible.

  • Page 6: Technical Support And Assistance

    Preface BCO-2000-V1605B l User’s Manual Technical Support and Assistance 1. Visit the C&T Solution Inc website at https://www.candtsolution.com where you can find the latest information about the product. 2. Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance.

  • Page 7: Package Contents

    Preface BCO-2000-V1605B l User’s Manual Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty BCO-2000-AMD Series BOX PC Series Embedded System Desktop mount kit Accessory Kit Ordering Information Model No.

  • Page 8: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...

  • Page 9: Overview

    BCO-2000-V1605B l User’s Manual Chapter 1: Product Introductions 1.1 Overview C&T Basic Fanless Embedded Systems are designed for entry-level applications and basic needs. The BCO series can oversee connected devices and manage the collection, storage, and transmission of sensor data, and is capable of distilling unexplored value in data. It is not only robust and can withstand dust, shock, and vibration, but also can suitable for industrial automation, industrial control, kiosk &...

  • Page 10: Hardware Specification

    BCO-2000-V1605B l User’s Manual Chapter 1: Product Introductions 1.2 Hardware Specification System Display DisplayPort 1x DisplayPort 1.4, DP++, Processor Support resolution 3840 x 2160 Support AMD Ryzen™ Embedded R1000/V1000 Series @60 Hz • AMD Ryzen™ Embedded V1605B with Radeon™ Vega 8 Graphics, 4M Cache, 4 Cores, 8 Threads, Up to 3.6 GHz...
  • Page 11 BCO-2000-V1605B l User’s Manual Chapter 1: Product Introductions Power Power Adaptor Optional AC/DC 12V/5A, 60W, Power Mode AT, ATX 12VDC Power Protection Reserve Protection Environment -20 ° C to 55 ° C (25W CPU) Operating Temperature -30 ° C to 85 ° C...

  • Page 12: System I/O

    BCO-2000-V1605B l User’s Manual Chapter 1: Product Introductions 1.3 System I/O Front Panel LAN port ATX power on/off switch Used to connect the system to a local area Press to power-on or power-off the system network Power LED Antenna hole...
  • Page 13 BCO-2000-V1605B l User’s Manual Chapter 1: Product Introductions Rear Panel DC IN Expandable I/O bracket Used to plug a DC power input with terminal • COM Port： block COM2 or COM4 Support RS232/422/485 serial COM port device COM1 ~ COM2 support RS232/422/485 serial •...

  • Page 14: Mechanical Dimension

    BCO-2000-V1605B l User’s Manual Chapter 1: Product Introductions 1.4 Mechanical Dimensions Unit: mm...

  • Page 15: Chapter 2 Mechanical Specifications

    Chapter 2 Mechanical Specifications...

  • Page 16: Switch And Connector Locations

    BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.1 Switch and Connector Locations 2.1.1 Top View DC_IN1 GPIO1 MINI_PCIE1 LVDS1 COM2 COM1 SIM2 SATA1 BAT1 SATA1_PWR1 SODIMM1 SODIMM2 HDMI1 USB_1 FAN1...

  • Page 17: Bottom View

    BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.1.2 Bottom View 2.1.3 Rear I/O...

  • Page 18: Connector / Switch Definition

    BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.2 Connector / Switch Definition Connector Location Definition Clear CMOS Panel PWR setting Backlight PWR setting Front Panel AT/ATX setting Panel Control M.2 B key USB 2.0 port USB 3.2 Gen 2...

  • Page 19: I/O Interface Descriptions

    BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.1 Clear CMOS Signal RTCRST# 2.3.2 Panel Power setting Signal +V3.3A P3P5V +V5A...
  • Page 20 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.3 Backlight Power setting Signal +V12A P5P12V +V5A...
  • Page 21 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.4 Front Panel Header Signal Signal Power(3.3V) SATA_LED# Power(3.3V) LOUT_R RESET_BUTTON_N LOUT_L PS_ON_BUTTON_N MICIN1_R MICIN1_L AGND_HD...
  • Page 22 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.5 AT/ATX setting Signal AT MODE PS_ON_BUTTON_N...
  • Page 23 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.6 Panel control Signal Signal LVDS_BKLTEN LBKLT_CTRL BLPWR BLPWR CH7511_BLUP CH7511_BLDN...
  • Page 24 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.7 USB2 Signal Signal USBVCC0 USBVCC0 USB0N_CONN USB4N_CONN USB0P_CONN USB4P_CONN...
  • Page 25 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.8 USB 3.2 Signal Signal USBVCC0 USBVCC1 USB2-2N_CONN USB1N_CONN USB2-2P_CONN USB1P_CONN USB3-RN2_CONN USB3-RN1_CONN USB3-RP2_CONN USB3-RP1_CONN USB3-TN2_CONN USB3-TN1_CONN USB3-TP2_CONN USB3-TP1_CONN...
  • Page 26 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.9 Expansion I/O Signal Signal PE1_TX+ PE3_RX- PE1_TX- PE4_TX+ PE1_RX+ PE4_TX- PE1_RX- PE4_RX+ PE2_TX+ PE4_RX- PE2_TX- USB_0P USB_0N PE2_RX+ Power_BTN PE2_RX- SYS_RST# PLTST_N SMB_DAT(3.3V) REF_CLK+ SMB_CLK(3.3V) REF_CLK- +V3.3S +V3.3S...
  • Page 27 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.10 COM Port COM1 Signal Signal CM1_DCD CM1_DSR CM1_RXD CM1_RTS CM1_TXD CM1_CTS CM1_DTR CM1_RI...
  • Page 28 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.11 COM Port COM2 Signal Signal CM2_DCD CM2_DSR CM2_RXD CM2_RTS CM2_TXD CM2_CTS CM2_DTR CM2_RI...
  • Page 29 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.12 GPIO GPIO1 Signal Signal Power SIO_GPI1 SIO_GPO1 SIO_GPI2 SIO_GPO2 SIO_GPI3 SIO_GPO3 SIO_GPI4 SIO_GPO4...
  • Page 30 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.13 SATA SATA1 Signal SATA_TX0_C_DC_DP SATA_TX0_C_DC_DN SATA_RX0_DC_DN SATA_RX0_DC_DP...
  • Page 31 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.14 SATA_PWR SATA1_PWR1 Signal +V5S +V12S...
  • Page 32 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.15 USB2.0 Header USB_1 Signal Signal USBVCC2 USBVCC2 USB2-5N_CONN USB2-6N_CONN USB2-5P_CONN USB2-6P_CONN...
  • Page 33 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.16 Power IN DC_IN1 Signal...
  • Page 34 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.17 FAN PWR FAN1 Signal FANCTL1 FAN_SEN1 FAN_IN1...
  • Page 35 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.18 HDMI Display HDMI1 Signal Signal HDMI_TX2+_C HDMI_TXC-_C HDMI_TX2-_C HDMI_TX1+_C HDMI_SCL HDMI_TX1-_C HDMI_SDA HDMI_TX0+_C VCC5_HDMI HDMI_TX0-_C HDMI_HPD_CON HDMI_TXC+_C...
  • Page 36 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.19 Display Port Signal Signal ML_LANE0+ ML_LANE3- ML_LANE0- ML_LANE1+ AUX CH+ ML_LANE1- ML_LANE2+ AUX CH- ML_LANE2- DP_PWR Return ML_LANE3+ DP_PWR...
  • Page 37 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.20 Dual RJ45 Signal Signal R1 GBE1_MDI0P R1 GBE2_MDI0P R2 GBE1_MDI0N R2 GBE2_MDI0N R3 GBE1_MDI1P R3 GBE2_MDI1P R4 GBE1_MDI1N R4 GBE2_MDI1N R5 GBE0_CT R5 GBE0_CT R6 GBE0_CT R6 GBE0_CT...
  • Page 38 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.21 LVDS Header LVDS1 Signal Signal LB_DATA-N3 LB_DATA-P3 LB_CLK-N LB_CLK-P LB_DATA-N2 LB_DATA-P2 LB_DATA-N1 LB_DATA-P1 LB_DATA-N0 LB_DATA-P0 MIICSDA MIICSCL LA_DATA-P3 LA_DATA-N3 LA_CLK-P LA_CLK-N LA_DATA-P2 LA_DATA-N2 LA_DATA-P1 LA_DATA-N1 LA_DATA-P0 LA_DATA-N0...
  • Page 39 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.22 M.2 B key Signal Signal CONFIG_3 VCC1 VCC2 FULL_CARD_POWER_OFF# USB_D+ W_DISABLE1# USB_D- WWAN_LED# NOTCH NOTCH NOTCH NOTCH NOTCH NOTCH NOTCH NOTCH GPIO_5(O/1.8V) CONFIG_0 GPIO_6(O/1.8V) GPIO_11(0/1.8V) GPIO_7(O/1.8V) GPIO_10(O/1.8V) GPIO_8(O/1.8V)
  • Page 40 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications Signal Signal PERp0/SATA-B- USIM2_CLK USIM2_RST PETn0/SATA-A- USIM2_VDD PETp0/SATA-A+ PCIE_RST_N PCIE_CLKREQ_N PCIE_REFCLK_M PCIE_WAKE_N PCIE_REFCLK_P ANTCTL0 COEX3(O/1.8V) ANTCTL1 COEX2(O/1.8V) ANTCTL2 COEX1(O/1.8V) ANTCTL3 USIM1_DET RESET_N SUSCLK(32kHz) CONFIG_1 VCC3 VCC4 VCC5 CONFIG_2...
  • Page 41 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.23 SIM Card SIM2 Signal Signal DATA...
  • Page 42 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.24 Battery BAT1 Signal Signal Battery Power 2.3.25 Buzzer Signal Signal Passive Negative...
  • Page 43 BCO-2000-V1605B l User’s Manual Chapter 2: Mechanical Specifications 2.3 I/O Interface Descriptions 2.3.26 Memory SODIMM1/SODIMM2 Socket...

  • Page 44: Chapter 3 System Setup

    Chapter 3 System Setup...

  • Page 45: Set Torque Force To 3.5 Kgf-Cm To Execute All The Screwing And Unscrewing

    BCO-2000-V1605B l User’s Manual Chapter 3: System Setup 3.1 Set torque force to 3.5 kgf-cm to execute all the screwing and unscrewing. 3.2 Removing the chassis bottom cover In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source.
  • Page 46 BCO-2000-V1605B l User’s Manual Chapter 3: System Setup 3. Remove the sata cable、power cable & remove the bottom cover.

  • Page 47: Installing Sodimm

    BCO-2000-V1605B l User’s Manual Chapter 3: System Setup 3.3 Installing SODIMM 1. SODIMM sockets are available for BCO-2000 series on the top side. Insert memory module from 45 degree direction. 2. Press the memory module vertically downward until you hear the “click”...

  • Page 48: Installing Mini Pcie Card / Msata

    BCO-2000-V1605B l User’s Manual Chapter 3: System Setup 3.4 Installing Mini PCIe card / mSATA 1. Mini PCIe can support mSATA. Insert mini PCIe card or mSATA module from 45 degree direction. 2. Press the mini PCIe card or mSATA module down and lock it with one screws...

  • Page 49: Installing Antenna

    BCO-2000-V1605B l User’s Manual Chapter 3: System Setup 3.5 Installing antenna 1. Remove antenna hole cover on the system panel. Rear Front 2. Have antenna jack penetrate through the hole. 3. Put on washer and fasten the nut with antenna jack.
  • Page 50 BCO-2000-V1605B l User’s Manual Chapter 3: System Setup 4. Assemble the antenna and antenna jack together. 5. Attach the RF connector at the cable-end onto the communication module.

  • Page 51: Removing Hdd Bracket

    BCO-2000-V1605B l User’s Manual 3.6 Removing HDD bracket 1. Unscrew four screws (M3x5L) circled below.

  • Page 52: Installing Sata Hdd

    BCO-2000-V1605B l User’s Manual Chapter 3: System Setup 3.7 Installing SATA HDD 1. Lock the 2.5” HDD with HDD bracket using four screws (M3x4L).
  • Page 53 BCO-2000-V1605B l User’s Manual Chapter 3: System Setup 2. Fasten the four screws (M3x5L) to lock the HDD bracket in place. 3. insert power cable and sata cable.

  • Page 54: Installing Sim Card

    Chapter 3: System Setup BCO-2000-V1605B l User’s Manual 3.8 Installing SIM card 1. Insert SIM card into the socket.

  • Page 55: Installing Desktop Mount Kit

    BCO-2000-V1605B l User’s Manual Chapter 3: System Setup 3.9 Installing Desktop mount kit 1. Wall mount kit is available for BCO-2000 series included in the standard package 2. Place the system upside down so you can see the bottom cover. The...
  • Page 56 BCO-2000-V1605B l User’s Manual Chapter 3: System Setup 3. Lock the wall mount kit with eight screws (M3x5L, Nylok).

  • Page 57: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup...

  • Page 58: Bios Introduction

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.1 BIOS Introduction The BIOS provides an interface to modify the configuration. When the battery is removed, all the parameters will be reset. BIOS Setup Power on the embedded system and by pressing <Del> immediately allows you to enter the setup screens.

  • Page 59: Main Setup

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility. The Main setup screen is showed as following when the setup utility is entered. System Date/Time is set up in the Main Menu.

  • Page 60: Advanced Setup

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.3 Advanced Setup...

  • Page 61: Trusted Computing

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.3.1 Trusted Computing Item Options Description Security Device Support Enabled, Enable/Disable BIOS support for security Disabled[Default] , device. O.S. will not show Security Device.TCG EFI protocol and INT1A interface will not be available.

  • Page 62: Acpi Settings

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.3.2 ACPI Settings Item Options Description Enable Hibernation Disabled , Enables or Disables System ability to Enabled[Default], Hibernate (OS/S4 Sleep State). This option may not be effective with some operating systems. ACPI Sleep State...

  • Page 63: Ide Configuration

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.3.3 IDE Configuration...

  • Page 64: Super Io Configuration

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.3.4 Super IO Configuration This setting allows you to select options for the Super IO Configuration, and change the value of the selected option. Item Description Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA).
  • Page 65 BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 1 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the IO=3F8h; IRQ=4; , address & IRQ settings of the specified IO=3F8h;...
  • Page 66 BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 2 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the IO=2F8h; IRQ=3; , address & IRQ settings of the specified IO=3F8h;...

  • Page 67: Hardware Monitor

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.3.5 Hardware Monitor These items display the current status of all monitored hardware devices/ components such as voltages and temperatures. Item Options Description Smart Fan Function Disabled[Default], Enabled or Disable Smart Fan...
  • Page 68 BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup ■ Smart Fan Mode Configuration Item Options Description SYS Fan SmartFan Manual Mode, Smart Fan Mode Select Control Thermal Cruise Mode, SMART FAN IV Mode[Default], Temperature 1~4 1~100 Auto fan speed control. SMART FAN IV...

  • Page 69: Serial Port Console Redirection

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.3.6 Serial Port Console Redirection Item Options Description Console Redirection Disabled[Default], These items allows you to enable or Enabled disable COM1 console redirection...
  • Page 70 BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup Console Redirection Settings Item Options Description Terminal VT100 Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set. VT100+: Type VT100+, Extends VT100 to support color, function keys, etc. VT-UTF8: Uses UTF8 VT-UTF8, encoding to map Unicode chars onto 1 or more bytes.

  • Page 71: Cpu Configuration

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.3.7 CPU Configuration Item Options Description PSS Support Disabled, Enable/disable the generation of ACPI _PPC, Enabled[Default] _PSS, and _PCT objects. NX Mode Disabled, Enable/disable No-execute page protection Enabled[Default] Function SVM Mode Disabled,...

  • Page 72: Usb Configuration

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.3.8 USB Configuration Item Options Description Legacy USB Enabled[Default] Enables Legacy USB support. AUTO option Support Disabled disables legacy support if no USB devices are Auto connected. DISABLE option will keep USB devices available only for EFI applications.

  • Page 73: Network Stack Configuration

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.3.9 Network Stack Configuration Item Options Description Network Stack Disabled[Default] , Enable/Disable UEFI Network Stack. Enabled IPv4 PXE Support Disabled[Default] , Enable/Disable IPv4 PXE boot support. If Enabled disabled, IPv4 PXE boot support will not be available.

  • Page 74: Csm Configuration

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.3.10 CSM Configuration Item Options Description CSM Support Disabled[Default] , This item allows users to enable or disable for “CSM Enabled Support”. GateA20 Active Upon Request[Default] , This item allows users to set Upon Request or Always for Always "GateA20 Active“.

  • Page 75: Amd Cbs

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.3.11 AMD CBS Item Options Description AC Loss Control Power Off[Default] , Specify what state to go to when power is Power On, re-applied after a power failure (G3 state). Last State...

  • Page 76: Chipset

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.4 Chipset This section allows you to configure and improve your system and allows you to set up some system features according to your reference. 4.4.1 SB USB Configuration Item Options Description...

  • Page 77: North Bridge Configuration

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.4.2 North Bridge Configuration Item Options Description Control LVDS Disabled[Default], Enabled/Disabled LVDS Enabled...

  • Page 78: Security

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.5 Security Security menu allow users to change administrator password and user password settings. ■ Administrator Password This item allows you to set Administrator Password. ■ User Password This item allows you to set User Password.
  • Page 79 BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup ■ Security Boot Item Options Description Secure Boot Disabled [Default] , Secure Boot feature is Active if Secure Boot is Enabled Enabled,Platform Key(PK) is enrolled and the System is in User mode.
  • Page 80 BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup ■ Key Management Item Options Description Factory Key Disabled [Default] , Install factory default Secure Boot keys Provision Enabled after the platform reset and while the System is in Setup mode...

  • Page 81: Boot

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.6 Boot This menu allows you to setup the system boot options. Item Options Description Setup Prompt 1[Default] Number of seconds to wait for setup activation Timeout key. 65535(0xFFFF) means indefinite waiting.

  • Page 82: Save & Exit

    BCO-2000-V1605B l User’s Manual Chapter 4: BIOS Setup 4.7 Save & Exit This setting allows users to configure the boot settings. ■ Save Changes and Reset This item allows user to reset the system after saving the changes. This item allows user to reset the system after saving the changes.

  • Page 83: Appendix Wdt & Gpio

    Appendix WDT & GPIO This appendix provides the sample codes of WDT (Watch Dog Timer) and GPIO (General Purpose Input/ Output).

  • Page 84: Wdt Sample Code

    Appendix – WDT & GPIO BCO-2000-V1605B l User’s Manual WDT Sample Code WDT Setting Psuedo Code UINT8 WDT_TimeOut_Sec=2; //Second value //Set Second Number *(volatile UINT32 *)0xFEB00000= 0x03; //Initialization WatchdogControl IoWrite8(0x80,0xFF); //Delay time *(volatile UINT32 *)0xFEB00004= WDT_TimeOut_Sec; //Set watch dog time value(Bit15~Bit0) IoWrite8(0x80,0xFF);...

  • Page 85: Gpio Sample Code

    BCO-2000-V1605B l User’s Manual Appendix – WDT & GPIO GPIO Sample Code GPIO Setting PIN# GPIO# Default Configuration +V5S DIO Input1 OUT1 DIO Output1 DIO Input2 OUT2 DIO Output2 DIO Input3 OUT3 DIO Output3 DIO Input4 OUT4 DIO Output4 The GPIO function is provided by Nuvoton NCT6106D, and it can be accessed through its GPIO index/data port. To access the GPIO register, write index to the index port, and then read/write from/to data port.
  • Page 86 Copyright © C&T Solution Inc. All Rights Reserved www.candtsolution.com...
