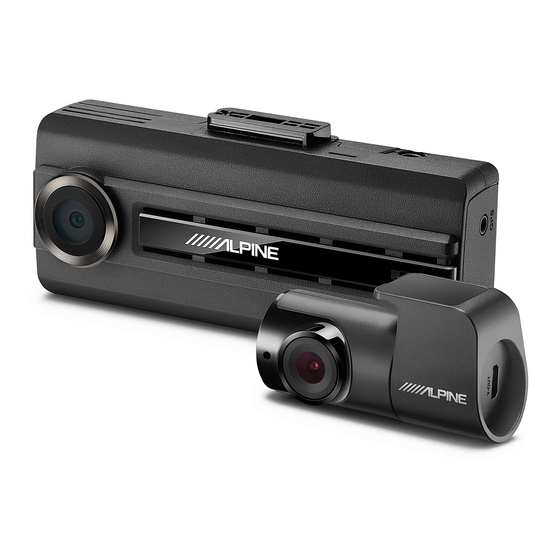

  • Page 1 AUTOMOBIL GEBRAUCH/ PARA USO EN AUTOMÓVILES/ SOLO PER L’UTILIZZO IN AUTOMOBILE/ ТОЛЬКО ДЛЯ ИСПОЛЬЗОВАНИЯ В АВТОМОБИЛЯХ Advanced Dash Cam DVR-C310R DVR-C310S RCV-C310 • OWNER’S MANUAL • MANUAL DE OPERACIÓN Please read before using this equipment. Léalo antes de utilizar este equipo.
  • Page 2 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3 Avant d’utiliser le produit À propos de ce produit Ce produit enregistre des vidéos pendant le fonctionnement du véhicule. Utilisez cet appareil seulement à des fins de documentation pour les enquêtes d’incidents ou d’accidents de la route. Il n’existe aucune garantie que ce produit enregistrera ou effectuera le traitement des données en nuage pour tous les événements.
  • Page 4 Cet équipement a été testé et déclaré conforme aux limites pour appareils numériques de classe B, selon la section 15 des Règles de la FCC. Ces limites sont destinées à assurer une protection raisonnable contre les interférences nuisibles dans une installation résidentielle. Cet équipement génère, utilise et émet de l’énergie de fréquences radio et peut, en cas d’installation ou d’utilisation non conforme aux instructions, engendrer des interférences nuisibles pour les communications radio.

  • Page 5: Table Of Contents

    Contents Operating Instructions 4. Using the mobile viewer 4.1 Connect the product to a smartphone 1. Product overview 4.2 Viewing the mobile viewer screen layout 1.1 Included items 5. Using the PC viewer 1.1.1 DVR-C310R (2 camera) 1.1.2 DVR-C310S (1 camera) 5.1 System requirements 1.1.3 RVC-C310 (rear view only) 5.2 Learning about the PC viewer...

  • Page 6: Operating Instructions

    Read this manual carefully before using this disc and the system components. They contain instructions on how to use this product in a safe and effective manner. Alpine cannot be responsible for problems resulting from failure to observe the instructions in this manual.
  • Page 7 Power supply and product installation • INSTALL THE PRODUCT CORRECTLY SO THAT THE DRIVER CANNOT WATCH TV/VIDEO UNLESS THE VEHICLE IS STOPPED AND THE EMERGENCY BRAKE IS APPLIED. It is dangerous for the driver to watch TV/Video while driving a vehicle. Installing this product incorrectly enables the driver to watch TV/Video while driving. This may cause a distraction, preventing the driver from looking ahead, thus causing an accident.
  • Page 8 • Be sure the temperature inside the vehicle is between +45°C (+113°F) and 0°C (+32°F) before turning your unit on. • If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or the nearest Alpine Service Station for servicing.
  • Page 9 • The Bluetooth' word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Alpine Electronics, Inc. is under license. • MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson. Supply of this product...

  • Page 10: Product Overview

    1. Product overview 1.1 Included items Ensure that all the items are included when you open the product box. • The standard items may change without prior notice. • GPS reception may be affected by interference from the vehicle's windshield, particularly those treated with anti-UV protective coating, or built-in defroster.

  • Page 11: Dvr-C310S (1 Camera)

    Product overview 1.1.2 DVR-C310S (1 camera) MicroSD memory card with Front camera (main unit) Mount Hardwiring cable adapter (consumable) NOW ON Quick start guide & Dash cam recording Warranty / User guide Cable clamp holder External GPS receiver warning sticker (stored in the microSD card) 1.1.3 RVC-C310 (rear view only) Rear camera extension...

  • Page 12: Part Names

    Product overview 1.2 Part names 1.2.1 Front camera (main unit) - front view Mount connector Used to connect the mount. DC-IN power port Used to connect the power cable. GPS port Used to connect the external GPS receiver. V-IN input port Used to connect the Front camera lens rear camera.

  • Page 13: Rear Camera (Rvc-C310)

    • Ensure that the memory card is in the correct direction before inserting it into the product. The memory card slot or the memory card may be damaged if it is inserted incorrectly. • Use only authentic memory cards from Alpine. Alpine does not guarantee the compatibility and normal operation of third-party memory cards.

  • Page 14: Overviewing Connection Diagram

    Product overview 1.4 Overviewing connection diagram Follow the connection diagram to properly install the product. The connection diagram is for reference only. The product must be professionally installed in the vehicle by a trained mechanic. 1.4.1 2 Camera connection diagram (DVR-C310R) Hardwiring cable External GPS receiver...

  • Page 15: Camera Connection Diagram (Dvr-C310S/Rvc-C310)

    Product overview 1.4.2 1 Camera connection diagram (DVR-C310S/RVC-C310) Hardwiring cable External GPS receiver Yellow BATTERY Black 1.4.3 Car charger connection diagram Car charger cable Car charger...

  • Page 16: Installing The Product

    2. Installing the product 2.1 Installing the front camera (main unit) Follow the instructions to properly install the product. 2.1.1 Selecting an installation location Select an installation location that can record the entire view in front of the vehicle without obstructing the driver’s vision.
  • Page 17 Installing the product Remove the protective film from the adhesive mount, and then press the mount to the installation location. ➊ ➊ ➋ ➋ Remove the product from the mount and push the mount against the windshield to ensure that the mount is firmly fixed.

  • Page 18: Connecting The Power Cable With The Car Charger

    Installing the product 2.1.3 Connecting the power cable with the car charger When the engine and electrical accessories are turned off, connect the car charger. Connect the cigar socket power cable to the product’s DC-IN power connector and insert the cigar jack into the ➊...

  • Page 19: Securing The Rear Camera

    ➊ ➊ and camera lens. ➋ ➋ Attach the product with the Alpine logo facing indoors and press the adhesive tape firmly to secure the camera. If the product is fixed in reverse, the rear view will be recorded upside down.

  • Page 20: Connecting The Rear Camera Cable

    Installing the product 2.2.3 Connecting the rear camera cable Power off the product and connect the rear camera cable to the front camera (main unit). Connect one end of the rear camera cable to the front camera’s V-IN port. Connect the other end of the rear camera cable to the rear camera's connection port.

  • Page 21: Using Recording Features

    Play videos on Window/Mac computer or using the ALPINE Recording Viewer application. If you play videos by inserting the memory card in devices such as a smartphone or a tablet PC, the video files may be lost. A file name is composed of the recording start date and time, and the recording option.

  • Page 22: Using The Continuous Recording Feature

    Using recording features 3.3 Using the continuous recording feature Connect the power cable to the product’s DC-IN power port and then turn on the vehicle’s electrical accessories or start the engine. The status LED and the voice guide are turned on, and the continuous recording starts.

  • Page 23: Using Parking Mode

    Using recording features 3.5 Using parking mode When the product is connected to the vehicle via the hardwiring cable, the operating mode is switched to parking mode with the voice guide after the engine or electrical accessories are turned off. Parking mode operates only when the hardwiring cable is connected.

  • Page 24: Using The Mobile Viewer

    4. Using the mobile viewer You can view and manage recorded videos and configure various product features on your smartphone. • One of the following environments is required to use the ALPINE Recording Viewer application: - Android 7.0 (Nougat) or higher - iOS 11.4 or higher...

  • Page 25: Using The Pc Viewer

    Insert the memory card into a memory card reader connected to your PC. Move the installation file to the desktop, run it, and complete the installation according to the instructions given in the installation wizard. After the installation is complete, there will be a shortcut icon to ALPINE Recording PC Viewer.

  • Page 26: Pc Viewer Screen Layout (For Windows)

    Using the PC viewer 5.2.2 PC viewer screen layout (for Windows) The following provides brief information about the PC viewer's screen layout. ➋ ➋ ➌ ➌ ➍ ➍ ➎ ➎ ➊ ➊ ➏ ➏ ➐ ➐ ➑ ➑ ➒ ➒ ➓...

  • Page 27: Playing Recorded Videos On The Pc Viewer (For Windows)

    Using the PC viewer 5.2.3 Playing recorded videos on the PC viewer (for Windows) Follow the instructions to play recorded videos. Turn off the product and remove the memory card. Insert the memory card into a memory card reader connected to your PC. Double-click the shortcut to the PC viewer ( ) to open the program.

  • Page 28: Pc Viewer Screen Layout (For Mac)

    Using the PC viewer 5.2.4 PC viewer screen layout (for Mac) The following provides brief information about the PC viewer's screen layout. ➊ ➊ ➋ ➋ ➌ ➌ ➍ ➍ ➎ ➎ ➏ ➏ ➐ ➐ ➑ ➑ ➓ ➓ ➒...

  • Page 29: Playing Recorded Videos On The Pc Viewer (For Mac)

    Using the PC viewer 5.2.5 Playing recorded videos on the PC viewer (for Mac) Follow the instructions to play recorded videos. Turn off the product and remove the memory card. Insert the memory card into your Mac using a SD card reader or SD card adapter provided. Open the PC viewer.

  • Page 30: Settings

    6. Settings You can set the product features according to your needs and preferences using the mobile viewer or the PC viewer. The following procedures are based on the mobile viewer. The product will stop recording while configuring settings on the mobile viewer. 6.1 Managing the memory card From the mobile viewer, tap Dash Cam settings Memory Card Settings to manage the memory card settings.

  • Page 31: Setting Recording Features

    Settings 6.3 Setting recording features From the mobile viewer, tap Dash Cam settings Record Settings to manage the recording features settings. > Options Description You can set the detection sensitivity for recording when an impact is detected while Continuous Mode Incident driving.

  • Page 32: Setting Road Safety Features

    Settings 6.4 Setting road safety features From the mobile viewer, tap Dash Cam settings Road Safety Settings to manage the road safety features > settings. Options Description When the vehicle departs its lane, the LDWS will detect the lane departure via the Safety Cameras real-time video image and warn the driver.

  • Page 33: Accessing The Product Information

    7. Accessing the product information New users may benefit from the basic product information that can be accessed from the Menu screen. 7.1 Viewing product information From the mobile viewer, tap Dash Cam Info to view product information. The following product information menus will be displayed on the screen.

  • Page 34: Upgrading The Firmware

    Follow the instructions to upgrade the firmware. On your PC, open a web browser and go to Alpine website. Select the product and download the latest firmware upgrade file.

  • Page 35: Troubleshooting

    Every product requested for repair is regarded as a device that has had its data backed up. The customer service center does not back up your data. Alpine is not responsible for any loss, such as data loss.

  • Page 36: Specifications

    10. Specifications To see the product specifications, refer to the following table. 10.1 DVR-C310R (2 camera) specifications Item Specification Remarks Model name DVR-C310R 98.5 x 40.6 x 26.9 mm / 61 g Dimensions / Weight Rear camera: 60.5 x 32.3 x 26.7 mm / 24.8 g (except mount) Memory microSD memory card...

  • Page 37: Dvr-C310S (1Ch) Specifications

    Specifications 10.2 DVR-C310S (1 camera) specifications Item Specification Remarks Model name DVR-C310S 98.5 x 40.6 x 26.9 mm / 61 g Dimensions / Weight (except mount) Memory microSD memory card 16 GB, 32 GB, 64 GB, 128GB Records videos in 1-minute segments Continuous Rec (dual channels are supported for recording the front and rear view)
  • Page 38 Specifications Hereby, Alpine Electronics (Europe) declares that the radio equipment type DVR-C310R and DVR-C310S are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www. alpine.com/e/research/doc/ Information on Disposal of Old Electrical and Electronic Equipment and Battery (applicable for countries that have adopted separate waste collection systems) If you want to dispose this product, do not mix it with general household waste.
  • Page 39 20090 Trezzano Sul Naviglio (MI), Italy Coventry CV4, 9TW, U.K. Phone: +39 02 484781 ALPINE ELECTRONICS GmbH SUCCURSALE FRANCE ALPINE ELECTRONICS GmbH SUCURSAL EN ESPAÑA 184 allée des Erables C/Portal de Gamarra 36, CS 52016 – Villepinte 01013 Vitoria (Alava) - APDO 133...
