Alpine DVR-C310R Owner's Manual
  1. Manuals
  2. Brands
  3. Alpine Manuals
  4. Dash Cameras
  5. DVR-C310R
  6. Owner's manual

Alpine DVR-C310R Owner's Manual

Advanced dash cam
Hide thumbs Also See for DVR-C310R:
Table of Contents

Advertisement

Quick Links

FOR CAR USE ONLY/ POUR APPLICATION AUTOMOBILE UNIQUEMENT/ NUR FÜR
AUTOMOBIL GEBRAUCH/ PARA USO EN AUTOMÓVILES/ SOLO PER L'UTILIZZO IN
AUTOMOBILE/ ТОЛЬКО ДЛЯ ИСПОЛЬЗОВАНИЯ В АВТОМОБИЛЯХ
• OWNER'S MANUAL
Please read before using this equipment.
• MODE D'EMPLOI
Veuillez lire avant d'utiliser cet appareil.
• BEDIENUNGSANLEITUNG
Lesen Sie diese Bedienungsanleitung bitte vor
Gebrauch des Gerätes.

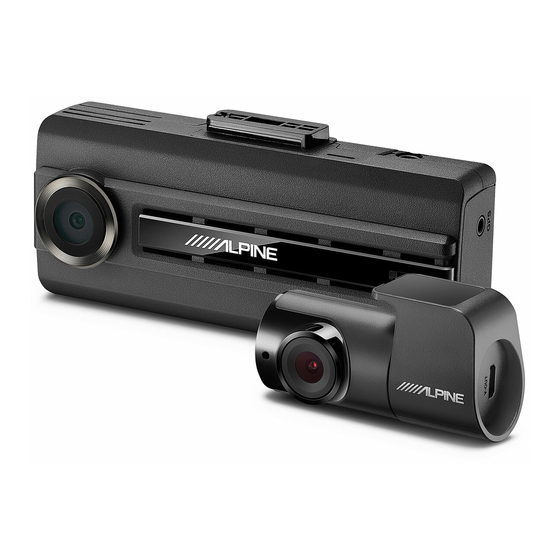

Advanced Dash Cam
DVR-C310R
DVR-C310S
RVC-C310
• MANUAL DE OPERACIÓN
Léalo antes de utilizar este equipo.
• ISTRUZIONI PER L'USO
Si prega di leggere prima di utilizzare il attrezzatura.
• РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
Прочтите настоящее руководство перед началом
использования оборудования.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVR-C310R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alpine DVR-C310R

Summary of Contents for Alpine DVR-C310R

  • Page 1 FOR CAR USE ONLY/ POUR APPLICATION AUTOMOBILE UNIQUEMENT/ NUR FÜR AUTOMOBIL GEBRAUCH/ PARA USO EN AUTOMÓVILES/ SOLO PER L’UTILIZZO IN AUTOMOBILE/ ТОЛЬКО ДЛЯ ИСПОЛЬЗОВАНИЯ В АВТОМОБИЛЯХ Advanced Dash Cam DVR-C310R DVR-C310S RVC-C310 • OWNER’S MANUAL • MANUAL DE OPERACIÓN Please read before using this equipment.
  • Page 2 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    1. Product overview 4.2 Viewing the mobile viewer screen layout 1.1 Included items 5. Using the PC viewer 1.1.1 DVR-C310R (2 camera, USA/Canada only) 8 1.1.2 DVR-C310S (1 camera) 5.1 System requirements 1.1.3 RVC-C310 (Rear view only) 5.2 Learning about the PC viewer 1.2 Part names...

  • Page 4: Operating Instructions

    Read this manual carefully before using the system components. They contain instructions on how to use this product in a safe and effective manner. Alpine cannot be responsible for problems resulting from failure to observe the instructions in this manual.
  • Page 5 Power supply and product installation • DO NOT WATCH VIDEO WHILE DRIVING. Watching the video may distract the driver from looking ahead of the vehicle and cause an accident. • DO NOT DISASSEMBLE OR ALTER. Doing so may result in an accident, fire or electric shock. •...
  • Page 6 • Be sure the temperature inside the vehicle is between +45°C (+113°F) and 0°C (+32°F) before turning your unit on. • If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or the nearest Alpine Service Station for servicing.
  • Page 7 Doing so may result violation of state or national laws, injury, or death. Always mount this device so that it does not obstruct the driver’s view. Any fines, penalties, or damages resulting from improperly or illegally operating this device are not the responsibility of Alps Alpine Co., Ltd. or any of its affiliates, subsidiaries, principals, officers, employees or shareholders.

  • Page 8: Product Overview

    • The standard items may change without prior notice. • GPS reception may be affected by interference from the vehicle's windshield, particularly those treated with anti-UV protective coating, or built-in defroster. 1.1.1 DVR-C310R (2 camera, USA/Canada only) Front camera (main unit) Rear camera...

  • Page 9: Dvr-C310S (1 Camera)

    Product overview 1.1.2 DVR-C310S (1 camera) microSD card with adapter Front camera (main unit) Mount Hardwiring cable (consumable) Quick start guide / Dash cam recording User guide Cable clamp holder External GPS receiver warning sticker (stored in the microSD card) Car charger 1.1.3 RVC-C310 (Rear view only) Rear camera extension...

  • Page 10: Part Names

    Product overview 1.2 Part names 1.2.1 Front camera (main unit) - front view Mount connector Used to connect the mount. DC-IN power port Used to connect the power cable. GPS port Used to connect the external GPS receiver. V-IN input port Used to connect the Front camera lens rear camera.

  • Page 11: Rear Camera (Rvc-C310)

    • Ensure that the memory card is in the correct direction before inserting it into the product. The memory card slot or the memory card may be damaged if it is inserted incorrectly. • Use only authentic memory cards from Alpine. Alpine does not guarantee the compatibility and normal operation of third-party memory cards.

  • Page 12: Overviewing Connection Diagram

    Follow the connection diagram to properly install the product. The connection diagram is for reference only. The product must be professionally installed in the vehicle by an Alpine authorized dealer/a trained specialist mechanic. 1.4.1 2 Camera connection diagram (DVR-C310R / RVC-C310) Hardwiring cable External GPS...

  • Page 13: Camera Connection Diagram (Dvr-C310S)

    Product overview 1.4.2 1 Camera connection diagram (DVR-C310S) Hardwiring cable External GPS receiver Yellow BATTERY Black 1.4.3 Car charger connection diagram Car charger cable Car charger...

  • Page 14: Installing The Product

    2. Installing the product 2.1 Installing the front camera (main unit) Follow the instructions to properly install the product. 2.1.1 Selecting an installation location Select an installation location that can record the entire view in front of the vehicle without obstructing the driver’s vision.
  • Page 15 Installing the product Remove the protective film from the adhesive mount, and then press the mount to the installation location. ➊ ➊ ➋ ➋ Remove the product from the mount and push the mount against the windshield to ensure that the mount is firmly fixed.

  • Page 16: Connecting The Power Cable With The Car Charger

    Installing the product 2.1.3 Connecting the power cable with the car charger When the engine and electrical accessories are turned off, connect the car charger. Connect the cigar socket power cable to the product’s DC-IN power connector and insert the cigar jack into the ➊...

  • Page 17: Securing The Rear Camera

    ➋ ➋ position of the lens. The TOP label should be above the lens. Attach the product with the Alpine logo facing inside the vehicle and press the adhesive tape firmly to secure the camera. If the product is installed in reverse, the rear view will be recorded upside down.

  • Page 18: Connecting The Rear Camera Cable

    Installing the product 2.2.3 Connecting the rear camera cable Power off the product and connect the rear camera cable to the front camera (main unit). Connect one end of the rear camera cable to the front camera’s V-IN port. Connect the other end of the rear camera cable to the rear camera's connection port.

  • Page 19: Installing The External Gps Receiver

    Installing the product 2.3 Installing the external GPS receiver To activate the ADAS feature or record driving information (the speed and location), follow the instructions and install the external GPS receiver on the upper part of the front windshield. Install the external GPS receiver near the product, taking its cable length into account.

  • Page 20: Using Recording Features

    Play videos on Window/Mac/Smartphone by using the ALPINE Recording Viewer application. If you play videos by inserting the memory card in devices such as a smartphone or a tablet PC, the video files may be lost. A file name is composed of the recording start date and time, and the recording option.

  • Page 21: Using The Continuous Recording Feature

    Using recording features 3.3 Using the continuous recording feature Connect the power cable to the product’s DC-IN power port and then turn on the vehicle’s electrical accessories or start the engine. The status LED and the voice guide are turned on, and the continuous recording starts.

  • Page 22: Using Parking Mode

    Parking mode operates only when the hardwiring cable is connected. The hardwiring cable must be professionally installed to the vehicle by an Alpine authorized dealer/a trained specialist mechanic. • To use all recording modes, insert a memory card into the product.

  • Page 23: Using The Mobile Viewer

    • The Wi-Fi password is required when you connect the product to a smartphone for the first time. Enter “123456789” in the password input field. 4.1 Connect the product to a smartphone On your smartphone, open the Google Play Store or Apple App store and download and install ALPINE Recording Viewer. Run ALPINE Recording Viewer.

  • Page 24: Using The Pc Viewer

    Insert the memory card into a memory card reader connected to your PC. Move the installation file to the desktop, run it, and complete the installation according to the instructions given in the installation wizard. After the installation is complete, there will be a shortcut icon to ALPINE Recording PC Viewer.

  • Page 25: Pc Viewer Screen Layout (For Windows)

    Using the PC viewer 5.2.2 PC viewer screen layout (for Windows) The following provides brief information about the PC viewer's screen layout. ➋ ➋ ➌ ➌ ➍ ➍ ➎ ➎ ➊ ➊ ➏ ➏ ➐ ➐ ➑ ➑ ➒ ➒ ➓...

  • Page 26: Playing Recorded Videos On The Pc Viewer (For Windows)

    Using the PC viewer 5.2.3 Playing recorded videos on the PC viewer (for Windows) Follow the instructions to play recorded videos. Turn off the product and remove the memory card. Insert the memory card into a memory card reader connected to your PC. Double-click the shortcut to the PC viewer to open the program.

  • Page 27: Pc Viewer Screen Layout (For Mac)

    Using the PC viewer 5.2.4 PC viewer screen layout (for Mac) The following provides brief information about the PC viewer's screen layout. ➊ ➊ ➋ ➋ ➌ ➌ ➍ ➍ ➎ ➎ ➏ ➏ ➐ ➐ ➑ ➑ ➒ ➒ ➓...

  • Page 28: Playing Recorded Videos On The Pc Viewer (For Mac)

    Using the PC viewer 5.2.5 Playing recorded videos on the PC viewer (for Mac) Follow the instructions to play recorded videos. Turn off the product and remove the memory card. Insert the memory card into your Mac using a SD card reader or SD card adapter provided. Open the PC viewer.

  • Page 29: Settings

    6. Settings You can set the product features according to your needs and preferences using the mobile viewer or the PC viewer. The following procedures are based on the mobile viewer. The product will stop recording while configuring settings on the mobile viewer. 6.1 Managing the memory card From the mobile viewer, tap Dash Cam settings Memory Card Settings to manage the memory card settings.

  • Page 30: Setting Recording Features

    Settings 6.3 Setting recording features From the mobile viewer, tap Dash Cam settings Record Settings to manage the recording features settings. > Options Description You can set the detection sensitivity for recording when an impact is detected while Continuous Mode Incident driving.

  • Page 31: Read Safety Settings

    Settings 6.4 Read Safety settings From the mobile viewer, tap Dash Cam settings Road Safety Settings to manage the road safety features. > Options Description When the vehicle approaches or passes the speed limit zone, the safety camera alert Safety Cameras system will collect GPS signals and safety camera data.

  • Page 32: Accessing The Product Information

    7. Accessing the product information New users may benefit from the basic product information that can be accessed from the Menu screen. 7.1 Viewing product information From the mobile viewer, tap Dash Cam Info to view product information. The following product information menus will be displayed on the screen.

  • Page 33: Upgrading The Firmware

    Follow the instructions to upgrade the firmware. On your PC, open a web browser and go to Alpine website. Select the product and download the latest firmware upgrade file.

  • Page 34: Troubleshooting

    Every product requested for repair is regarded as a device that has had its data backed up. The customer service center does not back up your data. Alpine is not responsible for any loss, such as data loss.

  • Page 35: Specifications

    To see the product specifications, refer to the following table. Item Specification Remarks Model name DVR-C310R / DVR-C310S / RVC-C310 98.5 x 40.6 x 26.9 mm / 61 g Dimensions / Weight Rear camera: 60.5 x 32.3 x 26.7 mm / 24.8 g (except mount)
  • Page 36 Specifications For the approximate recording times of each memory partition setting, refer to the tables below. • For more information about the memory partition settings, refer to "6.1 Managing the memory card" on page 29. • For more information about the parking mode, refer to "3.5 Using parking mode" on page 22. •...
  • Page 37 Specifications • Parking Priority Parking Card Motion Detection Parking Continuous Rec Incident Rec Manual Rec Mode Size (while parking) Incident 16 GB Approx. 53 min Approx. 42 min Approx. 13 min Approx. 314 min Approx. 38 min 32 GB Approx. 105 min Approx.
  • Page 38 Specifications Hereby, Alpine Electronics (Europe) declares that the radio equipment type DVR-C310R, DVR-C310S is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www. alpine.com/e/research/doc/ Information on Disposal of Old Electrical and Electronic Equipment and Battery (applicable for countries that have adopted separate waste collection systems) If you want to dispose this product, do not mix it with general household waste.
  • Page 39 Ver. 1.0 (Oct. 2020) ALPINE ELECTRONICS OF AMERICA, INC. ALPS ALPINE EUROPE GmbH 1500 Atlantic Boulevard, Auburn Hills, Ohmstrasse 4 Michigan 48326, USA 85716 Unterschleissheim Phone: 1-800-ALPINE-1 (1-800-257-4631) Germany For contact information on your respective country, please visit www.alpine-europe.com.
