ISLAND VENT HOOD
USE AND CARE
INSTALLATION INSTRUCTIONS
Dynamic Cooking Systems, Inc.
DCS-IVH-48
DCS-IVH-36

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCS-IVH-36 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dynamic Cooking Systems DCS-IVH-36

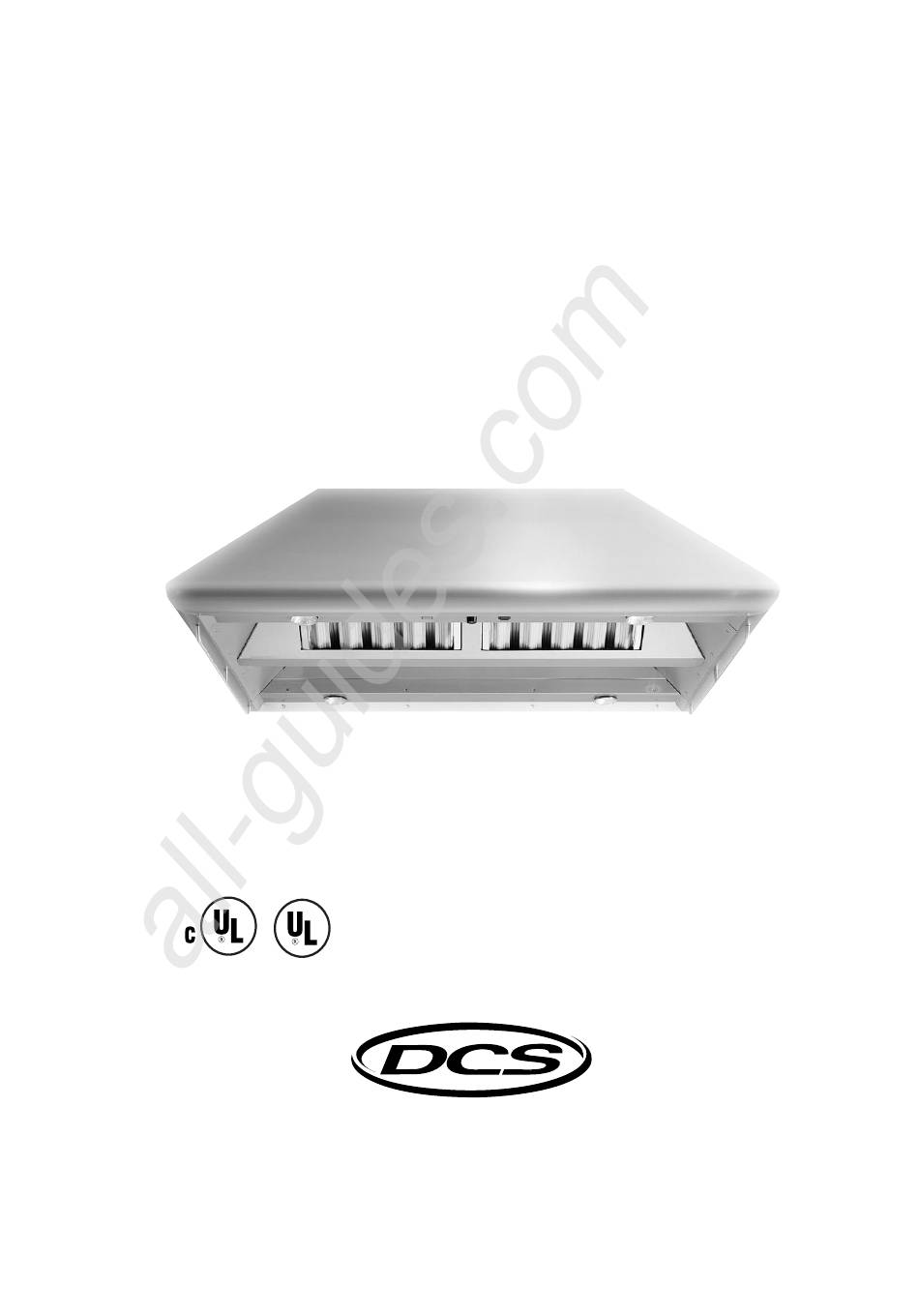

  • Page 1 All manuals and user guides at all-guides.com ISLAND VENT HOOD USE AND CARE INSTALLATION INSTRUCTIONS DCS-IVH-48 DCS-IVH-36 Dynamic Cooking Systems, Inc.
  • Page 2 All manuals and user guides at all-guides.com A MESSAGE TO OUR CUSTOMERS Thank you for selecting this Dynamic Cooking Systems Professional Island Vent Hood. Because of this appliance’s unique features we have developed this Installation and Use Guide. It contains valuable information on how to properly operate and maintain your new appliance for years of safe and enjoyable use.
  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com Introduction Before proceeding with installation, please read this installation guide and observe all safety precautions and warnings. NOTE: Installation of this DCS Island Vent Hood must comply with all local codes. IMPORTANT- Save these instructions for the Local Electrical Inspector’s use. INSTALLER- Please leave these instructions with the unit for the owner.
  • Page 4: Important Safety Instructions

    All manuals and user guides at all-guides.com Important Safety Instructions Follow These Precautions CAUTION- TO REDUCE THE RISK OF ELECTRICAL SHOCK OR INJURY TO PERSONS ALL VENT HOODS MUST BE INSTALLED WITH VENTILATORS THAT HAVE BEEN APPROVED FOR USE WITH THE HOOD. Make up air may be necessary to prevent air flowing down chimney, unsealed door, window, or fire place opening.
  • Page 5: Features

    All manuals and user guides at all-guides.com Features Island Vent Hoods DCS-IVH-48 & DCS-IVH-36 The Dynamic Cooking Systems Island Vent Hood Models; DCS IVH 48 , DCS IVH 36, have been designed with the ultimate in household conve- nience in mind.
  • Page 6: Planning The Installation

    All manuals and user guides at all-guides.com Planning the Installation Backdraft Damper We recommend that a backdraft damper be used in all Vent Hood installations. Cold weather installations necessitate the use of a backdraft damper to minimize the flow of cold air into the room.
  • Page 7: Specifications

    See Page 11 for Ducting Information. 30" VENT HOOD DIMENSIONS DCS-IVH-48 DCS-IVH-48 12" 30" 12" 16" 34 5/8" 52 5/8" venting specs 4"x18" rectangular DCS-IVH-36 DCS-IVH-36 TOP VIEW of DCS-IVH 12" 16" ntrol 18" 34 5/8" FRONT VIEW 843fi21 SIDE VIEW 12"...
  • Page 8: Site Preparation And Installation Guidelines

    CAUTION- When installing the ISLAND VENT HOOD directly to the ceiling, adequate structural supports are CRITICAL to secure the unit. The Island Vent Hood is heavy, weighing 128 LBS for the DCS-IVH 48 and 94 LBS for the DCS-IVH-36. NOTE: The soffit height will vary according to the ceiling height.
  • Page 9: Soffit Installation

    All manuals and user guides at all-guides.com Soffit Installation Soffit for DCS-IVH-36 Island Vent Hood THE DIMENSIONS GIVEN ARE FOR A 1/2 INCH DRYWALL. 1) Create a soffit structure and attach the soffit brackets as in fig- ure 1A. Refer to the installation guidelines on Page 6.
  • Page 10 All manuals and user guides at all-guides.com Soffit Installation DCS-IVH-48 Island Vent Hood THE DIMENSIONS GIVEN ARE FOR A 1/2 INCH DRYWALL DUCT COVER. 1) Create a soffit structure and attach the soffit brackets as illus- trated in figure 1B. Refer to the installation guidelines on Page 6. 2) Attach the soffit support bars as shown in figure 1B.
  • Page 11 All manuals and user guides at all-guides.com Soffit Installation Soffit for DCS-IVH-48 Island Vent Hood THE DIMENSIONS GIVEN ARE FOR A 1/2 INCH DRYWALL DUCT COVER. 3) After adequately securing the soffit structure to the ceiling joist, attach the Island Vent Hood with the 6 mounting screws provided, figure 2B and 3B shows the location of the mounting screws.
  • Page 12 All manuals and user guides at all-guides.com Soffit Installation Diagrams for DCS-IVH-48 Island Vent Hood THE DIMENSIONS GIVEN ARE FOR A 1/2 INCH DRYWALL DUCT COVER. Figure 3B below illustrates a finished soffit structure for the DCS-IVH-48 Refer to page 6 on finishing the installation. FIG.3B Support Bars Solid Soffit Structure...
  • Page 13: Ducting Information

    IVH-48 Hood, connecting a 4”x13” ( 5 5 2 2 I I n n . . 2 2 ) to a 10”round ( 7 7 8 8 . . 6 6 I I n n . . 2 2 ) is not recom- mended] DCS-IVH-36 Requirements - DCS recommends the use of 7” round ducting which provides 34.7 In. 2 of surface area.
  • Page 14: Care And Use

    All manuals and user guides at all-guides.com Care And Use Controls We recommend you turn your hood on before you begin cooking to establish fresh airflow. After you have finished cooking, let the blower run for a few minutes to clear the air and help keep the kitchen fresh and clean.
  • Page 15 All manuals and user guides at all-guides.com Care And Use Cleaning the exterior Stainless Steel finish: When cool the appliance can be cleaned with hot soapy water, rinsed, dried and buffed to a shine with a soft, heavy pile cloth. Always try this first, as it is the mildest form of cleaning.
  • Page 16 Remove filter(s) by gently pulling up and out. The grease trays can easily be reached once the filters are removed. Grease collection trays are easily accessible at the center beneath the filter. See illustration below for location. DCS-IVH-48 Location of grease tray DCS-IVH-36...
  • Page 17: Wiring Diagram

    All manuals and user guides at all-guides.com Wiring Diagram DCS-IVH-48 & DCS-IVH-36 Island Vent Hood...
  • Page 18: Warranty Information

    All manuals and user guides at all-guides.com Warranty Information Length of Warranty One (1) Year Full parts and Labor Covers the entire product Five (5) Years Limited Switches and motor DCS Will Cover: All repair labor and parts found to be defective due to materials or workmanship for one full year from date of purchase.
  • Page 19: Service

    (888) 281-5698. Your satisfaction is of the utmost importance to us. If a problem cannot be resolved to your satisfaction, please write or fax us: Dynamic Cooking Systems Inc., Attention: Consumer Relations, 5800 Skylab Road, Huntington Beach, CA 92647 Fax us at: (714) 372-7003.
  • Page 20 As product improvement is an ongoing process at DCS, we reserve the right to change specifications or design without notice. Dynamic Cooking Systems, Inc. 5800 Skylab Road, Huntington Beach, CA. 92647 Litho in USA 8-99 Tel: (714) 372-7000 Fax: (714) 372-7001 Part No.
