tams elektronik LD-G-14 Manual

Locomotive decoder with load control for dc engines - motorola format

Advertisement

Quick Links

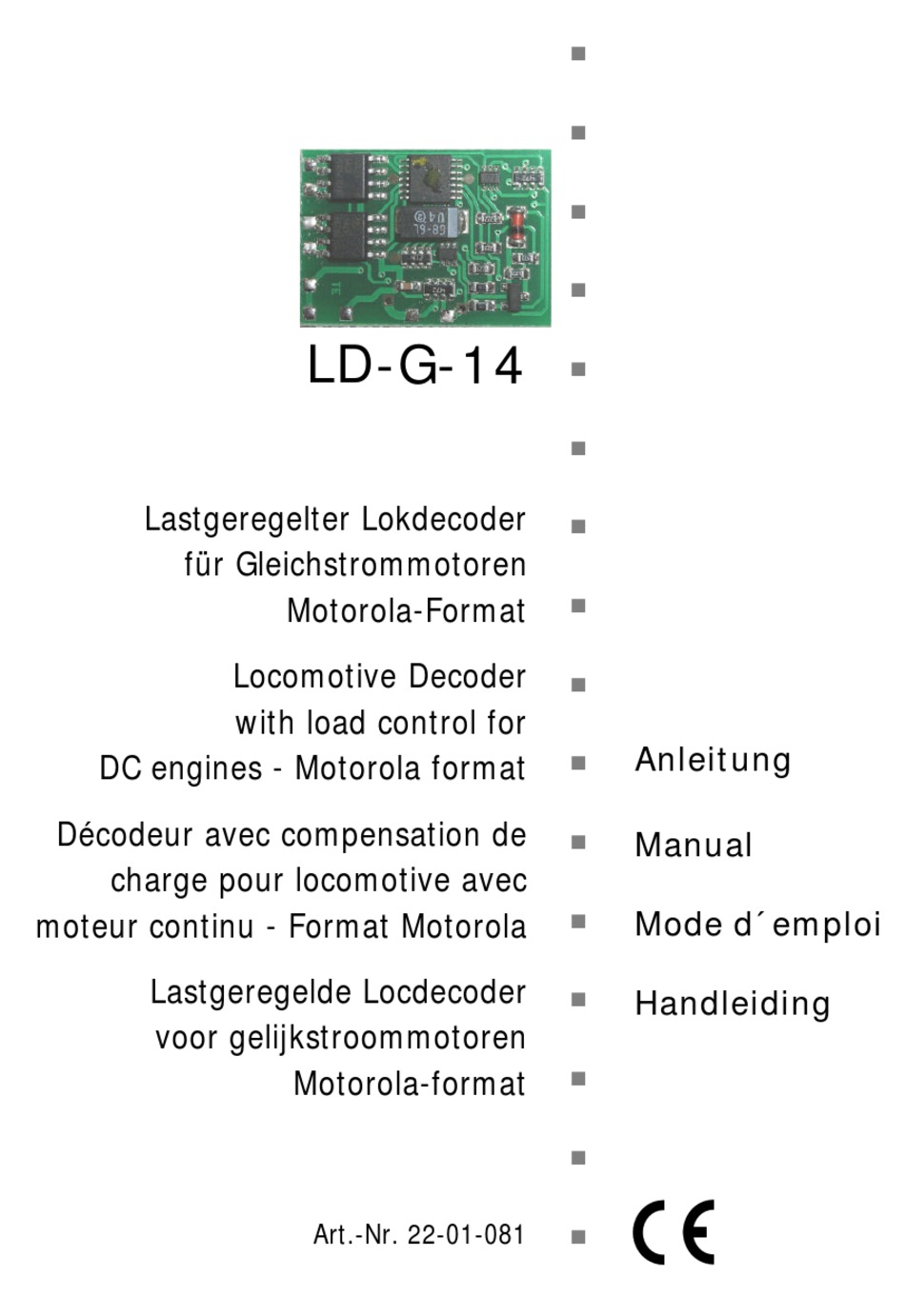

Lastgeregelter Lokdecoder
für Gleichstrommotoren
DC engines - Motorola format
Décodeur avec compensation de
charge pour locomotive avec
moteur continu - Format Motorola
Lastgeregelde Locdecoder
voor gelijkstroommotoren
LD-G-14
Motorola-Format
Locomotive Decoder
with load control for
Motorola-format
Art.-Nr. 22-01-081
n
n
n
n
n
n
n
n
n
Anleitung
n
Manual
n
Mode d´emploi
n
Handleiding
n
n
n
n

Advertisement

Table of Contents
loading

Summary of Contents for tams elektronik LD-G-14

  • Page 1 LD-G-14 Lastgeregelter Lokdecoder für Gleichstrommotoren Motorola-Format Locomotive Decoder with load control for Anleitung DC engines - Motorola format Décodeur avec compensation de Manual charge pour locomotive avec Mode d´emploi moteur continu - Format Motorola Lastgeregelde Locdecoder Handleiding voor gelijkstroommotoren Motorola-format...
  • Page 2 © 01/2007 Tams Elektronik GmbH Alle Rechte, insbesondere das Recht der Vervielfältigung und Verbreitung sowie der Übersetzung vorbehalten. Vervielfältigungen und Reproduktionen jeglicher Form bedürfen schriftlichen Genehmigung durch die Tams Elektronik GmbH. Deutsch Technische Änderungen vorbehalten. English © 01/2007 Tams Elektronik GmbH All rights reserved.
  • Page 3: Table Of Contents

    English LD-G-14 Table of contents How to use this manual Intended use Safety instructions EMC declaration Operation overview Technical specifications Checking the package contents Required tools and materials Safe and correct soldering Mounting the locomotive decoder Programming the locomotive decoder...
  • Page 4: How To Use This Manual

    LD-G-14 English How to use this manual Even if you have no specialist technical training, this manual gives step- by-step instructions for safe and correct fitting of the module, and operation. Before you start, we advise you to read the whole manual, particularly the chapter on safety instructions and the FAQ chapter.
  • Page 5: Safety Instructions

    English LD-G-14 Safety instructions Mechanical hazards Cut wires can have sharp ends and can cause serious injuries. Watch out for sharp edges when you pick up the PCB. Visibly damaged parts can cause unpredictable danger. Do not use damaged parts: recycle and replace them with new ones.
  • Page 6 LD-G-14 English Fire risk Touching flammable material with a hot soldering iron can cause fire, which can result in injury or death through burns or suffocation. Connect your soldering iron or soldering station only when actually needed. Always keep the soldering iron away from inflammable materials.
  • Page 7: Emc Declaration

    English LD-G-14 EMC declaration This product is developed in accordance with the European standards EN 55014 and EN 50082-1, tested corresponding to the EC - directive 89/336/EWG (EMVG of 09/11/1992, electromagnetic tolerance) and meets legal requirements. To guarantee the electromagnetic tolerance you must take the following precautions: §...
  • Page 8 LD-G-14 English The decoder is not suitable for being operated in analogue model railway layouts run with an D.C. speed control. The decoder evaluates the data received in such layouts as "braking section", the locomotive therefore does not run. In analogue mode the decoder reacts to the analogue changing direction signal.
  • Page 9 English LD-G-14 Speed level The decoder can drive 27 speed levels. Driving all 27 speed levels can be done only with central units which support this mode (e.g. MasterControl). With central units which only allow 14 speed levels only, it is only possible to select every second speed level.
  • Page 10 LD-G-14 English The set states of the function outputs are saved. Even if the decoder is without current for a longer time, the states are set when the decoder is switched on again. Assignment: You can assign the function keys to the function outputs freely.
  • Page 11: Technical Specifications

    English LD-G-14 programming the configuration variables (= CV). The CV programming has been laid down for DCC decoders in the NMRA guidelines. The CV programming for this Motorola decoder has been developed following these guidelines, but differs in some points, according to the differences between both formats.
  • Page 12: Checking The Package Contents

    LD-G-14 English Ambient temperature in storage -10 - + 80° C Comparative humidity allowed max. 85 % Dimensions approx. 26 x 19 x 7,5 mm Weight approx. 3,5 g Checking the package contents Check the contents of the package for completeness after unpacking: §...
  • Page 13: Mounting The Locomotive Decoder

    English LD-G-14 § Use a small soldering iron with max. 30 Watt. Keep the soldering tip clean so the heat of the soldering iron is applied to the solder point effectively. § Only use electronic tin solder with flux. §...
  • Page 14 LD-G-14 English Connecting the motor Open the locomotive housing. Locate the position for the decoder. Disconnect the motor from the rail current collector or the change-over switch from the motor and rails if you have a locomotive with electronic change-over switch. The change-over switch is no longer necessary, you can remove it.
  • Page 15 English LD-G-14 If you want to use the decoder factory settings, you have to connect the lighting and the accessories as follows: Front lighting: X5 Back lighting: X4 Accessory to be switched via F1: X7 Accessory to be switched via F2: X6...
  • Page 16 LD-G-14 English You can connect severel LEDs each with a series resistor of it´s own in parallel to one output. If you connect several LEDs to one output in series, only one series resistor is needed. Fixing the locomotive decoder After completing all connections fix the locomotive decoder with double- sided adhesive tape, for example.
  • Page 17: Programming The Locomotive Decoder

    English LD-G-14 Programming the locomotive decoder With the most digital control units supporting the Motorola II format (e.g. Tams MasterControl, Märklin* Control Unit, Uhlenbrock* Intellibox) you can choose between two methods of programming after having started the programming mode: CV programming Online programming With the Central Station or the Mobile Station of Märklin* you can...
  • Page 18 LD-G-14 English Starting the programming mode Switch on the central unit or perform a reset at the central unit. Set the current address or address 80. Set all functions to "off". For current address Intellibox? or address 80: Set MM I Format.
  • Page 19 English LD-G-14 Notice: Some types of central units do not allow you to access to the programming mode when the Motorola II format is set (e.g. Intellibox from Uhlenbrock*). These central units must be set to Motorola I format for the current address or the address "80". As soon as the decoder is in the programming mode, the central unit must be set back to Motorola II format.
  • Page 20 LD-G-14 English CV-name Input value / Remarks (State of delivery) Address 1, 2, 3 ... 255 (78) Starting velocity 2 1, 2, 3 ... 80 =The voltage to be output to the motor at speed level 1. (16) The value "0" corresponds to 0 Volt, the value "80"...
  • Page 21 English LD-G-14 CV-name Input value / Remarks (State of delivery) Analogue 100 ... 200 = The voltage needed for switching change of direction. (150) voltage Dimming 1, 2, 3 ... 7 Dimming of the outputs. output 1 = The voltage that is applied to the output.
  • Page 22 LD-G-14 English CV-name Input value / Remarks (State of delivery) Assignment 0 ... 31 Numerical value* F0 – F4 to Operation with: the outputs: function key F0 function key F1 function key F2 function key F3 function key F4 Effects 0 ...
  • Page 23 English LD-G-14 Online-programming After having started the programming mode (and when the locomotive´s lighting flashes) you can perform one of four online programming steps: § directly entering the locomotive address, § performing a decoder reset, § setting the acceleration and braking delay and verifying the settings during driving operation, §...
  • Page 24 LD-G-14 English Performing a decoder reset Start the programming The locomotive´s lighting flashes regularly. mode (see above) Switch on function F2. The factory settings are restored, all other settings are deleted. decoder automatically returns standard driving operation. Setting the acceleration and braking delay Start the programming The locomotive´s lighting flashes regularly.
  • Page 25: Operation

    English LD-G-14 Turn the speed control knob until the locomotive drives with the desired maximum velocity. Switch on and off The settings are saved and the locomotive´s "function" (f0) once lighting flashes intermittently. The decoder changes to the setting of the starting velocity (the locomotive runs slower).
  • Page 26: Faq

    LD-G-14 English § Parts are getting too hot and/or start to smoke. Tip: The deocder may warm up to 45 °C in operation. This does not affect the functioning of the decoder. Disconnect the system from the mains immediately! Possible cause: One or more connections are soldered incorrectly.
  • Page 27: Manufacturer's Note

    English LD-G-14 § In digital mode the locomotive suddenly runs very fast. Possible cause: Interfering signals from the layout have switched the decoder to analogue mode. à So long as the interfering signals´ origin cannot be found it is advisable to switch off the automatic recognition of the analogue mode during digital operation.
  • Page 28 LD-G-14 English The following invalidate the warranty: § using an unsuitable soldering iron, solder containing liquid acids or similar, § if damage is caused by not following the instructions in this manual, § if the module has been altered and repair attempts have failed, §...
  • Page 29 LD-G-14 LD-G-14 Fig. 1: Fig. 2: Anschluß LD-G-14 / Connections LD-G-14 Anschluß LD-G-14 / Connections LD-G-14 Connexion LD-G-14 / Aansluiten LD-G-14 Connexion LD-G-14 / Aansluiten LD-G-14 Schleifer / Slider / Frotteur / Sleper Gehäuse / Housing / Masse / Huis Rückleiter für alle Funktionen / Return conductor for all functions...
  • Page 30 LD-G-14 LD-G-14 Fig. 4: Schaltplan - Circuit diagram - Schéma de principe - Schakelschema Seite - Page - Page - Pagina II Seite - Page - Page - Pagina II...
  • Page 31 Actuele informatie en tips: http://www.tams-online.de Garantie und Service: Warranty and service: Garantie et service: Garantie en service: Tams Elektronik GmbH Rupsteinstraße 10 D-30625 Hannover fon: +49 (0)511 / 55 60 60 fax: +49 (0)511 / 55 61 61 e-mail: info@tams-online.de...
