Summary of Contents for tams elektronik PZS-2.2

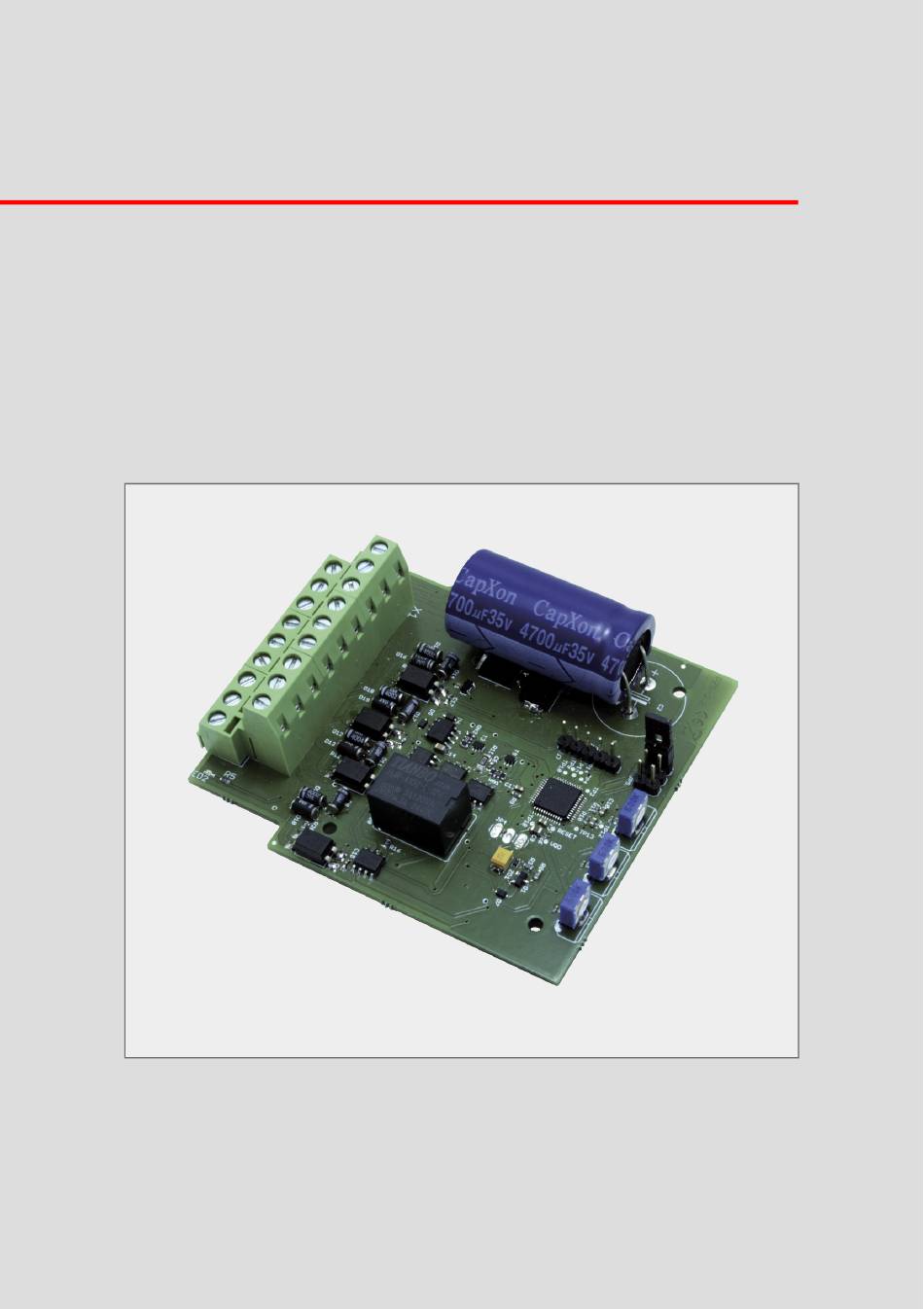

- Page 1 PZS-2.2 Shuttle-train control for analogue d.c. model railway layouts Manual Item nos. 51-02126 | 51-02127 tams elektronik n n n...
-
Page 2: Table Of Contents
PZS-2.2 tams elektronik Contents 1. Getting started......................4 1.1. Contents of the package..................4 1.2. Accessories......................4 1.3. Intended use.......................5 1.4. Safety instructions....................5 2. Function........................6 2.1. Versions of the shuttle section................6 2.2. Operation on the shuttle section................7 2.3. Additional connection options................8 2.4. Overcurrent protection..................8 3. - Page 3 © Tams Elektronik GmbH All rights reserved, in particular the right of reproduction, distribution and translation. Copies, reproductions and alterations in any form require the written permission of Tams Elektronik GmbH. We reserve the right to make technical changes. Printing the manual The formatting is optimised for double-sided printing.
-
Page 4: Getting Started
1.2. Accessories Power supply To supply the PZS-2.2 shuttle train control system, the tracks of the shuttle section, the turnout and the connected signals, you need a model railway transformer or a power supply unit with a fixed output voltage. The output voltage must be sufficient to switch the turnout. -
Page 5: Intended Use
PZS-2.2 Turnout For alternating operation with two trains, you must connect a turnout to terminal station A. You can directly connect a turnout with a double-coil drive or a motor-driven turnout. It is not possible to use a turnout with a servo drive. -
Page 6: Function
Optional extensions The shuttle section controlled by the PZS-2.2 can be extended by: Connecting a turnout and a second track at terminal station A. The two trains then run alternately on the shuttle section. ... -
Page 7: Operation On The Shuttle Section
Shuttle operation with two trains The PZS-2.2 automatically switches the turnout at terminal station A so that the two trains can run alternately on the shuttle section. For operation with two locomotives, the maximum speed for ‘clear track’ and the length of the acceleration, braking and stopping phases are set separately for the terminal stations and intermediate stations for each of the two locomotives. -
Page 8: Additional Connection Options
A can be connected in parallel to the turnout at terminal station A. 2.4. Overcurrent protection In the event of an overload or short circuit on the track, the PZS-2.2 automatically switches off to protect the circuit, tracks and vehicles from damage. Before shuttle operation can be... -
Page 9: Connecting The Shuttle Train Control
If an isolating point is bridged (e.g. by displacing the tracks or with metal shavings), the PZS-2.2 will not detect the entry of a train into a section and cannot control the shuttle train operation as intended. If the entry into a terminal station is not detected, the train will not be braked. -
Page 10: Layouts According To Nem 631
PZS-2.2 tams elektronik 3.2. Layouts according to NEM 631 3.2.1. Single-track terminal station A | without intermediate stations according to NEM 631 Seperation point Supply voltage Supply voltage GND / Return conductor for button Turnout Turnout with double coil drive (+) / Return conductor... -
Page 11: Single-Track Terminal Station A | With Intermediate Stations
PZS-2.2 3.2.2. Single-track terminal station A | with intermediate stations according to NEM 631 Seperation point Supply voltage Supply voltage GND / Return conductor for button Turnout Turnout with double coil drive (+) / Return conductor for light signals... -
Page 12: Double-Track Terminal Station A | Without Intermediate Stations
PZS-2.2 tams elektronik 3.2.3. Double-track terminal station A | without intermediate stations according to NEM 631 Seperation point Supply voltage Supply voltage GND / Return conductor for button Turnout Turnout with double coil drive (+) / Return conductor for light signals... -
Page 13: Double-Track Terminal Station A | With Intermediate Stations
PZS-2.2 3.2.4. Double-track terminal station A | with intermediate stations according to NEM 631 Seperation point Supply voltage Supply voltage GND / Return conductor for button Turnout Turnout with double coil drive (+) / Return conductor for light signals... -
Page 14: Layouts Not Conforming To Nem 631
PZS-2.2 tams elektronik 3.3. Layouts not conforming to NEM 631 3.3.1. Single-track terminal station A | without intermediate stations not conforming to NEM 631 Seperation point Supply voltage Supply voltage GND / Return conductor for button Turnout Turnout with double coil... -
Page 15: Single-Track Terminal Station A | With Intermediate Stations
PZS-2.2 3.3.2. Single-track terminal station A | with intermediate stations not conforming to NEM 631 Seperation point Supply voltage Supply voltage GND / Return conductor for button Turnout Turnout with double coil drive (+) / Return conductor for light signals... -
Page 16: Double-Track Terminal Station A | Without Intermediate Stations
PZS-2.2 tams elektronik 3.3.3. Double-track terminal station A | without intermediate stations not conforming to NEM 631 Seperation point Supply voltage Supply voltage GND / Return conductor for button Turnout Turnout with double coil drive (+) / Return conductor for light signals... -
Page 17: Double-Track Terminal Station A | With Intermediate Stations
PZS-2.2 3.3.4. Double-track terminal station A | with intermediate stations not conforming to NEM 631 Seperation point Supply voltage Supply voltage GND / Return conductor for button Turnout Turnout with double coil drive (+) / Return conductor for light signals... -
Page 18: Connecting Stop Diodesconnect Stop Diodes
You can connect wing signals with a double-coil drive for the two tracks in parallel with the turnout. The turnout (and the wing signal) are supplied with power by the PZS-2.2. Motor driven turnout 18 | Connecting the shuttle train control... -
Page 19: Connecting Light Signals
3.6. Connecting light signals You can connect two-aspect light signals to connections 13 and 14. Connect the return conductor to connection 5 of the PZS-2.2. The display will automatically switch between ‘Proceed’ and ‘Stop’ when a train enters one of the two terminal stations. With appropriate... -
Page 20: Settings And Operation
It is recommended to install stop diodes at the ends of the tracks (→ Section 3.4). After setting up the route sections and connecting them to the PZS-2.2, carry out a test run. This is to check whether all connections have been made correctly and whether the automatic shuttle train operation is running as intended. - Page 21 If you have connected two tracks to terminal station A, a locomotive must be on one of the two tracks when the PZS-2.2 is switched on. The other locomotive can be put on the track at any other point on the layout.
-
Page 22: Programming Mode
IC. After saving, the position of the potentiometers has no effect. 4.2.1. Preparations Remove the housing If your PZS-2.2 is installed in a housing, you must remove the cover housing cover, because you have to change the trimmer potentiometer settings and move the jumpers during programming. -
Page 23: Basic Procedure
→ Exiting the programming step the PZS-2.2 As soon as the LEDs stop flashing alternately, the settings are saved. Disconnect the PZS-2.2 from the power supply before reconnecting the jumpers for selecting a different programming step or normal operation. Settings and operation | 23... -
Page 24: Programming Step 1: Setting The Maximum Speed
If both locomotives are in the terminal station A when the shuttle train control is switched on, the (blue) locomotive from track 2 (connection 8 of the PZS-2.2) always starts the shuttle run. After saving the settings for the blue locomotive, the shuttle operation with the red locomotive starts automatically, so that the settings for this locomotive can then be changed and saved. -
Page 25: Programming Step 2: Setting The Acceleration Time
LEDs flash alternately! Shuttle operation with two locomotives: Saving when operating with two locomotives: After switching on the PZS-2.2, only one locomotive will initially travel back and forth, The settings are saved for the locomotive with the second only starting after the that is currently driving back and forth. -
Page 26: Programming Step 4: Setting The Stop Time
10. During Shuttle operation with two locomotives: operation, the holding time is therefore 10 After switching on the PZS-2.2, only one times longer than during programming. locomotive will initially shuttle back and The holding time for all stations and forth;... -
Page 27: Normal Operation
PZS-2.2 4.3. Normal operation Setting the operating mode After you have made all the necessary settings, you must set the desired operating mode for normal operation. You can extend the stopping times at the terminal stations and intermediate stations by a factor of 10 by placing a jumper on pin header 2. -
Page 28: Performing A Reset
PZS-2.2 off and then on again. 4.4. Performing a reset To reset the PZS-2.2 to the factory settings, you have to connect the ‘Stop’ input to ground when switching on the shuttle train control (e.g. by pressing and holding a connected button). -
Page 29: Checklist For Troubleshooting And Error Correction
A. The PZS-2.2 has switched off the power for the shuttle section due to an overload or short circuit. The LEDs on the circuit board flash quickly. à Check whether there is a short circuit on the tracks or whether the power consumption of the locomotives and cars is more than 2,000 mA. - Page 30 PZS-2.2 tams elektronik Undesired driving behaviour The locomotive(s) do not drive with the set driving characteristics. Possible causes: When programming, the settings were not saved correctly. à Repeat the programming step(s) for the locomotive and make sure that the locomotive is in shuttle operation when saving.
-
Page 31: Technical Hotline
PZS-2.2 5.1. Technical Hotline If you have any questions about the use of your shuttle train control, our technical hotline will help you (telephone number and e-mail address on the last page). 5.2. Repairs You can send us a defective shuttle train control for inspection / repair (address on the last page). -
Page 32: Technical Data
1 input for connecting an emergency stop button Electrical characteristics Power supply for the PZS-2.2 Model railway transformer or power supply unit with fixed and the shuttle section output voltage. The output voltage must be at least sufficient to switch the turnout. - Page 33 PZS-2.2 Protection Protection class Ready-made module (without housing): IP 00 Meaning: No protection against foreign bodies, contact and water. Ready device (in housing): IP 20 Meaning: Protected against solid foreign bodies with diameter ≥ 12.5 mm and access with a finger. No protection against water.
-
Page 34: Warranty, Eu Conformity & Weee
PZS-2.2 tams elektronik 7. Warranty, EU conformity & WEEE 7.1. Guarantee bond For this product we issue voluntarily a guarantee of 2 years from the date of purchase by the first customer, but in maximum 3 years after the end of series production. The first customer is the consumer first purchasing the product from us, a dealer or another natural or juristic person reselling or mounting the product on the basis of self-employment. -
Page 35: Eu Declaration Of Conformity
PZS-2.2 7.2. EU Declaration of Conformity This product fulfils the requirements of the following EU directives and therefore bears the CE marking. 2001/95/EU Product Safety Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) 2014/30/EU on electromagnetic compatibility (EMC Directive). - Page 36 Further Information and Tips: http://www.tams-online.de Warranty and Service: tams elektronik GmbH Fuhrberger Str. 4 30625 Hannover / GERMANY Phone: +49 (0)511 / 55 60 60 Fax: +49 (0)511 / 55 61 61 Email: support@tams-online.de...
