Buffalo Tech AirStation Nfiniti WZR-HP-G300NH User Manual

Wireless n router & ap
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual - AirStation WZR-HP-G300NH
Wireless N Router & AP
www.buffalotech.com
v.85

Advertisement

Table of Contents
loading

Related Manuals for Buffalo Tech AirStation Nfiniti WZR-HP-G300NH

Summary of Contents for Buffalo Tech AirStation Nfiniti WZR-HP-G300NH

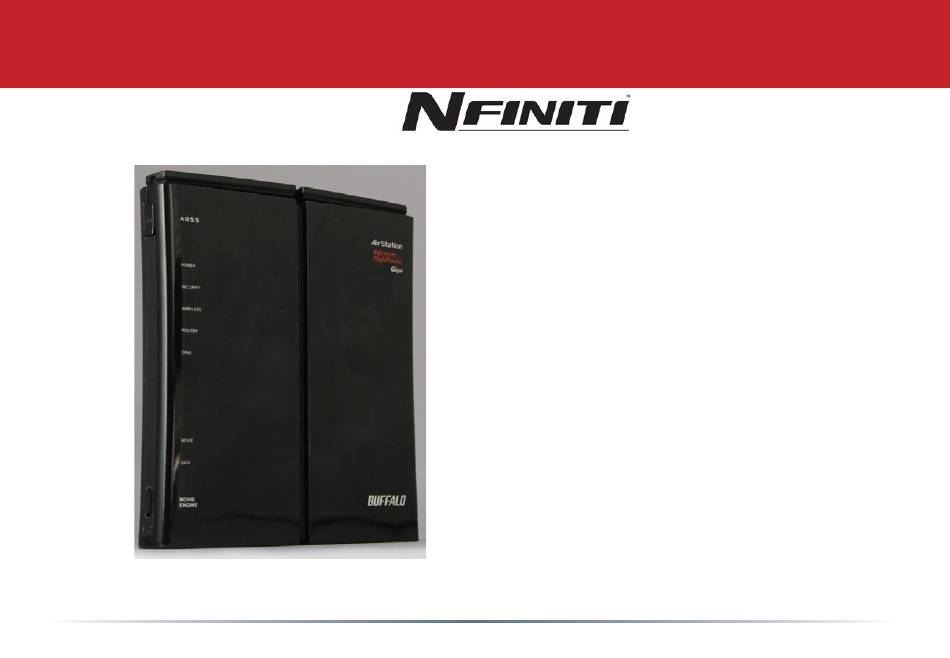

  • Page 1 User Manual - AirStation WZR-HP-G300NH Wireless N Router & AP www.buffalotech.com v.85...

  • Page 2: Table Of Contents

    Table of Contents Introduction ......... . 3 Initial Setup .

  • Page 3: Introduction

    Introduction ork and play - further and faster! Your AirStation Nfiniti combines Ethernet networking with extended wireless range and speed. It offers excellent compatibility with most wireless clients, giving superb performance with Wireless-N, Wireless-G, and legacy Wireless-B clients. For best overall performance, use with Buffalo Technology Nfiniti wireless clients. System Requirements: • A high-speed (Broadband) Internet connection or existing local area connection. • A computer with a network connection (wired or wireless) and a web browser such as Firefox, Internet Explorer, Opera, or Safari. Package Contents: • WZR-HP-G300NH AirStation • AC adapter • CAT5 LAN cable • Screws for wall mounting • Utility CD with Manual • Quick Setup Guide • Warranty Statement...

  • Page 4: Initial Setup

    Initial Setup egin by finding a good place to set up your router/access point. Some things to consider: • You’ll need to be able to plug your internet connection into it, so it should go within reach of the LAN cable from your DSL or Cable modem. You’ll also want a power outlet nearby. • Keep the access point as central in your work area as possible. Signal strength and speed fall off with distance. • Higher is often better. For instance, set it up on the top shelf of a bookcase rather than the bottom one, if possible. Do you need a password or other information to log in to your internet connection? Many DSL connections require information like global IP address, subnet mask, default gateway address, DNS server address, or PPPoE parameters in order to connect. Cable modems usually don’t require extra information. If you have a DSL internet connection, make sure that you have any necessary information handy before you continue. Your Internet Service Provider can give you this information if you don’t know it.
  • Page 5 Placing Your AirStation our AirStation may be placed horizontally, or vertically with its stand attached. You can also mount it on the wall.
  • Page 6 Wall Mounting or wall mounting, screw two of the included wall-mounting screws into the wall as shown below. Slots on the back of the AirStation will fit over a pair of screws in this configuration. 8.5 cm (~3.3 inches)
  • Page 7 Connecting your AirStation Router switch should be set to Auto for normal use. Power to outlet or surge protector Cable or DSL Modem...

  • Page 8: Automatic Configuration

    Automatic Installation The AirNavigator CD can install your AirStation for you automatically. To use the automatic installation program, insert your AirNavigator CD into your computer and follow the onscreen directions. The wizard will guide you through installing your AirStation.
  • Page 9 Manual Installation: Connections To install the AirStation manually, 1. Power down the Cable or DSL modem and the computer which will be used to configure the AirStation router. 2. Plug the Cable or DSL modem’s Ethernet cable into the AirStation’s WAN port. Initially, you may need to unplug this cable from your computer, hub or other router. 3. Plug the provided Ethernet cable into one of the four LAN ports on the AirStation and plug the other end into your computer’s Ethernet adapter (NIC). 4. Important: turn everything on in the correct order!! Power on your cable or DSL modem and wait one full minute, then power on the AirStation and wait one full minute, and finally power on the computer which will be used to configure the AirStation.

  • Page 10: Configuration Tool Login

    Manual Installation: Log in to the Configuration Tool aunch a web browser on the computer that you’re using to configure the AirStation. Enter 192.168.11.1 into the URL field. Naturally, if you change your AirStation’s LAN-side IP address, you’ll have to enter the new address instead.* A window will open, prompting you to enter a User ID and Password. Enter root as the User name and leave the password field blank. *In AP mode (mode switch Off), the default IP address is 192.168.11.100.
  • Page 11 Detecting Your Broadband Connection our AirStation’s SmartRouter technology will determine the type of internet connection you have automatically, and ask you for any needed information. If your ISP assigns IPs automatically (most cable providers do), their DHCP server will give your router an IP address. If additional login information is required to connect to the internet, the wizard will ask for it. Enter any required login information if asked. Contact your DSL provider for any missing login information. Congratulations! You are now connected to the internet. Open a familiar web page to make sure everything is working correctly.

  • Page 12: Connecting Wireless Clients

    Connecting Wireless Clients to the Access Point To connect wireless devices to the AirStation, you may either enter the SSID and encryption key manually, or you can use AOSS or WPS. Consult your wireless clients’ manuals for instructions on configuring them manually. You can get SSID and encryption information from the AirStation’s Wireless Config section. By default, encryption is not enabled (“open”). If you prefer to use encryption and/or a different SSID, you may change these default settings under the Wireless Config Tab.

  • Page 13: Using The Configuration Tool

    Web Configuration Tool The Setup page is the opening screen of the Web Configuration Too. From here, you can change your wireless SSID and channel, and choose your encryption type under Basic Settings. The Wireless Config section also shows your SSID and encryption settings. You can also update your AirStation’s firmware and reset your AirStation to factory settings. As you explore the configuration tool, you’ll see that context sensitive help is available on the right side of each page.
  • Page 14 Navigating the Menus The menus in the Configuration Tool let you change your AirStation’s settings. To navigate settings, choose a category at the top of the page and then a submenu below. Settings will appear on the left, help files on the right. This example shows the LAN Configuration category with the Route submenu item selected. Category Submenus Tabs Individual Settings Help and Instructions...
  • Page 15 Initialize/Reboot The Initialize/Restart page can be reached by choosing the Admin Config catagory tab and then clicking on the Initialize/Restart submenu. Click Restart Now from this page to restart your AirStation. Click Initialize Now to restore your AirStation to factory defaults and restart it. You may also initialize your AirStation by holding down the Reset button on the bottom for 3 seconds with a straightened-out paper-clip or similar object.
  • Page 16 AOSS You can get to this page by selecting the Wireless Config category and choosing the AOSS submenu. The blue AOSS button at the top left of the page has the same function as the physical AOSS button on the top of the router: it initiates the AOSS process. If all your clients support AOSS, it’s very simple to set them up. Press the AOSS button on the router, or the one on this page, and then push the AOSS button on the client device. Each client device will have to be set up seperately. Wait for each AOSS process to finish before starting the next one. You can also activate AOSS by pushing the button on your AirStation. Consult your client device’s documentation for the location of its AOSS button. If you’ve used AOSS to configure some wireless clients, and now want to add other wireless clients that don’t support AOSS to your network, this screen will give you the information you need to connect them manually.

  • Page 17: Aoss

    AOSS AOSS AOSS (AirStation One-Touch Secure System) is a simple system for configuring your wireless network securely. If your router and your client device are installed and both support AOSS, then making a secure wireless connection between them is very easy. Push the AOSS button on the top of your router and hold it in for a few seconds. The AOSS light will begin to flash amber. You now have two minutes to push the AOSS button on your client device and finish the connection. An AOSS compatable standalone client device will probably have a little red button labeled “AOSS” on it. Push the button! About 15 seconds later, you’ll have a secure network connection. If your client device is a PC card, CardBus, or PCI adaptor, the AOSS button will probably be in its Client Manager Software. Check your client device’s user manual for instructions on where to push or click the AOSS button. After you’ve pressed both buttons, it will take about 15 seconds for the connection to complete. When it’s finished, the AOSS light witll glow a solid amber. You now have a secure network connection!

  • Page 18: Wps

    AOSS WPS (Wi-Fi Protected Setup) is a simple system for configuring your wireless network securely. It’s similar to AOSS, but supported by many brands and types of wireless equipment. Your wireless clients must support WPS to use this method of setup. There are three different ways to connect your network devices with WPS. Method # 1: Within two minutes, push the AOSS/WPS button on your AirStation and then push the WPS button on your wireless client. WPS will automatically form a secure wireless connection. Consult your wireless client’s documentation for the location of its WPS button. Method # 2: If your wireless client requests a PIN code, enter the AirStation’s PIN code. You can get it from the sticker on the back of the AirStation, or from the WPS page in the Web Configuration tool. Method # 3: If you wireless client has a PIN code of its own, you can enter it into the Enrollee PIN field on the WPS configuration page in the AirStation’s Web Config Tool. Within minutes, your wireless client will be connected to the AirStation.
  • Page 19 Automatic Connection Some things to keep in mind when automatically connecting with AOSS or WPS: • Only one wireless client adapter can be configured with AOSS or WPS at a time. • It is not necessary to reconnect client devices that have already been configured via AOSS or WPS unless significant changes have been made to the wireless network. • Do not attempt to configure two separate AOSS or WPS networks at the same time, as it may cause undesired configurations. • If an undesired client has connected via AOSS or WPS, it can be disconnected from within the WZR-HP-G300NH’s web-based configuration tool. • Even if your client device doesn’t officially support AOSS, you may still be able to use AOSS if you install Buffalo’s Client Manager software on your computer. It works with most client devices, including many made by other manufacturers. You can download it from www.buffalotech.com.

  • Page 20: Qos Mode Switch

    QoS Mode The AirStation may be configured to optimize data transfers according to either of two QoS models. The switch has two positions: ON (Movie Mode) - With QoS on, the AirStation optimizes data transfers for speed. IPv6 passthrough is enabled, the wireless multi-cast rate is increased, and the size of TCP Rwin is limited. Occasional errors may slip through, but the overall rate of data transfer will be maintained. This is ideal for streaming video. OFF (Data Mode) - With QoS off, the AirStation optimizes data transfers for accuracy. The data flow may vary in speed, but data will be transferred with 100% accuracy. This is ideal for transmitting documents, images, and similar data files. The default setting is OFF (Data Mode).

  • Page 21: Router/Access Point Mode Switch

    Router/Access Point Mode The AirStation may be used as either a full wireless router or a simple access point. The switch has three positions: ON (Router Mode) - The default LAN-side IP address is 192.168.11.1 and DHCP and NAT are enabled. OFF (AP Mode) - The default LAN-side IP address of the AirStation is 192.168.11.100, and DHCP and NAT are disabled. The WAN port becomes a fifth LAN port. AUTO - The AirStation will attempt to detect another router on the network. If one is detected, it will switch to AP Mode, but get its IP address from the router’s DHCP. If no router is detected, then the AirStation will switch to Router Mode. AUTO is the default setting, and is recommended for most users.

  • Page 22: Encryption And Security

    Encryption and Security By default, encryption is not enabled on the AirStation unless you used AOSS to perform your setup. Anyone within range can easily connect to your wireless network. This might not be what you want. Buffalo recommends enabling encryption and setting a password for access to your network. This is easy to configure from within the AirStation’s configuration tool. From the opening page, select Wireless Config Tab, select the Basic submenu.
  • Page 23 Encryption and Security Many kinds of encryption are available. WEP works with almost everything. WPA2-PSK is much more secure. Choose the strongest method of encryption that works with all of your wireless devices. If you must use WEP, it is available under “SSID3”. Enter a “pre-shared key” (password) for this connection. Passwords should have 8-64 alphanumeric charactors. Write down your password and put it in a safe place. You will not be able to connect wireless devices to your network without this password.
  • Page 24 Connecting your Wireless Clients Each of your wireless clients will need your password to connect to the network. Click on the wireless icon in your computer’s systray, or this message if it pops up. Any wireless networks available in the area will be listed as available. Click on your wireless network SSID so that it turns blue and the click on Connect at the bottom right.
  • Page 25 Connecting your Wireless Clients Enter your network key (“password”) twice and click Connect. Repeat for each Windows XP computer that connects to your network wirelessly. Other wireless devices may have different configuration requirements. Consult their documentation for instructions on how to enter your network key and connect them to your wireless network.

  • Page 26: Connecting To An Existing Network

    Connecting to a Preexisting Network To add an AirStation to a network without changing the existing LAN configuration, proceed as follows: 1. Set the AirStation to AP mode by moving the switch from AUTO to OFF. 2. Connect one of the AirStation’s LAN ports to an existing router or switch on your network. 3. Temporarily change your computer’s IP address to an unused address on the 192.168.11.x subnet, with subnet mask 255.255.255.0. 4. Type “192.168.11.100” into a browser window to open the AirStation’s Configuration Tool. 5. In LAN Config, configure the following settings: IP Address = [192.168.11.137] (Specify an unused network address from the existing LAN.) Subnet Mask=[255.255.255.0] (Use the same Subnet Mask as the existing LAN.) 6. Restore your PC’s IP address settings to their original values. Note: While the mode switch is in the OFF position, the AirStation’s WAN port may also be used as a fifth LAN port.

  • Page 27: Usb Devices

    Connecting USB Devices To add a USB hard drive or memory stick to the AirStation, plug it in to the AirStation’s USB port. USB devices with FAT32 or XFS formats are supported.

  • Page 28: Sharing

    Connecting USB Devices In the Web Config Tool, select the NAS tab. USB devices with FAT32 or XFS formats are supported.
  • Page 29 Connecting USB Devices Before sharing the hard drive, you must add at least one user.
  • Page 30 Connecting USB Devices Chose a name for the shared folder. For normal use on your local network, check Samba. To be able to access the share from outside your local network, check Web access. Use the arrow buttons to give read-write or read-only access to users. Click Add new shared folder when done.
  • Page 31 Connecting USB Devices Put a check next to Use to enable shared folder functionality.

  • Page 32: Disconnecting

    Disconnecting USB Devices To release the USB device, hold down the USB Release button for 3 seconds. The USB device will be dismounted. When the USB LED stops blinking, it is safe to unplug the USB drive.

  • Page 33: Webaccess

    WebAccess If you checked WebAccess when you were setting up your share on page 30, then you can configure your share so that you can access it from outside of your local network. To turn on WebAccess, check the Use box. You may enable encryption if desired. If checked, Auto-configure Firewall will configure your router for you. Otherwise, you will need to manually forward internal port 9000 to the Internet in your router. Choose a name for your BuffaloNAS account and a password (“key”). This name is the name that will be used to access your data. The password for this protects your data from being accessed by unauthorized people, so picking a strong password is recommended. Click Apply when done.
  • Page 34 Using WebAccess To access your your share remotely with WebAccess, open a browser window on any computer connected to the Internet and go to buffalonas.com. In the dialog box, type the BuffaloNAS name that you set on the previous page. Alternately, you can go directly to your share by typing BuffaloNAS.com/your_BuffaloNAS_name in the URL window. The folders from your share will appear. Files from anonymous shares will appear to the right. To see files from shares that are not set to anonymous, or to upload files, you will need to log in. The ‘login’ link is on the top left corner of the page.
  • Page 35 Using WebAccess To access individual folders on the right, click on their open links. Clicking on individual files will give you other options, depending on the filetype. Clicking on the Audio link at the bottom left corner of the page will give you options for playing music files, including the opportunity to launch a Flash-based music player that will stream your audio files directly through the Web interface.
  • Page 36 Using WebAccess (Uploading Files) To upload files, click Upload in the bottom left corner of the window. Note: This option will not appear unless you are logged in and at least one user (besides admin) has been given access to the share. This window will pop up. Click on Browse and navigate to the file that you want to upload. Then, click Upload. Click on Append Files and then Start Upload. Your file will be copied to the share.

  • Page 37: Specifications

    Specifications WZR-HP-G300NH AirStation Specifications Wireless LAN Standards: IEEE 802.11n Draft 2.0, IEEE 802.11g, IEEE 802.11b Frequency Range: 2.412-2.462 2 External and 1 Internal Antennas Security: WPA2-PSK, WPA-PSK, WEP, MAC Address Registration Wired LAN Standards: IEEE 802.3ab(1000 BASE-T),IEEE 802.3u (100 BASE-TX), IEEE 802.3 (10 BASE-T) (4) 10/100/1000 Mbps RJ-45 auto-sensing Ethernet ports (1) 10/100/1000 Mbps RJ-45 WAN port with Dynamic Packet Filtering and NAT/SPI firewall Temperature & Humidity Operation 32˚ - 95˚ F, 0˚ - 35˚ C Maximum humidity 80% Power Characteristics Power Supply: 100 - 240V AC Universal, 50/60 Hz. Power Output: 12V DC Power Consumption about 24 Watts (Max)
  • Page 38 Specifications Regulatory Information Wireless communication is often subject to local radio regulations. Although AirStation wireless networking products have been designed for operation in the license-free 2.4 GHz band, local radio regulations may impose limitations on the use of wireless communication equipment. Network Compatibility Draft-N support built off of the Draft Specification 2.0 for 802.11n. IEEE802.11g/b Standard for Wireless LANs. Host Operating System Main unit: Microsoft Windows® 98SE/ME/2000/XP/Vista 32bit, and MacOS 10.4x and later AirNavigator CD: Microsoft Windows® XP/Vista 32bit USB Port: Microsoft Windows® 2000/XP/Vista 32bit, and MacOS 10.4x and later...

  • Page 39: Troubleshooting

    Troubleshooting Common Problems • Out of range, client cannot connect to the AirStation. • Configuration mismatch, client cannot connect to the AirStation. • Absence or conflict with the Client Driver. • Conflict of another device with the AirStation hardware. LED Activity Monitoring LED activity helps identify problems. • Power LED should be Green when the AirStation is on. • The Security LED lights when encryption or authorization is turned on. • Wireless LED should be Green if the line is active. If is it blinking Green, wireless communication is active. • Router LED should be Green (100Mbps) or Amber (10Mbps) while communication is active. • The Red Diag LED will flash during boot and firmware updates. DIAG LED Activity Unplug the power for three seconds. Plug the power back in to monitor the Diag LEDs during start-up.
  • Page 40 Troubleshooting DIAG LED Activity Table DIAG LED Display Time Description/Action Continuous Red Starting RAM Error Red flash, 2 times Starting Flash ROM Error Red flash, 3 times Starting A problem on the wired LAN side Red flash, 4 times Starting A problem on the wireless LAN side LEDs Work But Client PC Cannot Connect to Network If the LEDs indicate that the network is working properly (Power LED is on, Transmit/ Receive LED blinks), check the TCP/IP settings of the network. Changing Client TCP/IP Settings in Windows Consult the LAN Administrator for correct TCP/IP settings. To add or change TCP/IP Settings: 1. On the Windows task bar, click Start.
  • Page 41 Troubleshooting • If the wireless adapter protocol is not yet installed, click the Add button and select the TCP/IP protocol from the list. Refer to Windows Help for more information. • If the wireless adapter protocol is installed, select the protocol and click the Properties button. Verify that the parameters match the settings provided by your LAN Administrator. Make changes if necessary, and click OK. 5. If prompted, restart your computer. Other Problems Please refer to www.buffalotech.com for further reference materials.

  • Page 42: Glossary

    Glossary 10BaseT: 802.3 based Ethernet network Ad-Hoc Network: A network based on that uses UTP (Unshielded twisted pair) peer-to-peer communication rather than a cable and a star topology. 10 Mbps data router, switch, or hub. tansmission speed. Bandwidth: The transmission capacity of 100BaseT: 802.3 based Ethernet network a computer or a communication channel, that uses UTP (Unshielded twisted pair) usually stated in Megabits per second cable and a star topology. 100 Mbps data (Mbps). tansmission speed. Bridge: A device which forwards traffic 1000BaseT: 802.3 based Ethernet between network segments with a common network that uses UTP (Unshielded twisted network layer address, based on data link pair) cable and a star topology. 1000 Mbps layer information. data tansmission speed. Client: A PC, workstation, or other device 802.1x: The standard for wireless LAN that connects to a network wirelessly authentication used between an AP and a through an Access Point. client. 802.1x with EAP will initiate key Cross-Over Cable: A UTP cable that has its handling. transmit and receive pair crossed to allow Access Point: A hardware device that acts communications between two devices. as a communication hub for Clients (users Default Gateway: The IP Address of either of wireless devices) to connect to a wired...
  • Page 43 Glossary Destination Address: The address portion Ethernet: The most widely used of a packet that identifies the intended architecture for Local Area Networks recipient station. (LANs). It is a shared-media network architecture. The IEEE 802.3 standard DHCP (Dynamic Host Configuration details its functionality. Protocol): Based on BOOTP, it uses a pool Ethernet cable: A wire similar to telephone of IP addresses, which it assigns to each device connected to it, and retrieves the cable that carries signals between Ethernet address when the device becomes dormant devices. It is designed to connect a single for a period of time. device’s NIC to a router, switch, or hub. See also Crossover cable. DNS (Domain Name System): System File and Print Sharing: A Microsoft used to map readable machine names into IP addresses.
  • Page 44 Glossary Full-Duplex: To transmit on the same ISP (Internet Service Provider): A channel in both directions simultaneously. company that provides access to the Internet and other related services. Half-duplex: To transmit on the same IV (Initialization Vector): The header channel in both directions, one direction at a time. section of an encrypted message packet. Hub: A device which allows connection LAN (Local Area Network): A group of computers and other devices to form a of computers and peripheral devices LAN. connected to share resources. IEEE (Institute of Electrical and LED (Light Emitting Diode): The lights Electronics Engineers): The professional on a hardware device representing the organization which promotes development activity through the ports.
  • Page 45 Glossary MHz (MegaHertz): One million cycles per PCMCIA (Personal Computer Memory Card International Association) Card: Removable second. module that adds features to a portable NAT (Network Address Translation): An computer. internet standard that enables a LAN to Peer-to-peer: This simple network is formed by use one set of IP addresses for internal traffic and a second set for external traffic. connecting computers directly, without use of routers or hubs. A crossover cable is plugged NIC (Network Interface Card): An into an Ethernet port in each computer, expansion card connected to a computer connecting them directly. so the computer can be connected to a Ping (Packet Internet Groper): An Internet network.
  • Page 46 Glossary PPPoE (Point-to-Point Protocol over ROM (Read Only Memory): Memory Ethernet): A specification for connecting hardware that allows fast access to users on an Ethernet line to the Internet permanently stored data but prevents through a common broadband medium. addition to or modification of the data. Protocol: A standard way of exchanging Router: A device in a network that information between computers. handles message transfer between computers. Similar to a hub, but with RADIUS (Remote Authentication Dial added functionality and efficiency. In User Service): A server that issues Roaming: The ability to use a wireless authentication keys to clients. device while moving from one access point RAM (Random Access Memory): Non- to another without losing the connection. permanent memory. Server: Any computer that makes files or Repeater Hub: A device that collects, peripheral devices available to users of the...
  • Page 47 Glossary SNMP (Simple Network Management TKIP (Temporal Key Integrity Protocol): Protocol: An application layer protocol An encryption method replacing WEP. that outlines the formal structure for TKIP uses random IV and frequent key communication among network devices. exchanges. Static IP Address: A permanent IP Topology: The shape of a LAN (Local Area address is assigned to a node in a TCP/IP Network) or other communications system. network. Also known as global IP. Twisted Pair: Cable that comprises 2 SSID: The “name” of your wireless or more pair of insulated wires twisted network. You can get it from the Setup together. page of the configuration utility. UDP (User Datagram Protocol): A STP (Shielded Twisted Pair): Twisted Pair communication method (protocol) cable wrapped in a metal sheath to provide...
  • Page 48 Glossary WAN (Wide Area Network): A networking WPA2 Encryption: An advanced AES- system covering a wide geographical area. based encryption algorithm. This is the latest, best security algorithm currently WEP Encryption: A common security available for Buffalo Wi-Fi products. protocol for wireless networks. WEP VPN (Virtual Private Network): A security is compatable with almost all wireless devices. method to connect remote LAN users to a corporate LAN system. Web Browser: A software program that allows viewing of web pages. Wi-Fi (Wireless Fidelity): An organization that tests and assures interoperability among WLAN devices. Wire Speed: The maximum speed at which a given packet can be transferred using Ethernet and Fast Ethernet standard specifications. WLAN (Wireless LAN): A LAN topology using wireless devices.

  • Page 49: Fcc Information

    FCC / CE Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 50 FCC / CE Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Important Note - FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. Industry Canada statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 51 Important Note - Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. European Union Notice: Radio products with the CE marking comply with the R&TTE Directive (1999/5/EC), the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms: • EN 60950 Product Safety • EN 300 328 Technical requirement for radio equipment • EN 301 489-1/-17 General EMC requirements for radio equipment Taiwan: SAR compliance has been established in typical laptop computer(s) with CardBus slot, and product could be used in typical laptop computer with CardBus slot. Other application like handheld PC or similar device has not been verified, may not comply with related RF exposure rules, and such use shall be prohibited. Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this manual and of...
  • Page 52 the computer manufacturer must therefore be allowed at all times to ensure the safe use of the equipment. Intended use This device is a 2.4 GHz wireless LAN transceiver, intended for indoor home and office use in USA, Canada, all EU and EFTA member states. EU Countries intended for use This device is intended for indoor home and office use in the following countries: Austria, Belgium, Denmark, France, Finland, Germany, Greece, Italy, Ireland, Luxembourg, The Netherlands, Portugal, Spain, Sweden, United Kingdom, Cyprus, Czech Republic, Estonia, Hungry, Latvia, Lithuania, Malta, Poland, Slovak Republic, and Slovenia. The device is also authorised for use in all EFTA member states Iceland, Liechtenstein, Norway and Switzerland. EU countries not intended for use None Potential restrictive use This device is a 2.4 GHz wireless LAN transceiver, intended for indoor home and office use in all EU and EFTA member states, except in France, Belgium and Italy where restrictive use applies.
  • Page 53 In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain an authorization to use the device for setting up outdoor radio links. In Belgium there is a restriction in outdoor use. The frequency range in which outdoor operation in Belgium is permitted is 2460 – 2483.5 MHz. In France only channels 10,11,12 and 13 are available. This device may not be used for setting up outdoor radio links in France. For more information see http://www.anfr.fr/ and/or http://www.art-telecom.fr...
  • Page 54 Environmental Information • The equipment that you have purchased has required the extraction and use of natural resources for its production. • The equipment may contain hazardous substances that could impact health and the environment. • In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems. • The take-back systems will reuse or recycle most of the materials of your end life equipment in a sound way. • The crossed-out wheeled bin symbol invites you to use those systems. • If you need more information on the collection, reuse and recycling systems, please contact your local or regional waste administration.

  • Page 55: Warranty

    Warranty Information Buffalo Technology (Melco Inc.) products come with a two-year limited warranty from the date of purchase. Buffalo Technology (Melco Inc.) warrants to the original purchaser the product; good operating condition for the warranty period. This warranty does not include non-Buffalo Technology (Melco Inc.) installed components. If the Buffalo product malfunctions during the warranty period, Buffalo Technology/(Melco Inc.) will, replace the unit, provided the unit has not been subjected to misuse, abuse, or non-Buffalo Technology/(Melco Inc.) authorized alteration, modifications or repair. All expressed and implied warranties for the Buffalo Technology (Melco Inc) product line including, but not limited to, the warranties of merchantability and fitness of a particular purpose are limited in duration to the above period. Under no circumstances shall Buffalo Technology/(Melco Inc.) be liable in any way to the user for damages, including any lost profits, lost savings or other incidental or consequential damages arising out of the use of, or inability to use the Buffalo products. In no event shall Buffalo Technology/(Melco Inc.) liability exceed the price paid for the product from direct, indirect, special, incidental, or consequential damages resulting from the use of the product, its accompanying software, or its documentation. Buffalo Technology (Melco Inc.) does not offer refunds for any product. @ 2003-2008 Buffalo Technology (Melco, Inc.)

  • Page 56: Contact Information

    Contact Information (North America) Buffalo Technology USA Inc. 11100 Metric Blvd, Suite 750 Austin, TX 78758 GENERAL INQUIRIES Monday through Friday 8:30am-5:30pm CST Direct: 512-794-8533 | Toll-free: 800-456-9799 | Fax: 512-794-8520 | Email: sales@ buffalotech.com TECHNICAL SUPPORT North American Technical Support by phone is available 24 hours a day, 7 days a week. (USA and Canada). Toll-free: (866) 752-6210 | Email: info@buffalotech.com...
  • Page 57 Contact Information (Europe) Buffalo Technology UK Ltd. 2 Bracknell Beeches, Old Bracknell Lane Bracknell, Berkshire, RG12 7BW United Kingdom GENERAL INQUIRIES Email: sales@buffalo-technology.com TECHNICAL SUPPORT Buffalo Technology provides technical support in English, German, French, Italian, and Spanish. For opening hours and relevant telephone numbers, please go to www.buffalo-technology.com/contact...

  • Page 58: Gpl Information

    GPL Information (North America) Thank you for your interest in Buffalo products. Our GPL software delivery policy is outlined below. For each individual product and revision, please send one individually packaged self addressed padded CD shipping envelope, containing a blank CD-R to the following address: Buffalo Technology USA Inc. 11100 Metric Blvd, Suite 750 Austin, TX 78758 Attn. GPL Department Within the envelope containing the self addressed padded CD shipping envelope, please include a bank draft or money order for $20 (USD) (Made out to: Buffalo Technology) to cover our handling fee, postage and CD preparation. The CD-R should have the name of the product and revision number clearly written on the actual CD-R (not on the insert). We do not send GPL source in bulk on a DVD. And order confirmation is not required by the GNU General Public License. We are more than happy to comply with your request; however, we must ask you to comply with our GPL distribution policy, which complies with the GNU General Public License. Sincerely, Buffalo Technology GPL Department...
  • Page 59 GPL Information (Europe) Thank you for your interest in Buffalo products. Our GPL software delivery policy is outlined below. For each individual product and revision, please send one individually packaged self addressed padded CD shipping envelope, containing a blank CD-R to the following address: Buffalo Technology Ireland Ltd Free Zone East, Shannon, Co. Clare Ireland Attn. GPL Department Within the envelope containing the self addressed padded CD shipping envelope, please include a bank draft or money order for €20 (Euro) (Made out to: Buffalo Technology) to cover our handling fee, postage and CD preparation. The CD-R should have the name of the product and revision number clearly written on the actual CD-R (not on the insert). We do not send GPL source in bulk on a DVD. And order confirmation is not required by the GNU General Public License. We are more than happy to comply with your request; however, we must ask you to comply with our GPL distribution policy, which complies with the GNU General Public License. Sincerely, Buffalo Technology GPL Department...
  • Page 60 300* High Speed Mode *300 Mbps is the link speed when using Wireless-N mode. It represents actual wireless data speeds, including overhead. Because the overhead is not available for user data transfer, usable wireless throughput will be substantially slower.
  • Page 61 Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN60950-1: 2006 Safety of Information Technology Equipment EN 50385: 2002...
