Preparation
This Quick Setup Guide will guide you through installing your new
Buffalo router. For advanced setup and confi guration instructions,
please refer to the Product Manual, available on the AirNavigator CD-
ROM or from the Buffalo Support Web Page.
Package Contents Checklist
• Wireless Cable/DSL Router (WHR-HP-G54)
• External Antenna
• Utility CD-ROM w/ User Manual
• Quick Setup Guides
• AC Adapter
• 7ft. Ethernet Cable
• Warranty Statement
If any of the contents are missing or damaged, please contact the retailer
or reseller from which this product was purchased.

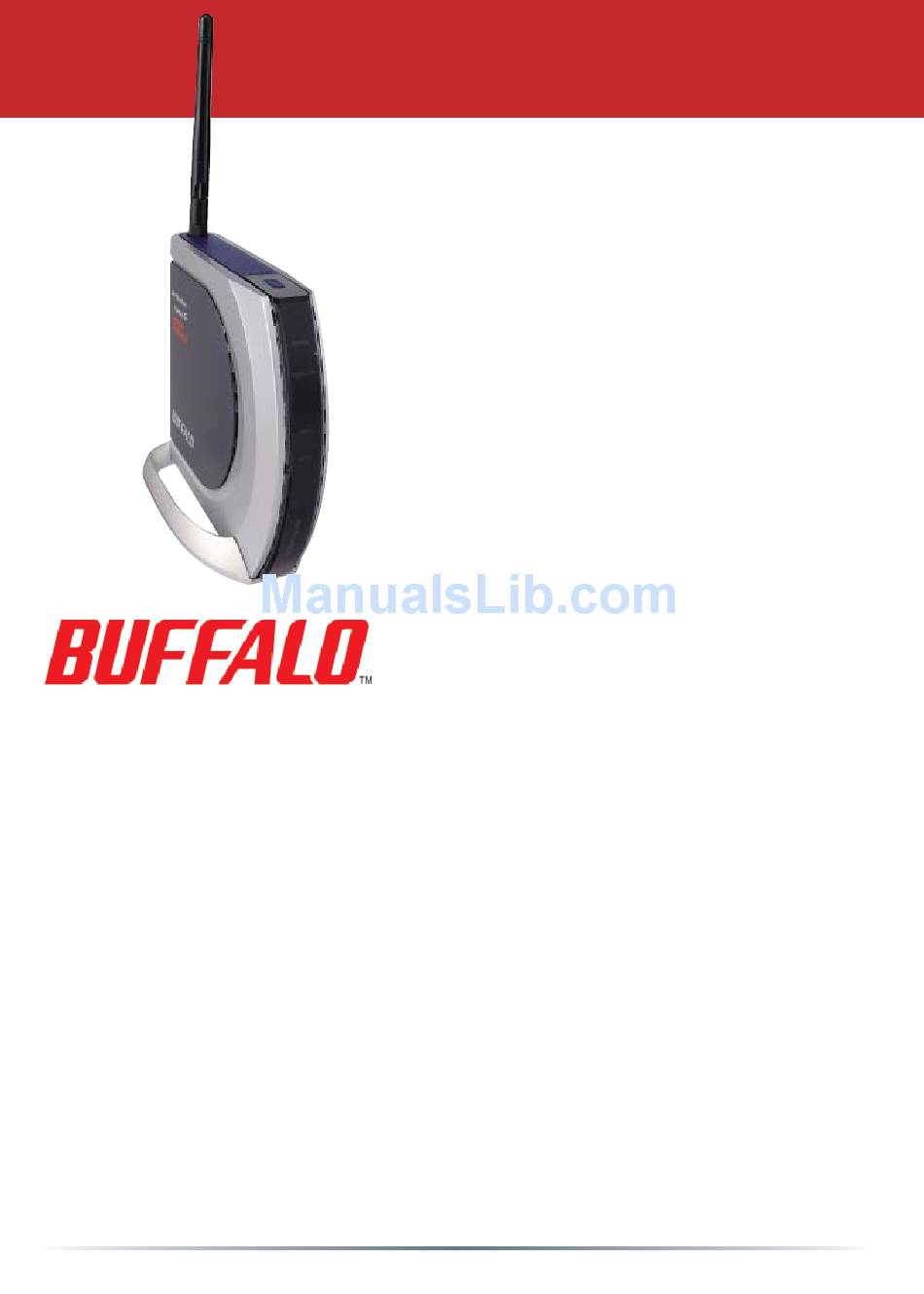

Quick Setup Guide
AirStation WHR-HP-G54 High-Power
Wireless Cable/DSL SmartRouter
www.buffalotech.com
V1.0
Advertisement
Related Manuals for Buffalo Tech AirStation WHR-HP-G54
Summary of Contents for Buffalo Tech AirStation WHR-HP-G54
- Page 1 Quick Setup Guide AirStation WHR-HP-G54 High-Power Wireless Cable/DSL SmartRouter Preparation This Quick Setup Guide will guide you through installing your new Buffalo router. For advanced setup and confi guration instructions, please refer to the Product Manual, available on the AirNavigator CD- ROM or from the Buffalo Support Web Page.
-
Page 2: Step 1 - Gathering Information
Step 1 - Gathering Information Depending on the type of broadband internet service you are subscribed to, different pieces of information may be needed to complete the setup. In particular, most DSL providers require PPPoE information to log in to your connection. Call your internet service provider’s customer or technical support number to fi... - Page 3 Step 2 - Connecting the AirStation Ethernet cable to PC AC power Ethernet cable to Cable/DSL modem 1. Power down the Cable or DSL modem and the computer which will be used to confi gure the AirStation router. 2. Screw external antenna on to top of AirStation. 3.
- Page 4 Notes on Wireless Confi guration: If you have a PC connected to the router with a wired connection, we recommend that you use it to confi gure your AirStation. That said, if necessary, you can still confi gure your AirStation with a wireless connection.
- Page 5 Step 3 - Confi gure your Computer's IP Address Navigate to your TCP/IP Properties and make sure that both Obtain IP address automatically and Obtain DNS Server address automatically are selected: In Windows 98SE/ME: • Right-click on Network Neighborhood or My Network Places and select Properties.
- Page 6 Step 4 - Access the AirStation Confi guration Pages Launch your Web browser, type 192.168.11.1 in its address fi eld, and click Go. Of course, if you’ve changed your AirStation’s LAN IP address, enter the new LAN IP address instead. If at any time you wish to restore settings to factory defaults, press the red INIT button on the bottom of the AirStation for 15 seconds.
- Page 7 The WHR-HP-G54 will automatically detect whether your internet is from a DSL or Cable provider and ask you for any necessary information. • If you have a DSL connection, you will probably have to enter your PPPoE login information. Get this information from your ISP if you don’t know it.
- Page 8 The AirStation can be reconfi gured anytime via a Web browser using a wired or wireless connection by entering 192.168.11.1 (or the new IP address, if you’ve changed it) in the URL address fi eld of the Web browser and pressing the Enter key on the keyboard. Additional Information: AOSS (AirStation One-Touch Secure System) The WHR-HP-G54 supports Buffalo’s AOSS system for connecting AOSS...
- Page 9 Buffalo Technology Technical Support Buffalo Technology offers Toll-Free Technical Support 24 hours a day, 7 days a week for this product. Customers in the United States and Canada can obtain technical support using the following information: • Product Manual: Available on the AirNavigator CD •...
