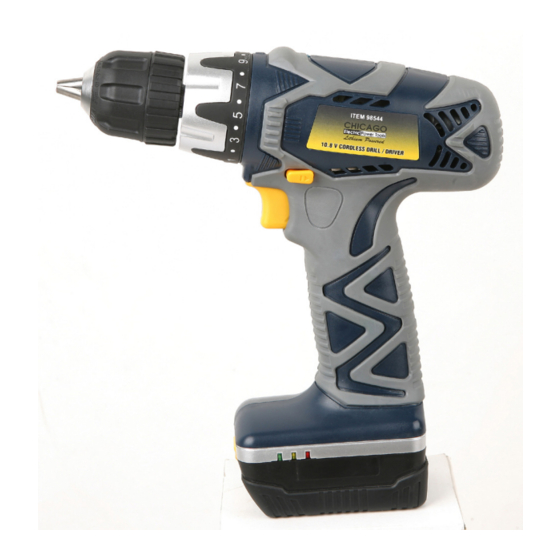

10.8 VOLT CORDLESS DRILL/DRIVER
SET up anD OpERaTIng InSTRuCTIOnS
Distributed exclusively by Harbor Freight Tools
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SaVE THIS manuaL.
©
Copyright
2008 by Harbor Freight Tools
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
3491 Mission Oaks Blvd., Camarillo, CA 93011
®
. All rights reserved. No portion of this manual or any artwork
98544
®
.
Advertisement
Table of Contents
Related Manuals for Chicago Electric HARBOR FREIGHT TOOLS 98544
Summary of Contents for Chicago Electric HARBOR FREIGHT TOOLS 98544
- Page 1 10.8 VOLT CORDLESS DRILL/DRIVER SET up anD OpERaTIng InSTRuCTIOnS Distributed exclusively by Harbor Freight Tools 3491 Mission Oaks Blvd., Camarillo, CA 93011 Visit our website at: http://www.harborfreight.com Read this material before using this product. Failure to do so can result in serious injury.
-
Page 2: Important Safety Information
SaVE THIS manuaL Keep this manual for the safety warn- ings and precautions, assembly, operat- ing, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). - Page 3 plugs with grounded power tools. Unmodified plugs and matching out- lets will reduce risk of electric shock. avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded. Do not expose power tools to rain or wet conditions.
- Page 4 proved for the specific hazards in the work area. power tool use and care Do not force the power tool. use the correct power tool for your ap- plication. The correct power tool will do the job better and safer at the rate for which it was designed.
- Page 5 Always keep the work area free of obstructions, grease, oil, trash, and other debris. Do not use the Cordless Drill/Driver in areas near flammable chemicals, dusts, and vapors. Do not use this product in a damp or wet location.
-
Page 6: Vibration Safety
The battery charger gets hot during use. The charger’s heat can build up to unsafe levels and create a fire hazard if it does not receive adequate ventilation, due to an electrical fault, or if it is used in a hot environment. -
Page 7: Grounded Tools: Tools With Three Prong Plugs
vibration may cause temporary or permanent physical injury, particularly to the hands, arms and shoulders. To reduce the risk of vibration-related injury: Anyone using vibrating tools regu- larly or for an extended period should first be examined by a doctor and then have regular medical check- ups to ensure medical problems are not being caused or worsened from... -
Page 8: Double Insulated Tools: Tools With Two Prong Plugs
electrically malfunction or break down, grounding provides a low resistance path to carry electricity away from the user, reducing the risk of electric shock. (See 3-prong plug and Outlet.) The grounding prong in the plug is connected through the green wire in- side the cord to the grounding system in the tool. -
Page 9: Specifications
Make sure the extension cord is prop- erly wired and in good electrical con- dition. Always replace a damaged extension cord or have it repaired by a qualified electrician before using it. Protect the extension cords from sharp objects, excessive heat, and damp or wet areas. - Page 10 Lithium Battery Safety and Charging Instructions Do not leave Drill/Driver unattended while charging. Battery charging should be done by adults only. Charge on non-flammable surface and keep away from flammable items. Turn charger off when battery is charged, and unplug charger from battery-powered device.
-
Page 11: Operating Instructions
is fully charged, unplug the Charger from the electrical outlet and remove the Battery Pack from the Adapter. OPERATING INSTRUCTIONS Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. - Page 12 The different sizes of Bit Adapters (62) are an indication of how much torque the Cordless Drill/Driver will apply to the bit before the clutch slips, allowing the bit to stop and helping to prevent damage to the screw, bit, or workpiece.
-
Page 13: Cleaning And Maintenance
Bit breaks through the workpiece. When you have drilled the hole, remove the Bit from the hole while the Cordless Drill is still running. This prevents the Bit from getting caught in the hole and causing damage. Release Trigger to stop the Drill, put Direction Lever in the center position, and remove the bit from the Drill. -
Page 14: Parts List
paRTS LIST part Description Screw (M6 x 16) 3/8” Keyless Chuck Screw (M2.2 x 12) Mounting Plate Spring Holder Torque Control Sleeve Torque Spring C-Ring Washer Ball Washer Clutch Washer Ball Bushing Gear Housing Output Shaft Ring Gear Planet Gear Sun Gear Washer Screw (M3x6) - Page 15 SKU 98544 For technical questions, please call 1-800-444-3353. Page 15...
-
Page 16: Limited 90-Day Warranty
LImITED 90 DaY WaRRanTY Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this prod- uct is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
