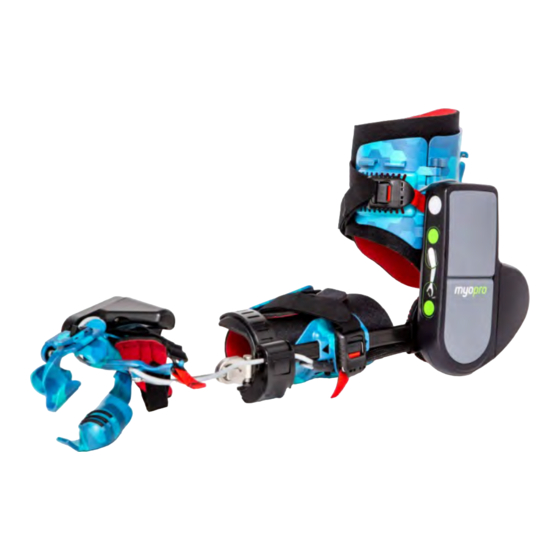

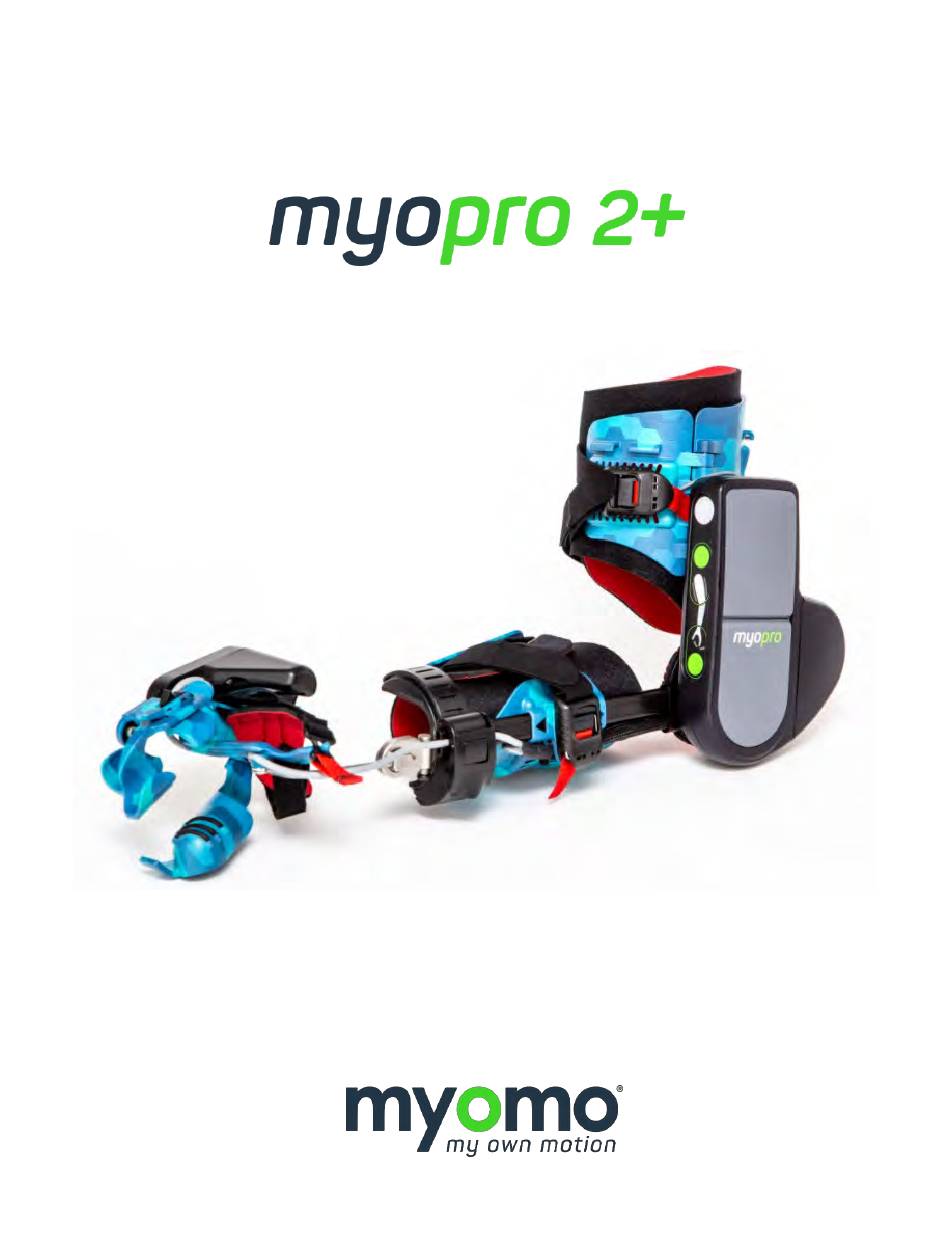

- Page 1 MyoPro 2+ Quick Start Guide 28441 Rev 001...
- Page 2 WARNING: Always read and refer to the user manual for more complete and detailed instruction before using this guide. 28441 Rev 001...
-
Page 3: Table Of Contents
MyoPro 2+ Quick Start Guide TABLE OF CONTENTS HOW TO DON MYOPRO 2+ MOTION W ORTHOSIS HOW TO DON MYOPRO 2+ MOTION G ORTHOSIS HOW TO DON A HARNESS CROSS-BODY HARNESS FIGURE 8 HARNESS CONTROL PANEL TROUBLESHOOTING HOW TO USE GO-TO-MEETING & ZOOM 28441 Rev 001... -
Page 4: How To Don Myopro 2+ Motion W Orthosis
HOW TO DON MYOPRO 2+ MOTION W ORTHOSIS PREPARATION: Ensure that the MyoPro is POWERED OFF and open all straps. Place the MyoPro on your lap or other stable surface for donning. STEP 1: Insert hand into hand shell. Double check hand position. Lock/unlock supination ring by opening or closing latch. - Page 5 HOW TO DON MYOPRO 2+ MOTION W ORTHOSIS STEP 2: Lower wrist and forearm into the MyoPro. Secure forearm strap. Position wrist and forearm in forearm shell. Tuck Liner and secure Velcro. Attach the forearm magnetic latch to the buckle base. Secure the forearm strap completely by closing the forearm buckle.
-
Page 6: How To Don Myopro 2+ Motion G Orthosis
HOW TO DON MYOPRO 2+ MOTION G ORTHOSIS PREPARATION : Ensure that the MyoPro 2+ is POWERED OFF. Remove finger saddle and open all straps. Place the MyoPro 2+ on a surface with adequate friction to prevent it moving away from you, such as your lap, or a couch or bench for more stability. - Page 7 HOW TO DON MYOPRO 2+ MOTION G ORTHOSIS STEP 2 :. Insert hand into hand shell. Reattach finger saddle. Check hand position. Begin by rotating the hand shell so the fingers are Position thumb into thumb support. Pull your hand pointing away from you.
- Page 8 HOW TO DON MYOPRO 2+ MOTION G ORTHOSIS STEP 4 : Reattach the finger saddle. Reattach finger saddle: first position the saddle on the end of your index and middle fingers. Then push the finger loop down onto the anvil until the finger saddle is secure. . Push on the back of the finger loop while pulling up on the finger saddle.
- Page 9 HOW TO DON MYOPRO 2+ MOTION G ORTHOSIS STEP 6 : Position humeral (upper) cuff and secure strap. Triceps Sensor Biceps Sensor Humeral Liner Tuck the humeral liner into the BLUE sensor over front of arm humeral shell, ensuring the (biceps) biceps EMG sensor is not sensor over back of arm...
-
Page 10: How To Don A Harness
HOW TO DON A HARNESS MYOPRO 2+ HARNESS OPTIONS The MyoPro 2+ is available with two harness models depicted below. Following the appropriate instructions, depending on which harness model you have. FIGURE 8 HARNESS CROSS-BODY HARNESS Harness Clips: Having the harness connected to the appropriate retention clip will influence the alignment of the MyoPro 2+. - Page 11 HOW TO DON A HARNESS PREPARATION: Don your MyoPro 2+ first. Follow instructions for the harness provided to you. For detailed instructions, refer to User Manual and donning instructions CROSS-BODY HARNESS 1) Stabilize the harness saddle in the middle of your shoulder. Place the harness saddle on your shoulder.
- Page 12 HOW TO DON A HARNESS Figure 8 Harness : Method 1 (flexibility-dependent) Place the intact-side arm through the sound side loop with the fabric of the puck facing you. With your arm against the saddle, lift the harness over and behind your head. Gravity will do most of the work as you let it slide down towards your shoulder.
- Page 13 HOW TO DON A HARNESS Figure 8 Harness : Method 2 (back pack method) Starting with the harness behind your back, locate the puck using your sound side. Orient the puck so that the fabric side is towards your back, while the straps face away from the you. This will keep the harness oriented in the correct position as you move your hand into the sound side loop.
- Page 14 HOW TO DON A HARNESS Figure 8 Harness : Method 2 (back-pack method) Starting with the harness behind your back, locate the puck using your sound side. Orient the puck so that the fabric side is towards your back, while the straps face away from the you.
-
Page 15: Control Panel
CONTROL PANEL Power Button : Push to turn MyoPro on/off Bluetooth indicator light: turns blue when MyoPro is connected to Myconfig Elbow Mode Button Standby Mode Biceps indicator light Triceps indicator light Biceps Mode Dual Mode Close indicator light Open indicator light Triceps Mode Hand Mode Button (Motion G only) Standby Mode... -
Page 16: Troubleshooting
TROUBLESHOOTING If the solutions presented here do not fix your problem, please call Myomo Support: (617) 651 - 0226 or (877) 736 - 9666 Problem Solution Make sure the MyoPro has been donned correctly and all Issues with the fit of the MyoPro on the arm: joints are aligned, and cuffs/straps are snug. - Page 17 TROUBLESHOOTING If the solutions presented here do not fix your problem, please call Myomo Support: (617) 651 - 0226 or (877) 736 - 9666 Problem Solution Check the fit of the MyoPro on the arm. If the cuffs Jerky or erratic movements and straps are too loose, the sensors will lose contact with the skin, causing erratic motion.
- Page 18 TROUBLESHOOTING If the solutions presented here do not fix your problem, please call Myomo Support: (617) 651 - 0226 or (877) 736 - 9666 Problem Solution Check to see if the MyoPro is in Standby mode. MyoPro is not moving/responding ...
- Page 19 TROUBLESHOOTING If the solutions presented here do not fix your problem, please call Myomo Support: (617) 651 - 0226 or (877) 736 - 9666 Problem Solution How to charge the battery Push button to open Remove battery battery compartment Charge on cradle...
-
Page 20: How To Use Go-To-Meeting & Zoom
ON YOUR DESKTOP or TASK BAR (at the bottom of your screen): Double click on this icon to open Go-To-Meeting Enter the meeting ID (this ID will have been provided to you in an e- mail from Myomo) and click “JOIN”. The meeting will start: 28441 Rev 001... - Page 21 4) While you wait for the host, test your computer audio and computer microphone to ensure that it is working. and Audio 5) Join Video 6) You should then be connected to the Myomo Representative and you will be added to the meeting. 28441 Rev 001...
