myomo MyoPro 2 User Manual

Hide thumbs Also See for MyoPro 2:

Advertisement

Quick Links

Download this manual
User manual appendix B
Specific instructions for your unique MyoPro 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the MyoPro 2 and is the answer not in the manual?

Questions and answers

Related Manuals for myomo MyoPro 2

Summary of Contents for myomo MyoPro 2

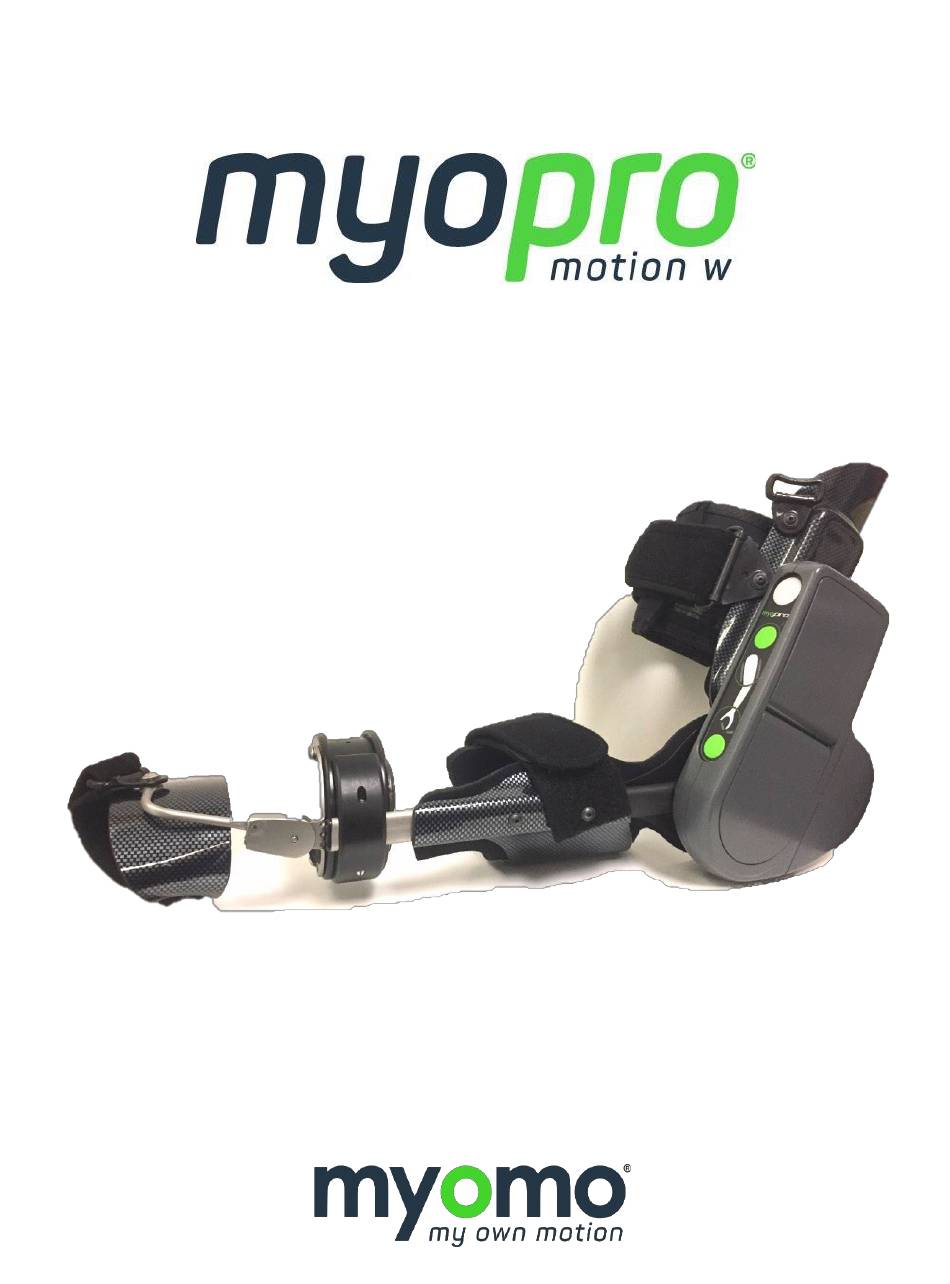

  • Page 1 User manual appendix B Specific instructions for your unique MyoPro 2...
  • Page 2 PN25918 Rev 008...

  • Page 3: Table Of Contents

    CONTENTS MyoPro 2 Motion W Diagram › Putting Your MyoPro 2 On (“Donning”) › Steps for Putting Your MyoPro 2 On › Taking Your MyoPro 2 Off (“Doffing”) › Steps for Taking Your MyoPro 2 Off › Using Your MyoPro 2 ›...
  • Page 4 PN25918 Rev 008...
  • Page 5 2 MOTION W DIAGRAM Component names and references (not every device includes every component). Harness Attachment Upper-Arm Upper-Arm Sensor Cuff Shell Multi-Articulating Wrist (MAW), Rotational Ring Upper Cuff Closure Battery Forearm Compartment Closure Elbow Motor Forearm Shell Hand Carrier Hand Control Panel (User Support Shell Forearm Bar...
  • Page 6 PN25918 Rev 008...
  • Page 7 PUTTING YOUR MYOPRO 2 ON (“DONNING”) PN25918 Rev 008...
  • Page 8 PN25918 Rev 008...

  • Page 9: Putting Your Myopro 2 On ("Donning")

    WARNING: ONLY use the MyoPro 2 upper limb orthosis on the prescribed elbow, wrist and hand joints. Each MyoPro 2 is built specifically for a left arm or a right arm; never wear the MyoPro 2 on the other arm.

  • Page 10: Steps For Putting Your Myopro 2 On

    STEPS FOR PUTTING YOUR MYOPRO 1. POWER OFF: While donning, the MyoPro 2 should be turned OFF; check that it is OFF before starting to put the MyoPro 2 on your arm. NOTE: Pads and straps should be fully air-dried from the previous use.
  • Page 11 Wrist Module Supination/Pronation Joint Flexion/Extension Joint Flexion/Extension Hand Carrier Bar Button Supination/Pronation Latch PN25918 Rev 008...
  • Page 12 Wrist Module: PROXIMAL/DISTAL The wrist module position along the user’s forearm (proximal-distal) can be adjusted two different ways. 1. Method 1: Move the Hand Carrier Bar in the Flexion/Extension Joint. This can be done by loosening and retightening these set screws with a 3 mm hex key. It is recommended to tighten the set screws to 5 inch/lbs, or approximately a ¼...
  • Page 13 Wrist Module: SUPINATION/PRONATION Open the Supination/Pronation (SP) Latch to adjust the pronation and supination of the ADJUST SP Joint. Close the SP Latch once the joint is in the desired location. Open Latch Closed Latch Caution: The SP latch should be closed when the device is not in use to avoid accidental damage to the components. PN25918 Rev 008...
  • Page 14 Push the Flexion/Extension Button to the unlocked position (shown below) to unlock ADJUST the Hand Carrier Bar, then adjust the Hand Carrier Bar. Push the Flexion/Extension Button to the locked position to lock the Hand Carrier Bar in the desired position. Locked Position Unlocked Position PN25918 Rev 008...
  • Page 15 TAKING THE MYOPRO 2 OFF (“doffing”) PN25918 Rev 008...
  • Page 16 PN25918 Rev 008...

  • Page 17: Steps For Taking Your Myopro 2 Off

    Gently slide your hand back through the loosened hand strap and Hand Support Shell Rest the MyoPro 2 in a clean, dry location to ensure it will fully air-dry before next use. Place the MyoPro 2 into the carrying bag for travel or storage.
  • Page 18 PN25918 Rev 008...

  • Page 19: Using Your Myopro 2

    USING YOUR MYOPRO 2 PN25918 Rev 008...
  • Page 20 PN25918 Rev 008...

  • Page 21: Control Panel

    NOTE: For your MyoPro 2 Motion W • The Grasp mode button is deactivated • The Close Light and Open Light may turn on if a certain error occurs. See MyoPro 2 Error section of the User Manual Power Button Mode Buttons...

  • Page 22: Modes Of Use

    When the device is fit to you, your Provider will optimize the sensitivity settings within each mode depending on the strength of your EMG signal at that time. If over time you feel that the MyoPro 2 is not assisting your arm or hand adequately, please contact your Provider; the sensitivity settings may need to be readjusted.
  • Page 23 The elbow motor will not respond to your EMG signal from either muscle group. Though the MyoPro 2 is powered on, no assistance is being given to your elbow, and the arm will neither flex nor extend. The sensors will be reading your EMG signal from both biceps and triceps, but the motor response is paused.
  • Page 24 You must engage both muscle groups in order for your arm to move in both directions. The MyoPro 2 will respond to whichever muscle signal is stronger at a given moment in time. In order for Dual mode to be most effective, you should be able...
  • Page 25 The elbow mode button cycles through the 4 elbow modes, moving to the next mode each time you press the mode button. When the MyoPro 2 is turned ON, the elbow will be in Standby mode unless it has been changed by your Provider.
  • Page 26 PN25918 Rev 008...
