Grizzly H8124 Parts List

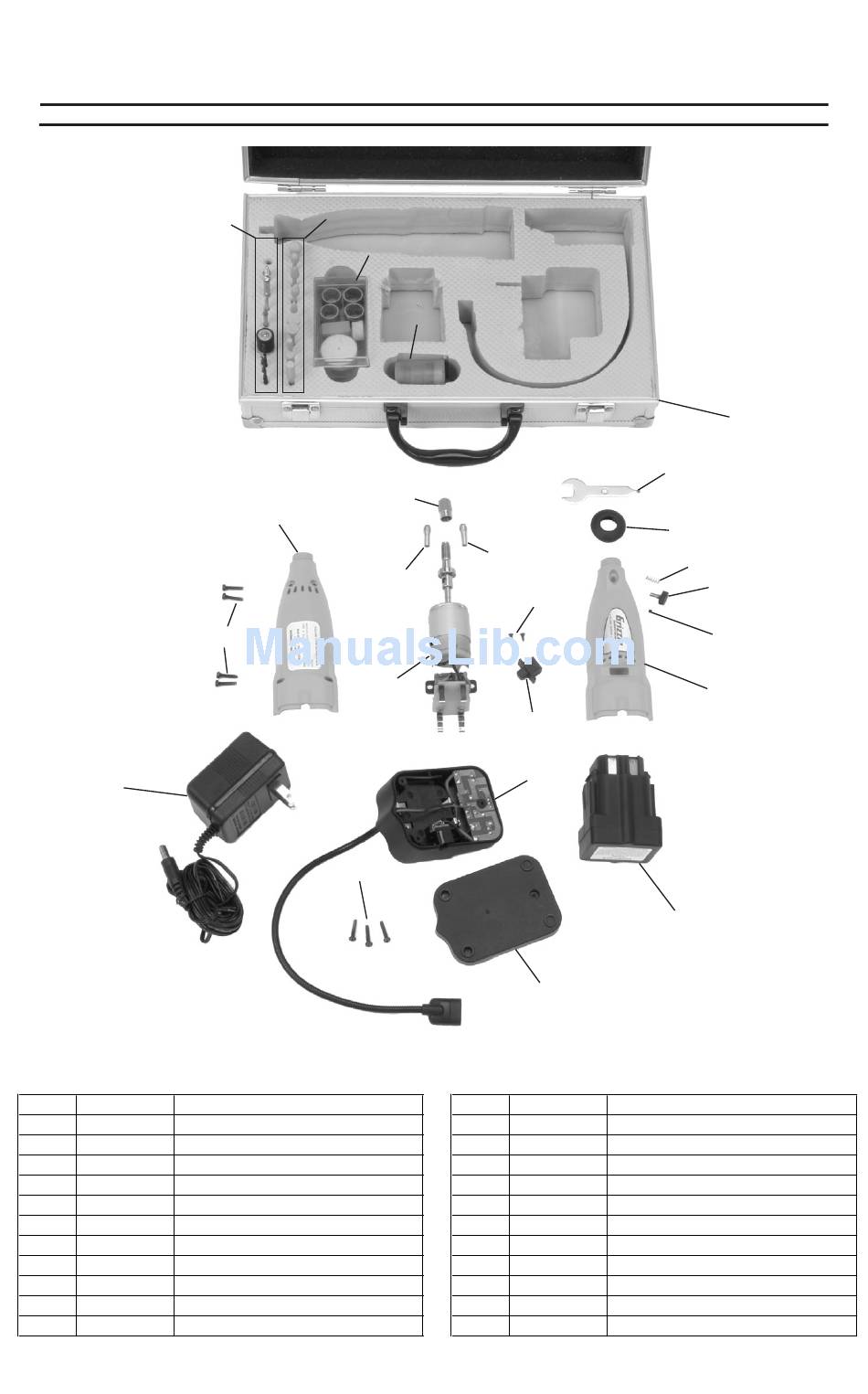

SECTION 5: PARTS LIST
20
REF PART # DESCRIPTION
1 PH8124001 CARRYING CASE
2 PH8124002 SANDING DISC SET
3 PH8124003 ACCESSORY KIT
4 PH8124004 MOUNTED STONE SET
5 PH8124005 ASSORTED BIT SET
6 PH8124006 COLLET NUT WRENCH
7 PH8124007 COLLET SHIELD
8 PH8124008 COLLET LOCK
9 PH8124009 SPRING
10 PH8124010 RETAINING RING
11 PH8124011 HOUSING FRONT HALF
12 PH8124012 COLLET 3/32"
Model H8124 7.2V Mini Grinder Kit
4
5
3
18
19
21
2
16
12
13
14
17
15
23
REF PART #
13 PH8124013
14 PH8124014
15 PH8124015
16 PH8124016
17 PH8124017
18 PH8124018
19 PH8124019
20 PH8124020
21 PH8124019
22 PH8124022
23 PH8124023
24 PH8124024
6
7
9
24
22
DESCRIPTION
COLLET 1/8"
TAP SCREW 2 X 5
SWITCH COVER
COLLET NUT
GRINDER MOTOR/SPINDLE ASSY
HOUSING BACK HALF
TAP SCREW 3 X 12
AC/DC ADAPTER 120VAC/9VDC
TAP SCREW 3 X 12
BATTERY CHARGER BASE
BATTERY CHARGER/LED ASSY
7.2V NI-CAD BATTERY
1
8
10
11
-11
-
