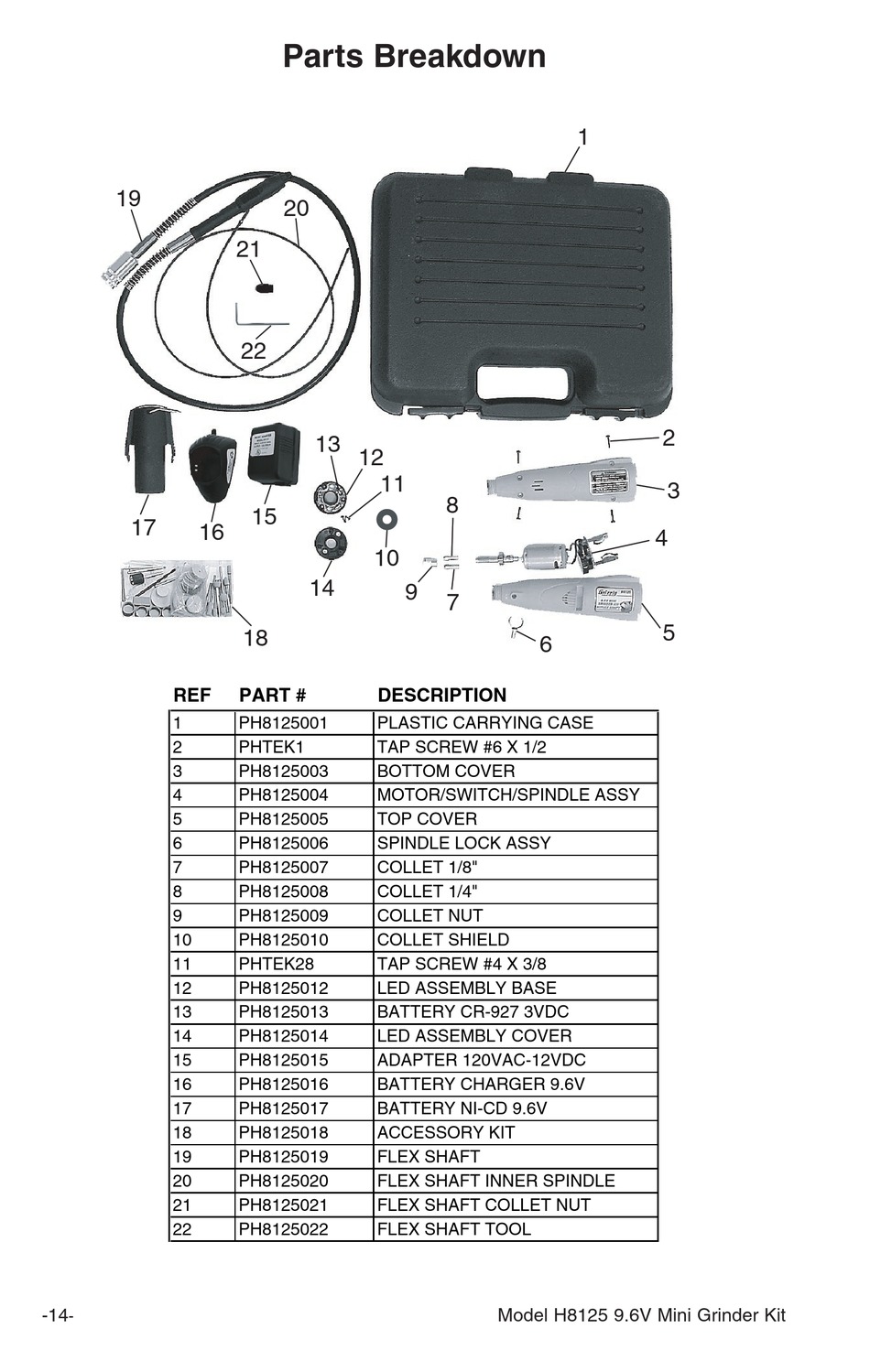

Grizzly H8125 Parts Breakdown

��
��

REF

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
-14
-
Parts Breakdown
��
��
��
��
��
��
��
��

PART #

PH8125001
PHTEK1
PH8125003
PH8125004
PH8125005
PH8125006
PH8125007
PH8125008
PH8125009
PH8125010
PHTEK28
PH8125012
PH8125013
PH8125014
PH8125015
PH8125016
PH8125017
PH8125018
PH8125019
PH8125020
PH8125021
PH8125022
��
��
�
��
�
�

DESCRIPTION

PLASTIC CARRYING CASE
TAP SCREW #6 X 1/2
BOTTOM COVER
MOTOR/SWITCH/SPINDLE ASSY
TOP COVER
SPINDLE LOCK ASSY
COLLET 1/8"
COLLET 1/4"
COLLET NUT
COLLET SHIELD
TAP SCREW #4 X 3/8
LED ASSEMBLY BASE
BATTERY CR-927 3VDC
LED ASSEMBLY COVER
ADAPTER 120VAC-12VDC
BATTERY CHARGER 9.6V
BATTERY NI-CD 9.6V
ACCESSORY KIT
FLEX SHAFT
FLEX SHAFT INNER SPINDLE
FLEX SHAFT COLLET NUT
FLEX SHAFT TOOL
Model H8125 9.6V Mini Grinder Kit
�
�
�
�
�
�
