You are now in the Settings menu.
MENU TABS:
Menu Tabs.

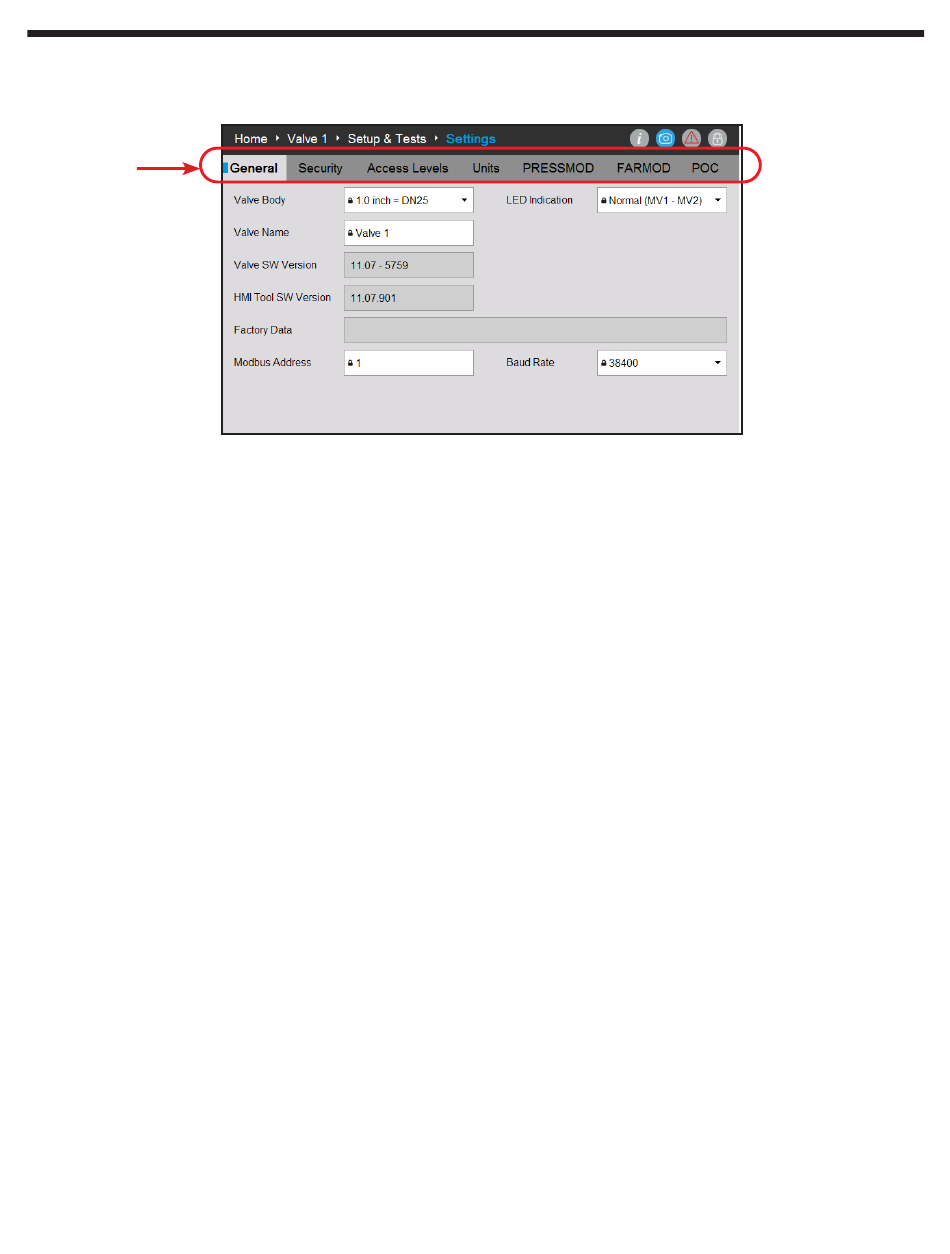

General: This menu displays these current settings (as shown).
Valve body: Allows the selection of the proper valve body size. This should be done at the factory. No
Valve Name: The valve can be given a unique name if need to suit application requirements. In rare
Valve SW version: Software revision of the valve. This might be needed if troubleshooting of the valve
HMI Tool SW version: Identifies the SW revision of the display that is attached to the valve.
Modbus address: This address can be changed if the valve is going to be added to a BAS that will be
Baud rate: Sets the communication speed of the Modbus network.
Security: This menu allows the installer and OEM passwords to be reset if needed. If the passwords are changed
the installer/building owner is responsible for remembering the password to gain access to the system. The
manufacterur does not have access to the installer password once changed.
Access Levels: Controls the password level access to the settings of the gas valve. This menu lists out each section
of the display and assigns a password level to each. The installer can limit access to items that don't
require installer level access if desired.
Units: Allows the units of pressure, volume and flow rate to be set to the desired engineering units.
PRESSMOD: Not available at this time.
FARMOD: Lists the factory data from the FARMOD and the current status of the FARMOD. IF the FARMOD
is replaced in the field the new FARMOD will need to be accepted in this menu to allow for proper
combustion setup.
POC: Not available
adjustments necessary.
cases this may be a benefit with Building Management System.
system is required for diagnostic purposes.
communicating with the valve.
