PRASTEL MT4000-2 Manual

Access control unit 2 doors, 4000 users/ 4 doors, 10000 users
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MT4000-2
ACCESS CONTROL UNIT
2 DOORS, 4000 USERS
MT10000-4
ACCESS CONTROL UNIT
4 DOORS, 10000 USERS
WARNING! Before installing, thoroughly read this manual that is an integral part of this
Kit.
N.B. - Prastel S.p.A. declines any responsibility in the event current standards in the country of
installation are not complied with
The symbol CE indicates conformity with Applicable European Directives

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT4000-2 and is the answer not in the manual?

Questions and answers

Related Manuals for PRASTEL MT4000-2

Summary of Contents for PRASTEL MT4000-2

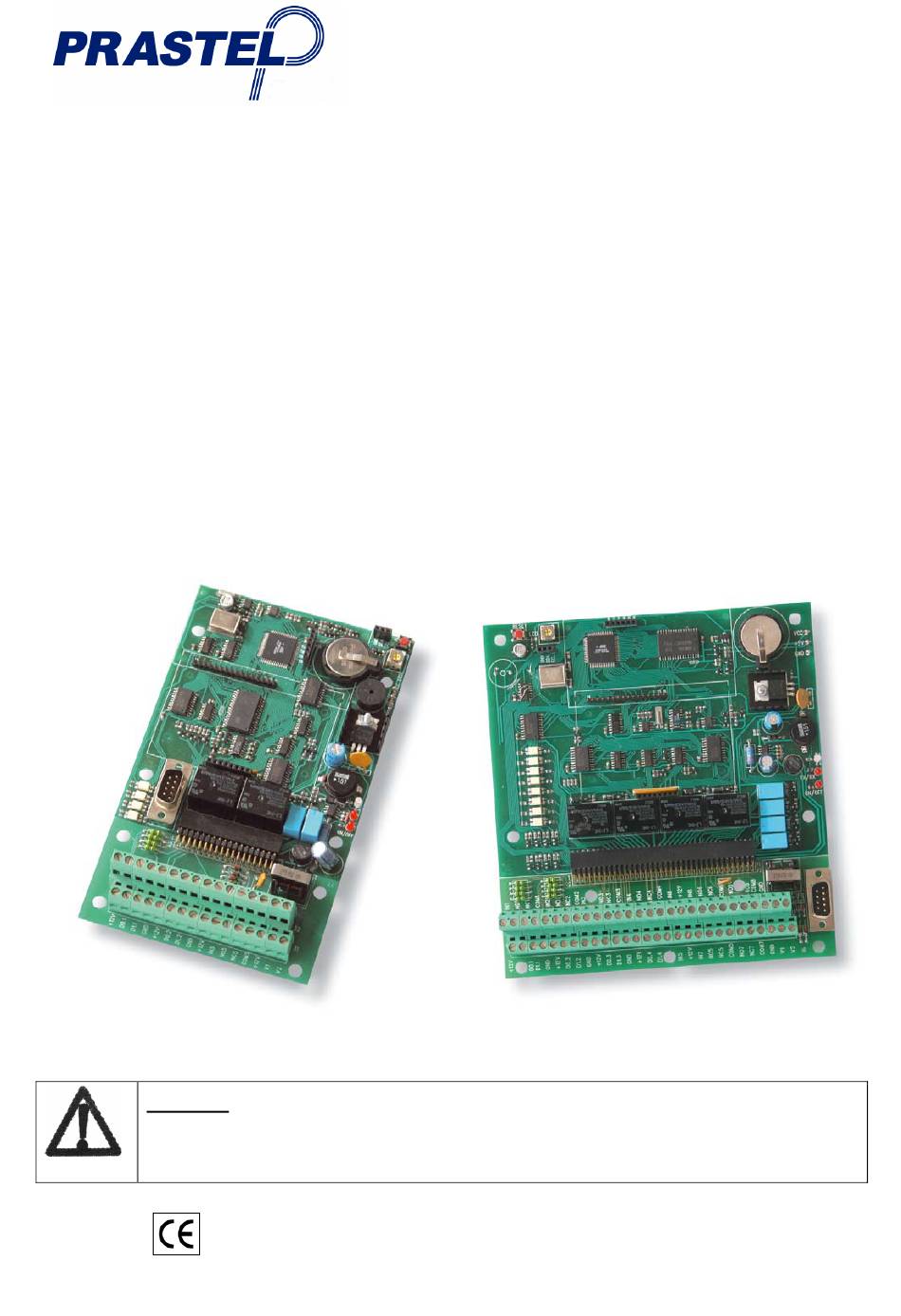

  • Page 1 WARNING! Before installing, thoroughly read this manual that is an integral part of this Kit. N.B. - Prastel S.p.A. declines any responsibility in the event current standards in the country of installation are not complied with The symbol CE indicates conformity with Applicable European Directives...

  • Page 2: Table Of Contents

    ISMTUK_06_06.doc MT4000-2 MT10000-4 ___________________________________________________________________3 Main Features: _____________________________________________________4 Terminal strip board and connectors _________________________________________________________________________8 Wiring 3.1. Installation example with electric lock________________________________________________10 3.2. Installation example with automatic door _____________________________________________11 3.3. Example of connection between two control units ______________________________________12 ________________________________________________________13 Management of Alarm Events 4.1.

  • Page 3: Main Features

    ISMTUK_06_06.doc MT4000-2 MT10000-4 1. Main Features: MT4000-2 • Power: 12 VAC/DC • Consumption: 100 mA (Control Unit without accessories). With the optional keypad/display, consumption is 200mA • Operating temperature: from -5 to +55°C • Readers: 2 external readers • User capacity: 4000 •...

  • Page 4: Terminal Strip Board And Connectors

    ISMTUK_06_06.doc MT4000-2 MT10000-4 2. Terminal strip board and connectors MT4000-2 Layout Pag. 4...
  • Page 5 KEYBOARD STRIP: Strip for plugging in optional keypad. LCD: Trimmer for contrast adjustment of optional display Terminal board MT4000-2 description Power 12Vac/dc (maximum consumption 2A) Power 12Vac/dc (maximum consumption 2A) Ground for reader powering and for the INT485C converter D+ Interface 485...
  • Page 6 ISMTUK_06_06.doc MT4000-2 MT10000-4 MT10000-4 Layout RESET: Re-start the control unit BUZZER: 1 prolonged beep valid reading 2 rapid beeps invalid reading Led OK: Green valid reading invalid reading Yellow invalid reading because of incorrect system code Led TX/RX: Flashes when the control unit communicates on the RS485 bus.
  • Page 7 ISMTUK_06_06.doc MT4000-2 MT10000-4 Terminal board MT10000-4 description Power 12Vac/dc (maximum consumption 2A) Power 12Vac/dc (maximum consumption 2A) Ground for reader powering and for the INT485C converter D+ Interface INT485C D- Interface INT485C Positive for reader powering and for the INT485B converter D0.1...

  • Page 8: Wiring

    MT4000-2 MT10000-4 3. Wiring MT4000-2 and MT10000-4 can be connected to a network of MT, TTD3000, M3000 or M5000 control units using the RS485 bus. Control unit configuration and access badge enable may be made via the keyboard and display (requires the optional keypad/display kit) or via the optional SWAMIGO software.
  • Page 9 ISMTUK_06_06.doc MT4000-2 MT10000-4 IP Ethernet INTETHERNET RS232 RS485 RS232, USB etc. INT485C Telephone line Modem Modem INT485M Wiring notes and recommendations: • Maximum line lengths of readers 1 and 2 (control unit reader) is 100 meters • Maximum RS485 bus length is 1000 metres.

  • Page 10: Installation Example With Electric Lock

    Note 1: Power electric lock and control unit with separate power supply units. Note 2: the figure shows the wiring with the MT4000-2 control unit terminal board but can easily be applied to an installation with the MT10000-4 control unit.

  • Page 11: Installation Example With Automatic Door

    Automatic door opens after 1 second following valid read or pushing of manual opening out button. Note: the figure shows the wiring with the MT10000-4 control unit terminal board but can easily be applied to an installation with the MT4000-2 control unit. Pag. 11...

  • Page 12: Example Of Connection Between Two Control Units

    ISMTUK_06_06.doc MT4000-2 MT10000-4 3.3. Example of connection between two control units To connect more than one control unit to a single bus make the following connection. Note: Power the control units with separate power supply units. Pag. 12...

  • Page 13: Management Of Alarm Events

    ISMTUK_06_06.doc MT4000-2 MT10000-4 Management of Alarm Events The control unit is capable of managing a number of different alarm conditions, depending on input and output configuration settings. One of the break-in digital inputs, IN5 or IN6, may be associated to each reader. The break-in input may in turn be associated to one or both secondary R5 or R6 relays.

  • Page 14: Example Of Installation With Management Of Alarm Events

    ISMTUK_06_06.doc MT4000-2 MT10000-4 4.1. Example of installation with management of alarm events An installation complete with alarm management includes: • 2 readers, one in and one out; • 2 push-buttons for manual door opening; • 1 electric lock for commanding door opening;...
  • Page 15 Note 1: To use an automatic door, connect terminals NO1 and COM1 to the board of the automatic door. Note 2: the figure shows the wiring with the terminal board of the MT10000-4 control unit but can easily be applied to an installation with a MT4000-2 control unit. Pag. 15...

  • Page 16: Control Unit Programming And Testing

    ISMTUK_06_06.doc MT4000-2 MT10000-4 Control Unit programming and testing This chapter outlines a practical example of the configuration of a control unit with SWAMIGO software. To obtain more detailed information on the programming of the terminal consult the software manual. The manual is available in PDF format in the Manuals section of the SWAMIGO installation CD 5.1.

  • Page 17: Searching For And Configuring The Terminal

    MT4000-2 MT10000-4 Enter the name to be assigned to the site in the “site” box (e.g. PRA) and press the [ENTER] key. Enter a descriptive text (e.g. PRASTEL) and configure the communication settings. Configure the communication as required, Note: the default communication setting is on serial port 1..

  • Page 18: Auto-Learn Of Badges And Assignment Of Authorisations

    ISMTUK_06_06.doc MT4000-2 MT10000-4 To check that communication with the terminal is operating correctly, it is possible to test remote activation of the relays using the buttons on the special panel. The example below shows the configuration data for a terminal equipped with a Wiegand 30 badge reader: Remember to select the checkbox which enables on-line logging of events.
  • Page 19 ISMTUK_06_06.doc MT4000-2 MT10000-4 Auto-learn activated Present a badge to the reader. If the terminal has been correctly installed and configured, it should sound a beep and display the badge code in the "Badge Code" field. If this does not happen, double-check the connections and the terminal configuration.
  • Page 20 ISMTUK_06_06.doc MT4000-2 MT10000-4 Remember to select the "Badge enabled" checkbox (in the top right side). Confirm the creation of the badge and respond "Yes" to the system message prompts. Subsequent readings of the badge should generate a green line to appear in the events display area and the activation of relay 1 of the control unit.

  • Page 21: Control Unit Firmware Upgrading

    6. Control Unit Firmware Upgrading Control unit firmware may be upgraded by means of the TTD3000Pro programme. Upgrades are available at Prastel’s web site, www.prastel.it. Connect control unit connector DB9 to a PC serial port, using the cable provided. Access the TTD3000Pro programme and select the serial port to which the control unit has been connected.

  • Page 22: Faq

    Q: Are MT4000-2 and MT10000-4 compatible with control units TTD3000, M3000 and M5000? R: Yes, MT4000-2, MT10000-4, TTD3000, M3000 and M5000 control units may be linked up to form a LAN on the same RS485 bus and may perform antipassback operations in LAN among each other.
  • Page 23 ISMTUK_06_06.doc MT4000-2 MT10000-4 D: The control unit is not detected with the “Terminal search” function (SWAMIGO) or does not communicate with the PC. R: Start the “Terminal search”. Check that the serial LED flashes. If the LED does not flash, check the wiring.
  • Page 24 Prastel S.p.A. declines any and all senza alcun preavviso. Sono infatti fornite a titolo modifications sans préavis. En effet, elles sont liability in this regard.
  • Page 25 • El emplazamiento, las conexiones eléctricas product has to be returned to PRASTEL S.p.A. for repair, it Anschlüsse sowie die Einstellungen müssen nach must be sent postage paid. Prastel S.p.A. will return the y las regulaciones tienen que ser llevadas a cabo „den Regeln der Kunst“...

This manual is also suitable for:
