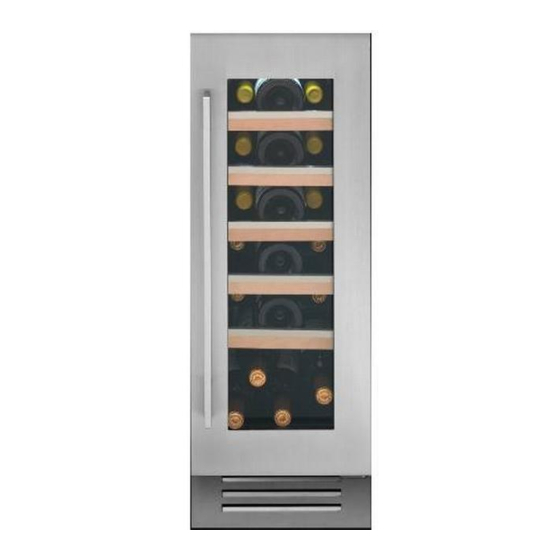

U n d e r c o u n t e r W i n e C a b i n e t
I n s t r u c t i o n M a n u a l
W I3150
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WI3150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Caple WI3150

Summary of Contents for Caple WI3150

  • Page 1 U n d e r c o u n t e r W i n e C a b i n e t I n s t r u c t i o n M a n u a l W I3150 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...

  • Page 2: Table Of Contents

    Installing The Full Height Plinth Grille Fitting A Kitchen Plinth Wine Bottle Stacking Installation Dimensions Installing The Top Fixing Bracket Using The Foot Sliders Care and Maintenance Troubleshooting Recommended Temperatures Caple Contact Details Instruction manual Wi3150 Please keep this instruction manual for future reference...

  • Page 3: Introduction

    Thank you for choosing this Caple Wine Cabinet. To ensure that you get the best results from your new wine cabinet, we strongly suggest that you read this instruction manual thoroughly before use. If treated with care, your Caple product should give you years of trouble-free use.

  • Page 4: Safety Instructions

    - If the supply cord is damaged, it must be replaced by a Caple service agent or a similarly qualified person in order to avoid a hazard. - This product is not designed for commercial use, it is a household appliance only.
  • Page 5 I M P O R T A N T Caple cannot be held liable for any non compliance with these instructions. E L E C T R I C A L S H O C K H A Z A R D - Read all instructions before using the wine cabinet.
  • Page 6 - Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. - Do not damage the refrigerant circuit. Instruction manual Wi3150 Please keep this instruction manual for future reference...
  • Page 7 - Do not use electrical appliances inside the storage compartments of the appliance,unless they are the type recommended by the manufacturer. Symbol ISO 7010 W021 Warning; Risk of fire / flammable materials Instruction manual Wi3150 Please keep this instruction manual for future reference...

  • Page 8: Environmental Protection

    Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges.

  • Page 9: Installation

    Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion. When disposing your appliance, please choose an authorised disposal site. › Avoid locating the unit in moist areas. Instruction manual Wi3150 Please keep this instruction manual for future reference...
  • Page 10 Caple service. WA R N I N G : Incorrect earthing can result in the risk of electric shock. 10 Instruction manual Wi3150 Please keep this instruction manual for future reference...

  • Page 11: Operating Your Wine Cabinet

    Please use the cabinet within ambient temperatures between 16-32ºC, if the ambient temperature is higher or lower than this, it will cause the temperature to fluctuate in the cabinet, possibly preventing it from reaching 5-18ºC. Instruction manual Wi3150 Please keep this instruction manual for future reference...

  • Page 12: Control Panel

    ECO mode - An energy saving mode where both the inner light and control panel to change the display from ºC to ºF. 12 Instruction manual Wi3150 to change the display from ºC to ºF. This button is used to toggle between the different operational functi to turn the appliance on.
  • Page 13 - Select this function to operate the wine cabinet in standard mode. n/off for 3 seconds until ol will illuminate. Instruction manual Wi3150 ently cooling. the internal light. CO mode - An energy saving mode where both the inner light and control panel CO mode - An energy saving mode where both the inner light and control panel to activate/deactivate.

  • Page 14: Using The Shelves

    These can be purchased directly from www.caple.co.uk Glass shelves are available if you wish to store cans or smaller bottles such as beer in your wine cabinet.

  • Page 15: Installing The Charcoal Filter

    Lower zone = 10-18ºC The charcoal filter should be replaced every 3-6 months depending on the unit’s exposure level to odour. Visit www.caple.co.uk to purchase the replacement charcoal filters. ow to replace the charcoal filter How to replace the charcoal filter Fig.

  • Page 16: How To Change The Door Opening

    Step1 step1 1. Door pin 2. Door 3. Upper hinge cover 4. Upper hinge 5. Screws 6. Decorative covers 7. Lower hinge 8. Lower hinge cover Step 2 16 Instruction manual Wi3150 Please keep this instruction manual for future reference...
  • Page 17 7. Turn the door 180 degrees. Place the door on the hinges, and re insert the upper and lower door pin(1) as shown in Fig G. 8. Open the door at 90 degrees, install the upper hinge cover(3) and lower hinger cover(8) as shown in Fig H. Instruction manual Wi3150 Please keep this instruction manual for future reference...

  • Page 18: Installing The Handle

    Remove the door gasket on the drilled holes side to install the handle (see below drawing). Fix the handle to the screws and push the gasket back into place. Visit our caple website to view a ‘How to video’ at www.caple.co.uk Scan the QR code below to access the ‘How to video’...

  • Page 19: Installing The Full Height Plinth Grille

    To be installed with a 150mm plinth height. NOTE: If you wish to reduce your plinth height, the smaller, slot-on plinth grille (see page 18) should be used. Instruction manual Wi3150 Please keep this instruction manual for future reference...

  • Page 20: Fitting A Kitchen Plinth

    See diagram below. Failure to include this vent slot will invalidate the guarantee. The appliance comes included with a decorative grille which slots onto the kitchen plinth. 195mm 20 Instruction manual Wi3150 Please keep this instruction manual for future reference...

  • Page 21: Wine Bottle Stacking

    If you wish to store other style bottles i.e champagne, the maximum storage capacity will be less than as shown above. Shelves may also need to be removed to allow more bottles to be stored. Instruction manual Wi3150 Please keep this instruction manual for future reference...

  • Page 22: Installation Dimensions

    I N S T A L L A T I O N D I M E N S I O N S 22 Instruction manual Wi3150 Please keep this instruction manual for future reference...

  • Page 23: Installing The Top Fixing Bracket

    After installing the wine cabinet, please open the door, adjust the fixing bracket and fix this into the work surface with three screws using a screwdriver. A. Top Fixing Bracket B. Work Surface C. Screw D. Screwdriver Instruction manual Wi3150 Please keep this instruction manual for future reference...

  • Page 24: Using The Foot Sliders

    ‘Front’. Once fitted to both sides of the wine cabinet the appliance can be gently positioned into the aperture, taking care not to place excess pressure on the feet when locating the cabinet. 24 Instruction manual Wi3150 Please keep this instruction manual for future reference...

  • Page 25: Care And Maintenance

    If the appliance will not be used for several months, remove all items and LONG HOLIDAYS: turn off the appliance. Clean and dry the interior thoroughly. To prevent odour and mould growth, leave the door open slightly (blocking it open if necessary). Instruction manual Wi3150 Please keep this instruction manual for future reference...
  • Page 26 If this is not noticed, it can cause excess moisture to build up in the cabinet which in extreme cases can lead to the evaporation tray overflowing. 26 Instruction manual Wi3150 Please keep this instruction manual for future reference...

  • Page 27: Troubleshooting

    The shelves are out of position. Cabinet is not cooling. DEMO mode is selected. If the above table has not solved the problem please contact Caple Service by phone on 0117 938 7420 or by email service@caple.co.uk Instruction manual Wi3150...
  • Page 28 Fill this reservoir 3/4 full with water. Check the water level occasionally and refill as necessary. 28 Instruction manual Wi3150 Please keep this instruction manual for future reference...

  • Page 29: Recommended Temperatures

    14˚C Beaujolais 13˚C Red Pinot Noir 16˚C Vintage Pinot Noir red 18˚C Red Cabernet, Merlot, French, Australian, 18˚C New Zealand, Chilean, Argentinean, Italian, Spanish, Californian Red Grenache, Syrah 16˚C Instruction manual Wi3150 Please keep this instruction manual for future reference...
  • Page 30 NOTES: 30 Instruction manual Wi3150 Please keep this instruction manual for future reference...
  • Page 31 NOTES: Instruction manual Wi3150 Please keep this instruction manual for future reference...

  • Page 32: Caple Contact Details

    Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
