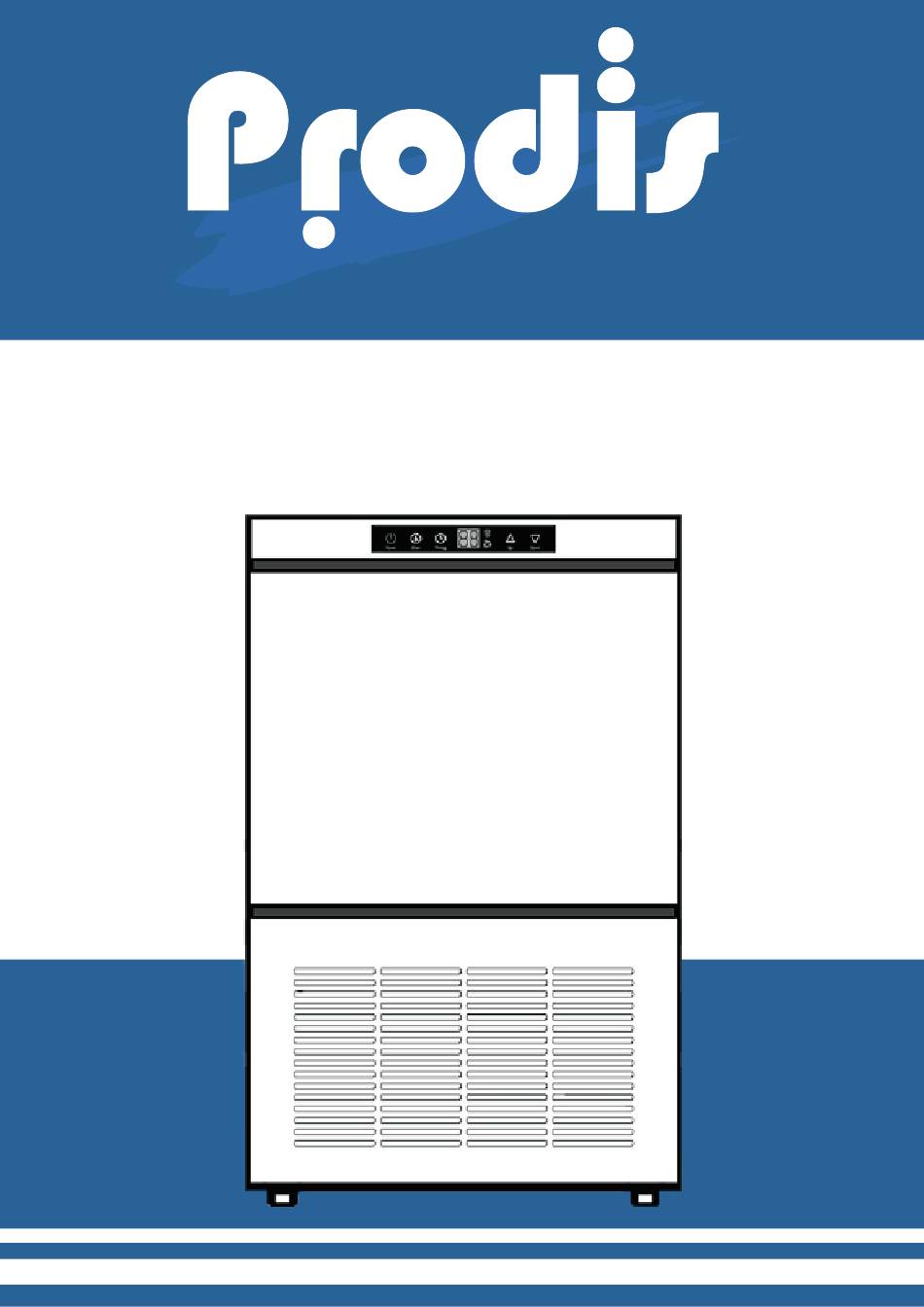

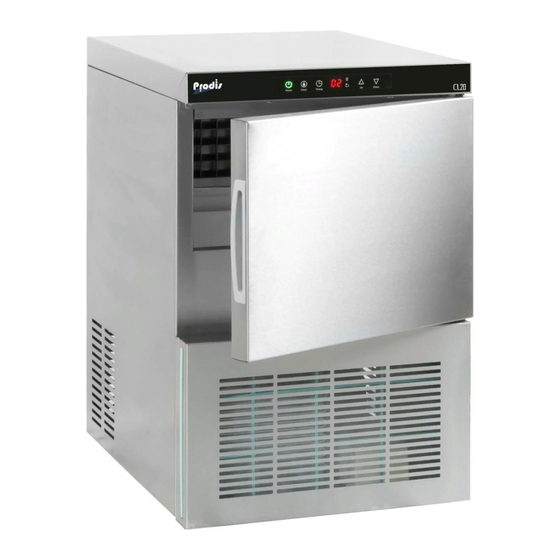

- Page 1 CL20 ICE MAKER SERVICE MANUAL ICE MAKER CL161019SM Rev 1.0...
-
Page 2: Maintenance
TABLE OF CONTENTS PART I ERROR CODES & EXPLANATIONS PART II MAINTENANCE PART III TECHNICAL DATA PART IV SPARE PARTS DIAGRAM & LIST PART V WIRING DIAGRAM CL161019SM Rev 1.0... -
Page 3: Error Codes
PART I ERROR CODES Error Description Solution Code Water Shortage Check mains water pressure is between 1.4 - 5.5 bar Check mains water supply is connected and turned on Check for kinks or blockages in mains water supply line externally replace where necessary Check for kinks or blockages in mains water supply line internally, replace where necessary... - Page 4 Error E2 is commonly caused by lime scale build up on the water distributor. This part needs to be cleaned and de-scaled on a 6 monthly basis or whenever necessary. The use of a water filter will assist in reducing lime scale build up and prolong the life of the ice maker. When lime scale is allowed to build up within the water distributor water will not be able to flow correctly over the evaporator.
- Page 5 MAINTENANCE AND CLEANING PART II WARNING PERIODIC CLEANING AND PROPER MAINTENANCE WILL THE ICE STORAGE BIN IS FOR STORAGE OF ICE ONLY, EXTEND THE LIFE OF YOUR ICE MAKER, ENSURE MAXIMUM NEVER STORE ANYTHING OTHER THAN ICE IN THE EFFICIENCY AND DELIVER BETTER TASTING ICE TO YOUR STORAGE BIN AS THIS IS A HEALTH HAZARD.
-
Page 6: Technical Data
PART III & IV TECHNICAL DATA ICE PRODUCTION 22KG PER 24 HOURS ICE STORAGE 6KG STORAGE BIN VOLTAGE 230V/50HZ RATED POWER 155W CLIMATE CLASS SN,N,ST REFRIGERANT R290 REFRIGERANT CHARGE UNIT DIMENSIONS 380 X 470 X 600 (W,D,H MM) AMBIENT OPERATING AIR TEMPERATURE 10°C - 32°C WATER SUPPLY TEMPERATURE 7°C - 32°C... - Page 7 PART IV DRAWING # DESCRIPTION PART NUMBER REAR PANEL CL20PANEL01 WATER INLET VALVE BRACKET CL20BRACKET01 POWER CORD CL20CABLE01 LEFT PANEL CL20PANEL02 DRAINAGE THREE WAY TEE PIECE CL20TEE02 FILTER DRIER CL20DRIER01 COMPRESSOR CL20COMP01 FOOT CL20FOOT01 BASE PANEL CL20BASE01 WATER PUMP THREE WAY TEE PIECE CL20TEE01 WATER OUTLET VALVE CL20VALVE02...
-
Page 8: Circuit Diagram
CIRCUIT DIAGRAM Environment Evaporating Condenser Ice Full g/24hr Temperature Sensor Temperature Sensor Sensor Switch Display panel Main Board 0/55g 5.5 bar Solenoid Condenser Water outlet ode number Compressor Water pump value value ode number PROJECT DISTRIBUTION LTD WWW.PRODIS.CO.UK CL161019SM Rev 1.0... - Page 9 NOTES..
- Page 10 NOTES..
- Page 11 NOTES..
- Page 12 Project Distribution Ltd Unit 1 Sun Street Stoke on Trent United Kingdom ST1 4JW Tel: 01782 280289 www.project-distribution.co.uk sales@project-distribution.co.uk CL161019SM Rev 1.0...
