Summary of Contents for PRODIS CL20
-

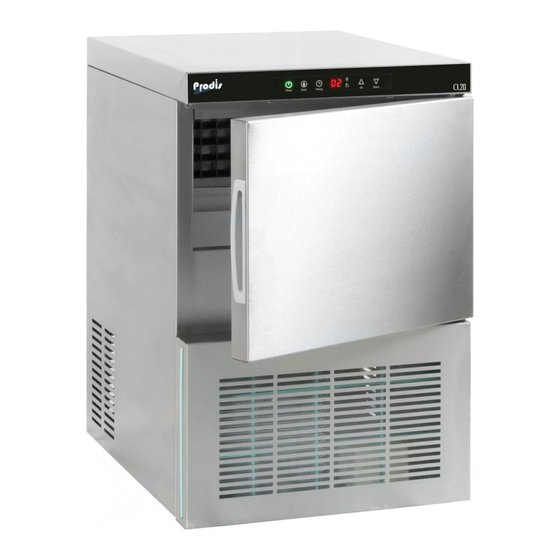

Page 1: Ice Maker

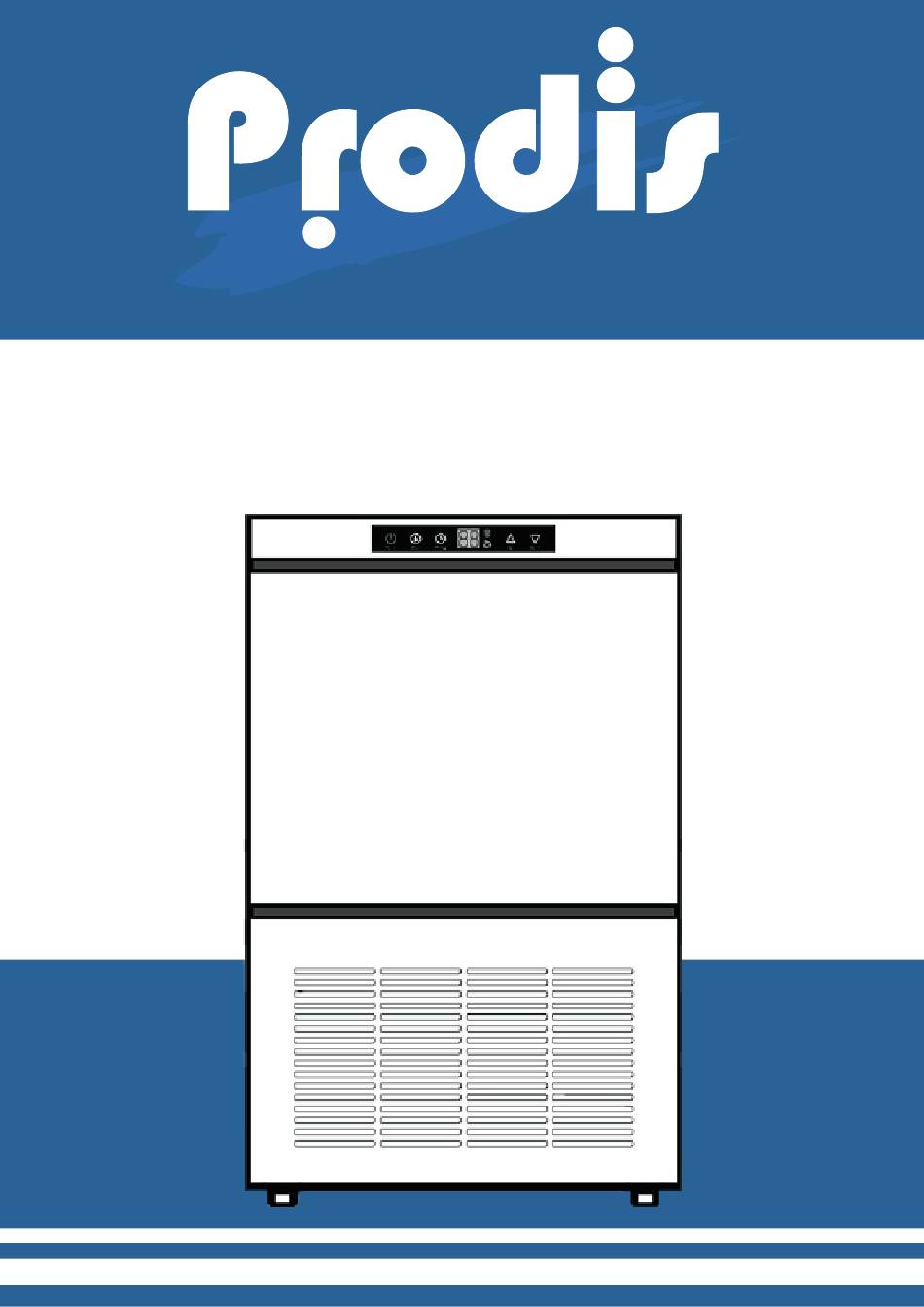

CL20 ICE MAKER USER MANUAL ICE MAKER CL200718UM Rev 1.3... - Page 2 TABLE OF CONTENTS PART I WARNINGS PART II INSTALLATION PART III OPERATING INSTRUCTIONS PART IV MAINTENANCE AND CLEANING PART V TROUBLE SHOOTING CL200718UM Rev 1.3...
- Page 3 PART I 01. PROPER INSTALLATION, 13. IT IS THE USERS RESPONSIBILITY TO MAINTENANCE OF THIS MACHINE ARE ALL ENSURE ONGOING MAINTENANCE IMPORTANT FOR MAINTAINING PRODUCTION MAKER COMPLETED AND USER SAFETY. IN ORDER TO REDUCE ACCORDANCE WITH MANUFACTURERS FAILURE RATE PLEASE READ THESE INSTRUCTIONS LAID OUT IN THIS MANUAL.
- Page 4 PART II IMPORTANT iv. REMOVE THE PROTECTIVE PLASTIC FILM FROM THE EXTERIOR BEFORE INSTALLATION. IF 01. THIS MANUAL IS AN INTEGRAL PART THE ICEMAKER HAS BEEN EXPOSED TO SUN OR OF THE ICE MAKER AND SHOULD BE KEPT HEAT ALLOW THE ICE MAKER TO COOL DOWN AND PRESERVED BY THE USER FOR FUTURE BEFORE REMOVING THE PROTECTIVE FILM.
- Page 5 ICE MAKER IS NOT RECOMMENDED FOR USE WITH AN EXTENSION LEAD ELECTRICAL SPECIFICATION MODEL VOLTAGE TOTAL POWER CURRENT CL20 230V/50Hz 155w 0.9 amps WARNING IF THE POWER SUPPLY CABLE IS DAMAGED, DO NOT INSTALL OR OPERATE THE MACHINE UNTIL THE CABLE HAS BEEN REPLACED BY AN AUTHORISED SERVICE PARTNER OR A QUALIFIED ENGINEER.
- Page 6 PART II 05. PUSH THE FLEXIBLE DRAIN HOSE ON THE IS THE MACHINE CORRECTLY EARTHED? DRAIN SPIGOT AT THE REAR OF THE MACHINE AND SECURE WITH THE CLIP PROVIDED. THE DRAIN PIPE CAN BE CUT TO LENGTH TO ALLOW IS THE WATER TO THE ICE MAKER TURNED THE DRAIN CONNECTION TO HAVE A SLIGHT FALL IF NECESSARY IS THE POWER TO THE MACHINE SWITCHED...
- Page 7 PART III OPERATING INSTRUCTIONS ICE PRODUCTION WARNING TO START ICE PRODUCTION PRESS THE ON/ OFF POWER BUTTON. THE POWER LED WILL AFTER TURNING OFF YOUR ICE MAKER YOU ILLUMINATE GREEN AND THE AMBIENT ROOM MUST WAIT AT LEAST 3 MINUTES BEFORE TEMPERATURE (°C) WILL BE DISPLAYED IN THE RESTARTING TO AVOID DAMAGE TO THE DIGITAL DISPLAY.
- Page 8 PART III ICE THICKNESS ADJUSTMENT TO CANCEL THE TIMER HOLD THE TIMING BUTTON AGAIN FOR 3 SECONDS, THE MACHINE WILL TO INCREASE OR DECREASE THE ICE THICKNESS THEN ENTER STANDBY MODE. ALTERNATIVELY PRESS THE UP OR DOWN ARROWS WHEN THE ICE PRESSING THE POWER BUTTON WILL ALSO MAKER IS IN ICE PRODUCTION OR ICE FULL MODE.
- Page 9 PART IV HARVEST STAGE: DURING THE HARVEST CYCLE WARNING THE HOT GAS BYPASS VALVE IS OPENED AND HOT INSPECTION, DE-SCALING AND SERVICING GAS IS CIRCULATED THROUGH THE EVAPORATOR. SHOULD ONLY BE UNDERTAKEN BY A THIS ALLOWS THE ICE CUBES TO BE RELEASED QUALIFIED ENGINEER FROM THE EVAPORATOR INTO THE STORAGE BIN.
- Page 10 PART IV WARNING ALWAYS WASH YOUR HANDS BEFORE TAKING WARNING ICE FROM THE ICE MAKER DISCARD ANY ICE MADE FOR THE FIRST 3 WATER DISTRIBUTOR CLEANING HOURS AFTER WATER DISTRIBUTOR CLEANING. AIR FILTER IF YOUR ICE CUBES ARE NOT FORMING CORRECTLY OR THE OUTPUT OF ICE CUBES DROPS THE WATER THE ICE MAKER IS EQUIPPED WITH AN AIR FILTER DISTRIBUTOR MAY BE BLOCKED AND REQUIRE...
- Page 11 PART IV PREPARING YOUR ICE MAKER FOR LONG TERM WARNING STORAGE OR MOVING FAILURE TO CLEAN YOUR CONDENSER COULD CAUSE COMPONENT FAILURE AND WILL IF THE ICE MAKER NEEDS TO BE STORED FOR A INVALIDATE YOUR WARRANTY. LONG PERIOD OF TIME OR IT NEEDS TO BE MOVED TO A NEW LOCATION THE WATER SYSTEM WILL WARNING NEED TO BE FULLY DRAINED.
-
Page 12: Troubleshooting
PART V TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE SUGGESTED SOLUTION • CHECK POWER IS ON AT THE SOCKET ICE MAKER NOT CONNECTED • CHECK CABLE IS CORRECTLY PLUGGED IN TO MAINS ELECTRICITY • CHECK FOR DAMAGE ON POWER CABLE, USE A QUALIFIED ENGINEER TO CORRECTLY REPLACE IF NECESSARY MACHINE IS IN STANDBY... -
Page 13: Serial Number
Please make note of your equipment details for future reference Model Number Serial Number Date of purchase Date of installation Supplied by Phone Number SPECIFICATION ICE PRODUCTION 22KG PER 24 HOURS ICE STORAGE 7KG STORAGE BIN VOLTAGE 230V/50HZ RATED POWER 155W CLIMATE CLASS SN,N,ST... - Page 14 Project Distribution Ltd Unit 1 Sun Street Stoke on Trent United Kingdom ST1 4JW Tel: 01782 280289 www.project-distribution.co.uk sales@project-distribution.co.uk CL200718UM Rev 1.3...
