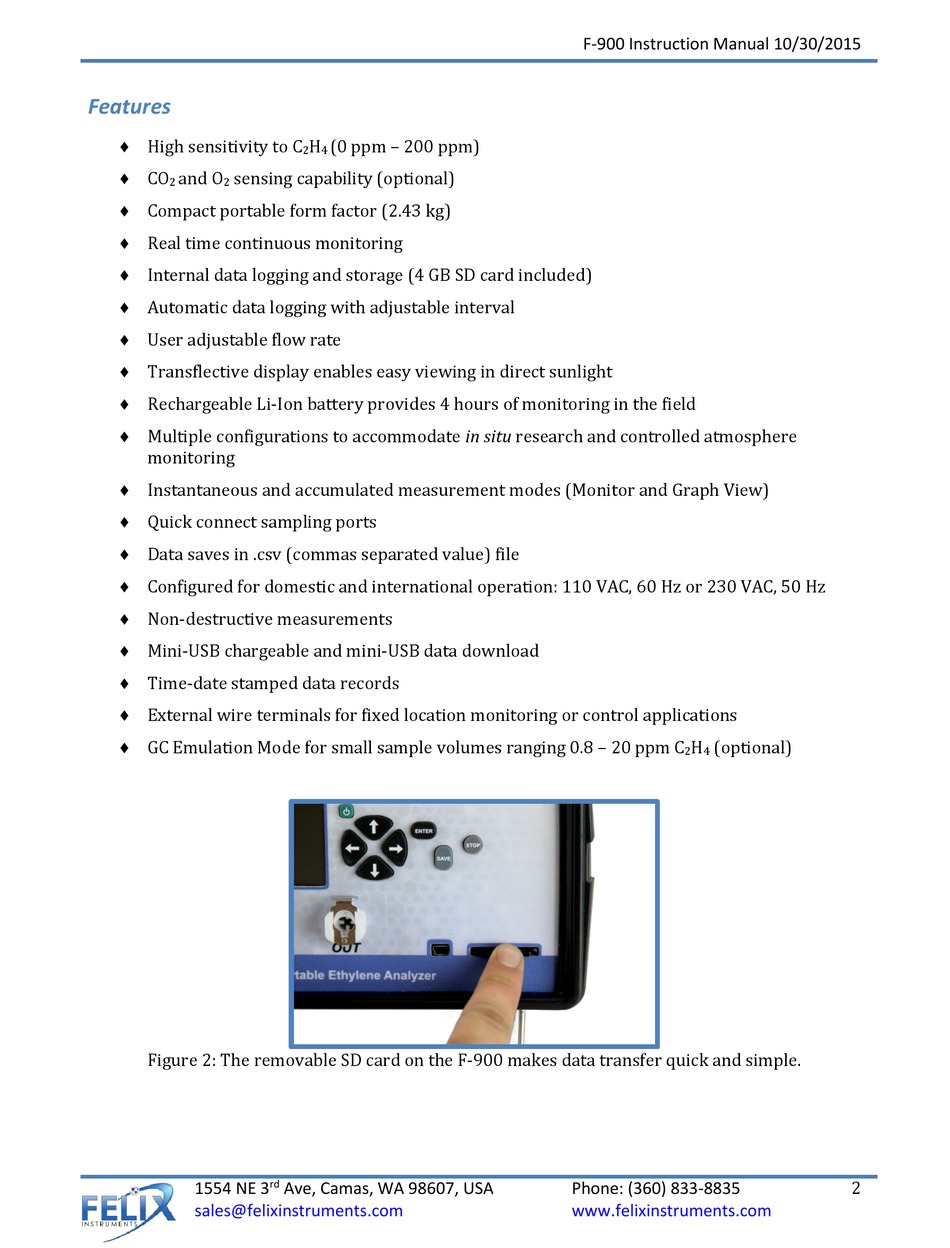

Features - Felix Instruments F-900 Operation Manual

Features

 High sensitivity to C
 CO
and O sensing capability (optional)
2 2
 Compact portable form factor (2.43 kg)
 Real time continuous monitoring
 Internal data logging and storage (4 GB SD card included)
 Automatic data logging with adjustable interval
 User adjustable flow rate
 Transflective display enables easy viewing in direct sunlight
 Rechargeable Li-Ion battery provides 4 hours of monitoring in the field
 Multiple configurations to accommodate in situ research and controlled atmosphere
monitoring
 Instantaneous and accumulated measurement modes (Monitor and Graph View)
 Quick connect sampling ports
 Data saves in .csv (commas separated value) file
 Configured for domestic and international operation: 110 VAC, 60 Hz or 230 VAC, 50 Hz
 Non-destructive measurements
 Mini-USB chargeable and mini-USB data download
 Time-date stamped data records
 External wire terminals for fixed location monitoring or control applications
 GC Emulation Mode for small sample volumes ranging 0.8 – 20 ppm C
Figure 2: The removable SD card on the F-900 makes data transfer quick and simple.
