Summary of Contents for Felix Instruments F-900

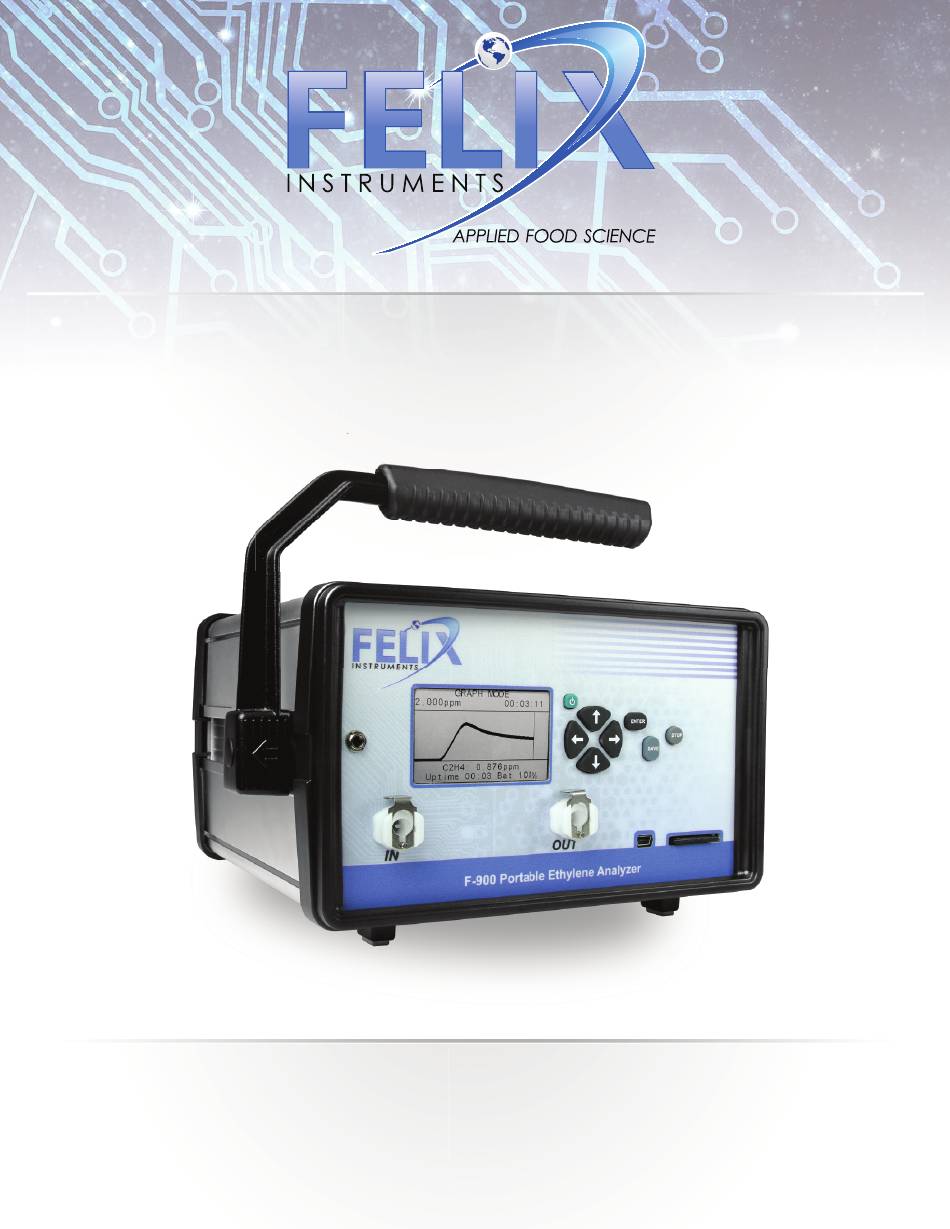

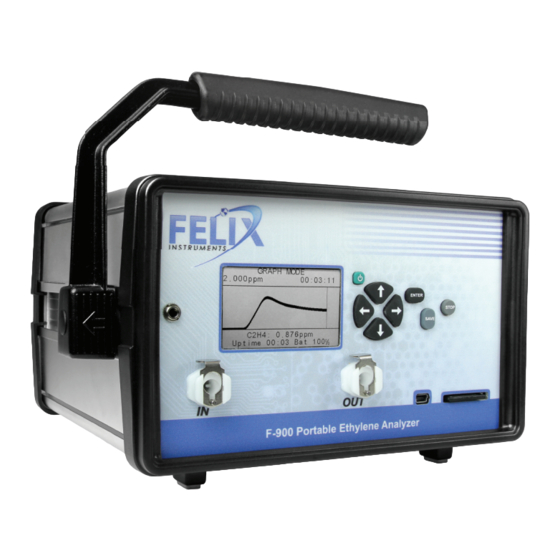

  • Page 1 Operation Manual F-900 Portable Ethylene Analyzer...

  • Page 3: Table Of Contents

    PolarCept ................................... 7 PolarCept: Measure .............................. 8 PolarCept: Clean ..............................8 Unpacking the F-900 ..................................9 F-900 Research Kit Accessories ..........................10 Operating Instructions ..................................11 Charging the Internal Battery ..........................12 F-900 CO PPM Sensor and Battery Power ......................13 Measure Menu: Taking a Measurement .........................
  • Page 4 FELIX INSTRUMENTS HARDWARE WARRANTY ..........................75 APPENDIX I: Material Safety Data Sheet for 2N Sulfuric Acid Solution ................... 76 APPENDIX II: Procedure for F-900 Validation Using Fruit ....................... 81 APPENDIX III: Guidelines for Measuring Sample Bags ........................83 F-900 Production Test Check Sheet ..............................85 Warranty Registration Card ................................

  • Page 5: Introduction

    The F-900 analyzes the concentration of ethylene in a gas sample for the purpose of research or ethylene management. The F-900 employs electro-chemical sensors as well as several other...

  • Page 6: Features

     External wire terminals for fixed location monitoring or control applications  GC emulation mode for small sample volumes Figure 2: The removable SDcard on the F-900 makes data transfer quick and simple. 1554 NE 3 Ave, Camas, WA 98607, USA Phone (360) 833-8835 Fax (360) 833-1914 sales@felixinstruments.com...

  • Page 7: F-900 Specifications

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Specifications F-900 Specifications Display Sunlight visible transflective graphic LCD Operating environment 0°C - 45°C (0-90% humidity non-condensing) Battery Capacity 4 hours - Rechargeable Li-Ion (5000 mAh) Dimensions 183.5mm x 111mm x 120mm Weight 2.43 kg...
  • Page 8 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Optional Sensors PPM Sensor (IRGA) Low-Power Non-Dispersive Infrared Gas Analyzer Chopping Frequency Source Life 5000 Hours Nominal Range 1 - 2000ppm (Standard) 0 - 3000ppm (Optional) Full Scale Resolution 0.1 ppm Repeatability ±0.1ppm (short term) Accuracy <...

  • Page 9: Theory Of Operation

    C: counter electrode E: electrolyte. Image credit: doi:10.1093/aob/mcs259. The F-900 flow rate is regulated by a pump and a flow meter. Additional optional sensors are enabled/disabled in the Setup Menu (see page 31), as well as “conditioning chambers” on the back of the instrument (see page 44).

  • Page 10: Interfering Gases

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Figure 4: Flow path diagram of the F-900 ethylene analyzer. Dashed line indicates optional flow path capabilities. Interfering Gases No analytical method is completely specific. Gases present in the environment, other than the “target” gas of a measurement, may affect instrument response. Interferences are not necessarily linear, and may also exhibit time dependent characteristics.

  • Page 11: Polarcept

    This causes the ethylene value to be falsely high in the presence of interfering gas. Felix Instruments has tested a method to absorb some of the competing gases and provide better ethylene measurements.

  • Page 12: Polarcept: Measure

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 PolarCept: Measure Regeneration: cleans the waeter PolarCept: Clean Figure 5: Top: diagram of measure period during use of Polarcept. Bottom: diagram of cleaning period of Polarcept. 1554 NE 3 Ave, Camas, WA 98607, USA Phone (360) 833-8835 Fax (360) 833-1914 sales@felixinstruments.com http://www.felixinstruments.com...

  • Page 13: Unpacking The F-900

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Unpacking the F-900 The F-900 base unit arrives with the F-900, strap and several accessory parts to use with the instrument. Included are the heavy duty USB cable, charger, tubing accessory kit, potassium permanganate (KMnO ) and an F-900 Instruction Manual.

  • Page 14: F-900 Research Kit Accessories

    The F-900RK includes all the parts and accessories that arrive with the F-900, as well as an external conditioning tube, sample bag, injection port assembly, glass syringe, needle, and a jar of silica gel which can be used to dehumidify the gas.

  • Page 15: Operating Instructions

    Press the POWER button to power off the F-900. Note: To force a power off and reset of the F-900 at any point, a user may press and hold the POWER button for 10 seconds. This “emergency hard shut-down” feature exists to address hardware or software problems and should not be used except when needed, in general, simply pressing the Power button in the typical manner will power off the F-900.

  • Page 16: Charging The Internal Battery

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Charging the Internal Battery The F-900 arrives with a wall charger that can be used to recharge the F-900 battery, as well as for continually powering the unit during long-term monitoring. To charge the F-900: ...

  • Page 17: F-900 Co 2 Ppm Sensor And Battery Power

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 To use the F-900 in Monitor Mode to continuously monitor fruit storage rooms or other locations, or to run the instrument for days or weeks at a time, connect the mini-USB cable to the charger cable and to the connection port on the front panel.

  • Page 18: Measure Menu: Taking A Measurement

    The F-900 will display the “Sensor Stability” screen after pressing the RIGHT arrow to get into the Measure Menu. The F-900 will begin to warm-up. The display will show the File that is open and the Flow of gas being pumped through the instrument. Below this will be whether the initialization is automatic or manual.

  • Page 19: Graph Mode

    Graph Mode Graph Mode will be entered automatically when the unit has stabilized in Sensor Stability mode. Or to enter Graph Mode, press the RIGHT arrow when the F-900 is in Sensor Stability mode. This view graphically displays the measured C value over time.

  • Page 20: Monitor Mode

     Press the RIGHT arrow to get to the Measurement Settings menu. The temperature and relative humidity sensors are located inside the instrument. Therefore, the temperature sensor is subject to heating by the F-900 internal electronics. The temperature reading is often 4-5 C above ambient and in turn, relative humidity readings are affected.
  • Page 21 Sensitivity to C : 0.1 µL/L or 100 nL/L Therefore, the F-900 optimally detects around 1500 nL/hr. If the specimen weighs 50 grams, then the emission rate is: 30 nL C /gfw/h. The unit is nanoliters of ethylene per gram fresh weight per hour.
  • Page 22 An upper limit auto-escape feature acts as a safety feature of the unit. This safety feature is always on. If the sensor detects over 200 ppm ethylene, the F-900 will auto-escape from monitor mode to Kontturi et al., “Ionic Transport Processes: In Electrochemistry and Membrane Science.” (Oxford University...
  • Page 23 F-900. There is a white hydrophobic filter directly down the flow path Chamber In to be checked for water, as well as a hydrophobic filter near the in port on the front of the F-900. If water is found inside the tubing or filters, STOP the measurement and allow the instrument to dry out. Be careful no further water damage occurs when turning the pump back on.

  • Page 24: F-900Rk: Using The Research Kit Fruit Chamber

    F-900RK: Using the Research Kit Fruit Chamber To use the F-900 Research Kit in the field or laboratory, attach a hose of the chamber wand to the IN port on the front panel. Slide the end of the wand into the chamber and tighten the thumb- screw.
  • Page 25  Attach the chamber to the F-900 by screwing on the wand to the top of the chamber.  Next, connect one of the tubes from the wand to the IN port on the front of the F-900.  Connect the black power chamber cable to the left of the display to power the fans in the fruit chamber.

  • Page 26: Gc Emulation Mode

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 GC Emulation Mode To use the F-900 to analyze a small sample in a syringe, the GC Emulation Mode should be used. With the simple addition of our inline injection port, small volumes of analyte can be accurately measured.
  • Page 27  The F-900 requires some warm-up time when using GC emulation mode. It is recommended to verify your calibration point after it is set for the first time. Inject the same sample and compare the displayed result with the calibration concentration.
  • Page 28 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 GC Emulation Mode Operation Procedure Section 1: Warm up 1. Turn on GC Emulation mode in the Setup>Measure menu. Press Save to save changes and exit to the main menu. Setup Measure Mode GC Emulation 2.
  • Page 29 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 5. Wait for the environment to stabilize, or press Enter to skip and continue to the next step. Stabilizing environment Enter Skip C2H4 484ppm 0.03% 20.6% Humidity 51.3% Temperature 21.4C Flow 202mL Ready in 400 sec Uptime 00:45 Bat 92% Section 2: Calibration Injection 6.
  • Page 30 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 10. Enter the concentration of the calibration gas in ppb (1 ppm = 1000 ppb). The concentration of the calibration gas is printed on a tag or sticker on the bottle of gas. Press Save to see ethylene value in ppm on display. Results Enter: Repeat Stop: Done peak count...
  • Page 31 If questions as to how the calibration is working and what the area being used for the peak counts can be found here. However, it is recommended to run the standard calibration injection protocol (above) and have the F-900 automatically provide the peak counts.

  • Page 32: Ethylene Sensor Zero Calibration

    (KMnO ) in Chamber Out. 2. Enable Chamber Out (On) and enable Closed loop (On). 3. Let the F-900 run with KMnO in the closed loop for 10-15 minutes. a. After 15 minutes, the ethylene concentration of the gas in the closed loop should be close to or equal 0 ppm.

  • Page 33: Setup Menu

    Monitor Mode or GC Emulation Mode. Instructions to use Monitor Mode are found on page 16. GC Emulation Mode is available with the F-900 Research Kit and requires the use of the inline injection port with septum. To save changes in the Setup Measure menu, press SAVE. Use the UP and DOWN arrows to toggle between options.
  • Page 34 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 In the Setup Autosave menu, the top line of the display will read “enter” and “save” and the directional arrows. Next to is Autosave and “Yes” or “No” indicating whether this feature is turned on or off. Below Autosave is the “Interval” option where the user can set the time interval. This is the length of time in seconds between saves, when the autosave feature is selected.

  • Page 35: Setup Sensor

    The Setup Sensor Menu has three options, Sensor Selection, Sensor Voltammetry and Cell Hydration. Sensor Selection allows the user to turn on/off different sensors of the F-900. After selecting any of the menu options from the Setup Sensor menu, the display will prompt “Are you sure you want to continue?”...
  • Page 36 The weight is set to 0.00 grams when the electrochemical cell is completely full, prior to it being shipped from Felix Instruments. As the cell loses water, the weight will become a negative value. If the weight is greater than -10.0 g, the instrument should be hydrated by 10 cc (1cc = 1 g).
  • Page 37 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 To dehydrate the sensor, place the instrument in closed loop mode with silica gel (humidity scrubber) in one of the conditioning chambers. Enable the chamber with the silica gel and let run overnight. Press stop to exit this mode and return to the Setup Sensor Menu. Re-weight the instrument to determine if more hydration is needed.

  • Page 38: Setup Calibration

    “x” is the new internal gain. The measured concentration is what the F- 900 is reading the calibration gas as. Enter the temperature on the display of the F-900 as the “calibrated T” when the gain is adjusted.

  • Page 39: Offset Autocorrection

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Offset Autocorrection Offset autocorrection allows the unit to adjust the baseline, or zero, for the ethylene sensors, which may drift from the zero set at the time of calibration. The most recent adjustments to the offset of the high resolution and low resolution sensors, and the gain of the high resolution sensor, are visible in this menu.

  • Page 40: Co2 Calibration

    Calibration To access the Calibrate CO feature of the F-900, press the RIGHT arrow key when Calibration is highlighted on the Setup Menu. Press enter to continue to the Calibration mode. Select the CO sensor to be calibrated (PPM or PCT).
  • Page 41 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Alternatively, a CO2 scrubber such as soda lime can be placed in Chamber OUT. In this case, use the following settings. SETTINGS Chamber OUT Chamber IN Closed Loop Set zeros Uptime 01:15 Bat 75% Turn the ethylene (C ) sensors on for the CO calibration.
  • Page 42 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 the end of the manual for CO sensor information). The recommended standard gas concentration for the high resolution CO sensor is between 400 and 600 ppm. The recommended concentration for the low resolution CO sensor is 4-20% CO Calibrating the CO sensor with standardized gas is fairly simple and takes 20-30 minutes.
  • Page 43 Tips for Calibrating the F-900 CO Sensor with a buffer system:  The operator should stand away from the F-900.  Use extra tubing to get the intake source away from human breath.  Use a buffer tank system to stabilize the intake source.
  • Page 44 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 3. Insert a short plastic tube into the cap of the buffer bottle for the “out”. 4. Insert a longer plastic tube into the cap of the buffer bottle that will connect to the “IN” of the instrument.
  • Page 45 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 6. Connect the “in” tubing to the intake port on the instrument. 7. To use the buffer bottle, make sure that the tubing is clear from obstruction. Connect the In tubing to the unit. Place the buffer bottle in a location that has stable CO concentration (away from operator, cars, furnace, photosynthesizing plants).

  • Page 46: O 2 Calibration

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Calibration The offset and gain from the previous calibration can be seen under Calibration Parameters. These values are achieved by setting a zero and a span for the unit. To re-calibrate, pressurized N gas and Annual re-calibration is gas will be needed.

  • Page 47: Setup Time And Date

    Setup Time and Date To change the time and date on the F-900, press the RIGHT key when “Time” is highlighted on the Setup menu. This utility allows the user to set-up the instrument in different time zones or to adjust the time after daylight savings.

  • Page 48: Setup Chamber

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Setup Chamber To access the Setup Chamber feature of the F-900, press the RIGHT arrow key when chamber is highlighted on the Setup Menu. Here, the user can turn on/off the in-line conditioning columns that are on the back of the instrument.
  • Page 49 Setup>Chamber menu and fill Chamber Out with the appropriate consumable. Connect the fruit chamber hoses to both the IN and OUT ports on the front of the F-900. Figure 16: The back of the F-900 with removable and refillable containers for distilled water and KMnO (left) and a diagram showing the flow path of the gas stream (right).
  • Page 50  The water level of Chamber In should to be inspected every 120 hours when using PolarCept. This mode may not be applicable at high ethylene concentrations.  When the F-900 is using the water to filter out alcohol, the water must be cleaned by running a longer cleaning period than the measure period.
  • Page 51 If the F-900 is in state of Measure, the data will reflect the current measurement. If the F-900 is in a state of Cleaning, “Clean” is shown in the upper right corner and “Closed loop” at the bottom of the display. The F-900 has two hydrophobic filters in-line with the internal tubing.

  • Page 52: Setup Terminals

    The terminal block is located between the chambers for consumables on the back panel of the F-900. The F-900 can turn on and off the gas or a fan based on the measured ethylene concentration of the room (or chamber). In this way, the F-900 could be used to control a fan set to evacuate a store room if ethylene concentrations increase past a set point.
  • Page 53 (pull straight out). The piece in the figure below will separate from the F-900. Slide the wire from what is going to be controlled through the opening for pin 4 or pin 5. Use a screw driver to tighten and clamp onto the wire, creating a connection. The removable section of the terminal block is designed to stay with the fan or gas control.

  • Page 54: Setup Board

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Setup Board The Setup Board Menu should only be changed by a Felix Instruments technician. This menu allows the user the select the type of hardware platform that the unit operates on, and should only be changed at installation, or if hardware is upgraded.

  • Page 55: View Menu

    View Files The View Files menu allows the user to review the filenames and file size of any files on the F-900. To view collected and saved data, either download files via USB or eject the SDcard and insert it in a computer.

  • Page 56: View Voltage

    Press the LEFT arrow or STOP to exit back to the View Menu. Voltage is set for each individual unit before leaving the Felix Instruments factory and is board specific. For default voltage values, please see the Production Test Check Sheet at the end of the Instruction Manual for factory voltage settings.

  • Page 57: Other View Menu Options

    512B GPS System Features The F-900 has a built-in GPS system which can relay the longitude, latitude and altitude of the instrument when performing measurements. The View GPS screen displays the mode of the GPS sensor (SEN= $GPGGA), as well as the values for latitude, longitude, altitude and indicates the number of satellites currently connected to.

  • Page 58: File Menu

    File Menu The File Menu is accessed by highlighting “File” on the Main Menu and pressing the RIGHT arrow key. Here, the user can manipulate files on the F-900, with options to clear, delete, create and open files. The F-900 uses an SDcard to store all measurements. This means the user is able to create, clear and delete any measurement file.

  • Page 59: Delete A File

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Delete a File Press the RIGHT arrow when “Delete” is highlighted on the display to get the unit into the delete file mode. This mode will erase a file (and filename) completely from the memory/SDcard. In this mode, the top line of the display reads “Delete”...
  • Page 60 <stop> The F-900 will save all parameters for each measurement on the SDcard. Once finished creating the file name, press the ENTER key, or press STOP to abort the process. The F-900 will exit to the File Menu. 1554 NE 3...

  • Page 61: Open File

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Open File Press the RIGHT arrow when “Open” is highlighted on the display to get the unit into the open files mode. The top line of the screen will read “Open” on the left, and File on the right. Filenames are listed on the left and the file size is listed in the right column.

  • Page 62: Data Transfer To A Computer

    (computer). The user can only view/manipulate data on a computer via the USB connection, or with the removable SDcard. Data cannot be viewed after it is saved on the F-900. Once the instrument is connected to the computer via USB cable, it is strongly recommended that the user copy and re-save the files and images to the hard drive of the computer.

  • Page 63: Data Files On The Computer

    In this example, when the CO or O sensors are not being used, the concentration values are zero. Figure 13: Example data spreadsheet for a F-900 measurement. REMEMBER: Always save the data files to the computer before making changes or starting analysis. 1554 NE 3...

  • Page 64: Firmware Update

    Transfer all data files from the SDcard and DELETE all data files on SDcard before doing the firmware update! Leaving data files from older firmware versions may corrupt the SDcard. Several files should be accessed from the software CD or downloaded from the F-900 software webpage (http://felixinstruments.com/support/f-900-support/software). Always double-check the webpage for the latest compatible firmware version depending on the serial number of the F- 900.
  • Page 65 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 5. In the dropdown list, select CI-DFU (Interface 1) device. 6. At the spinner list (green arrow), select libusb-win32. 7. Click Install Driver to proceed installing libusb driver. This could take up to 1 minute to complete.
  • Page 66 “leaving open”. The F-900 will power off. 7. Power on the F-900 and check the firmware version at the top of the display. The Transfer Code software application will indicate that no instrument is found, if the F-900: ...
  • Page 67  the driver is installed  the F-900 is powered on After the firmware update is successful, it is recommended to let the F-900 measure with the Closed Loop ON overnight (for 12 hours) before using again. 1554 NE 3...

  • Page 68: Cleaning And Maintenance

    Cleaning and Maintenance The F-900 housing can be wiped down with a damp cloth if the unit becomes dirty or dusty. Please make sure to always keep the IN and OUT ports on the front panel clear from any obstructions.
  • Page 69 Note: Weighing the entire F-900 unit on an analytical balance when the sensor is full will allow you to monitor the water level of the sensor, by keeping track of the weight loss of the whole F-900 unit. Remember to always weigh the F-900 with the same setup and to follow the instructions above to remove and refill the sensor, when it has lost 20-25 grams of water.

  • Page 70: Warnings

     Keep the analyzer in a clean and ventilated room at ambient temperature.  Do not allow fluid to aspirate in the analyzer, which can destroy the sensors.  Do not use the F-900 in a high RF (radio frequency) environment. High RF will disrupt the F-900.

  • Page 71: Technical Support

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Technical Support If you have a question about the F-900, first look in the F-900 Operation Manual. There is also online support available for the F-900 at http://felixinstruments.com/support/f-900-support. If you cannot find the answer, you can contact a Technical Support Representative located in your country.

  • Page 72: Frequently Asked Questions

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Frequently Asked Questions If there are any questions about the F-900, please check the Frequently Asked Questions below, as well as the Felix Instruments support webpage at http://felixinstruments.com/support/f-900- support. 1. What type of fruit produces ethylene? a.
  • Page 73 5. How do I create and open a file to start using the F-900? a. To start using the F-900, create a file to save data into. Go to File>Create. Change the file00 to the desired file-name and press save. Next, open the file to save measurements.
  • Page 74 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 b. The F-900RK also ships with a humidity scrubber (silica gel). If the F-900 includes an optional CO sensor, soda lime is provided as a CO scrubber. Carolina Biological (www.carolina.com) is an online source for soda lime and silica gel.
  • Page 75 Both are portable, but the research kit includes the other components as listed in the “Unpacking the F-900” section of the User Manual, such as the fruit chamber and wand and hard-sided, wheeled carrying case. The Research Kit is designed to make measurement of fruits non-destructively or in a closed chamber.
  • Page 76 Flow rate: 0.2L/min = 15.0L/hr Sensitivity to C : 0.1 µL/L or 100 nL/L Therefore, the F-900 optimally detects around 1500 nL/hr. If the specimen weighs 50 grams, then the emission rate is: 30 nL C /gfw/h. The unit is nanoliters of ethylene per gram fresh weight per hour.

  • Page 77: Supporting Sciences References

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Supporting Sciences References The following list of citations represent current peer-reviewed and other literature Golding, J., Shearer, D., McGlasson, W., Wyllie, concerning electrochemical sensors, the Relationships between Respiration, study of climatic fruit and ethylene. Ethylene, and Aroma Production in Ripening Journal of Agriculture and Food Banana.
  • Page 78 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Sensors, 8, Glucose Micro-sensor on Silicon. Cavendish Banana to Various Storage International Journal of Fruit 6154-6164, 2008. Conditions. Science, volume 13 (4), p. 373. 2013. DOI: 10.3390/s8096154 DOI: 10.1080/15538362.2013.748378 Liu, X. and J. Li. Study on the Electrode Materials of Electrochemical Capacitor.

  • Page 79: Felix Instruments Hardware Warranty

    The purchaser is to pack, ship, or deliver the instrument to Felix Instruments, in Camas, Washington, USA, within 30 days after Felix Instruments has received written notice of the defect at the customer’s expense. No other arrangements may be made unless otherwise approved in writing by Felix Instruments.

  • Page 80: Appendix I: Material Safety Data Sheet For 2N Sulfuric Acid Solution

    TSCA: TSCA 8(b) inventory: Sulfuric acid; Water CI#: Not applicable. Synonym: Chemical Name: Not applicable. Chemical Formula: Not applicable. Contact Information: Felix Instruments-Applied Food Science 1554 NE 3 Camas, WA 98607 USA Phone: 1-800-767-0119 (U.S. and Canada): 1-360-833-8835 CHEMTREC (24HR Emergency Telephone), call: 1-800-424-9300...
  • Page 81 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 Potential Chronic Health Effects: Extremely hazardous in case of skin contact (corrosive, irritant), of eye contact (irritant), of ingestion, of inhalation. Nonsensitizer for skin. Non-permeator by skin. CARCINOGENIC EFFECTS: Not available. MUTAGENIC EFFECTS: Not available. TERATOGENIC EFFECTS: Not available.
  • Page 82 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 SECTION 6: ACCIDENTAL RELEASE MEASURES Small Spill: Dilute with water and mop up, or absorb with an inert dry material and place in an appropriate waste disposal container. If necessary: Neutralize the residue with a dilute solution of sodium carbonate. Large Spill: Corrosive liquid.
  • Page 83 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 SECTION 9: PHYSICAL AND CHEMICAL PROPERTIES Physical state and appearance: Liquid. Odor: Odorless. Taste: Not available. Molecular Weight: Not applicable. Color: Clear Colorless. pH (1% soln/water): 2 [Acidic.] Boiling Point: The lowest known value is 100°C (212°F) (Water). Melting Point: Not available.
  • Page 84 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 SECTION 12: ECOLOGICAL INFORMATION Ecotoxicity: Not available. BOD5 and COD: Not available. Products of Biodegradation: Possibly hazardous short term degradation products are not likely. However, long term degradation products may arise. Toxicity of the Products of Biodegradation: The products of degradation are more toxic. Special Remarks on the Products of Biodegradation: Not available.

  • Page 85: Appendix Ii: Procedure For F-900 Validation Using Fruit

    This can be thought of as the baseline response Procedure: 1. Turn on the F-900, verify chambers are set to off and flow is set to 200 ml/min. 2. Connect experimental setup as show in Figure 14. 3. Load the sample specimen into the fruit chamber.
  • Page 86 Procedure: 1. Fill conditioning Chamber In with distilled water and clean the water using potassium permanganate in an in-line column connected to the intake port of the F-900, until the background signal is below 20ppb. 2. Verify that Chamber In is set to “special” with a sufficient cleaning period for the produce being monitored.

  • Page 87: Appendix Iii: Guidelines For Measuring Sample Bags

    F-900 using the accessory parts.  Ensure that the bag material and fittings are appropriate for the compounds to be sampled.
  • Page 88  Connect the sample bag to the IN port of the F-900.  Open the sample bag to allow gas to start flowing to the F-900.  It takes about 3-5 minutes to measure a sample bag if the concentration of ethylene before measuring the sample bag is low.

  • Page 89: F-900 Production Test Check Sheet

    ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 F-900 Production Test Check Sheet SERIAL NUMBER: Firmware Version: SENSOR: Weight (grams): C2H4 STANDARD: C2H4 ER: F-900 fully assembled: Optional Sensors Included (Yes/No) C02 IRGA (ppm) CO2 ER (%) O2 (%) CALIBRATION PARAMETERS C2H4 STD...
  • Page 90 ________________________________________________________________F-900 Instruction Manual rev. 4/2/2015 1554 NE 3 Ave, Camas, WA 98607, USA Phone (360) 833-8835 Fax (360) 833-1914 sales@felixinstruments.com http://www.felixinstruments.com...

  • Page 91: Warranty Registration Card

    Ave, Camas, WA 98607, USA Phone: (360) 833-8835 Fax: (360) 833-1914 e-mail: sales@felixinstruments.com Web: www.felixinstruments.com PRODUCT REGISTRATION CARD Please complete and return this form to Felix Instruments within 30 days to validate your Warranty on Parts and Labor. Registration Information:...
