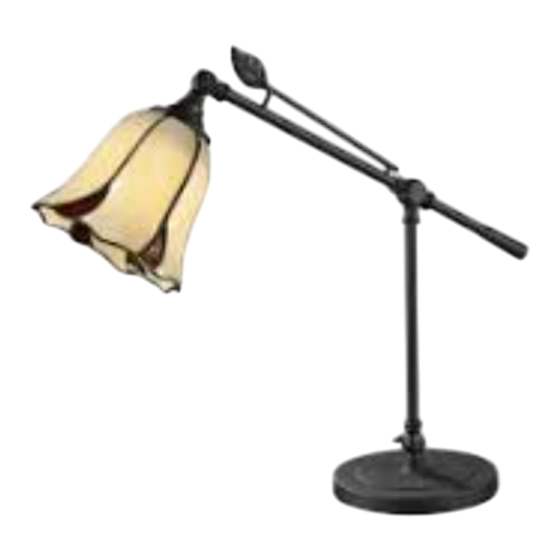

Dale Tiffany TT12432 Assembly Instructions

Available languages

ASSEMBLY INSTRUCTIONS:

Item No: TT12432

1. Place the lamp base (A) on a level surface.

2. Pull cord through base to tighten arm connections.

3. Screw handle (B) into the swivel joint (C).

4. Screw arm (D) into swivel joint (C).

5. Place shade (F) over socket (E) and screw socket

ring (G) securing the shade in place.

6. Insert bulb into the bulb socket.

Recommended (1) maximum 60 WATT Type "A" Bulb

Or (1) maximum 13WATT CFL Bulb

(Bulb not included)

Cleaning of your lamp.

Unplug lamp, wipe with a damp cloth. Do not use abrasives

*SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Made in China

FOR RETURN SHIPPING PURPOSES:

PLEASE RETAIN ORIGINAL PACKAGING

TO MINIMIZE DAMAGE.

Revision – 10/20/16
