Grizzly H6192 Instruction Sheet
Grizzly H6192 Instruction Sheet

Grizzly H6192 Instruction Sheet

Random orbital sander

Advertisement

Quick Links

EYE INJURY HAZARD!
Always wear safety glasses
when using this tool to
prevent serious personal
injury.
Always wear respirator when
Always disconnect tool from
air to prevent unexpected
operation during service.
DO NOT EXCEED 120 PSI!
Personal
occur.
Product Information
10,000 RPM
Requires 90 PSI
Requires 5 CFM
Requires 5" hook and loop sanding disc with
5-hole pattern
/
" NPT air inlet
1
4
Weighs 2.4 lbs.
1
/
" Dust port
1
4
Directional exhaust port
Inventory
A. Orbital Sander ..............................................1
B. Wrench .........................................................1
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
DUST HAZARD!
using this tool.
INJURY HAZARD!
injury
could
COPYRIGHT © AUGUST, 2006 BY GRIZZLY INDUSTRIAL, INC.
#BL8505 PRINTED IN TAIWAN

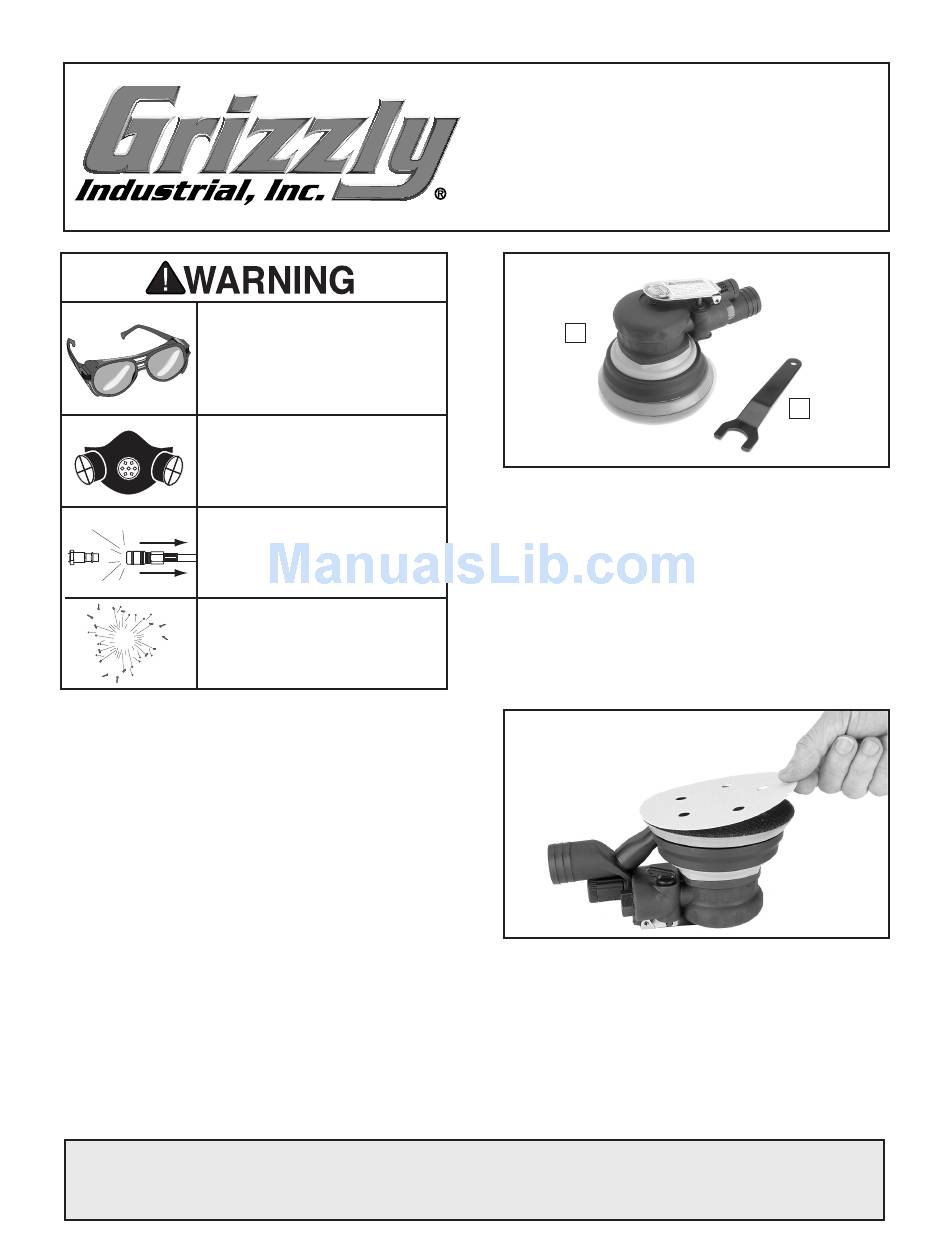

MODEL H6192
RANDOM ORBITAL SANDER
INSTRUCTION SHEET
A
Figure 1
Model H6192 inventory.
.
Assembly
To assemble the Model H6192:
1.
Install a
" NPT male quick-connect fitting
1
4
(not included) into the air inlet.
2.
Attach a 5" hook and loop sanding disc to the
sanding pad as shown in Figure 2.
Figure 2. Attaching sanding disc.
B

Advertisement

loading
Need help?

Need help?

Do you have a question about the H6192 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grizzly H6192

  • Page 1 B. Wrench ...1 COPYRIGHT © AUGUST, 2006 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. MODEL H6192 RANDOM ORBITAL SANDER INSTRUCTION SHEET...
  • Page 2 (Optional) Attach the sander to a 1 um hose as shown in Figure 3. Figure 3. Attaching sander to 1 vacuum hose. Operation To operate the sander: Plug the tool into compressed air and turn ON the optional canister vacuum. Hold the sander and press the throttle lever (Figure 4) to turn the sander ON.
  • Page 3 H3263—5 Pc. Quick Coupler Set This 5-Pc. Solid Brass Quick Coupler Set includes ⁄ " NPT female quick coupler, one female thread connector and three thread connectors. Figure 7. H3263 Quick Coupler Set. H3275— ⁄ " x 25' Coil Hose These recoil hoses stay neatly coiled when not in use, yet stretch to full length when needed.
  • Page 4 H6192 Parts Breakdown and List �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� PART # DESCRIPTION PH6192001 REGULATOR PH6192002 O-RING PR49M INT RETAINING RING 12MM PH6192004 O-RING PH6192005 VALVE STEM PH6192006 WASHER PH6192007...
