Industrial die grinder

Advertisement

Quick Links

EYE/EAR INJURY HAZARD!
Wear safety glasses and
hearing protection during
use of this tool!
Always disconnect tool from
air to prevent unexpected
operation during service!
Never exceed 90 PSI! Always
use accessories with correct
speed rating.
RESPIRATORY HAZARD!
Grinding
dust. Wear the appropriate
protection during use!
Introduction
No load speed is 22,000 RPM and collet size is
Requires a maximum of 90 PSI with a minimum of
3 CFM compressor capacity. Air inlet is
exhaust is in the front. Weighs 1.2 lbs.
Inventory
A. Die Grinder ................................................. 1
B. Wrenches ................................................... 2
Operation
Insert your
" shank tool into the collet. Using the
1
4
two wrenches, secure tool by tightening the collet
against the spindle.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
INJURY HAZARD!
EXPLOSION HAZARD!
produces
" and air
1
4
COPYRIGHT © FEBRUARY, 2006 BY GRIZZLY INDUSTRIAL, INC.
#PC8031 PRINTED IN TAIWAN

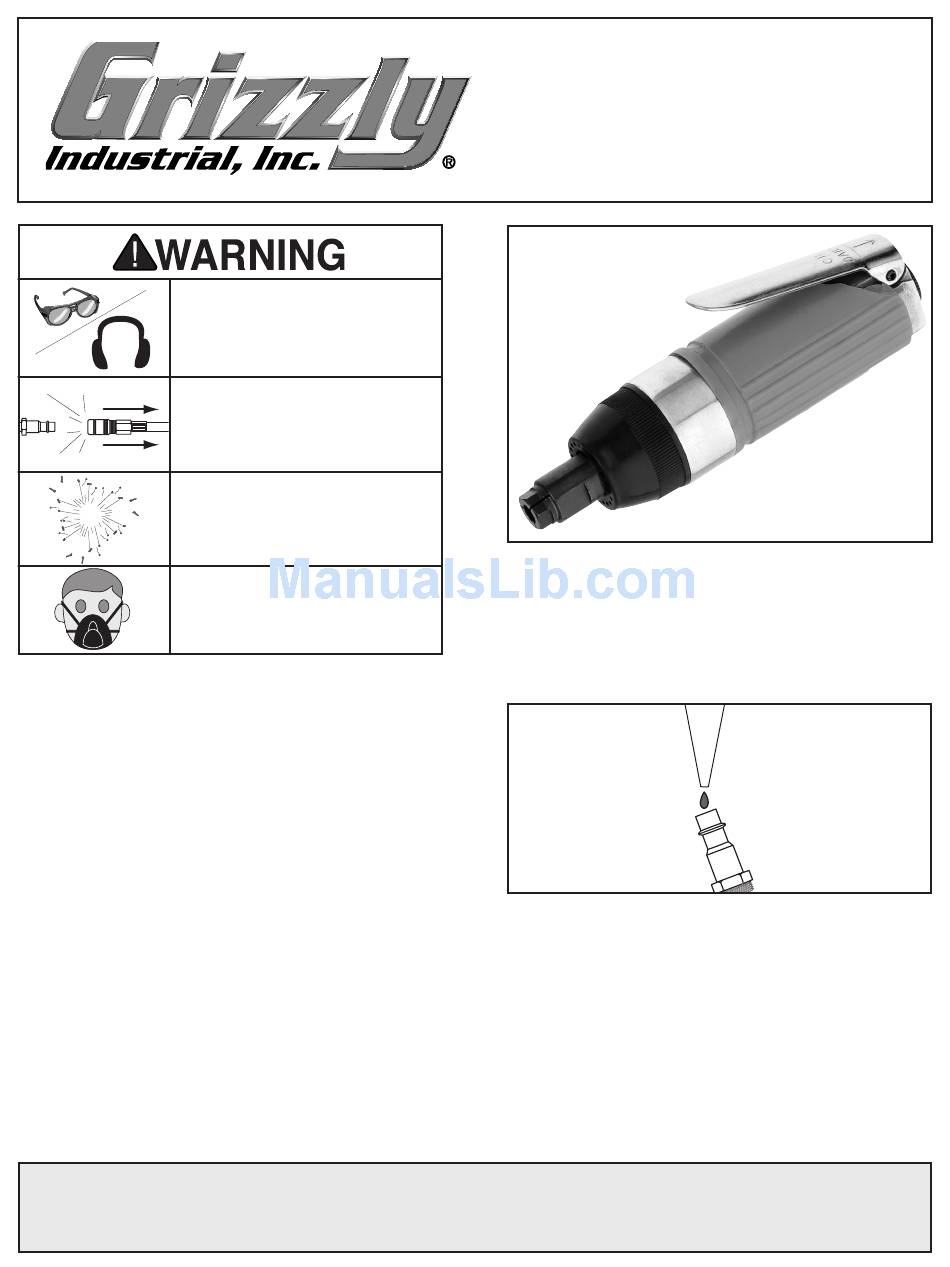

INSTRUCTION SHEET
fine
Die Grinder MUST have 3-4 drops of oil directly
dropped into the air fitting before each use as
shown in Figure 2.
".
1
4
Figure 2. Lubricating directly into air fitting.
If you need help with your new pneumatic tool,
call our Tech Support at: (570) 546-9663.
MODEL H6193
" INDUSTRIAL
1
4
DIE GRINDER
Figure 1. Model H6193.

Advertisement

loading
Need help?

Need help?

Do you have a question about the H6193 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grizzly H6193

  • Page 1 COPYRIGHT © FEBRUARY, 2006 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. produces fine Die Grinder MUST have 3-4 drops of oil directly dropped into the air fitting before each use as shown in Figure 2.
  • Page 2 H6193 Parts Breakdown and List �� �� �� �� �� PART # DESCRIPTION PH6193001 HOUSING COVER PH6193002 HOUSING PH6193003 THROTTLE LEVER PH6193004 LEVER PIN PH6193005 VALVE PIN PH6193006 VALVE PH6193007 COMPRESSION SPRING PH6193008 O-RING PH6193009 VALVE CAP PH6193010 BALL BEARING...
