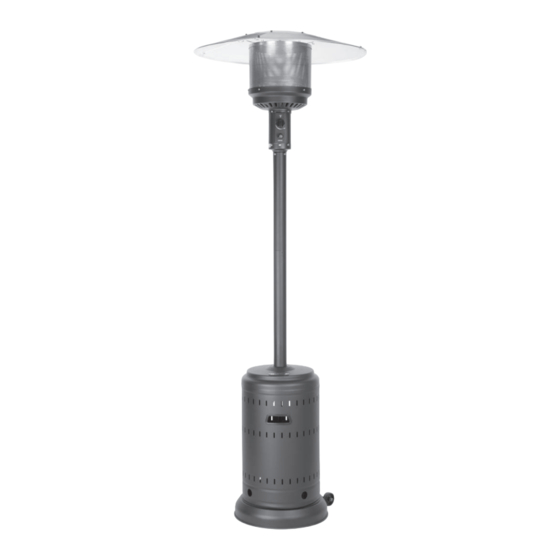

PATIO HEATER
ASSEMBLY / CARE & USE INSTRUCTIONS
IMPORTANT, RETAIN FOR FUTURE
REFERENCE: READ CAREFULLY
DANGER
FOR YOUR SAFETY:
If you smell gas:
Shut off gas to the appliance.
If odor continues, keep away from the
appliance and immediately call your gas
DANGER
Failure to comply with the precautions and
instructions provided with this heater can result in
death, serious bodily injury and property loss or
damage from hazards
and/or carbon monoxide poisoning.
Only persons who can understand and follow the
instructions should use or service this heater.
ITM. / ART.
WARNING
Do not store or use gasoline or other
this or any other appliance. An LP-cylinder
not connected for use shall not be stored in
the vicinity of this or any other appliance.
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death. Read the installation,
operation and maintenance instructions
thoroughly before installing or servicing this
WARNING
ATTACH YOUR
RECEIPT HERE
Keep a copy of your proof of
which will be needed if you
need to contact us about warranty coverage.
Serial No.
Purchase Date
vicinity of
08172021
Advertisement
Related Manuals for Firesense 1902415
Summary of Contents for Firesense 1902415
- Page 1 PATIO HEATER ITM. / ART. ASSEMBLY / CARE & USE INSTRUCTIONS IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY WARNING DANGER Do not store or use gasoline or other FOR YOUR SAFETY: vicinity of If you smell gas: this or any other appliance. An LP-cylinder Shut off gas to the appliance.
-
Page 2: Table Of Contents
BEFORE YOU BEGIN TABLE OF CONTENTS Before You Begin Page Safety Information Page Package Contents Page Hardware Contents Page Assembly Page - Operating Instructions Page -1 Care and Maintenance Page 1 Troubleshooting Page 1 Page 1 Page 1 Replacement Parts List Page 1 Warranty Information BEFORE YOU BEGIN... -
Page 3: Safety Information Page
SAFETY INFORMATION DANGER DANGER CAUTION EXPLOSION—FIRE HAZARD CARBON MONOXIDE HAZARD SERVICE SAFETY Keep solid combustibles, such as building This heater is a combustion appliance. materials, paper, or cardboard All combustion appliances produce carbon sure propane cylinder valve outlet is clean. a safe distance away from the heater as monoxide (CO) during the combustion During set up, check all connections and... -
Page 4: Package Contents Page
PACKAGE CONTENTS PART DESCRIPTION QUANTITY 4 packed in 2 inner cartons Head Assembly 1 packed in 1 inner carton Tank Housing Gas Hose 1 attached to Head Assembly Upper Post Lower Post Regulator 1 packed with Head Assembly Post Supports 3 packed in 1 inner carton Base with Pre-assembled Waterbox... - Page 5 ASSEMBLY PREPARATION Before beginning assembly of this appliance, make sure all parts are present. Compare all parts with package contents list and hardware contents as listed on page of this manual. If any part is missing or damaged, do not attempt to assemble this product.
- Page 6 ASSEMBLY Attach the Lower Post to the Post Supports . Once you have tightened the bolts holding the Post Supports to the Base , align the holes in the Lower Post with the holes on the tops of the Post Supports and insert a Large Bolt through the hole in the Post Support.
- Page 7 ASSEMBLY Attach Head Assembly to Upper Post . Route Gas Hose down into Upper/Lower Posts align 4 small holes on the Head Assembly with 4 Small holes in the Upper Post . [HINT: Control knob should be above decal on post.] Insert the 4 Small Bolts with Lock Washers through the aligned 4 holes and tighten securely with the Wrench...
- Page 8 ASSEMBLY While supporting heater, tilt the Head Assembly and slide 3 Large Flat Washers over the Hardware Used: 6x Large Flat Washer 3x Wing Nut Connect the hose and regulator to the LP cylinder . The LP cylinder is sold separately. Use a standard / 20 lb propane cylinder only.
-
Page 9: Operating Instructions Page -1
OPERATING INSTRUCTIONS adjustment of propane gas. Storage of this patio heater indoors is permissible only if the cylinder is disconnected and removed from the appliance. A cylinder cylinder under or near this must be stored outdoors in a well-ventilated area out of the reach of children. appliance. - Page 10 OPERATING INSTRUCTIONS LEAK TEST BEFORE TURNING GAS SUPPLY ON: WARNING 1. Make 2-3 oz. of leak test solution 1. Your heater was designed and Perform all leak tests outdoors. approved for OUTDOOR use only. Do NOT use it inside a detergent and three parts water).
- Page 11 OPERATING INSTRUCTIONS LIGHTING NOTE: WARNING minutes to purge air from all gas lines before proceeding. FOR YOUR SAFETY Be careful when attempting to manually PUSH IN ignite this heater. Holding in the control knob for more than 10 seconds before upon ignition.
- Page 12 OPERATING INSTRUCTIONS OPERATION CHECKLIST: WARNING For a safe and pleasurable heating experience, perform this check FOR YOUR SAFETY before each use: Heater will be hot after use. Handle with BEFORE OPERATING: I am familiar with entire owner’s manual and understand all precautions noted.
-
Page 13: Care And Maintenance
CARE AND MAINTENANCE To enjoy years of outstanding performance from your heater, make sure you WARNING perform the following maintenance activities on a regular basis: FOR YOUR SAFETY Do NOT touch or move heater for at least KEEP EXTERIOR SURFACES CLEAN. 45 minutes after use. -
Page 14: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Gas valve may be off Turn gas valve ON Fuel tank may be empty Purge air from lines. Open gas lines and depress control Air in supply system knob for 2-3 minutes. Loose connection Main burner will not light Igniter fails... - Page 15 SPECIFICATIONS / TABLE OF INJECTOR Model Pressure (mbar) Country of Qn(Hs) Maximum Categories Destination Consumption Nominal Reduced (g/h) Heat Input Heat Input HL-02A G30: BE, CH, CY 13.5 kW 5.05 kW 28-30 mbar CZ, ES, FR GB, GR, IT, IT G:31 LT, LU, LV, PT 37 mbar...
-
Page 16: Replacement Parts List
REPLACEMENT PARTS LIST PART DESCRIPTION QUANTITY 4 packed in 2 inner cartons Head Assembly 1 packed in 1 inner carton Tank Housing Gas Hose 1 attached to Head Assembly Upper Post Lower Post Regulator 1 packed with Head Assembly Post Supports 3 packed in 1 inner carton Base with Pre-assembled Waterbox... - Page 17 1 YEAR LIMITED WARRANTY EXCEPT AS LISTED ABOVE Customers in the Conti All components are warranted for a period of 1 year after date of purchase by the original ASSEMBLY AND OPERATION OF THIS UNIT owner against defects in materials and workmanship under normal use. This warranty does NOT cover normal wear and weathering, assembly and/or maintenance.
