Outdoor Patio Heater
Model # LIP-10A-TGG-NTS-1
Item # 61445
ATTACH YOUR RECEIPT HERE
Serial Number ___________
Manufacturer: Changzhou Wellife Furnace Co., Ltd
Questions, problems, missing parts? Before returning to your
retailer, call our customer service hotline at 1-866-985-7877,
9 a.m. – 6 p.m., EST, Monday – Friday or email at
cservice@welltraveled.net.
Purchase Date ________
.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Firesense LIP-10A-TGG-NTS-1
Summary of Contents for Firesense LIP-10A-TGG-NTS-1

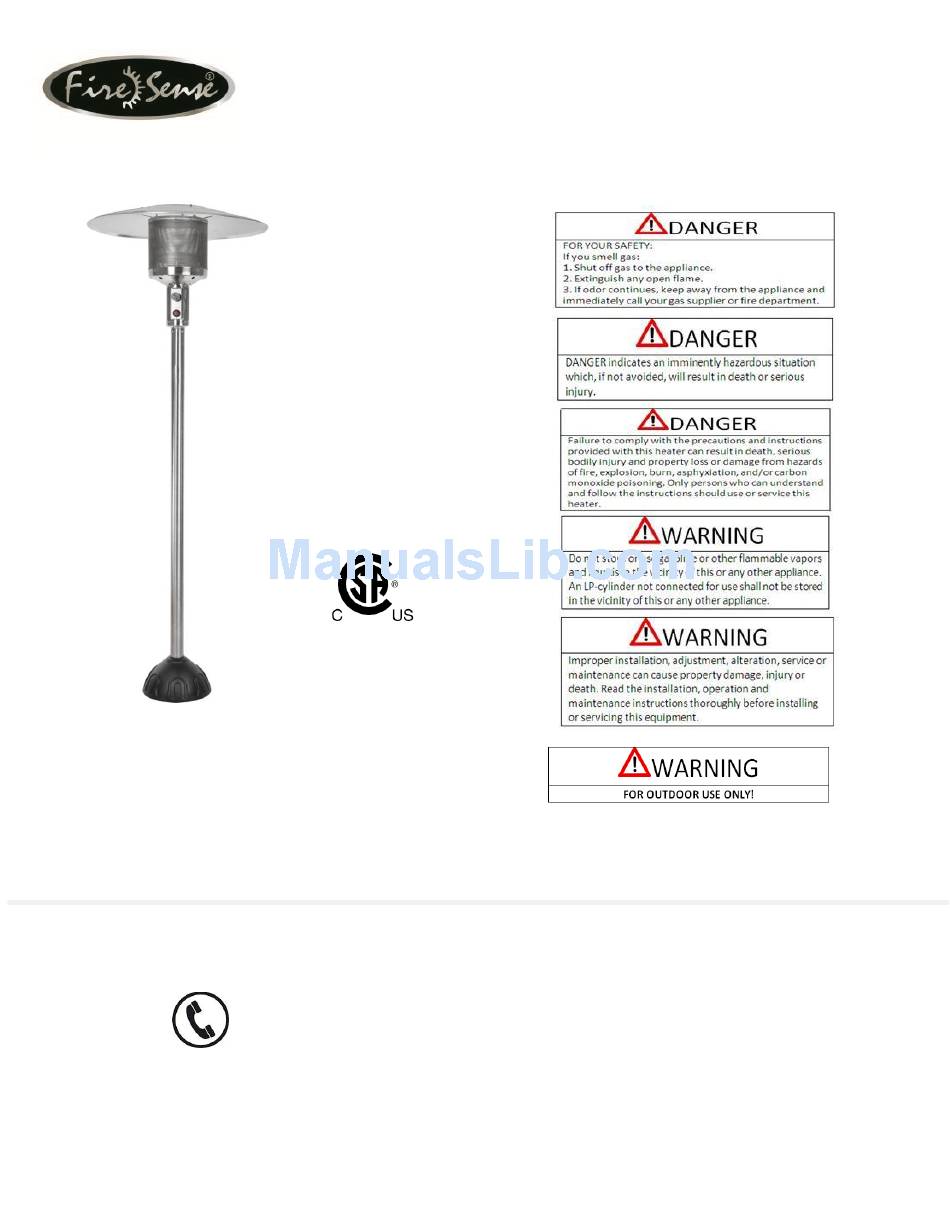

- Page 1 Outdoor Patio Heater Model # LIP-10A-TGG-NTS-1 Item # 61445 ATTACH YOUR RECEIPT HERE Serial Number ___________ Purchase Date ________ Manufacturer: Changzhou Wellife Furnace Co., Ltd Questions, problems, missing parts? Before returning to your retailer, call our customer service hotline at 1-866-985-7877, 9 a.m.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents………………………………….....Page 2 Before You Begin............Page 2 Safety Information............Page 3-4 Package Contents………………………………….....Page 5 Hardware Contents............Page 6 Assembly.................Page 6-11 Operating Instructions……………........Page 11-14 Care and Maintenance……………………......Page 14 Troubleshooting……………………………………......Page 15 Replacement Parts List.............Page 16 Warranty Information……………........…Page 17 BEFORE YOU BEGIN Please read and understand this entire manual before attempting to assemble, operate or install this appliance. -
Page 3: Safety Information
SAFETY INFORMATION... -
Page 4: Safety Information
SAFETY INFORMATION... -
Page 5: Package Contents
PACKAGE CONTENTS ASSEMBLY PART DESCRIPTION 4 pcs (packed Reflector Panel in 2 inner ctns) Reflector Center Cap 1 (packed in 1 Head Assembly inner ctn) Main Post 1 (attached to Gas Hose Head Assembly) Lower Post Base Base Cover... -
Page 6: Hardware Contents
HARDWARE CONTENTS ASSEMBLY ASSEMBLY PREPARATION Before beginning assembly of this appliance, make sure all parts are present. Compare all parts with package contents list and hardware contents as listed on pages 5 and 6 of this manual. If any part is missing or damaged, do not attempt to assemble this product. -
Page 7: Assembly
ASSEMBLY 1. To protect your heater from strong winds, it is best to anchor the base securely to the ground. There are two methods you may use to secure the base. OPTION A (for solid ground such as concrete): 1 - A Using the holes in the Base as a template, drill 4 - 12.5-13mm diameter holes (1/2") that are at least 300mm (4") deep. - Page 8 ASSEMBLY 2. Once you have affixed the Base by one of the options above, slide the Lower Post (F) down over the Base (G). Align the holes in the Lower Post with the holes in the Base and insert 6 - M6x12 Bolts through Lock Washers and into the holes and hand tighten.
- Page 9 ASSEMBLY 6. Attach Head Assembly (C) to Main Post (D). Note: There is a small piece of protective foam located in the neck of the Head Assembly that MUST be removed prior to attaching Head Assembly to the Upper Post. Route Gas Hose (E) down into Main/Lower post assembly and align 4 small holes on Head Assembly with 4 Small holes in Main Post (F).
- Page 10 ASSEMBLY 8. While supporting heater, tilt the Head Assembly (C) and slide the assembled Reflector over the 3 bolts that extend from the Head Assembly. Use 3 M8 Wing Nuts and 3 M8 Washers to secure the assembled Reflector to the Head Assembly of the heater. Once you have tightened the Wing Nuts, return the heater to an upright position.
-
Page 11: Operating Instructions
ASSEMBLY A minimum supply pressure of 7” W.C. is required for the purpose of input adjustment of natural gas. Storage of an appliance indoors is permissible only if the source is disconnected and removed from the appliance. A gas source must be stored outdoors in a well-ventilated area out of the reach of children. A disconnected gas source must have dust caps tightly installed and must not be stored in a building, garage, or any other enclosed area. - Page 12 OPERATING INSTRUCTIONS 3. If leak is detected at regulator/gas source valve connection, disconnect, reconnect, and perform another leak test. If you continue to see bubbles after several attempts, cylinder valve is defective. Call our customer service hotline at 1-866-985-7877, 9 a.m. – 6 p.m., EST, Monday – Friday IF NO BUBBLES APPEAR AT ANY CONNECTION, THE CONNECTIONS ARE SECURE.
- Page 13 OPERATING INSTRUCTIONS When Heater is ON: Emitter screen will become bright red due to intense heat. The color is more visible at night. Burner will display tongues of blue and yellow flame. These flames should not be yellow or produce thick black smoke, indicating an obstruction of airflow through the burners.
-
Page 14: Care And Maintenance
OPERATING INSTRUCTIONS After Operation: 1. Gas control knob is in OFF position. 2. Gas valve is OFF. 3. Disconnect gas line. CARE AND MAINTENANCE To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance activities on a regular basis: Keep exterior surfaces clean. -
Page 15: Troubleshooting
TROUBLESHOOTING If you have any questions regarding this product, please call our customer service hotline at 1-866-985-7877, 9a.m. – 6 p.m. (EST), Monday – Friday, or email us at cservice@welltraveled.net. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Gas valve may be off Turn gas valve ON Fuel tank may be empty Refill LPG tank... -
Page 16: Replacement Parts List
REPLACEMENT PARTS LIST ASSEMBLY For questions regarding this product or to purchase replacement parts, please call our customer service hotline at 1-866-985-7877, 9a.m. – 6 p.m. (EST), Monday – Friday, or email us at cservice@welltraveled.net. PART DESCRIPTION 4 pcs (packed Reflector Panel in 2 inner ctns) Reflector Center Cap... -
Page 17: Warranty Information
Distributed By: Web: www.wtliving.com Well Traveled Living Email: cservice@welltraveled.net 716 S 8 Street Amelia Island, FL 32034 Toll Free: 866-WTL-SUPP (866-985-7877) 1 YEAR LIMITED WARRANTY – Customers in the Continental US All components are warranted for a period of 1 year after date of purchase by the original owner against defects in materials and workmanship under normal use.
