Summary of Contents for Chauvet DJ ABYSS 2

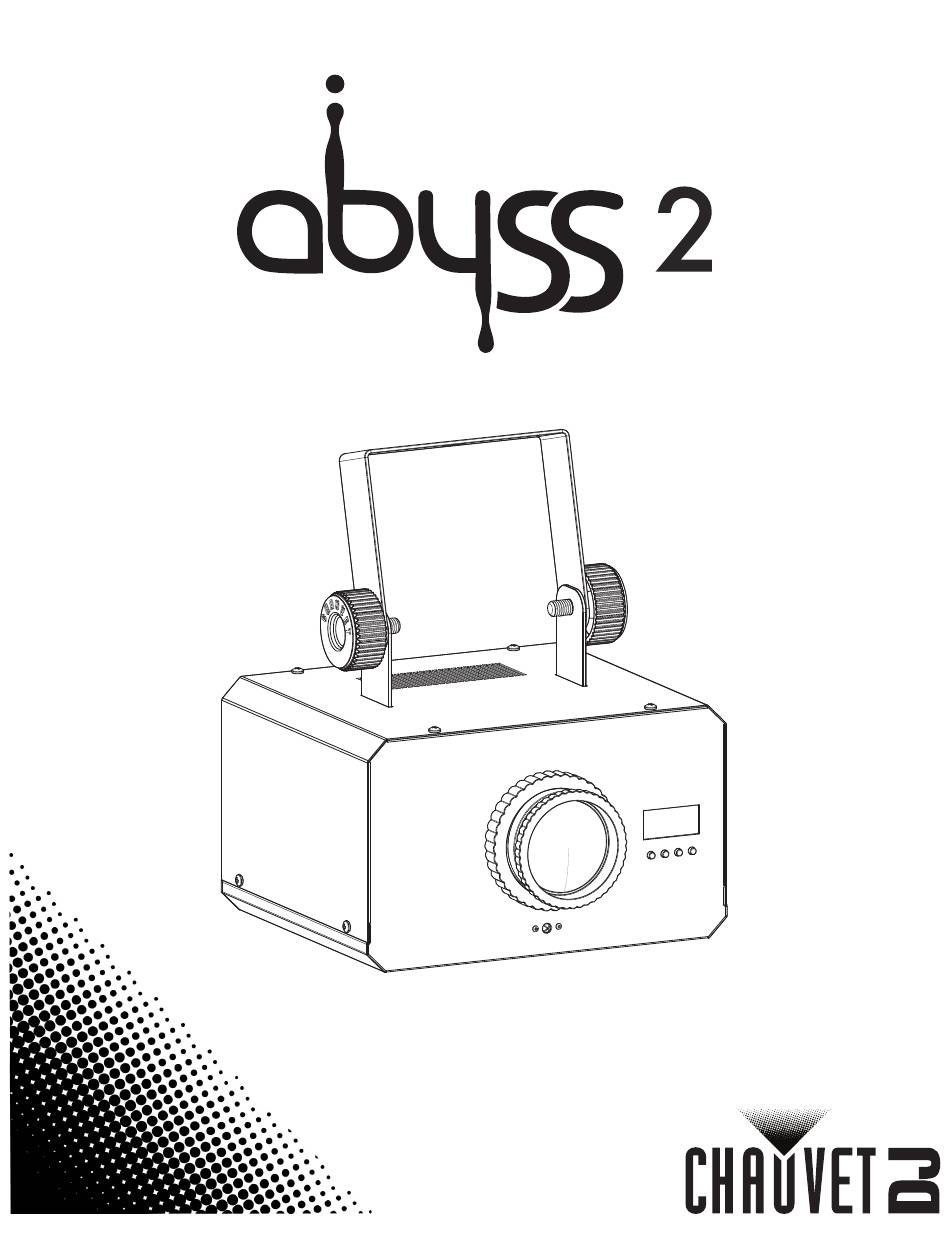

  • Page 1 User Manual...
  • Page 2: Table Of Contents

    Configuration (Standalone) ................Color Wheel......................Wave Effect ......................Dimmer........................Temperature......................IRC-6 Infrared Remote Control ..............IRC-6 Operation ...................... Master/Slave Mode ..................5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Returns.................... Contact Us ..................Abyss 2 User Manual Rev. 1...
  • Page 3: Before You Begin

    Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and Abyss 2 are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.
  • Page 4: Safety Notes

    Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Page 2 of 12 Abyss 2 User Manual Rev. 1...
  • Page 5: Introduction

    Product Dimensions 4.92 in 125 mm 7 in 178 mm 9.72 in 247 mm 4.69 in 119 mm 6.38 in 162 mm 8 in 7.76 in 203 mm 197 mm Abyss 2 User Manual Rev. 1 Page 3 of 12...
  • Page 6: Setup

    3. Setup AC Power The Abyss 2 has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
  • Page 7: Mounting

    Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Abyss 2 may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming.
  • Page 8: Operation

    _ _ Shows the current product temperature in °C Configuration (DMX) The Abyss 2 works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/ DMX_Primer_rev05_WO.pdf. Starting Address and Personality When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses.
  • Page 9: Dmx Channel Assignments And Values

    DMX signals from the controller. Color Wheel To set the color or color effect on the Abyss 2, follow the instructions below. 1. Press <MENU> repeatedly until C-- shows on the display. 2. Press <ENTER>.
  • Page 10: Irc-6 Infrared Remote Control

    Operation IRC-6 Infrared Remote Control The Abyss 2 is compatible with the IRC-6 infrared remote control from Chauvet. To run the Abyss 2 in IR mode, follow the instructions below. 1. Press <MENU> repeatedly until SEt shows on the display.
  • Page 11: Maintenance

    7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fan using compressed air because it could be damaged. Abyss 2 User Manual Rev. 1 Page 9 of 12...
  • Page 12: Technical Specifications

    5,010 lux Thermal Maximum External Temperature Cooling System 104 °F (40 °C) Fan-assisted convection I/O Connector Channel Range 3-pin XLR Ordering Product Name Item Code UPC Number Abyss 2 07051837 781462221850 Page 10 of 12 Abyss 2 User Manual Rev. 1...
  • Page 13: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Abyss 2 User Manual Rev. 1 Page 11 of 12...
  • Page 14: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record. Page 12 of 12 Abyss 2 User Manual Rev. 1...
