Grizzly H0581 Instruction Sheet

EYE/EAR INJURY HAZARD!
Wear safety glasses and
hearing protection during
use of this tool!
Always disconnect tool from
air to prevent unexpected
operation during service!
DO NOT EXCEED 150 PSI!
Personal
occur.
SHATTERING
Use
impact wrench use only.
Introduction
• Operates at 90 PSI
• 12 CFM air consumption
• 1/4" air inlet
• 3800 RPM no load speed
• 900 ft/lbs maximum torque
• Weighs 12 lbs
• 95 db sound level
Inventory
A. ⁄ " Industrial Impact Wrench ...................... 1
3
4
Operation
Install any ⁄ " drive socket onto your impact
3
4
wrench. Choose from clockwise (R) to tighten,
or counterclockwise (L) to loosen by pushing the
direction valve (Ref # 47) in or out. Adjust the
torque with the direction valve knob. One (1) is the
highest setting, six (6) is the lowest.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
INJURY HAZARD!
injury could
HAZARD!
sockets rated
COPYRIGHT © JUNE, 2006 BY GRIZZLY INDUSTRIAL, INC.
#PC8336 PRINTED IN TAIWAN
MODEL H0581
⁄ " HEAVY-DUTY
3
4
AIR IMPACT WRENCH
INSTRUCTION SHEET
for
The impact wrench MUST have 6-8 drops of air
tool oil directly dropped into the air fitting before
each use. For best results, use the automatic oiler
setup shown in Figure 2.
Quick
Connector
Your
Tool
Quick
Coupler
If you need help with your new pneumatic tool,
call our Tech Support at: (570) 546-9663.

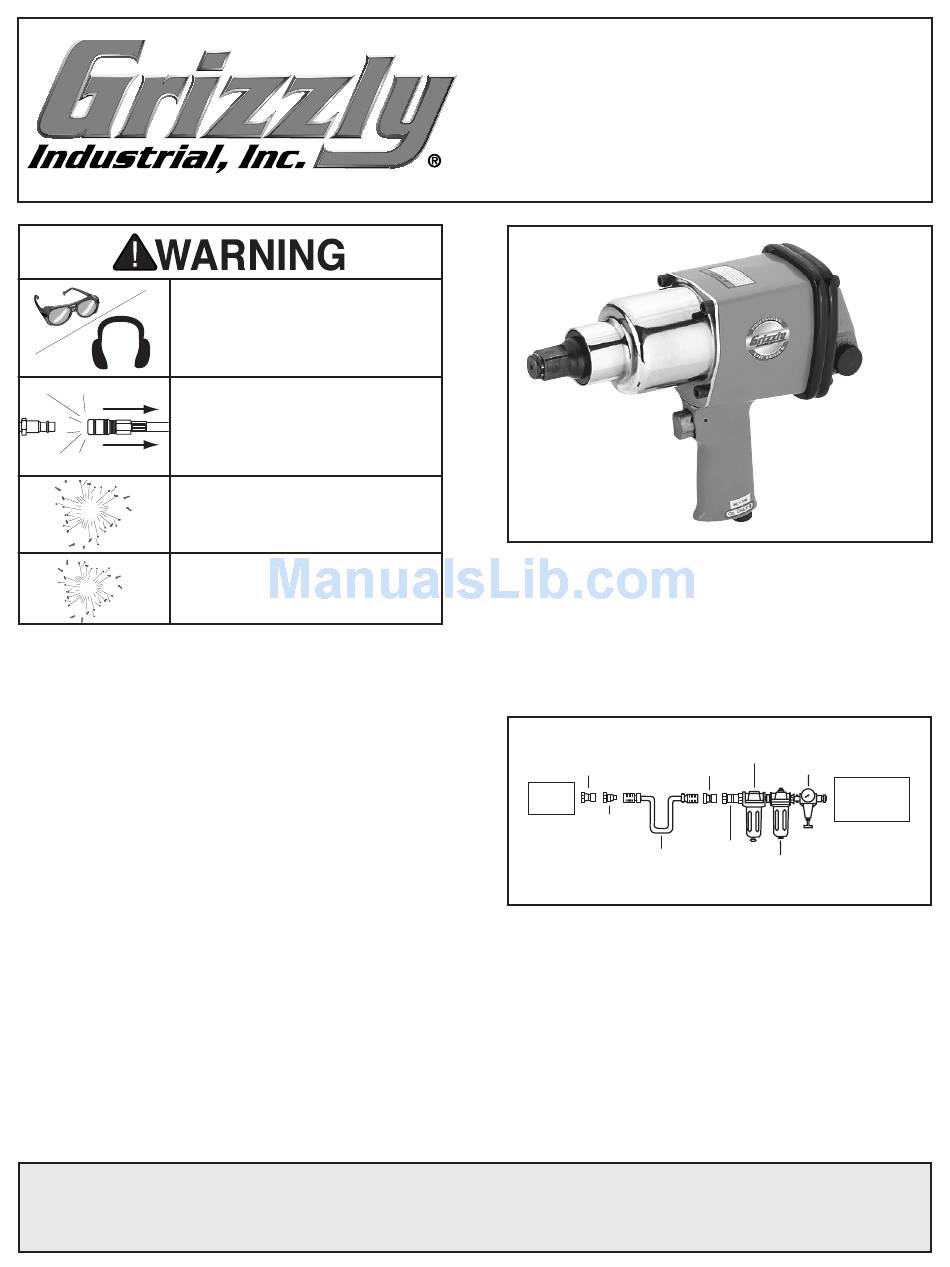

Figure 1. Model H0581.
Quick
Lubricator
Connector
Quick
Air Hose
Filter
Coupler
Figure 2 Installing your tool.
.
Regulator
Air
Compressor
