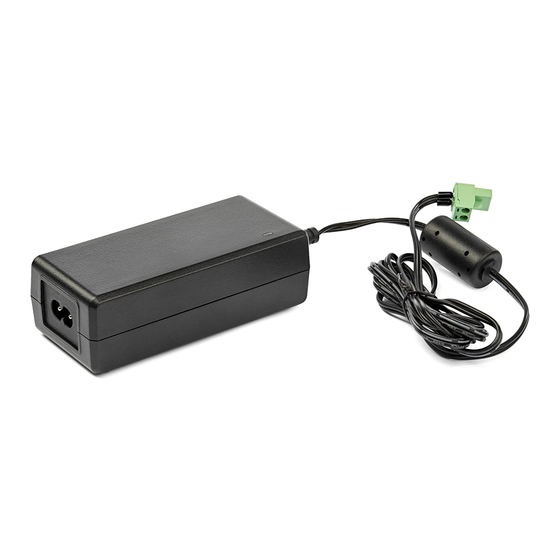

Universal 65W DC Power Adapter | 20V 3.25A | Industrial

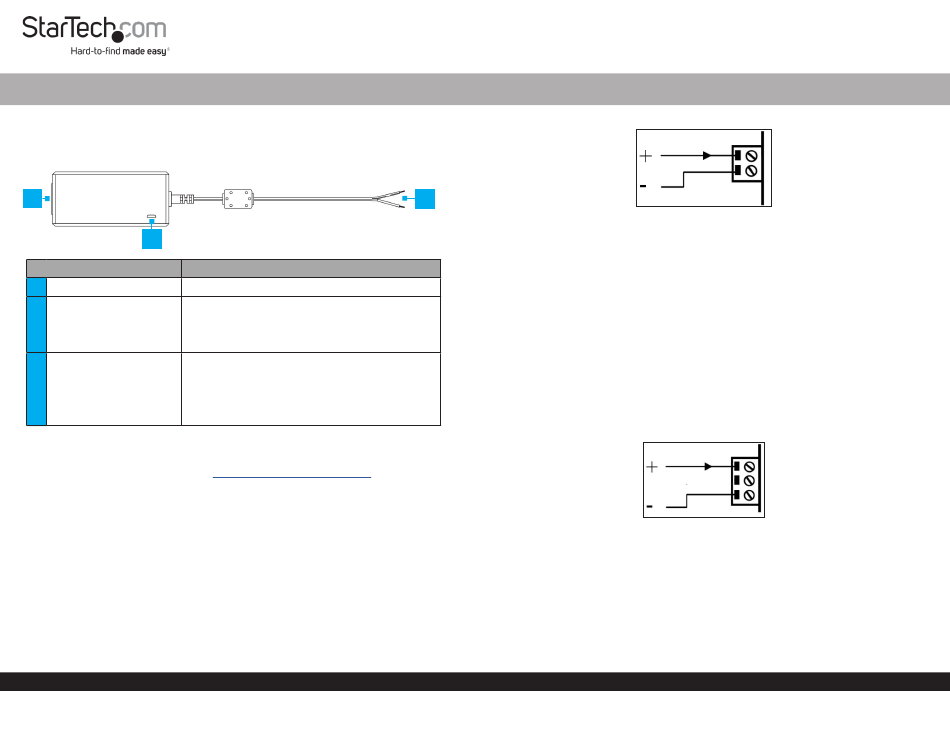

Product Diagram (ITB20D3250)
1
2
Component
1
• Used to power the Adapter.
Power Connector (side)
• Solid: Indicates that the Adapter is powered
2
LED Indicator
• Off: Indicates that the Adapter is not receiving
• Used to connect and power a Device.
• Red Wire = Positive
3
Terminal Block Wires
• Black Wire = Negative
• Output = 20V
• Current = 3.25A 65W
Requirements
For the latest requirements, please visit
• (Optional) Small Flat Head Screwdriver x 1
• Device with a Two or Three Conductor Terminal Block Connector x 1
Using the Two Conductor Terminal Block Connector
1. Remove the Two Conductor Terminal Block Connector from the Device, you want
to power.
2. Plug the Two Conductor Terminal Block Connector on the Adapter into the
Terminal Connector on the Device.
Note: Ensure the polarity of the input power is correctly matched with the Terminal
Block Pins to ensure proper functionality. Refer to the Device's vendor manual for
further information on properly wiring the Device.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Function
On.
power.
www.startech.com/ITB20D3250
3
Using the Three Conductor Terminal Block Connector
1. Using a small screwdriver (Flat Head), loosen the screws on the Two Conductor
Terminal Block Connector and carefully remove the Terminal Block Wires from
the Two Conductor Terminal Block Connector.
2. Using a small screwdriver, loosen the screws on the Three Conductor Terminal
Block Connector (included) and carefully insert the Terminal Block Wires into the
Three Conductor Terminal Block Connector (Red Wire = Positive and Black Wire =
Negative).
Note: Ensure the polarity of the input power is correctly matched with the Terminal
Block Pins to ensure proper functionality. Refer to the Device's vendor manual for
further information on properly wiring the Device.
3. Tighten the screws on the Three Conductor Terminal Block Connector, to secure
the Terminal Block Wires into the Three Conductor Terminal Block Connector.
4. Plug the Three Conductor Terminal Block Connector on the Adapter into the
Terminal Connector on the Device.
Powering the Adapter
• Connect the Power Cord to the Power Connector on the Adapter and to an AC
Electrical Outlet.
Two Conductor Terminal Block Connector
Three Conductor Terminal Block Connector
Quick-Start Guide
Manual Revision: July 18, 2019 11:29 AM
