- Page 1 SYS10K MODULAR AMPLIFIER RACK SYSTEM OPERATING AND MAINTENANCE MANUAL © Copyright 2008, Audio Technologies Inc. Phone: (856) 719--9900 Audio Technologies Inc. sales@atiaudio.com www. audio.com...

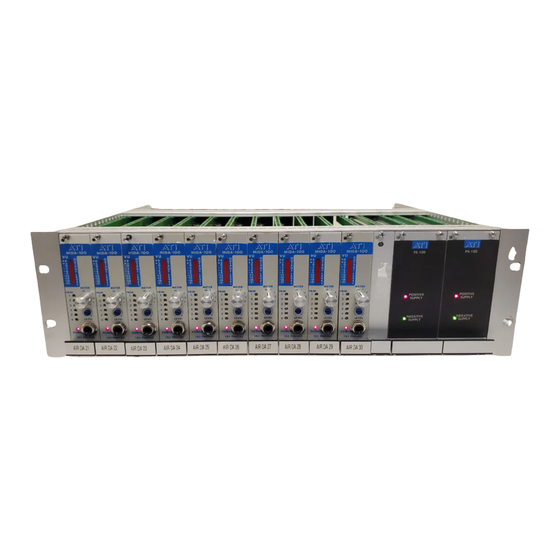

- Page 2 SYS10K Modular Amplifier Rack System SYSTEM DESCRIPTION The SYS10K Modular Amplifier System is a flexible and efficient, high performance audio distribution system. The SYS10K 10000 combines up to ten amplifier modules with two power modules in a 5-1/4" high by 19" wide Eurocard specification enclosure 14-1/2"...
- Page 3 MIDA100-1RC - Remote controllable Distribution Amplifier. Four transformer outputs each with an independent level trim control. Switchable Remote or Local DC operated VCA Master Level Control. A LED bargraph meter is switchable to all four outputs or the input signal. Headphone output. PS100 - Power Module.
- Page 4 59803-1, and a precision ratchet type self-indexing hand tool AMP59801-1. Consult: factory for more information. The SYS10K uses only three wire grounded power plugs. The third wire ground can cause a ground loop with your station ground. If you are sure your station ground will provide adequate protection to personnel in case of an AC line short to chassis, a 3 to 2 AC adaptor can be used to isolate the power line ground.
- Page 5 ACCESSORIES A full complement of operational accessories is available for use with your SYS10K. A partial list follows. Consult the factory or a current price list for an up-to-date listing. BP100-1 Blank Front Panel, 1.2 inches wide to replace missing amplifier module.
