INSTALLATION
Loosen the fixing screw at the front of the unit in order to
separate the body from the base socket.
■ DIN RAIL MOUNTING
Set the base socket so that
its DIN rail adaptor is at
the bottom. Position the
upper hook at the rear side
of base socket on the DIN
rail and push in the lower.
When removing the socket,
push down the DIN rail
adaptor utilizing a minus
screwdriver and pull.
■ WALL MOUNTING
Refer to "EXTERNAL DI-
MENSIONS."

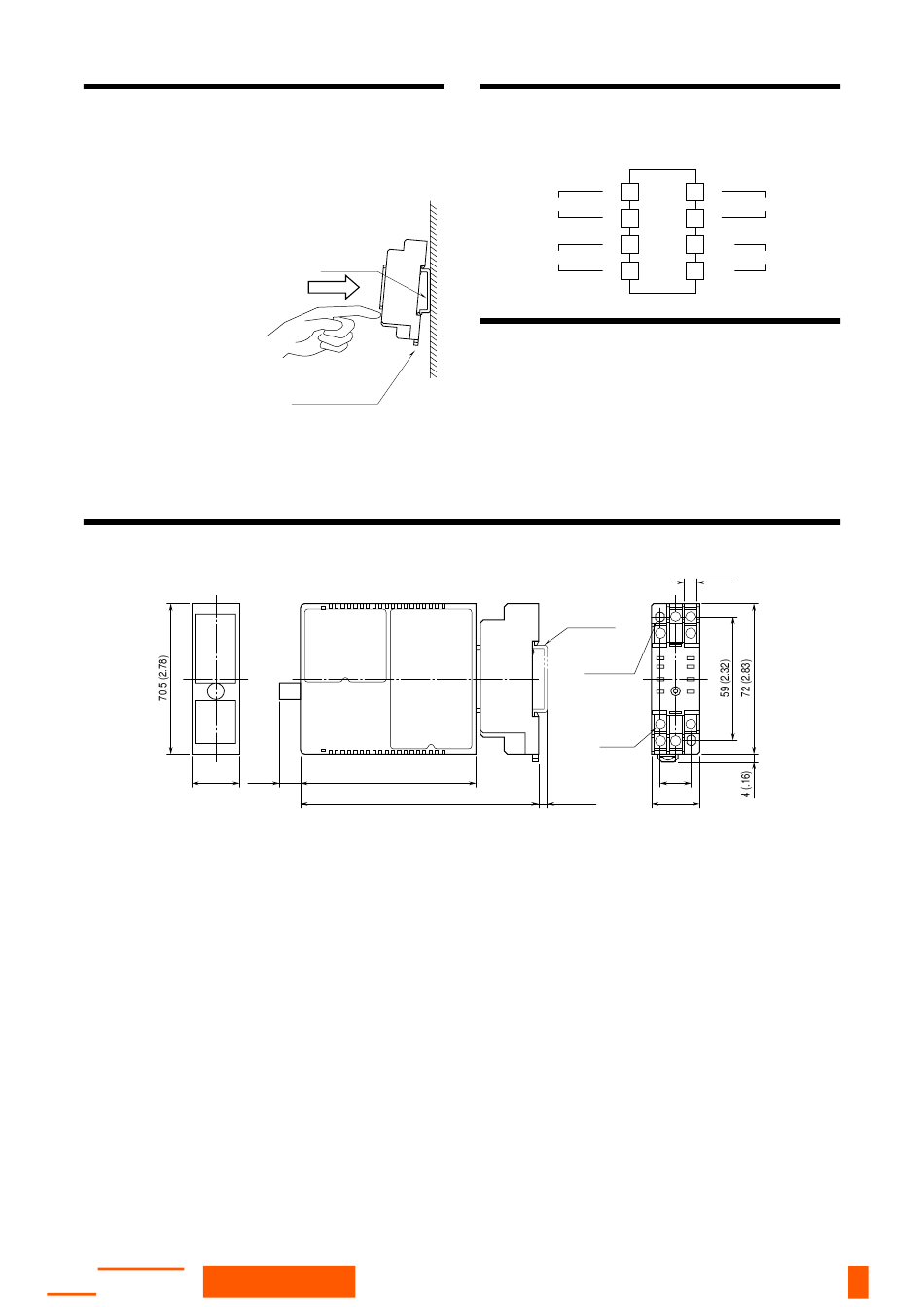

EXTERNAL DIMENSIONS

21.5 (.85)
SEN TRONIC
AG
Produkte, Support und Service
DIN Rail
35mm wide
Spring Loaded
DIN Rail Adaptor
unit: mm (inch)
10 (.39) 84 (3.31)
114 (4.49)
Rugghölzli 2
CH - 5453 Busslingen

TERMINAL CONNECTIONS

Connect the unit as in the diagram below or refer to the con-
nection diagram on the side of the unit.
+ 1
INPUT 1
–
4
+
5
INPUT 2
–
8
CHECKING
1) Terminal wiring: Check that all cables are correctly con-
nected according to the connection diagram.
2) Power input voltage: Check voltage across the terminal
13 – 14 with a multimeter.
3) Input: Check that the input signal is within 0 – 100% of
the full-scale.
4) Output: Check that the load resistance meets the de-
scribed specifications.
DIN RAIL
35mm wide
2–4.2x5
(.17x.20)
MTG HOLE
6 (.24) deep
8–M3
SCREW
[4 (.16)]
• When mounting, no extra space is needed between units.
Tel. +41 (0)56 222 38 18
Fax +41 (0)56 222 10 12
M2SES
9 +
OUTPUT
–
12
13
U(+)
POWER
14
V(–)
6 (.23)
4 1
8 5
12 9
14 13
15 (.59)
23 (.91)
