Grizzly G5786 Instruction Sheet

EYE/EAR INJURY HAZARD!
Wear safety glasses and
hearing protection during
use of this tool!
Always disconnect tool from
air to prevent unexpected
operation during service!
Never
Always
with correct speed rating.
RESPIRATORY HAZARD!
Grinding
dust. Wear the appropriate
protection during use!
Introduction
This 11,000 RPM Angle Grinder features a large
paddle switch with safety mechanism and side
handle for super control. G5786 has
Includes two wrenches. Weighs 5 lbs.
Inventory
A. 5" Air Angle Grinder ................................... 1
B. Handle ........................................................ 1
C. Flat Wrench ................................................ 1
D. Pin Wrench ................................................. 1
Operation
Tool requires 90 PSI and
operate correctly.
Make sure grinding wheel is backed by flange and
tightened securely with the flange nut.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
INJURY HAZARD!
EXPLOSION HAZARD!
exceed 120
use accessories
produces
⁄ " arbor.
7
8
⁄ " NPT air fitting to
1
4
COPYRIGHT © FEBRUARY, 2006 BY GRIZZLY INDUSTRIAL, INC.
#PC8032 PRINTED IN TAIWAN
INSTRUCTION SHEET
PSI!
fine
Angle Grinder MUST have 3-4 drops of oil directly
dropped into the air fitting before each use as
shown in Figure 2.
Figure 3. Lubricating directly into air fitting.
If you need help with your new pneumatic tool,
call our Tech Support at: (570) 546-9663.
Grinding Wheels
Model H4790 ........................................... 5 x
Model H4791 ........................................... 5 x
MODEL G5786
5" AIR ANGLE
GRINDER

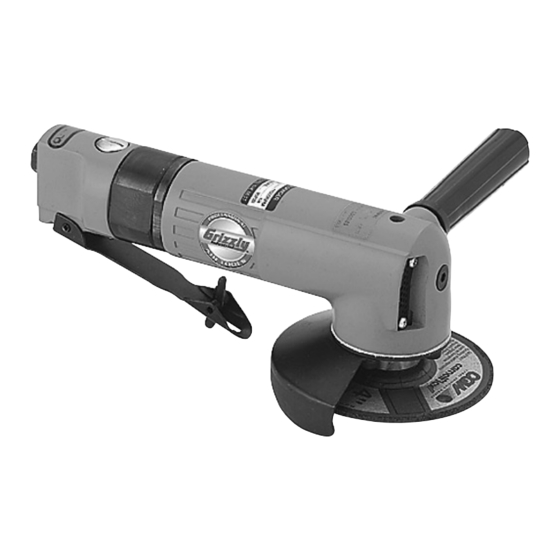

Figure 1. Model G5786.
⁄ "
